14 x 40 Lathe with Newall DP700 DRO & Taper Attachment 311450J
14 x 40 Lathe with Newall DP700 DRO & Taper Attachment 311450J is backordered and will ship as soon as it is back in stock.

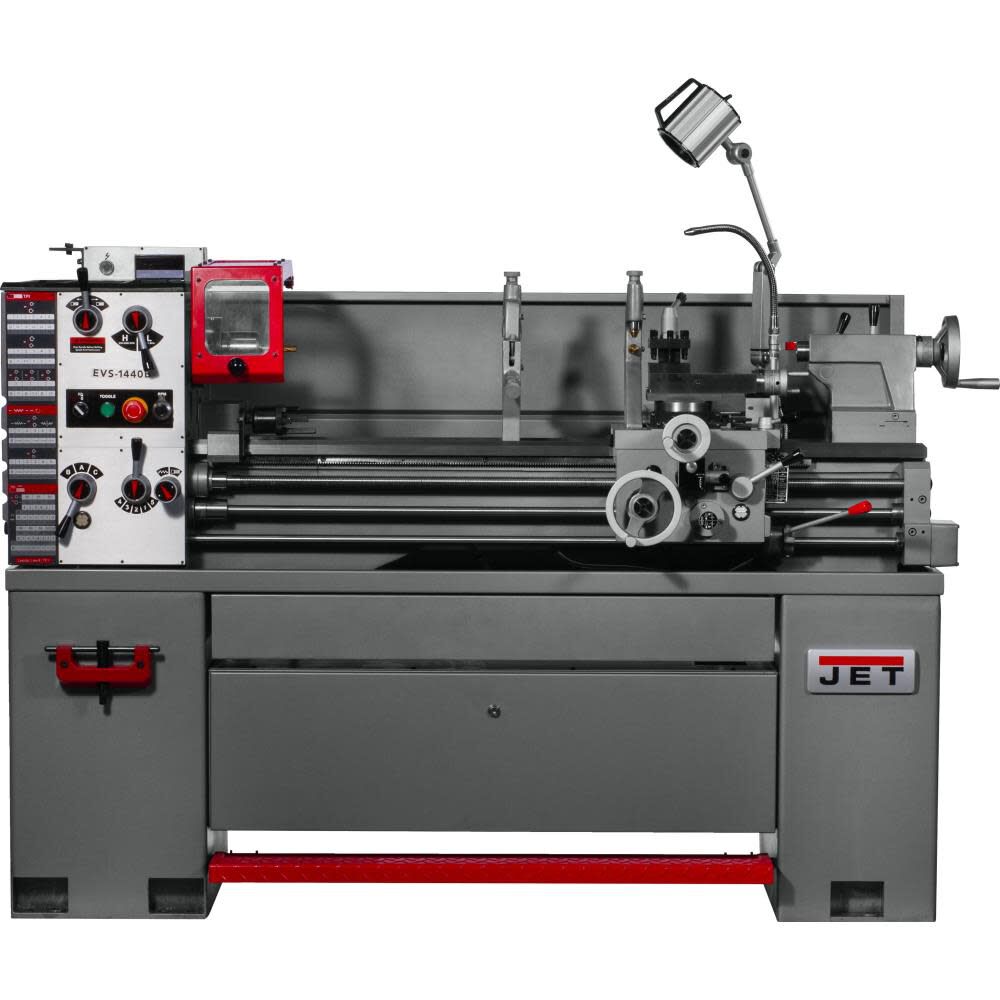

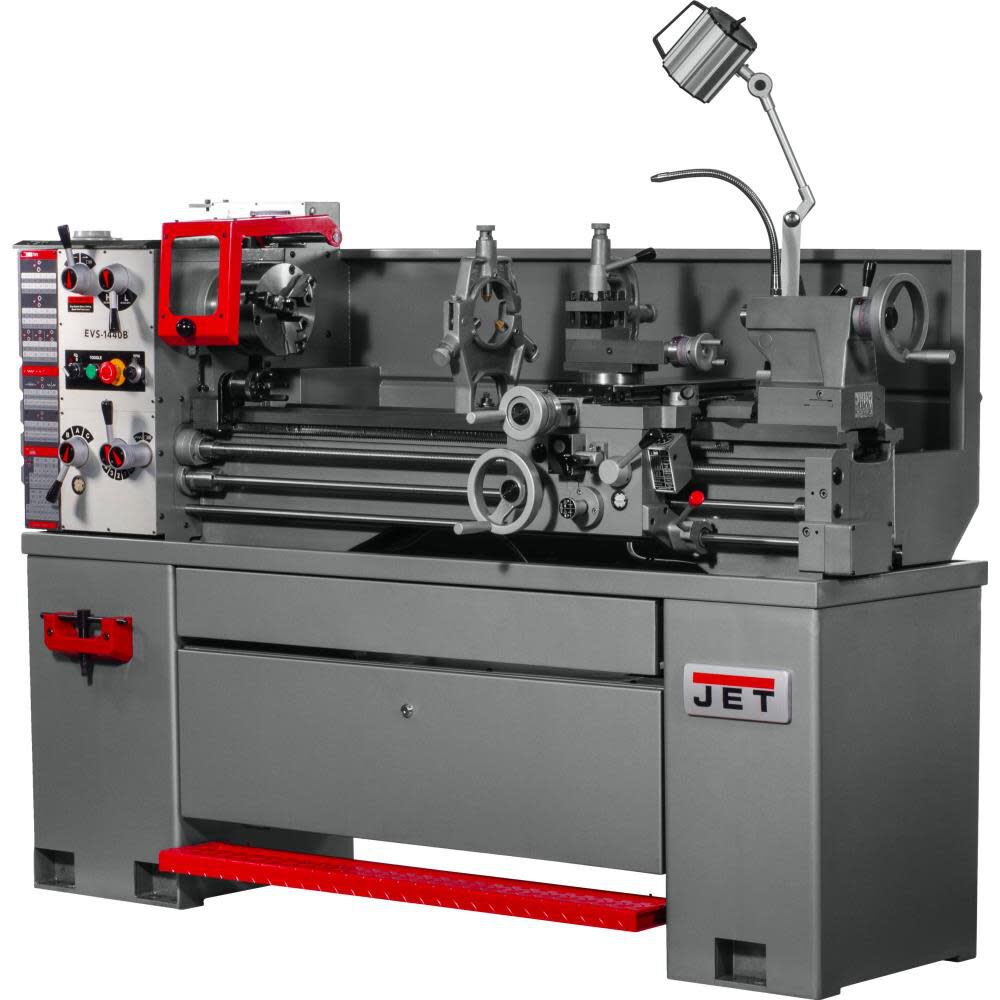

JET 14 x 40 Lathe with Newall DP700 DRO & Taper Attachment
The EVS-1440B is engineered to maximize your shopÄôs output.
The D1 4 spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004 In..

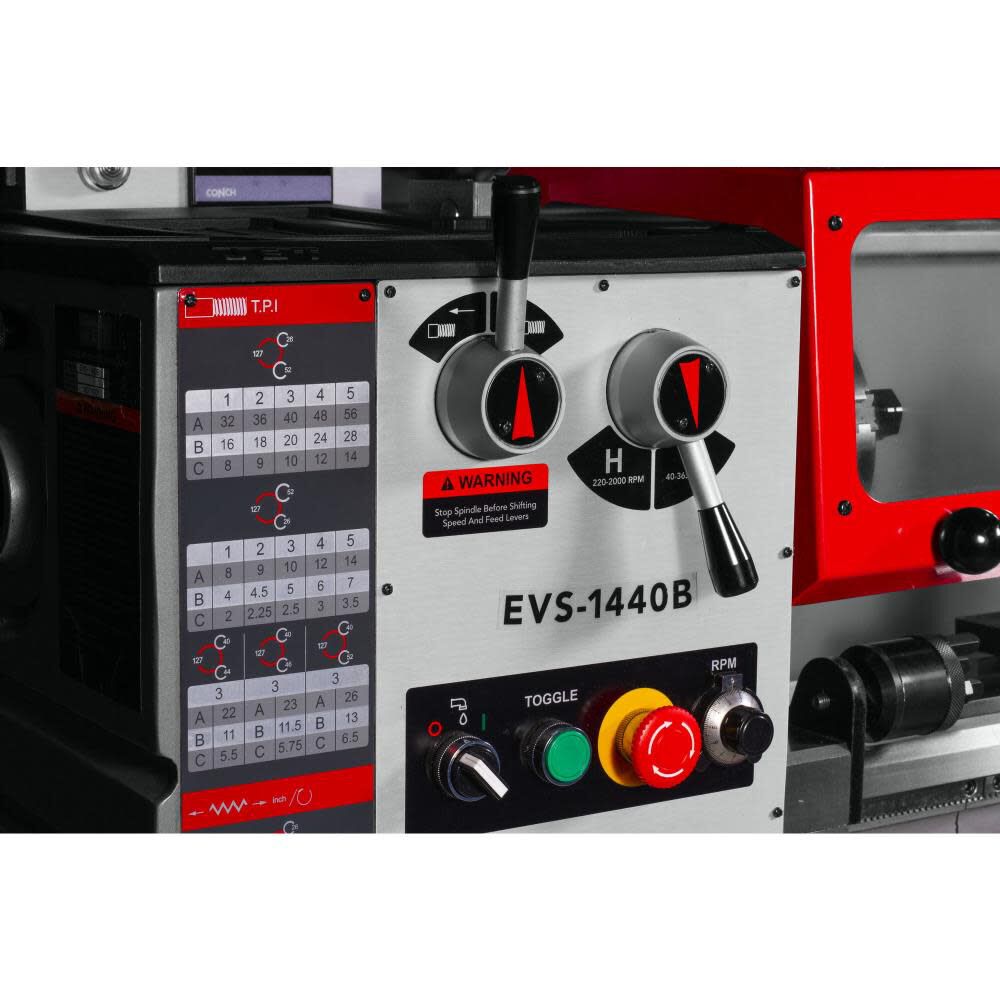

The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPM's.
Features
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent lead screw and feed rod
- Adjustable gibs are incorporated in the carriage and slide ways
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
- Meehanite castings retain their tolerance and remain rigid through many years of machining
- 14 x 40 Electronic Variable Speed Lathe with Newall DP700 DRO and Taper Attachment, 3 HP, 230/460 V, 3Ph
- Emergency stop within easy reach of the operator

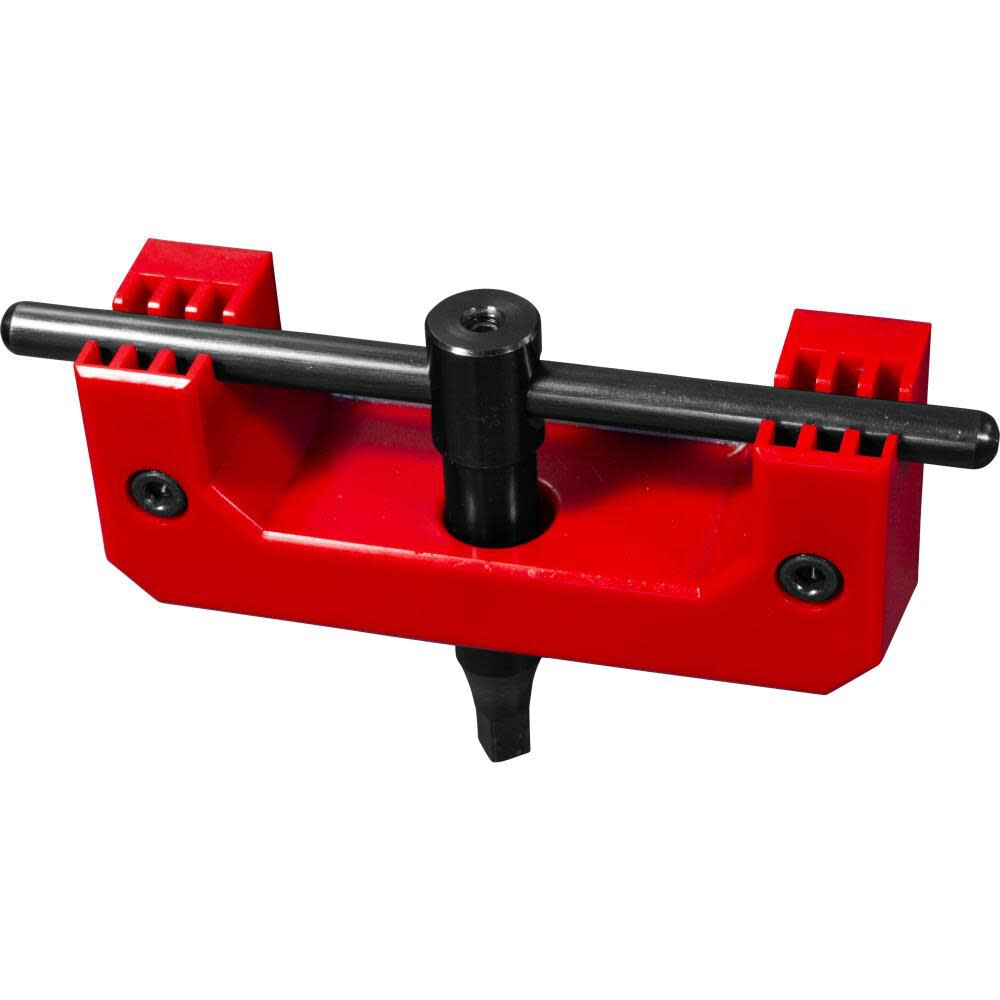

- Electronic chuck key docking station
Specifications
Brand Name - JET
Assembled Weight (lbs) - 1320
California Proposition 65 Warning Required - Yes
Center To Center (in) - 40
Color - Gray
Country of Origin - Taiwan
ETL Listed - No
Height (in) - 50
Horsepower (hp) - 3
MFG Part # (OEM) - 311450J
Maximum Speed (rpm) - 1800
Net Tool Weight (lbs) - 1320
Package Contents - 14 x 40 Lathe with Newall DP700 DRO & Taper Attachment
Package Depth - 68.5
Package Height - 50
Package Weight - 1584
Package Weight (lbs) - 1584
Product Condition - New
UL Listed - No
UPC - 731325792034
Variable Speed - Yes
Voltage - 230/460 Volts
Warranty Type - 2 Years Limited
