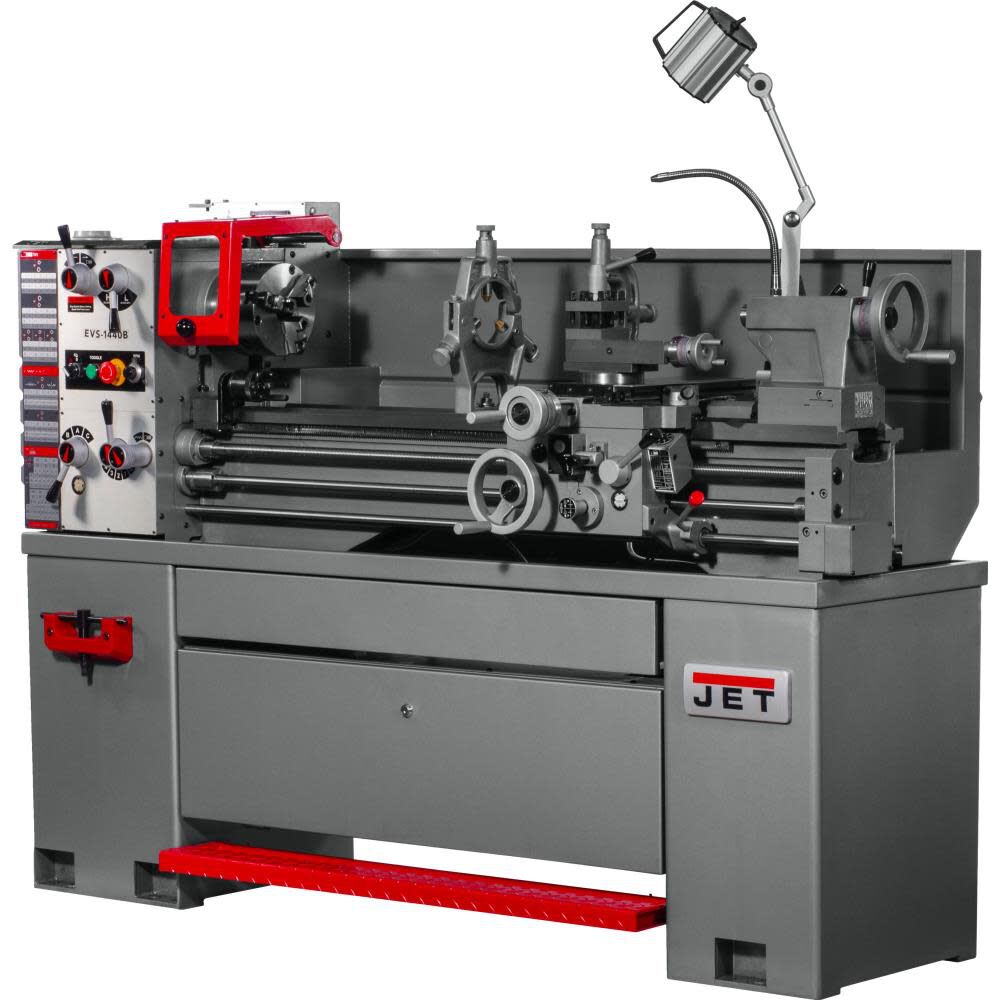

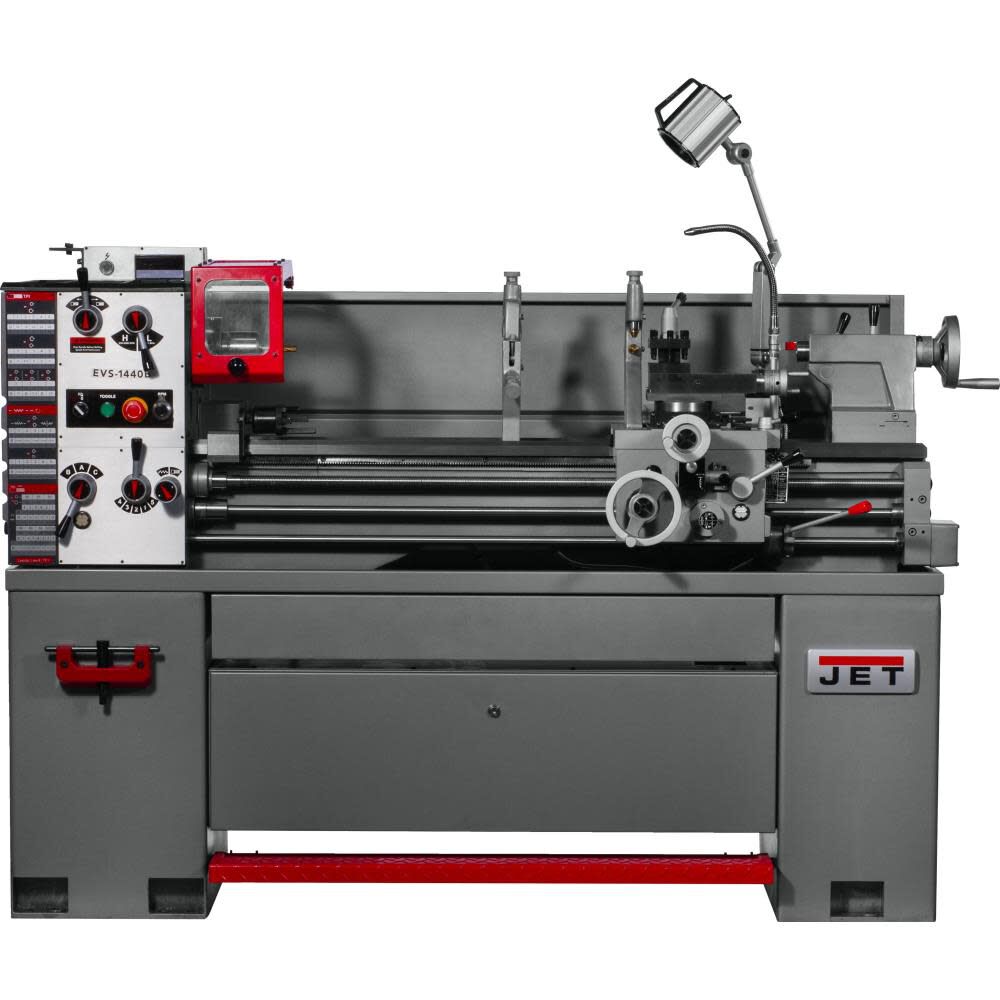

JET 14 x 40 Electronic Variable Speed Lathe
The EVS-1440B is engineered to maximize your shopÄôs output.
The D1 4 spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004 In..

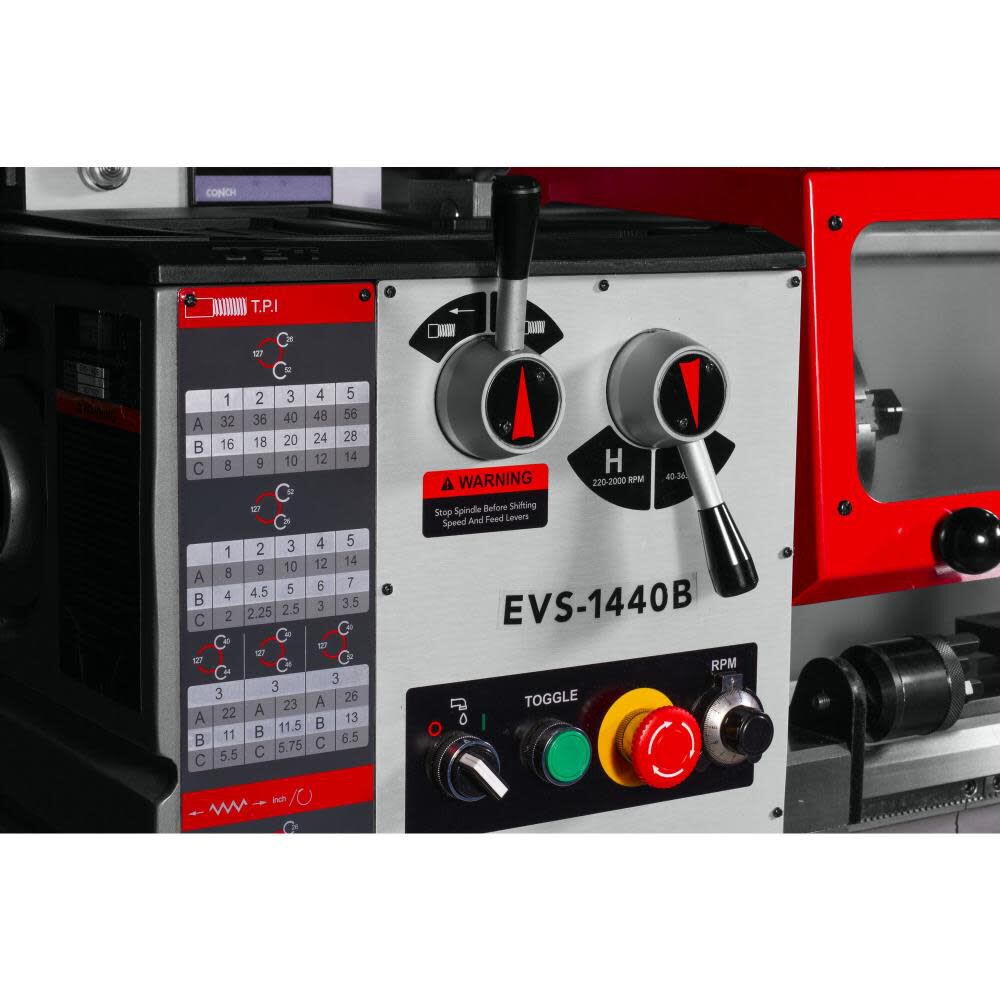

The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPM's.
California Proposition 65 Warning. View Warning LabelFeatures
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent lead screw and feed rod

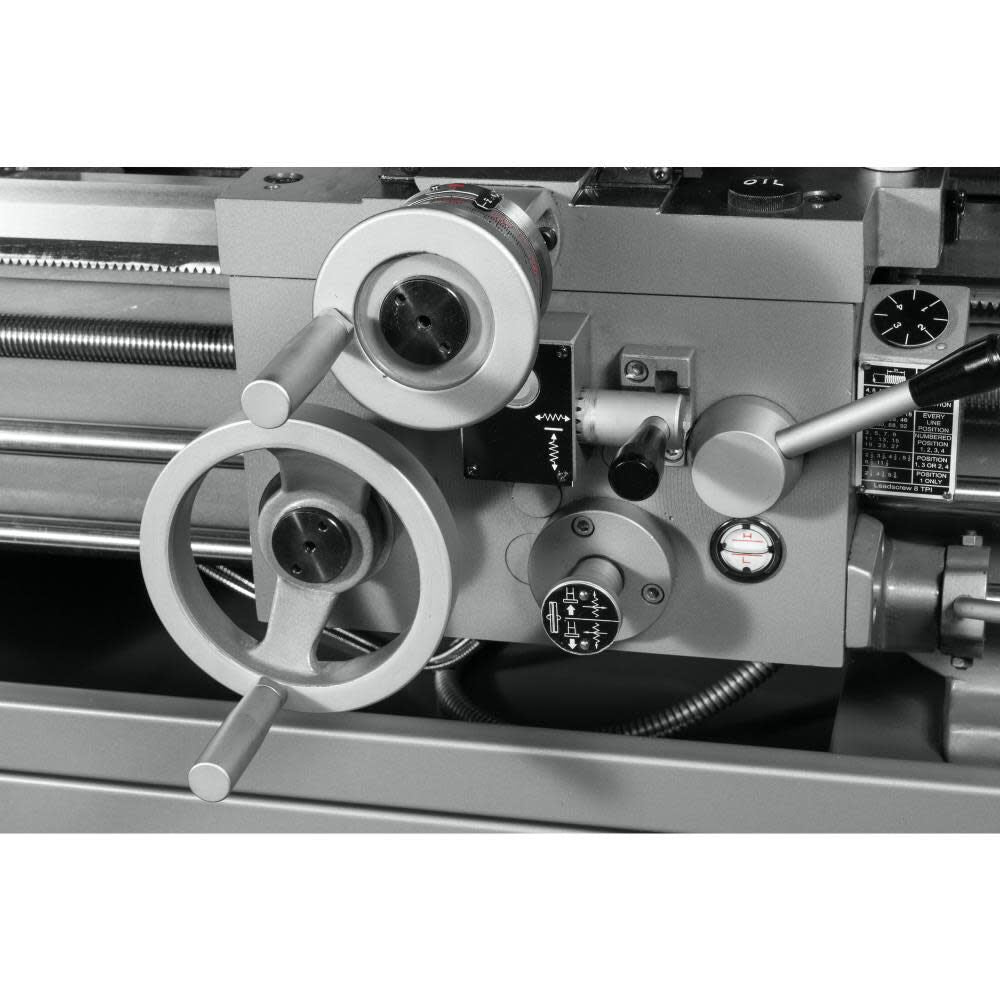

- Adjustable gibs are incorporated in the carriage and slide ways
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
- Meehanite castings retain their tolerance and remain rigid through many years of machining
- 14 x 40 Electronic Variable Speed Lathe with Newall DP700 DRO, 3 HP, 230/460 V, 3Ph
- Emergency stop within easy reach of the operator

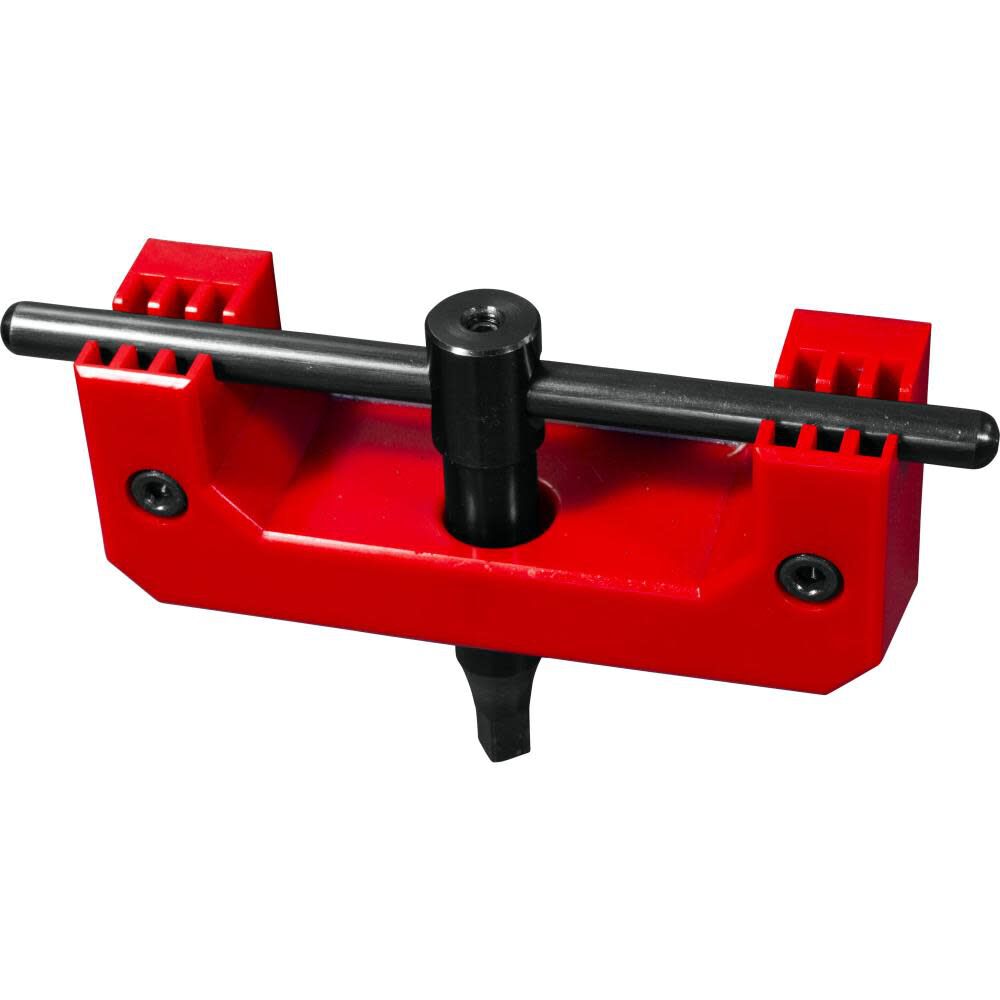

- Electronic chuck key docking station
Specifications
Brand Name - JET
Assembled Weight (lbs) - 1320
California Proposition 65 Warning Required - Yes
Center To Center (in) - 40
Color - Gray
Country of Origin - Taiwan
ETL Listed - No
Height (in) - 50
Horsepower (hp) - 3
MFG Part # (OEM) - 311448
Maximum Speed (rpm) - 1800
Net Tool Weight (lbs) - 1320
Package Contents - 14 x 40 Electronic Variable Speed Lathe
Package Depth - 68.5
Package Height - 50
Package Weight - 1584
Package Weight (lbs) - 1584
Product Condition - New
UL Listed - No
UPC - 731325792010
Variable Speed - Yes
Voltage - 230/460 Volts
Warranty Type - 2 Years Limited
