120 Gallon 175 Psi 230/460V 3-Phase 10HP Vertical Air Compressor ESP10V120V3
coming soon
Pay over 36 months | toolfleet
Gear up now, pay as you grow
120 Gallon 175 Psi 230/460V 3-Phase 10HP Vertical Air Compressor ESP10V120V3 is backordered and will ship as soon as it is back in stock.
Protect Your Tools With Toolguard
Protect Your Tools With Toolguard
Every hour your tool is lost or inoperable results in lost opportunities and income. That’s why we highly recommend to all tradespeople and businesses that use tools and equipment to have a reliable solution in place. Find out how Toolguard can help.
Description
Description

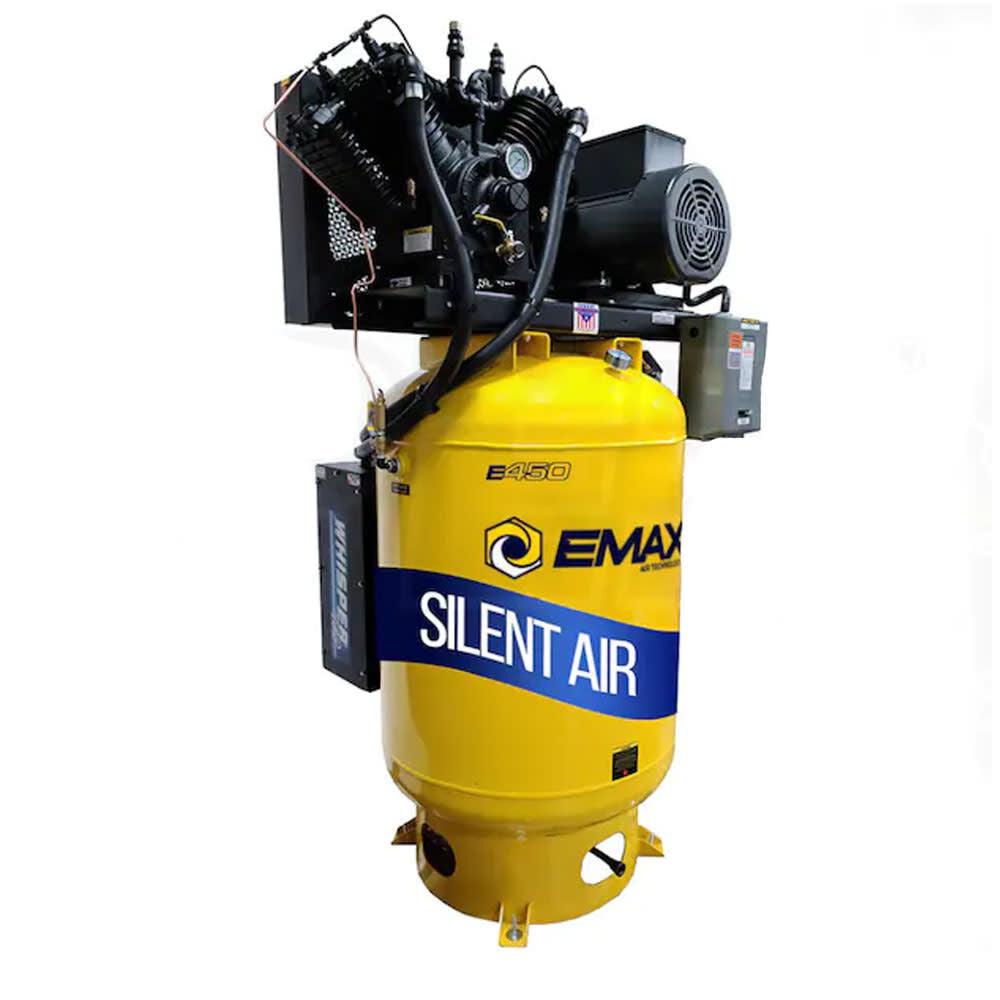

EMAX 120 Gallon 175 Psi 230/460V 3-Phase 10HP Vertical Air Compressor
This EMAX Industrial Plus 10HP 2 Stage V4 1 Phase vertical 120 gallon.
Piston air compressor is designed for up to 70000 hours of commercial or industrial use with proper maintenance.
This unit delivers 38 SCfm @ 100 Psi, top Psi of 175.
Our unit features industrial 1750 Rpm electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200 Psi rating, along with our continuous run functionality all paired with all cast iron 70,000 hour.
Rated patented pressure lubricated reciprocating pump.

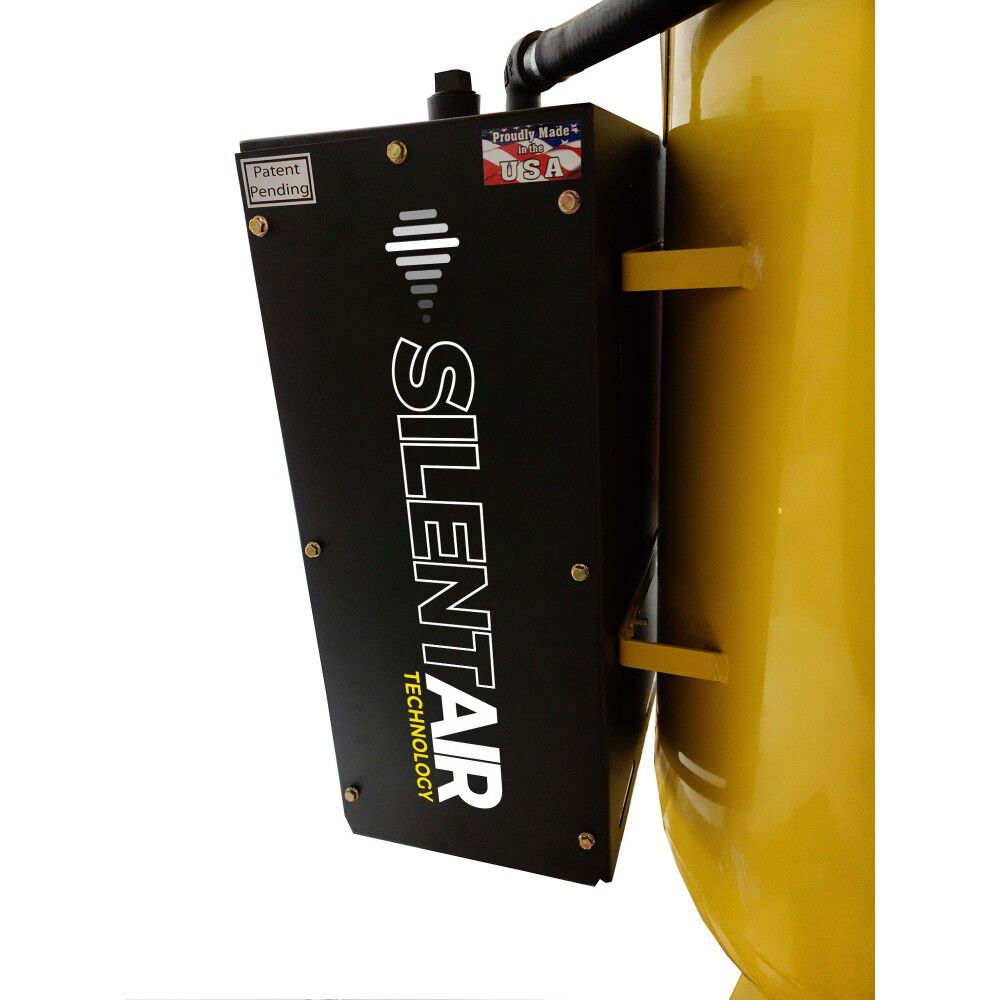

This unit features our patented Whisper100 silent air system already installed.
The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates.
This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%.
All backed by the warranty in the industry.
California Proposition 65 Warning.Features
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

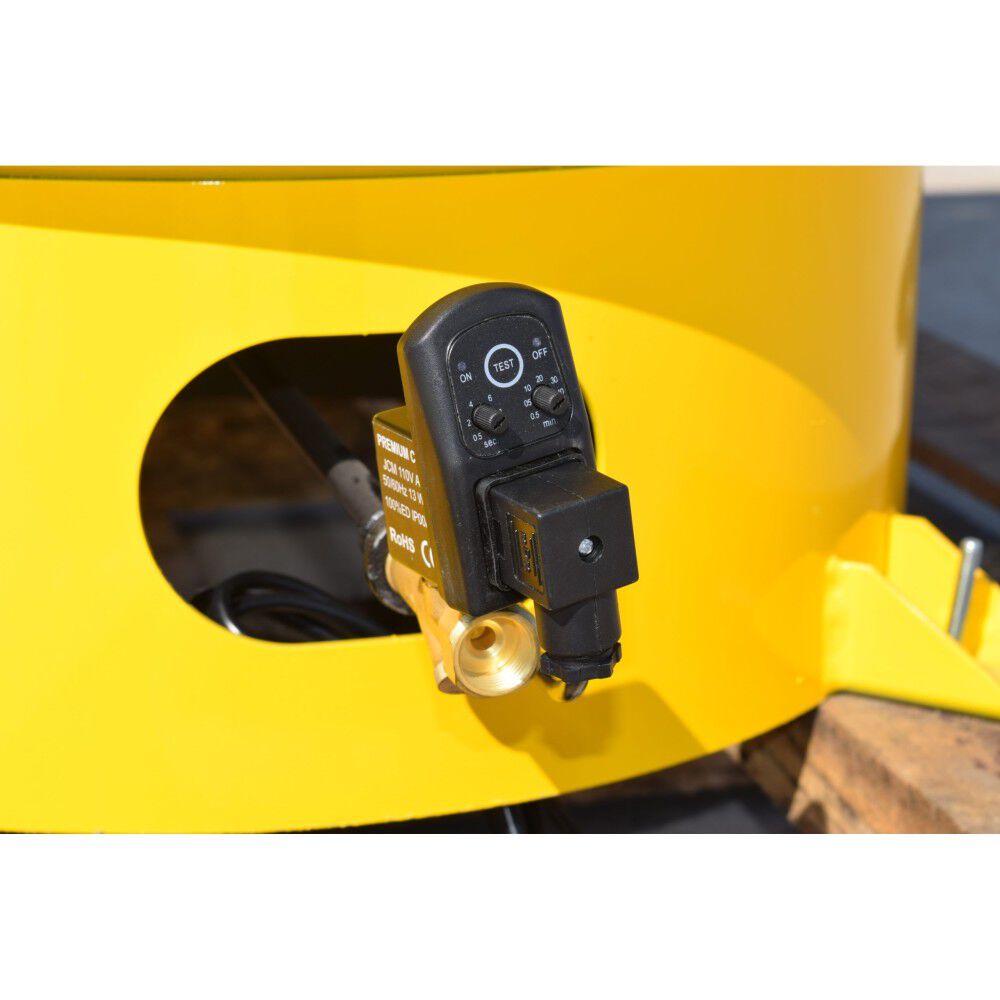

- Auto tank drain 110V dual timer controlled, eliminates daily maintenance
- Silent air technology
- ETL Certified
Specifications
Brand Name - EMAX
Air Volume (CFM) - 38
Assembled Weight (lbs) - 1020
Average Air Consumption (CFM) - 38
Compressor Design - Vertical
Country of Origin - United States
ETL Listed - Yes
Fuel Type - Gas
Horsepower (hp) - 10
MFG Part # (OEM) - ESP10V120V3
Material - Solid Cast Iron Pump
Maximum Air Pressure (psi) - 175
Maximum Pressure Rating (psi) - 175
Maximum RPM - 1750
Maximum Speed (rpm) - 1750
Operating Position - Vertical
Package Contents - Air Compressor
Package Depth - 41
Package Height - 79
Package Weight - 1020
Phase - Three Phase
Pressure Rating (psi) - 175
Product Condition - New
RPM - 1750
Tank Capacity (gal) - 120
Tank Configuration - Single
UPC - 815002014746
Warranty Type - 1 Year
Wheeled - No
