Generac 120/240-Volt 200-Amp NEMA 3R Smart Transfer Switch
This 200 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source.
Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level.
The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations.

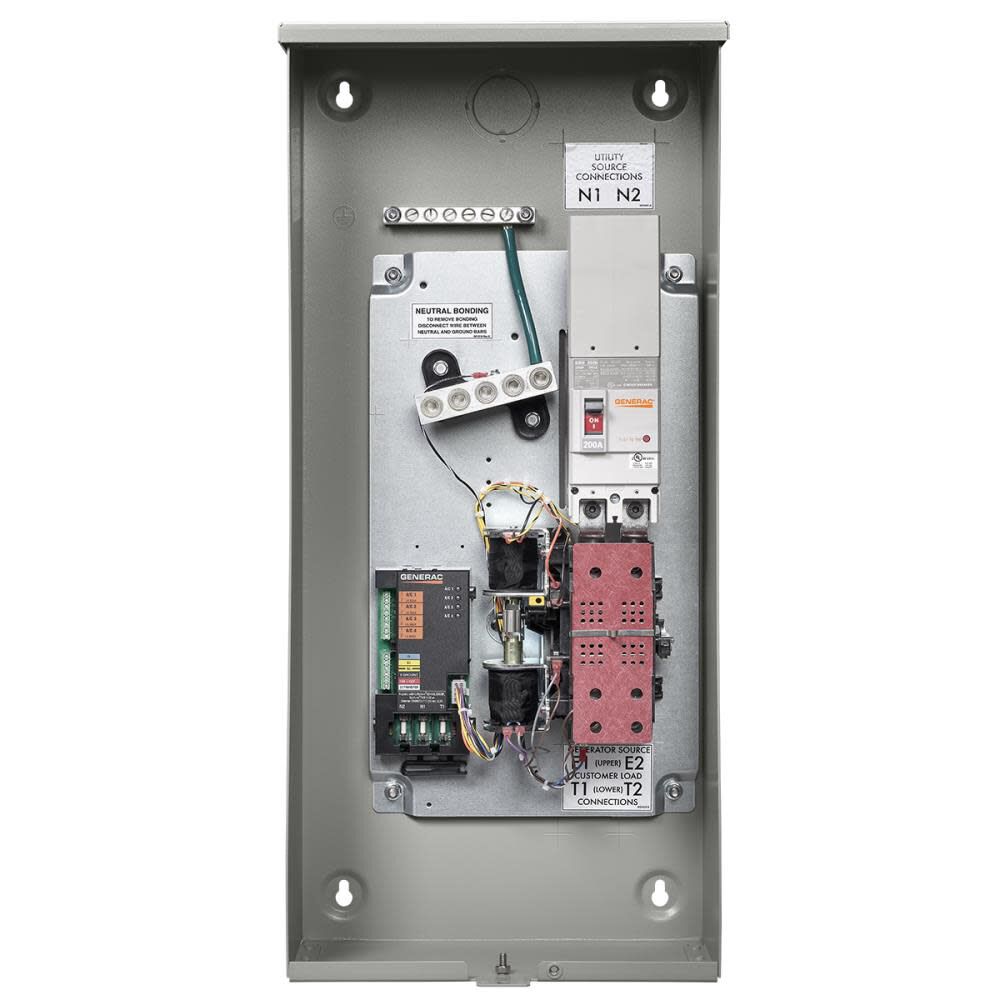

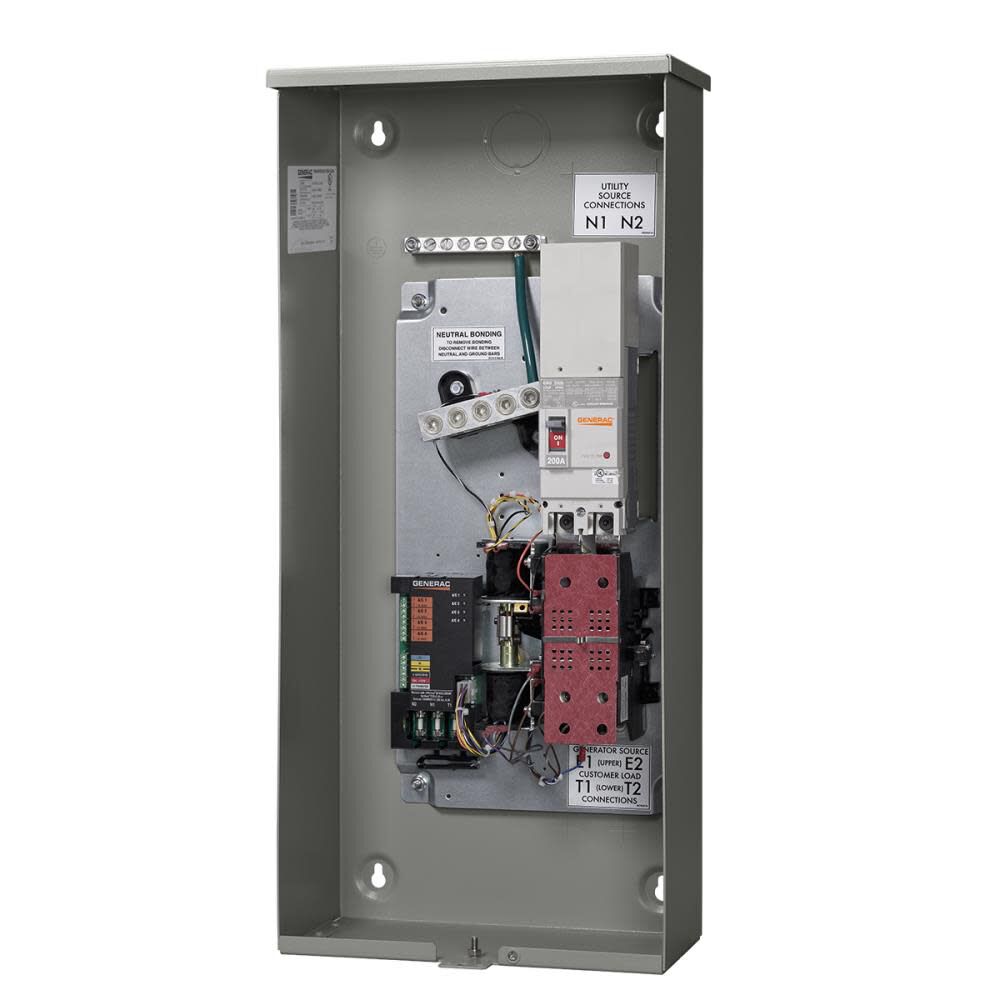

The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.
California Proposition 65 Warning. View Warning LabelFeatures
- Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
- Designed for use with single-phase generators that utilize an Evolution or Nexus Controller

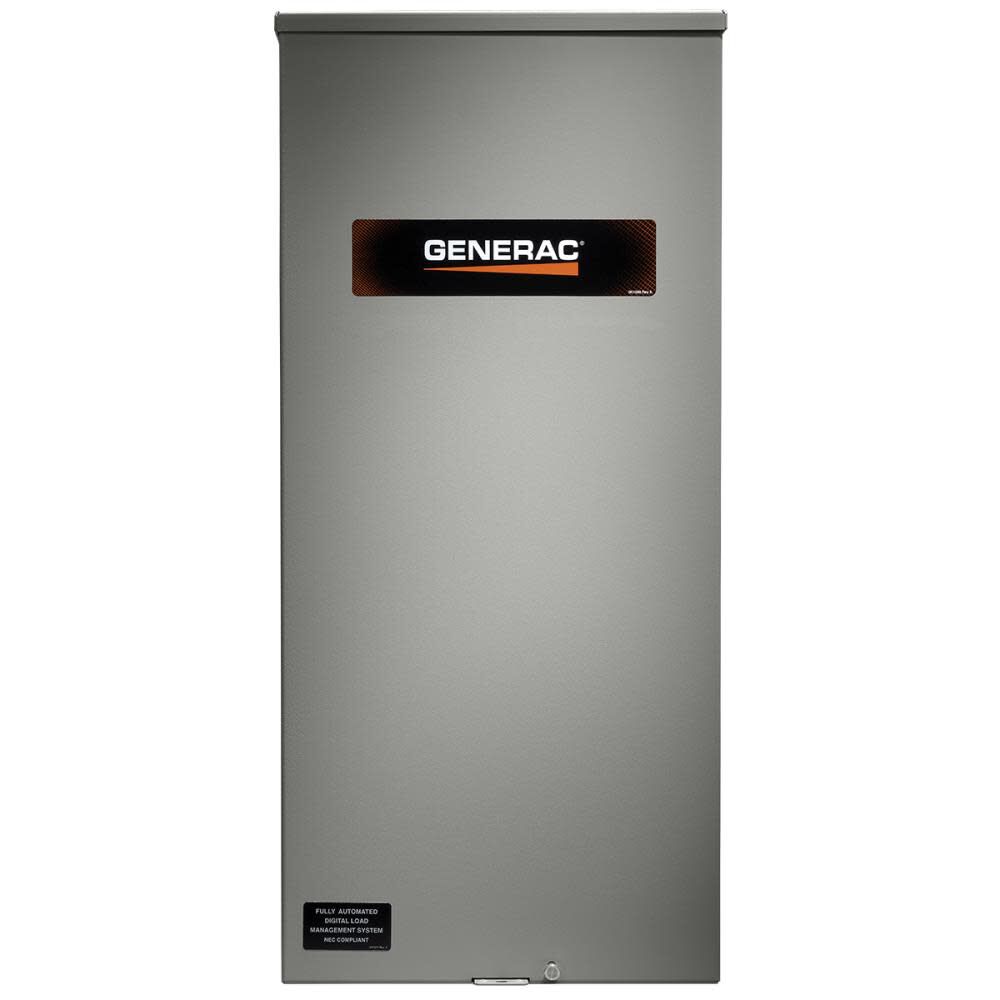

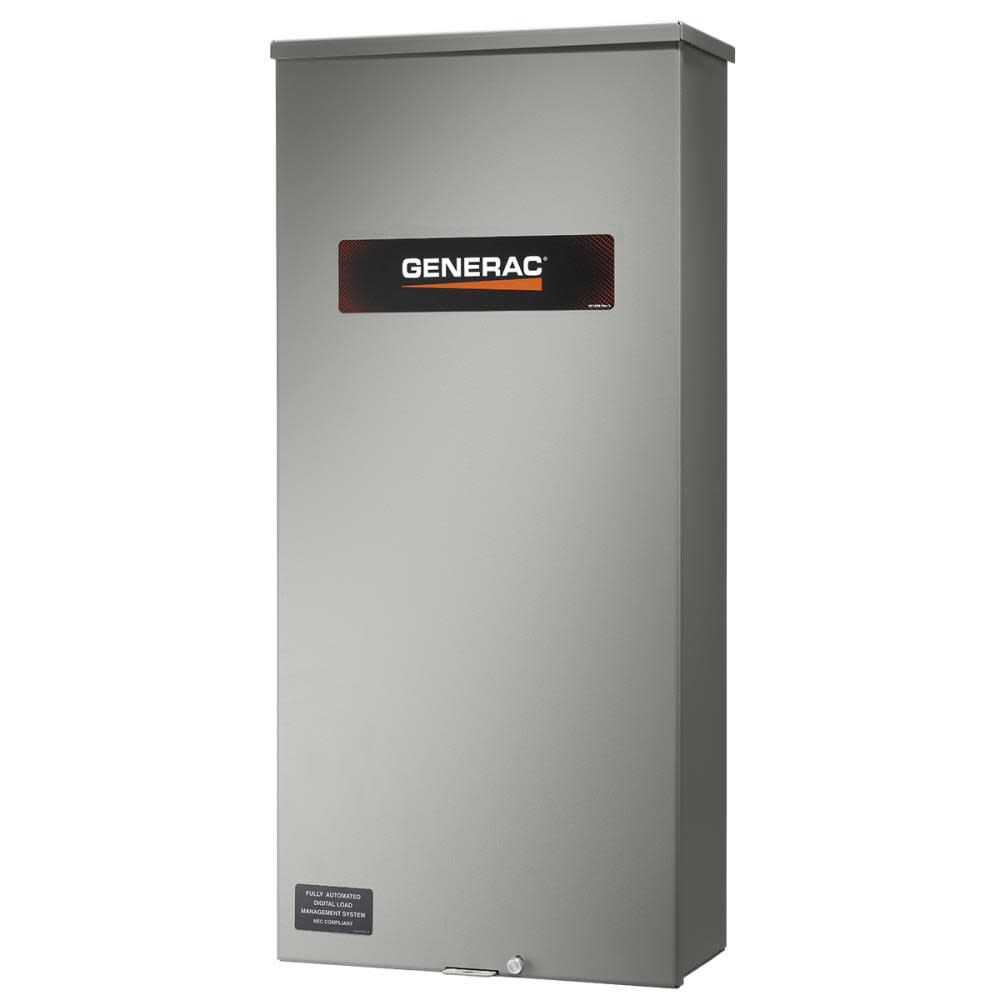

- Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
- Simplify installation with a board that combines load management and transfer switch hardware
- Decreases transfer switch complexity
- Smaller fuses integrated into the control board
- Gain even more flexibility when used in tandem with Smart Management Module
- The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)
- Single-phase, 120/240-volt; UL listed transfer switch
Specifications
Brand Name - Generac
Assembled Weight (lbs) - 39.0
California Proposition 65 Warning Required - Yes
Country of Origin - United States
Depth (in) - 31
Height (in) - 8
MFG Part # (OEM) - RXSW200A3
Maximum Wattage (W) - 22000
Package Contents - transfer switch
Package Depth - 31.0
Package Height - 8.0
Package Weight - 30.0
Package Weight (lbs) - 39
Product Condition - New
UPC - 696471069631
Warranty Type - 5 Years Limited
Weight (lbs) - 30
