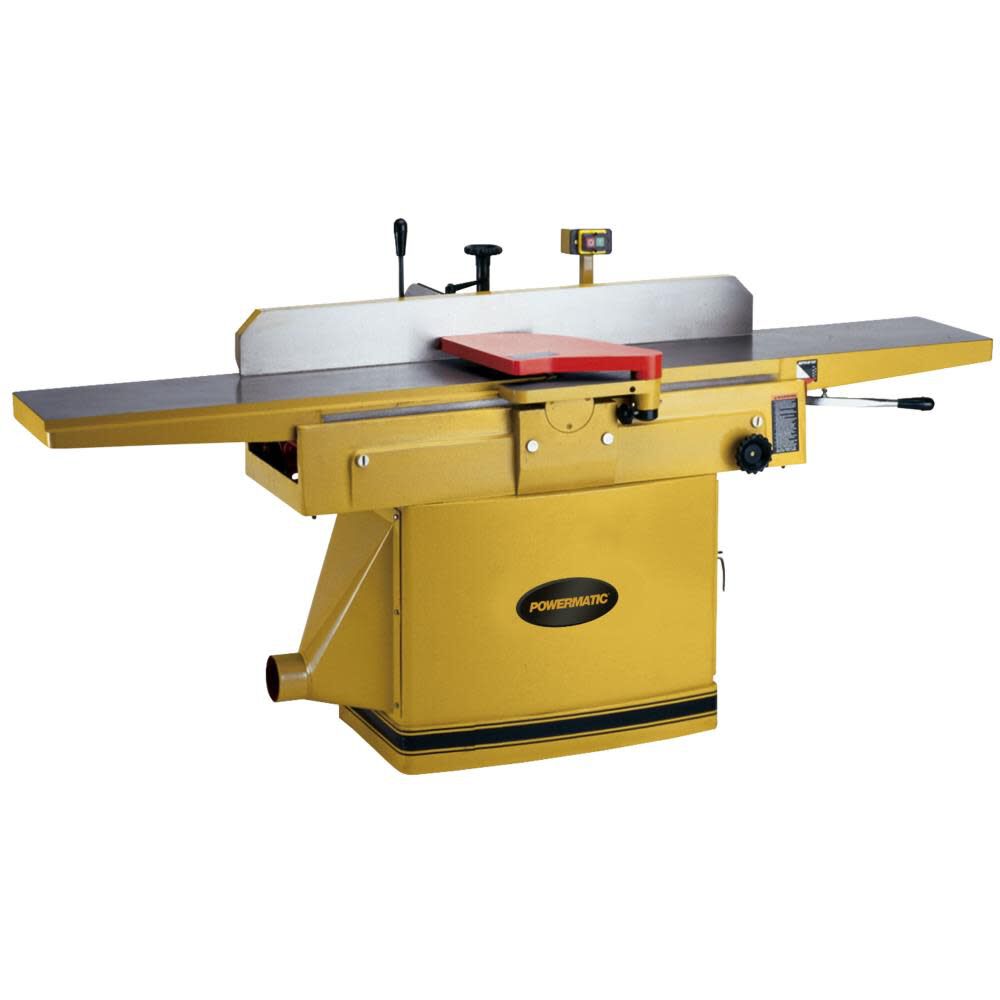

Powermatic 12 in Jointer 3HP 3PH 230/460V Helical Head
This 12" jointer offers big capacity and performance in a machine that is loaded with features.
Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock.
Preset stops on the fence body allow for fast angle set-up at 45∞ in and out, and a positive stop for perfect 90∞ angles.

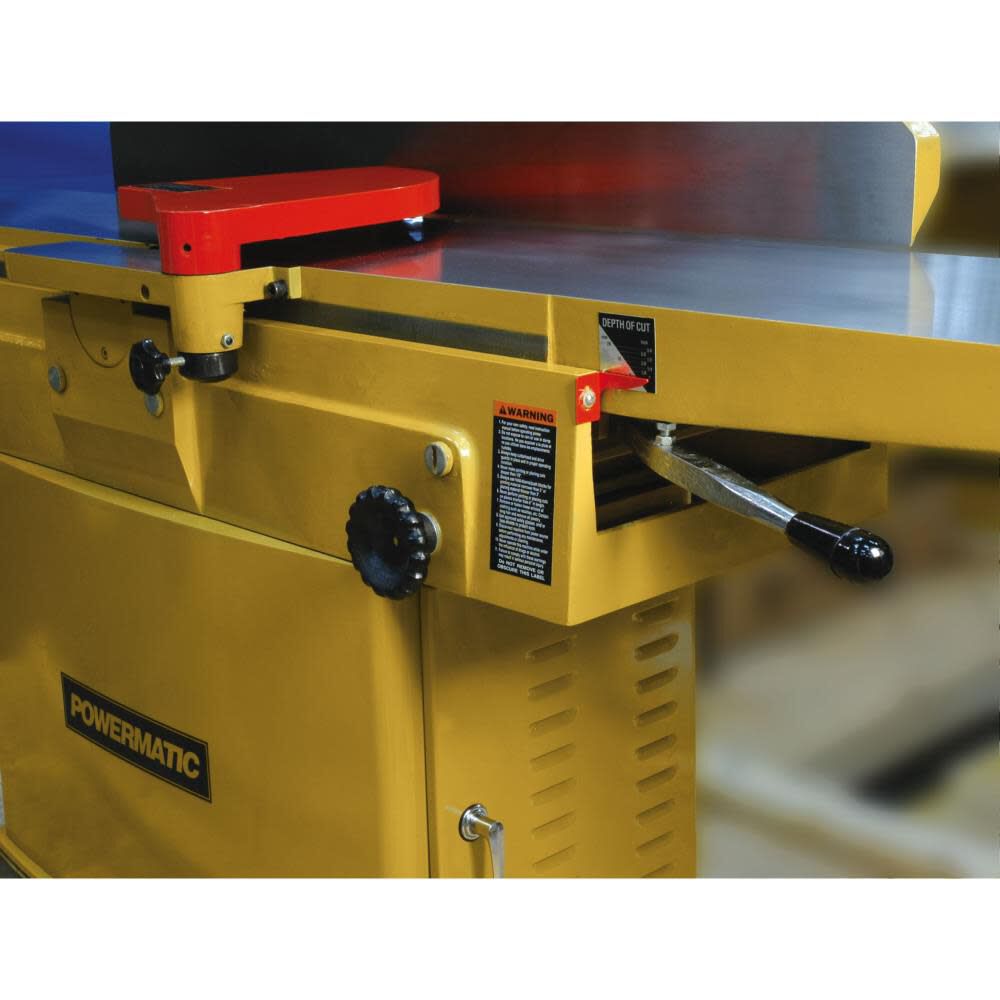

The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment.
This design also ensures the tables remain perfectly parallel even after years of tough duty.
Choose either the standard three-knife cutter head or the solid steel helical cutter head.
The helical system makes fast work of knife changing and never needs adjustment.
California Proposition 65 Warning. View Warning LabelFeatures

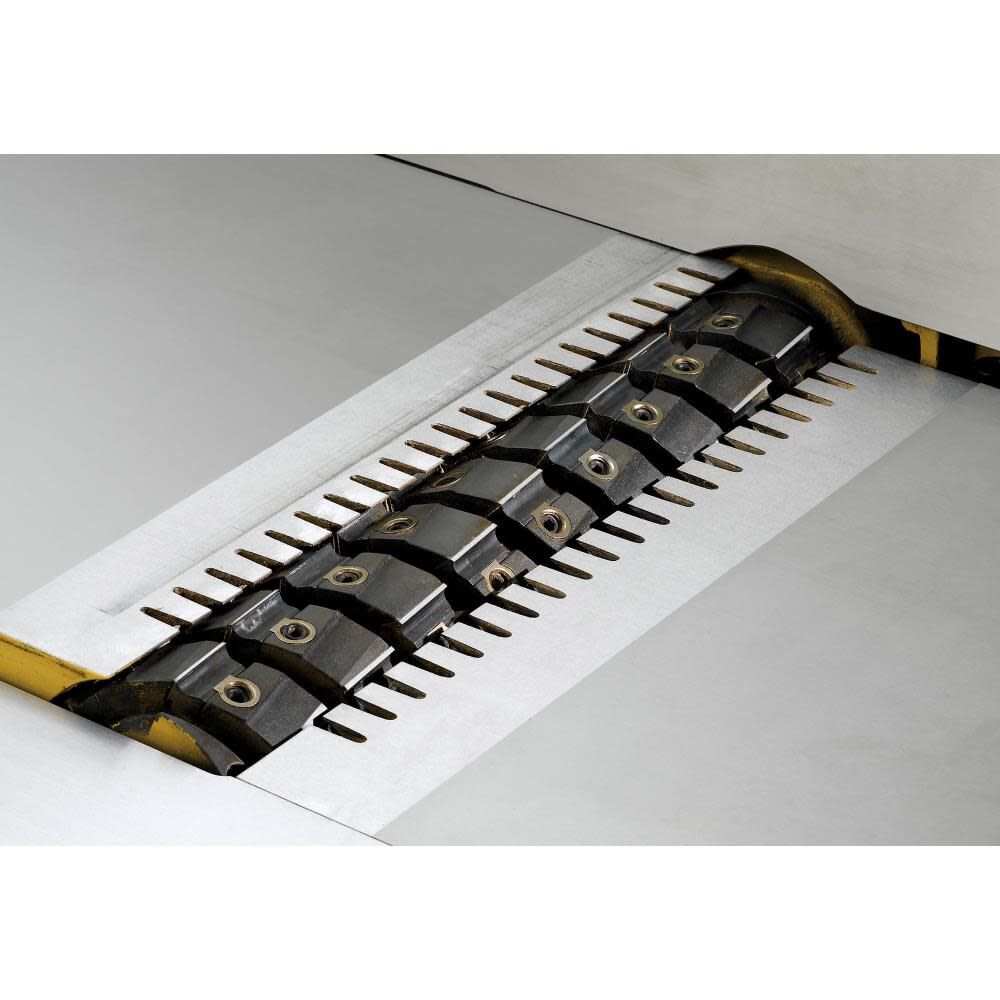

- Helical cutter head with 2-sided carbide inserts for fast knife changes with no adjustments

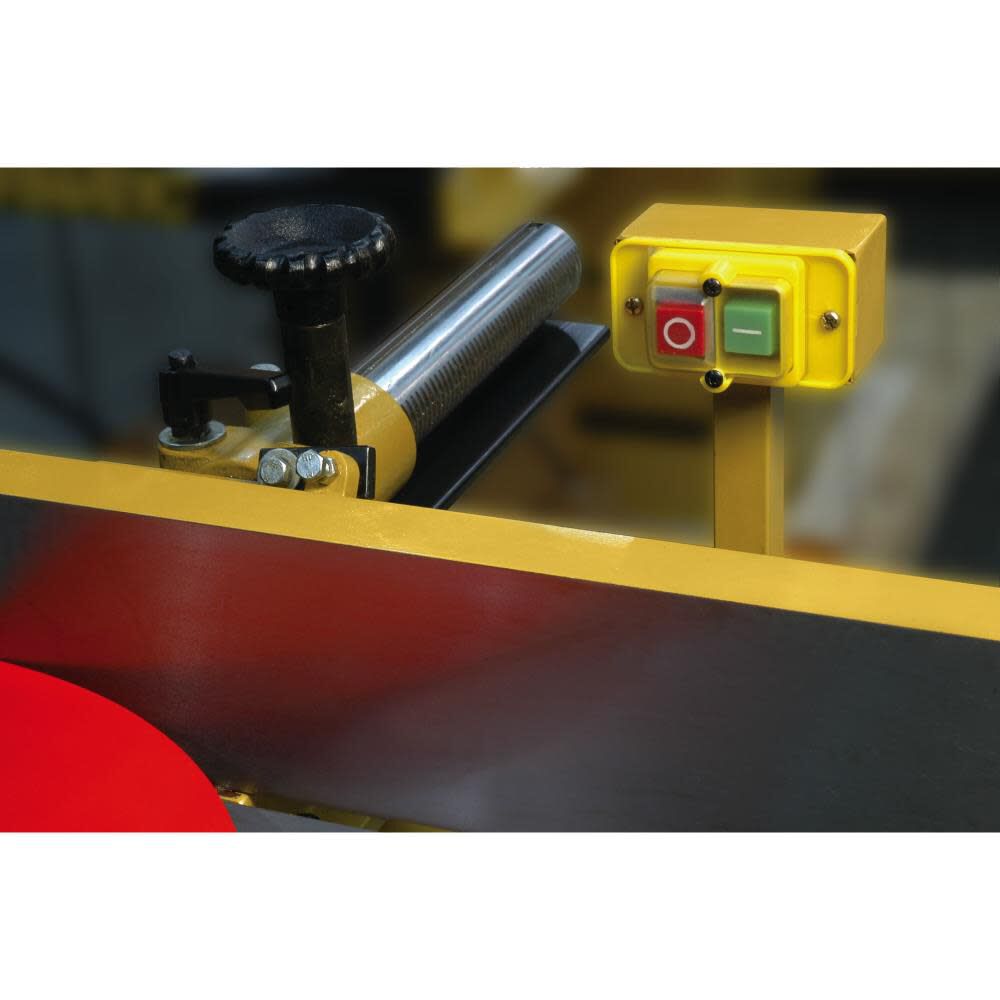

- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Parallelogram design for close table-to-cutter head proximity and fast depth of cut adjustments
- Large 84 x 12 table surface for heavy-duty work
- Table "lips" on both sides of cutter head aid in noise reduction
- Full size rabbeting ledge supports large workpieces for rabbets up to 3/4-in deep
- Motor provides plenty of power
- Cutter head guard
- Heavy duty fence
- Dust port
Specifications
Brand Name - Powermatic
Amperage (A) - 1.5
Assembled Weight (lbs) - 762
Bench or Stationary - Bench
Blade Count - 42
Blade Material - Steel
California Proposition 65 Warning Required - Yes
Color - Yellow
Country of Origin - Taiwan
CSA Certified - Pending
Dust Port - Yes
Horsepower (hp) - 3
MFG Part # (OEM) - 1791308
Maximum Cutting Depth (in) - 0.75
Maximum Speed (rpm) - 5000
Package Contents - 12 in Jointer 3HP 3PH 230/460V Helical Head
Package Depth - 89.5
Package Height - 39.0
Package Weight - 880.0
Package Weight (lbs) - 880
Product Condition - New
Speeds - 5000
Table Length (in) - 84
Table Width (in) - 12
UPC - 662755506109
Voltage - 230 Volts
Warranty Type - 5 Years
