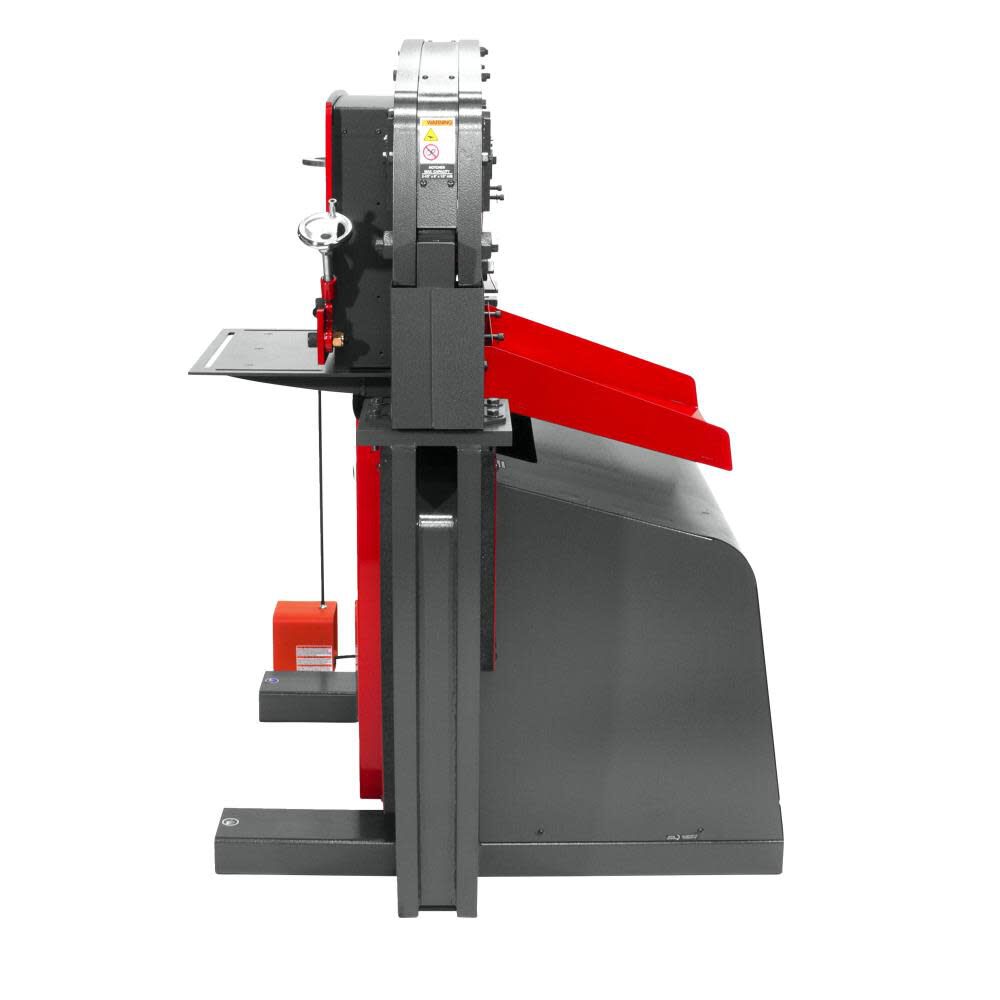

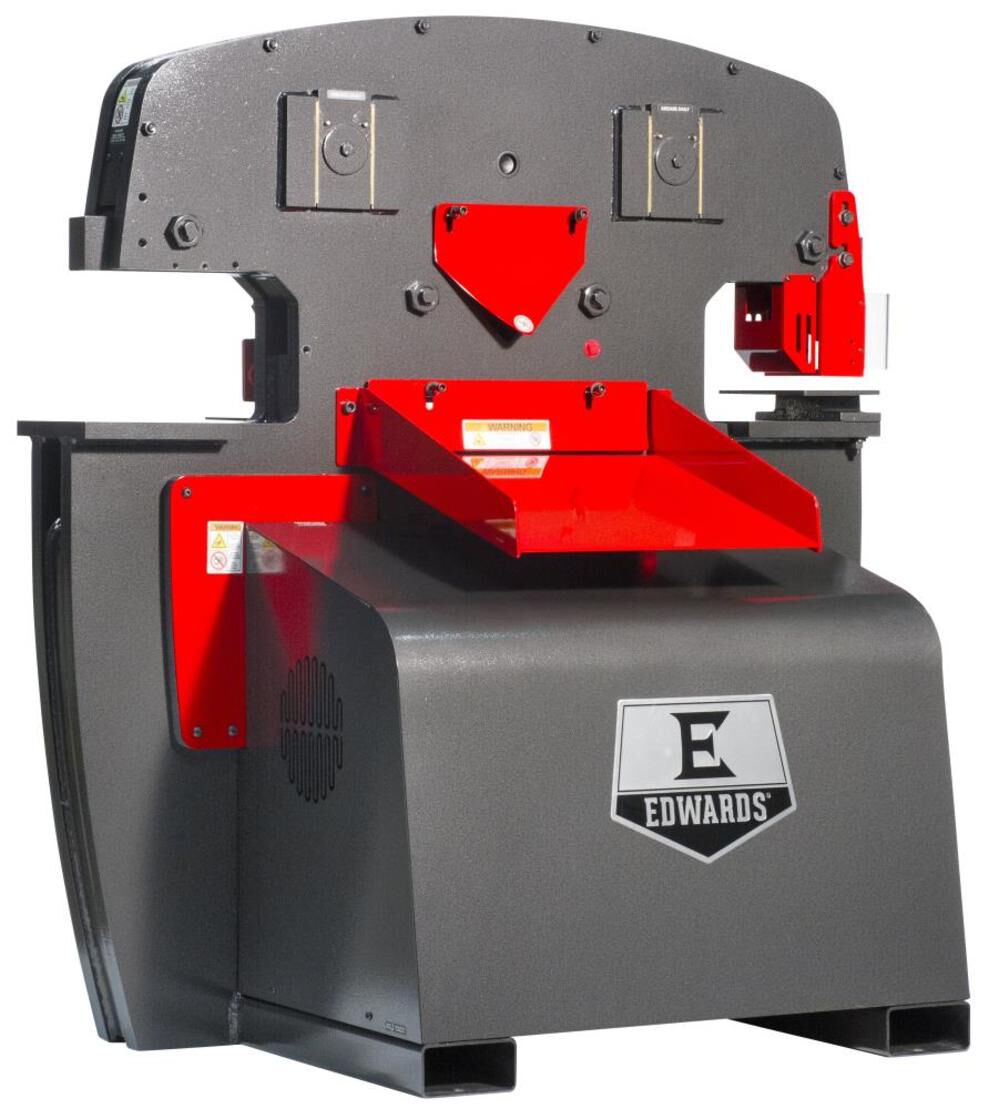

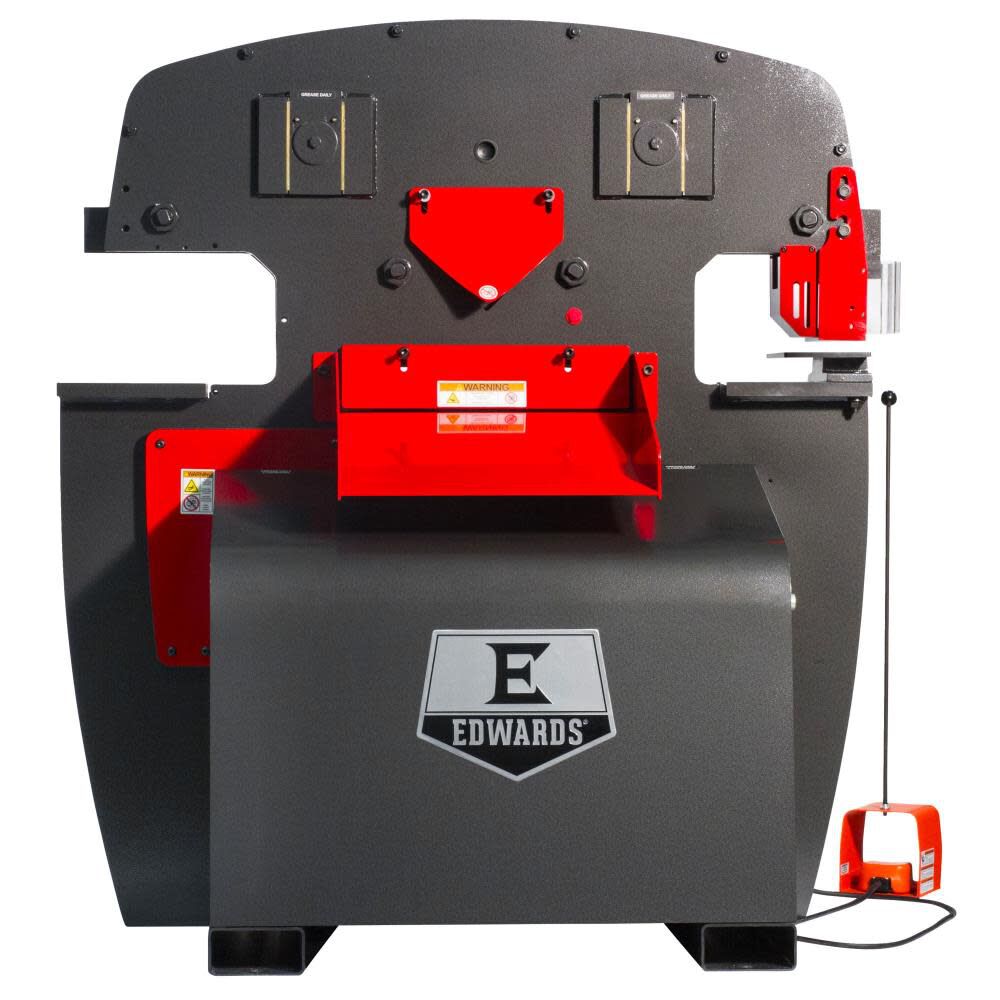

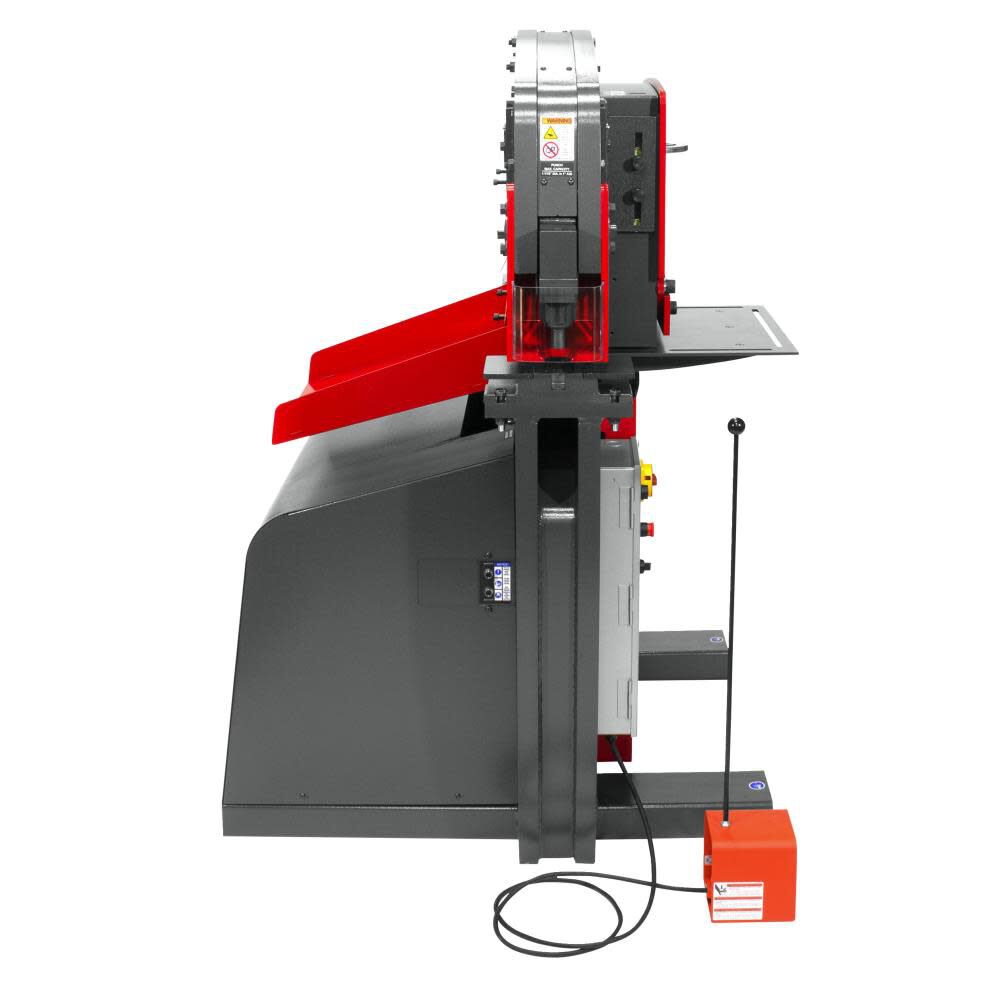

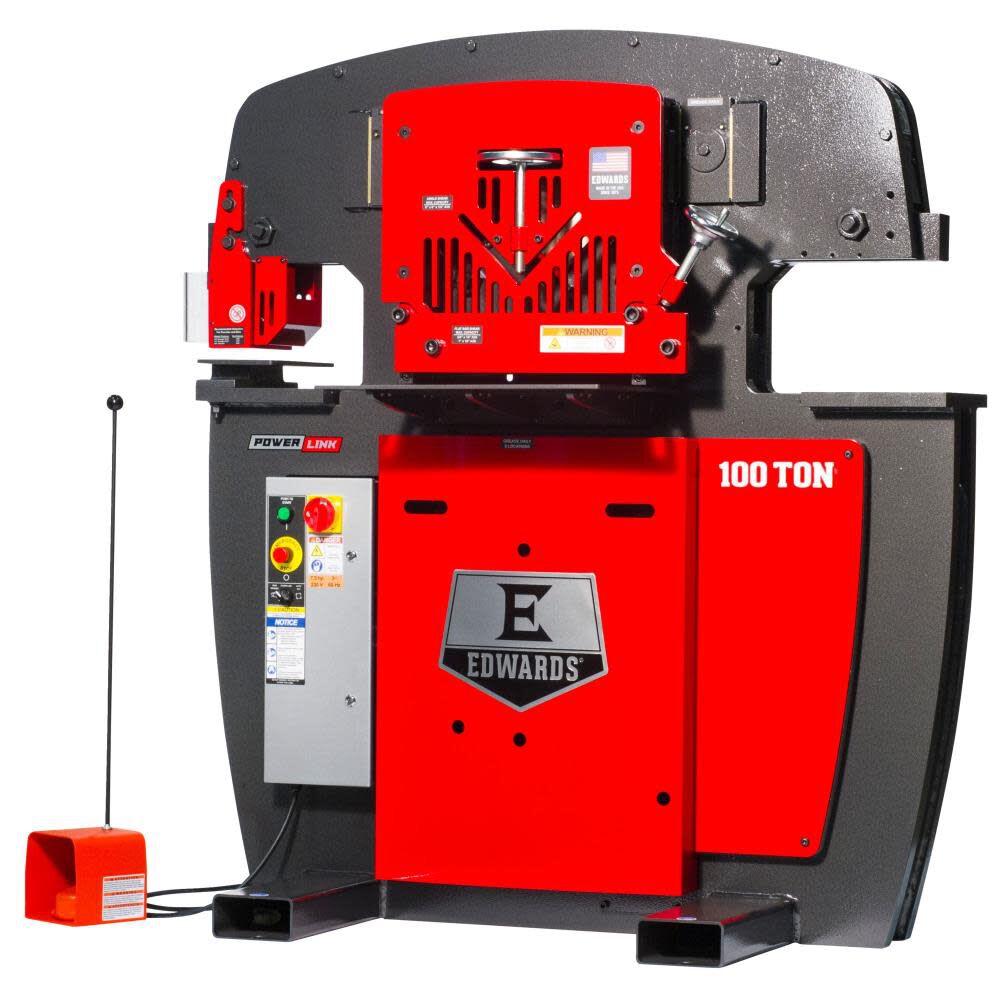

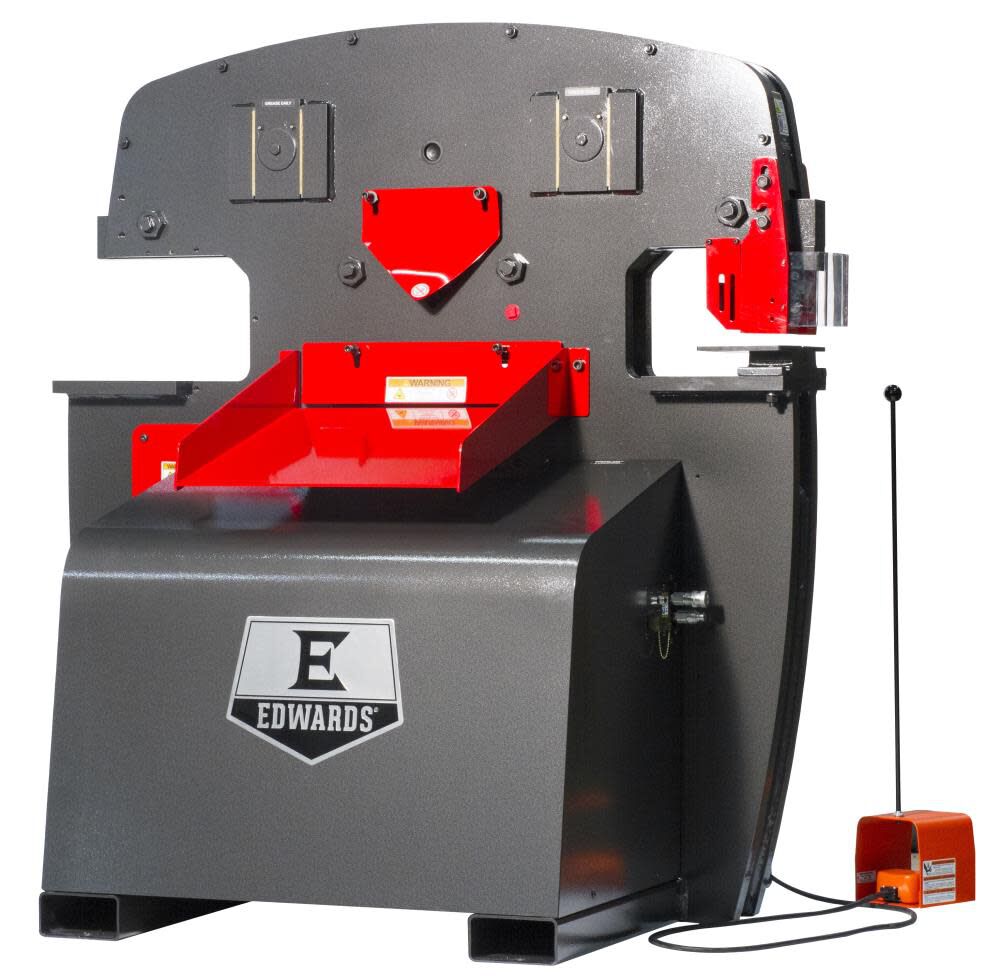

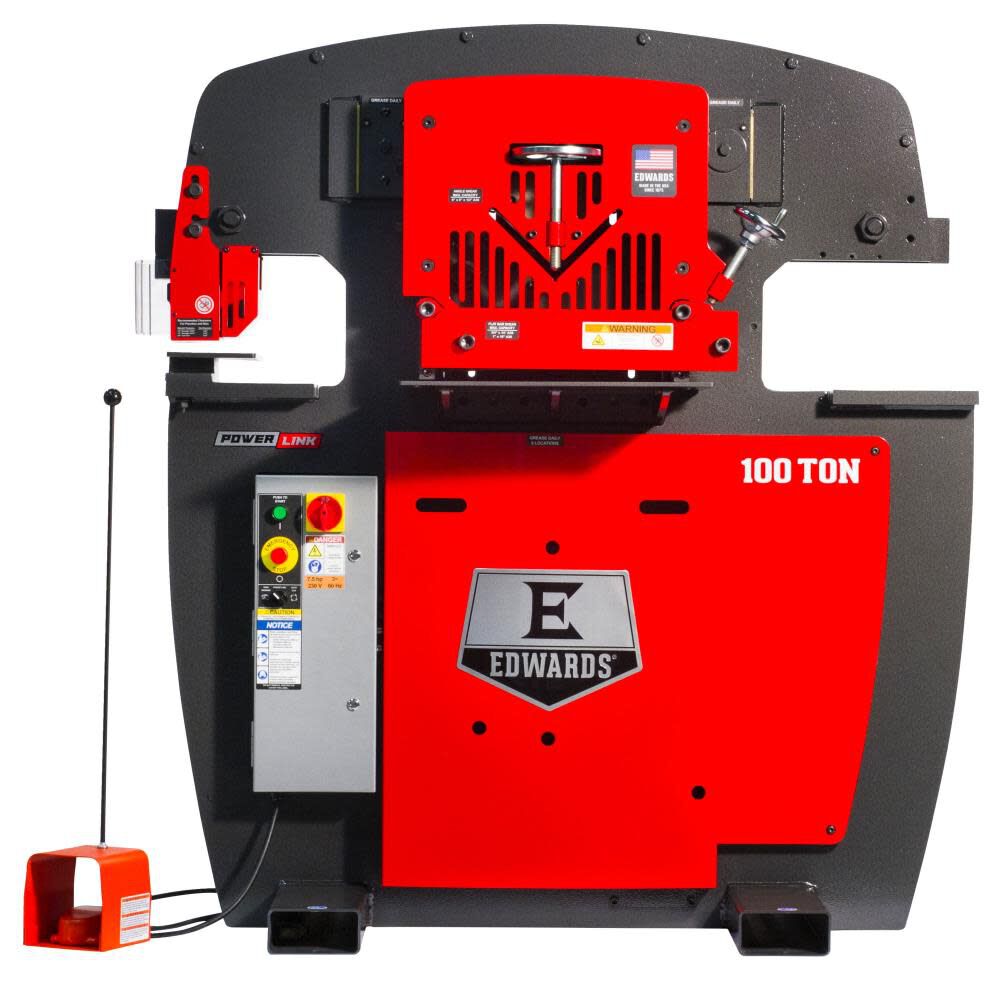

100 Ton Ironworker 3 Phase 208v with PowerLink System IW100-3P208-AC600
100 Ton Ironworker 3 Phase 208v with PowerLink System IW100-3P208-AC600 is backordered and will ship as soon as it is back in stock.
Edwards 100 Ton Ironworker 3 Phase 208v with PowerLink System
If you're looking for versatility and power, the Edwards 100 ton jaws ironworker is perfect for your shop.
Standard features include a punch assembly, a 14 In.
Wide flat bar shear, a high capacity angle shear and a universal open tooling station designed for optional tooling accessories allowing you to select the perfect tool for your needs.

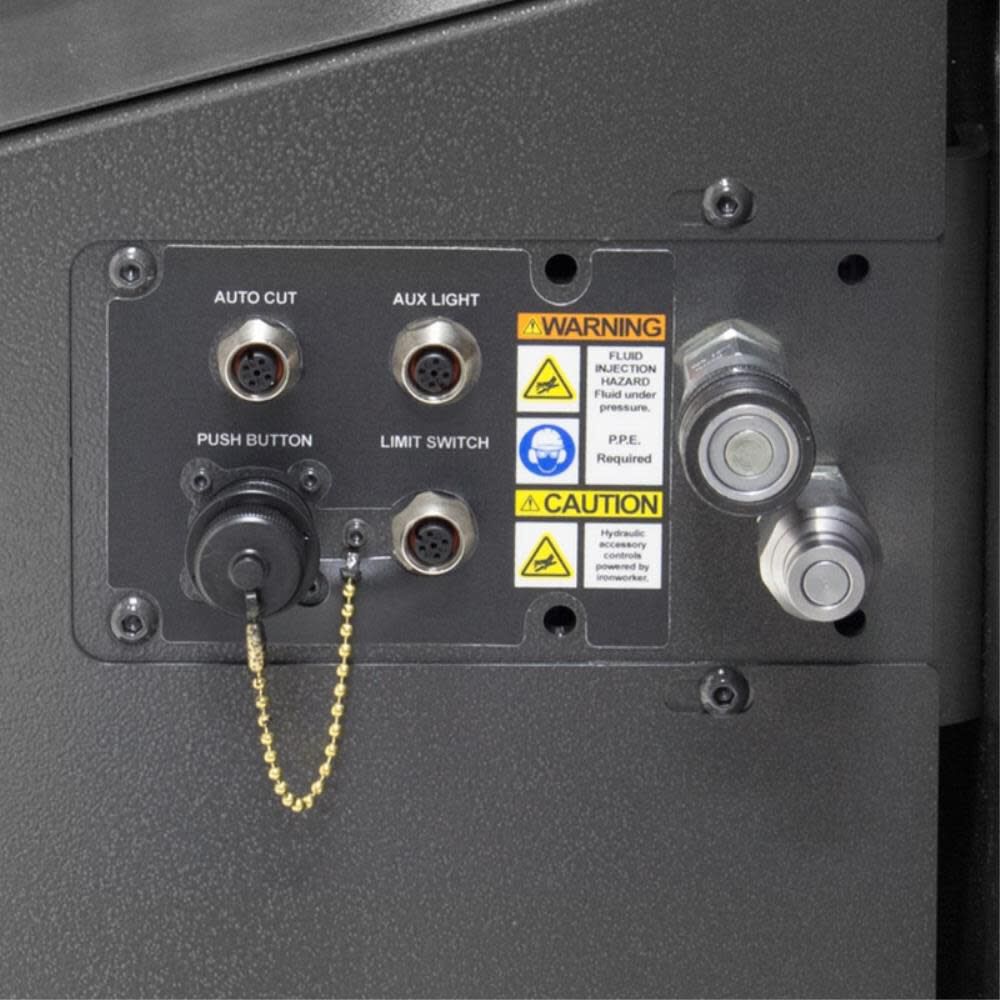

The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
- The workhorse
- Four workstations: standard (4) - punch, flat bar shear, angle shear & coper notcher
- 10 interchangeable attachments available to tailor the ironworker to your project
- ANSI B11.5 - 1988(02) compliant guarding
- ETL/UL approved controls
- Integrated e-stop, lock-out/tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
Specifications
Brand Name - Edwards
Amperage (A) - 22.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 4557.0
California Proposition 65 Warning Required - Yes
Capacity - 200000 Lbs
Color - Gray
Country of Origin - United States
CSA Certified - No
ETL Listed - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - IW100-3P208-AC600
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 10.5
Maximum RPM - 1765
Overall Height (in) - 67.0
Overall Length (in) - 46.0
Overall Width (in) - 69.0
Package Contents - 100 Ton Ironworker 3 Phase 208v with PowerLink System
Package Depth - 46
Package Height - 67
Package Weight - 4650
Package Weight (lbs) - 4650
Phase - Three Phase
Pressure Rating (psi) - 3500
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325555738
Voltage - 208
Warranty Type - 1 Year
Weight (lbs) - 4557.0
