120 or 230-Volt 180-Amp Multi-process Wire Feed Welder K5257-1
Description
Description

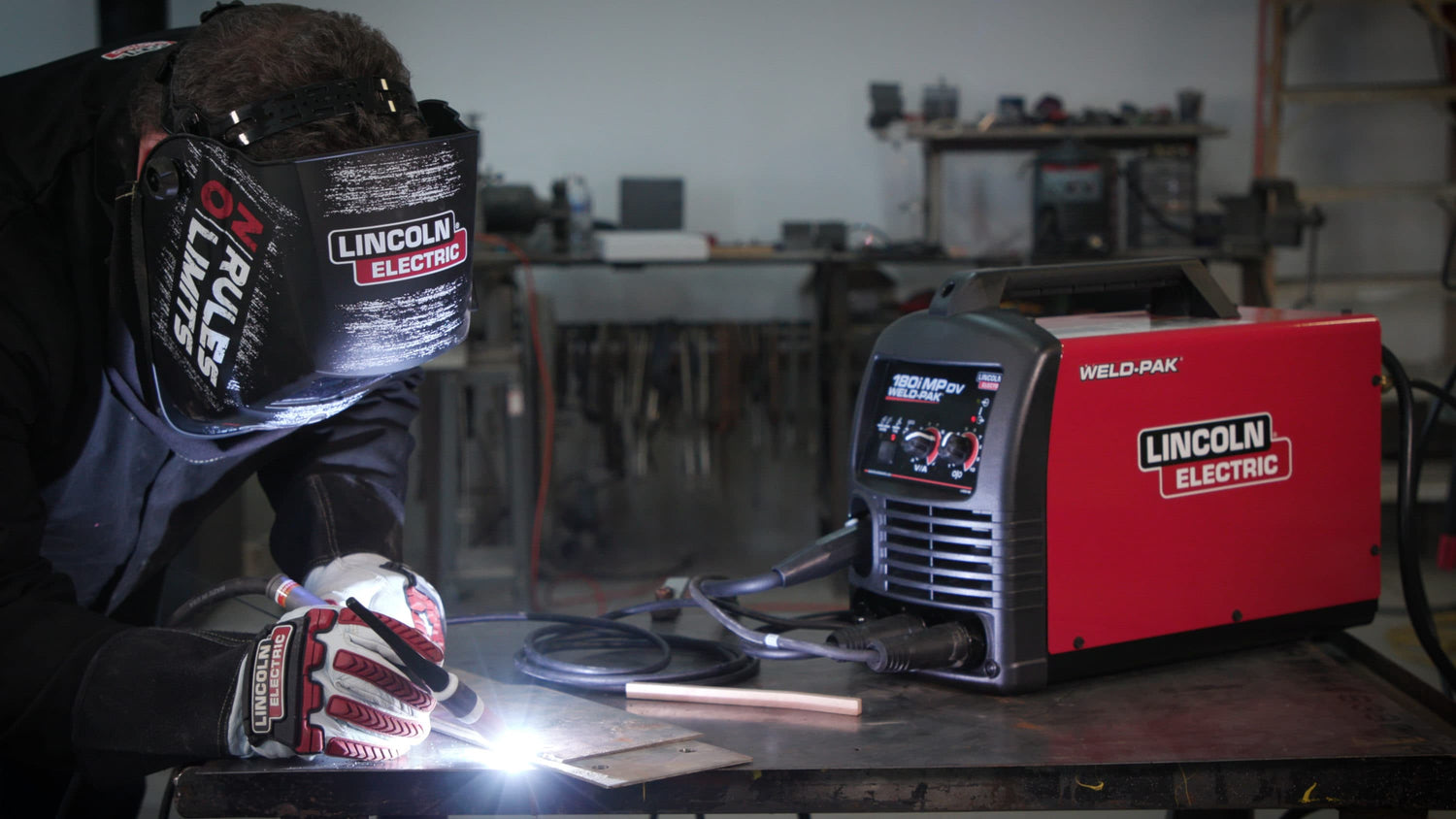

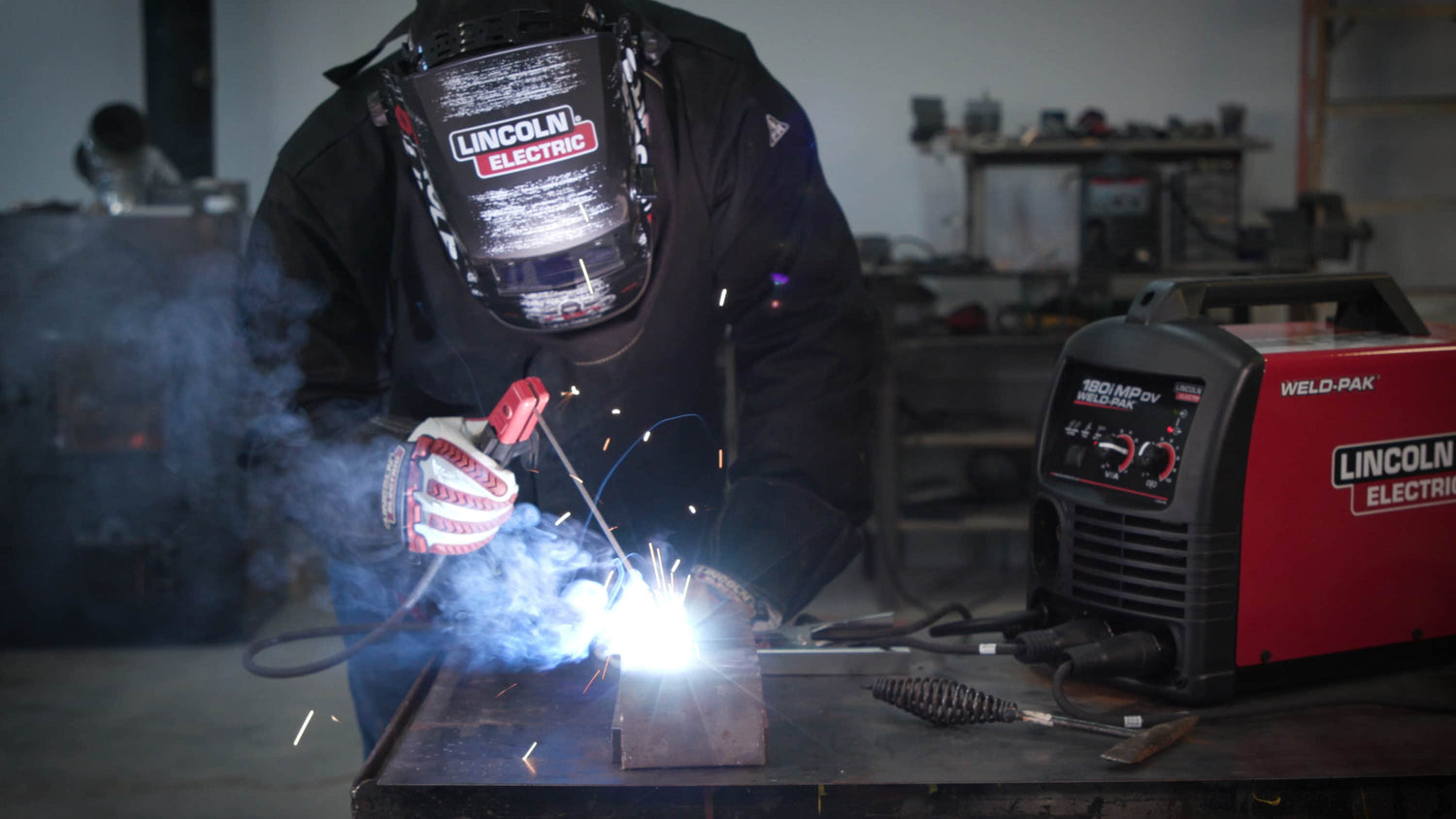

This machine is an excellent choice for MIG, Stick, Flux-Cored and DC TIG welding.

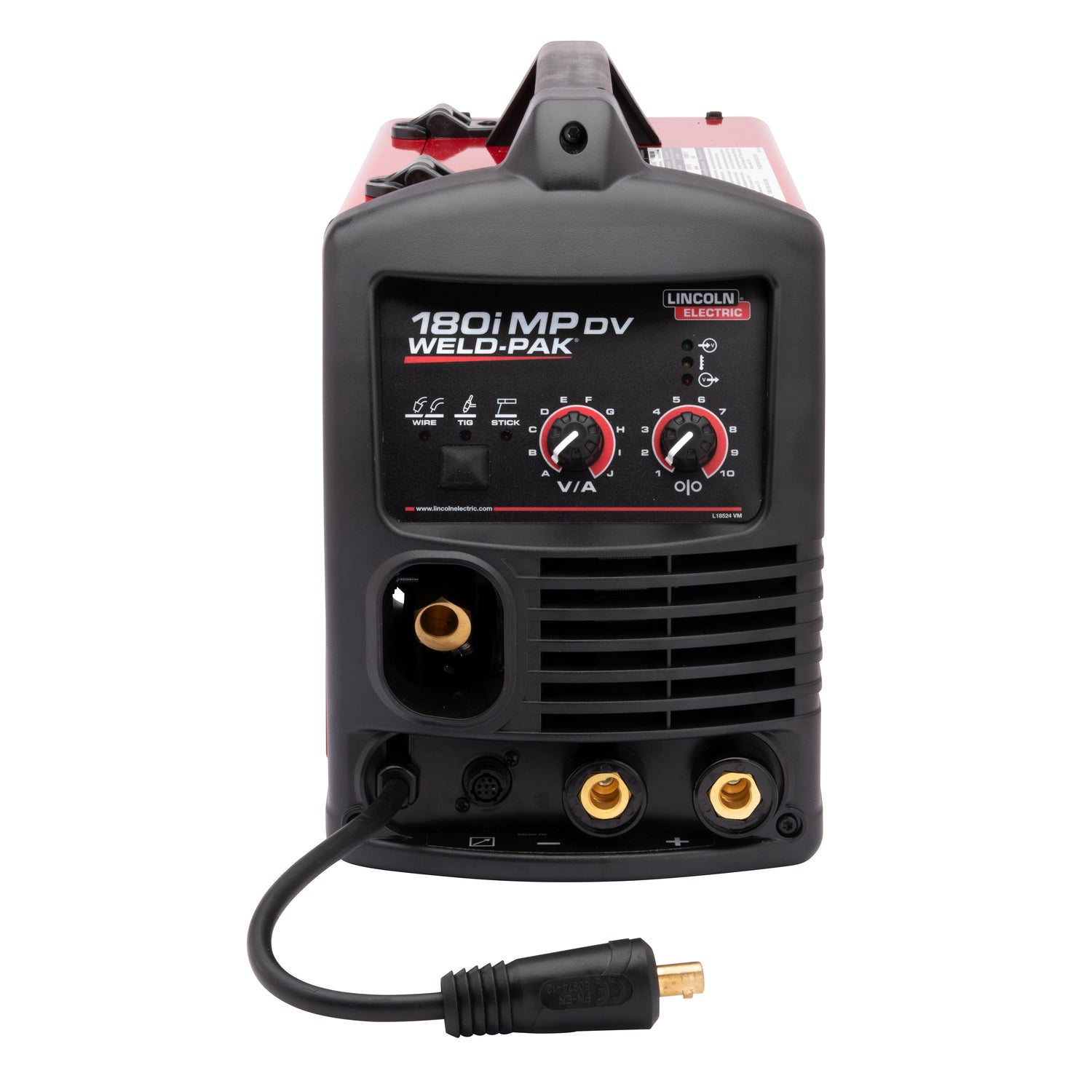

The intuitive user interface, easy setup and full list of accessories permits welding in no-time.The simple two knob control allows easy set up between the welding process.
With the ability to switch to multiple processes you'll be ready to tackle any project.

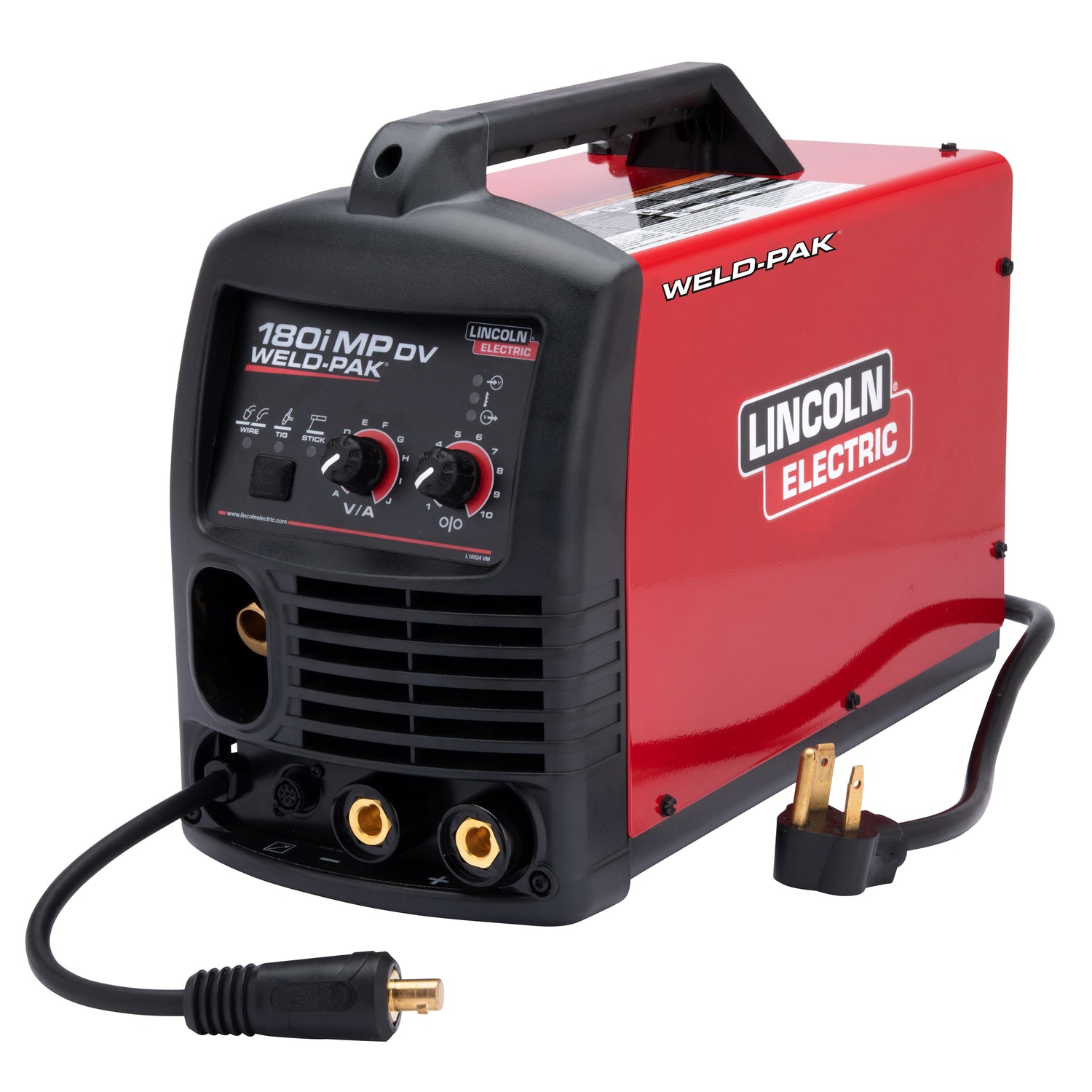

The Lincoln Electric WELD PAK 180i MP DV is an excellent choice!
Multi-Process Welder: MIG weld, Flux-Core weld, TIG weld and Stick weld
TIG - Torch and Foot pedal not included; Wide 10-165 amp range permits welding on thin and thick steel and stainless
MIG - Wide 30-180 amp welding output for MIG, FCAW and Spool Gun allows for welding 24 gauge to 3/8" welding material
Stick - Smooth arc starts prevent stick
Perfect for the shop, farm, home or auto body shops
Recommended Accessories - Contact Tips (KH710, KH711, KH712), Welding Nozzles (KH725, KH726), Mild Steel MIG Wire (ED030631), Flux-Core MIG Wire (ED030584), Anti-Spatter Spray (KH505), Nozzle Gel and Portable Welding Cart (K2275-3)

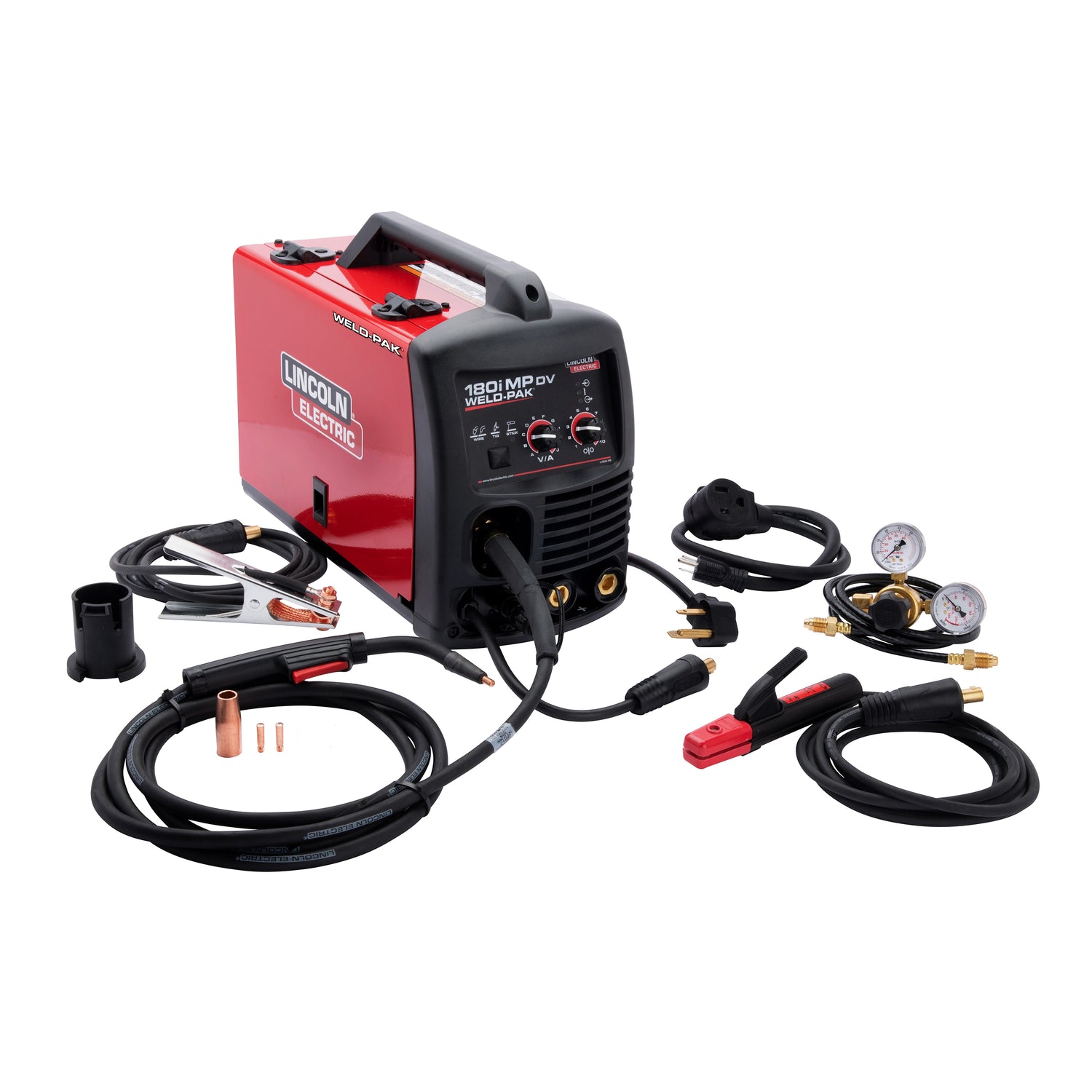

Includes: Magnum Pro 100L gun and 10 ft cable assembly with brass connection and 8-pin trigger connector (K530-7), .025 in, .030 in , .035 in contact tips ,Gasless nozzle for Innershield welding (KH726), Gas nozzle for MIG welding (KH725), Spindle adapter for 10lb and 12.5lb spools (KH720), .025 - .035 in wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1), Shielding Gas Regulator and Hose (KH738), Work clamp and 10 ft (3.0 m) cable, Instruction manual, and Electrode holder with 10ft cable
Dimensions
Depth (Inches): 18.1
Ground Cable Length: 10 feet
Height (Inches): 13.6
Maximum Weldable Thickness (Mild Steel): 5/16-in
Maximum Wire Thickness: 0.035mm
Minimum Weldable Thickness (Mild Steel): 24 gauge
Minimum Wire Thickness: 0.025mm
Weight (lbs.): 34.5
Welding Gun Cable Assembly Length: 10 feet
Width (Inches): 8.9
Features
Amperage: 180
Contact Tips Included: Yes
Drive Motor Overload: Yes
Duty Cycle (Percentage): 30
Hand Shield Included: No
Helmet Included: No
Input AC Voltage: 120 or 230
Instructional Media Included: No
Maximum Wire Feed (Inches per minute): 500
Minimum Wire Feed (Inches per minute): 40
Primary Circuit Breaker: Yes
Process: Multi-process
Sample Flux Wire Included: No
Sample MIG Wire Included: No
Thermal Overload Protection: Yes
Uses Argon Gas: Yes
Uses Argon/Carbon Dioxide Mixed Gas: Yes
Work Clamp Included: Yes
Warranty
Warranty: 3-year
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: CSA safety listing
Miscellaneous
UNSPSC: 23271400
