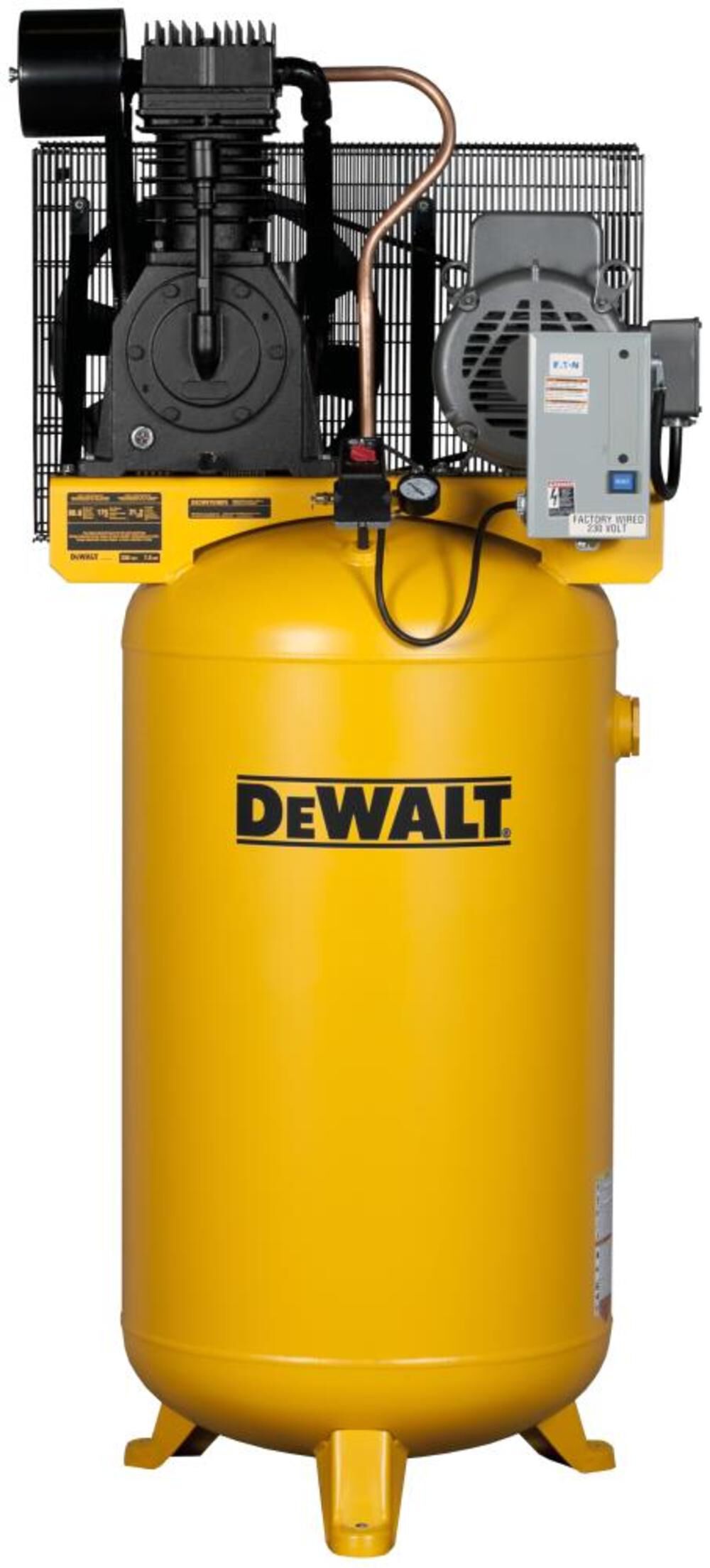

80-Gallon Two Stage Electric 175 PSI Vertical Air Compressor DXCMV7518075

Dewalt DXCMV7518075 7.5 HP 80 Gallon two-stage - cast iron - Industrial Air compressor is engineered with cast iron construction designed for durability, dependability, and smooth operation.

It features a patented pump design that provides for a cooler running pump, a patented piston design allowing for improved compression efficiency.

It is expertly engineered for industrial performance and delivers maximum CFM (cubic feet per minute) at 175-PSI (pressure per square inches) allowing for it to provide enough power to operate more than one air tool or device at one time.

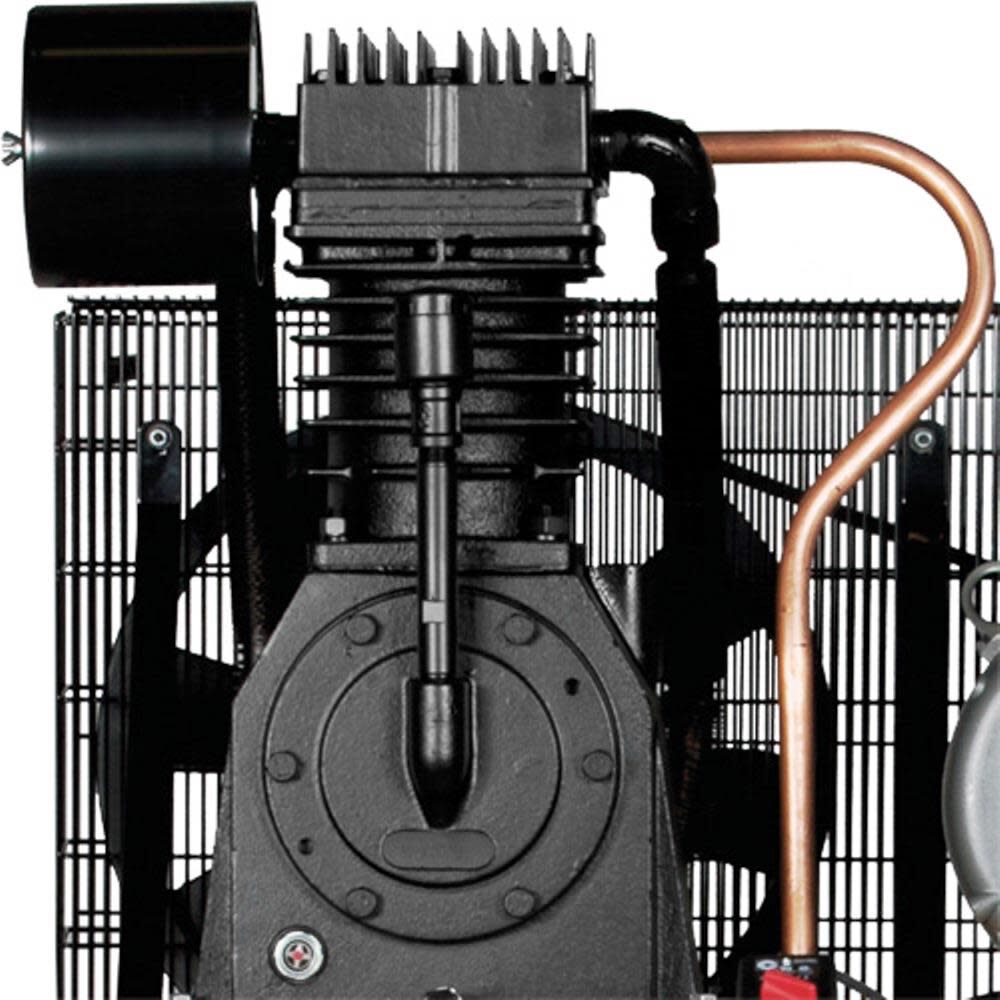

The cast iron cylinder head includes patented deep-grove directional cooling fins.

It includes precision bored cylinders with patented asymmetrical cooling fins, patented cast iron flywheel design with large extended fins for improved cooling of pump and low pump RPM (revolutions per minutes).

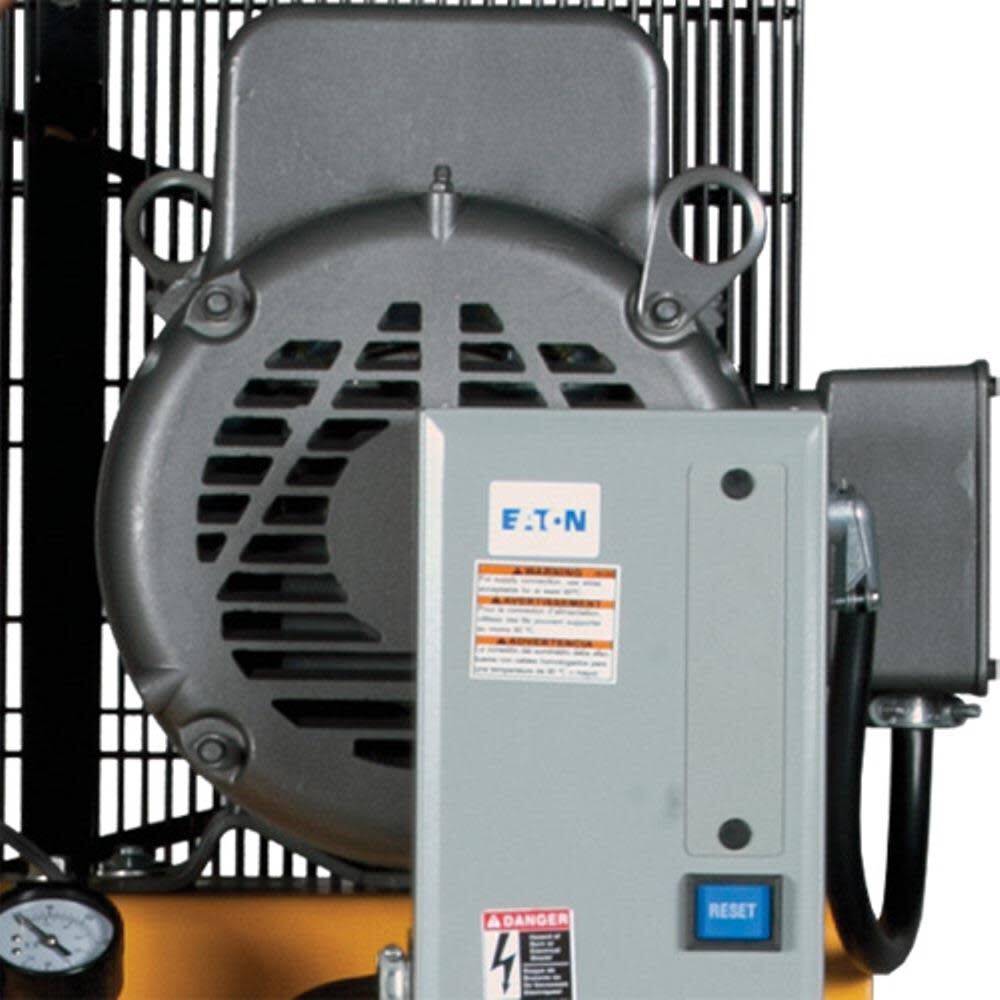

The Dewalt 2 stage air compressor is built with a 7.5-HP motor to provide long life and quiet operation

The compressor includes a pre-mounted and wired magnetic starter to save time and money

Built to perform with a patented pump design that provides longer life by running cooler

This air compressor comes from the factory with synthetic blended oil already installed

This compressor delivers plenty of air to run multiple tools at the same time to get the job done faster

Specifications

Sub-Brand: N/A

Type: Electric

Dimensions

Fitting Size: 1/4-in

Tank Capacity (Gallons): 80

Weight (lbs.): 623

Features

Accessories Included: No

Air Delivery SCFM @ 100PSI (CFM): 22.1

Air Delivery SCFM @ 175PSI (CFM): 21.2

Air Delivery SCFM @ 90PSI (CFM): 0

Amperage: 31

Cordless: N/A

Decibel Rating (Decibels): 84

Engine Brand: N/A

Engine Displacement (Cu. Centimeters): 0

For Use with Air Brushing: Yes

For Use with Bolting: Yes

For Use with Brad Nailing/Stapling: Yes

For Use with Cutting: Yes

For Use with Drilling: Yes

For Use with Finish Nailing: Yes

For Use with Framing Nailing: Yes

For Use with Grinding: No

For Use with HVLP Painting: Yes

For Use with Roof Nailing: No

For Use with Sanding: Yes

For Use with Spraying: Yes

For Use with Surface Prep: Yes

Maximum Pressure: 175 PSI

Motor Type: Induction

Noise Rating: Standard (71 decibels or above)

Number of Tools Included: 0

Phase: Single-phase

Portable: No

Pump Type: Oil-lubricated

Rechargeable: No

Running Horsepower: 7.5

Stage: Two stage

Start Type: Electric start

Tank Style: Vertical

Voltage (Volts): 230

Warranty

Warranty: 2-year limited

Certifications

CA Residents: Prop 65 Warning(s): Yes

CARB Compliant: N/A

Safety Listing: CSA safety listing

Miscellaneous

UNSPSC: 40151600
