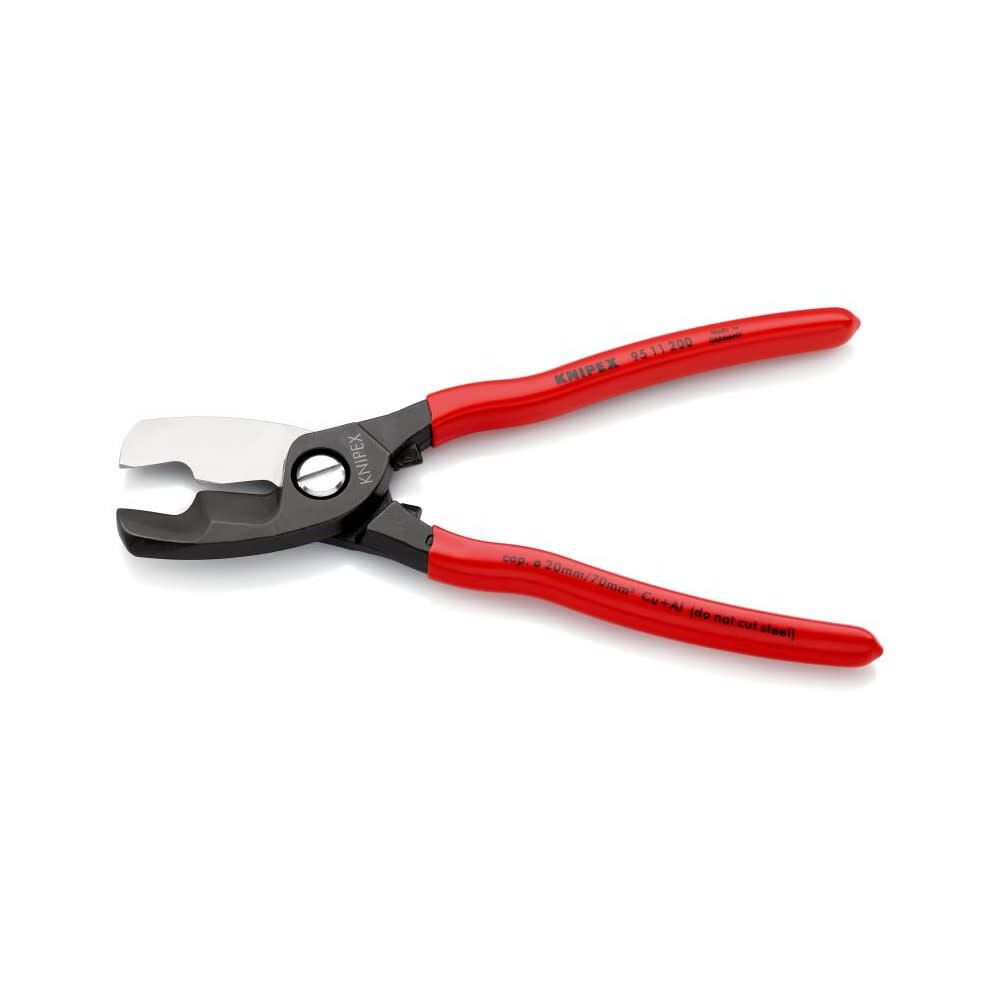

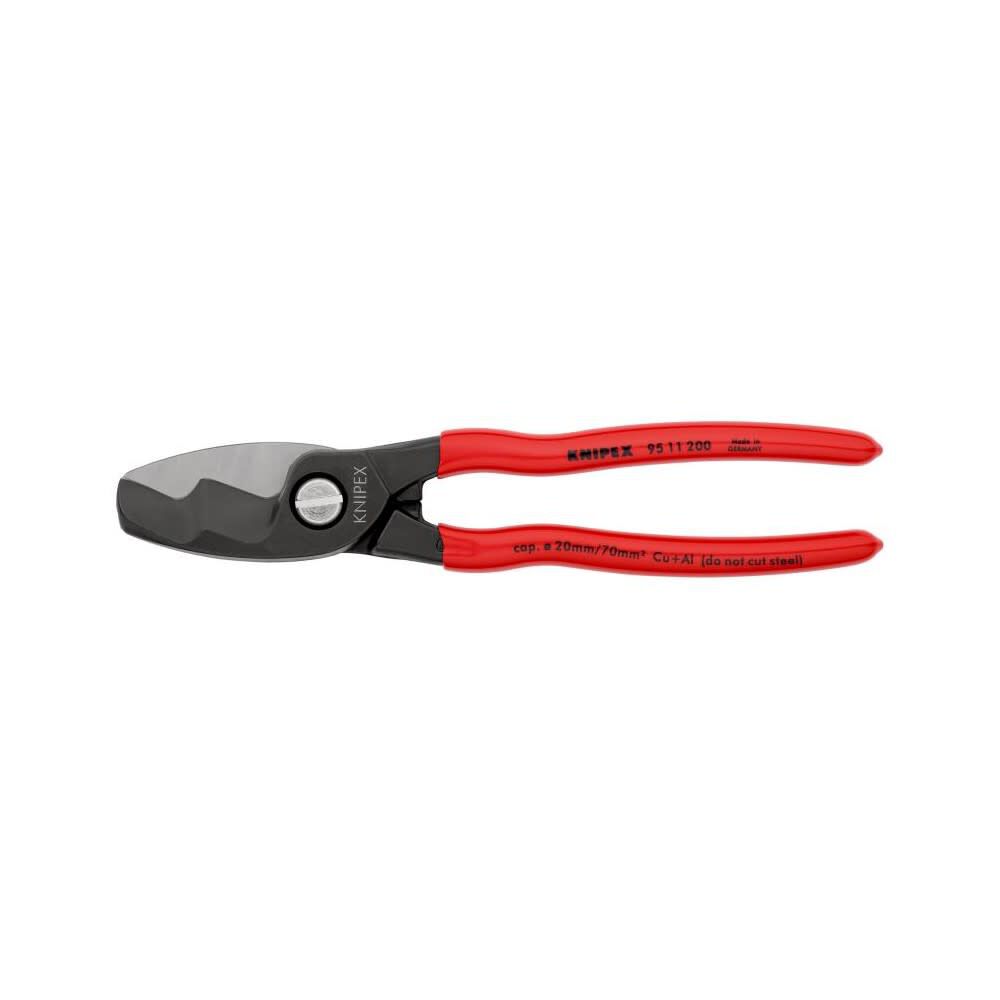

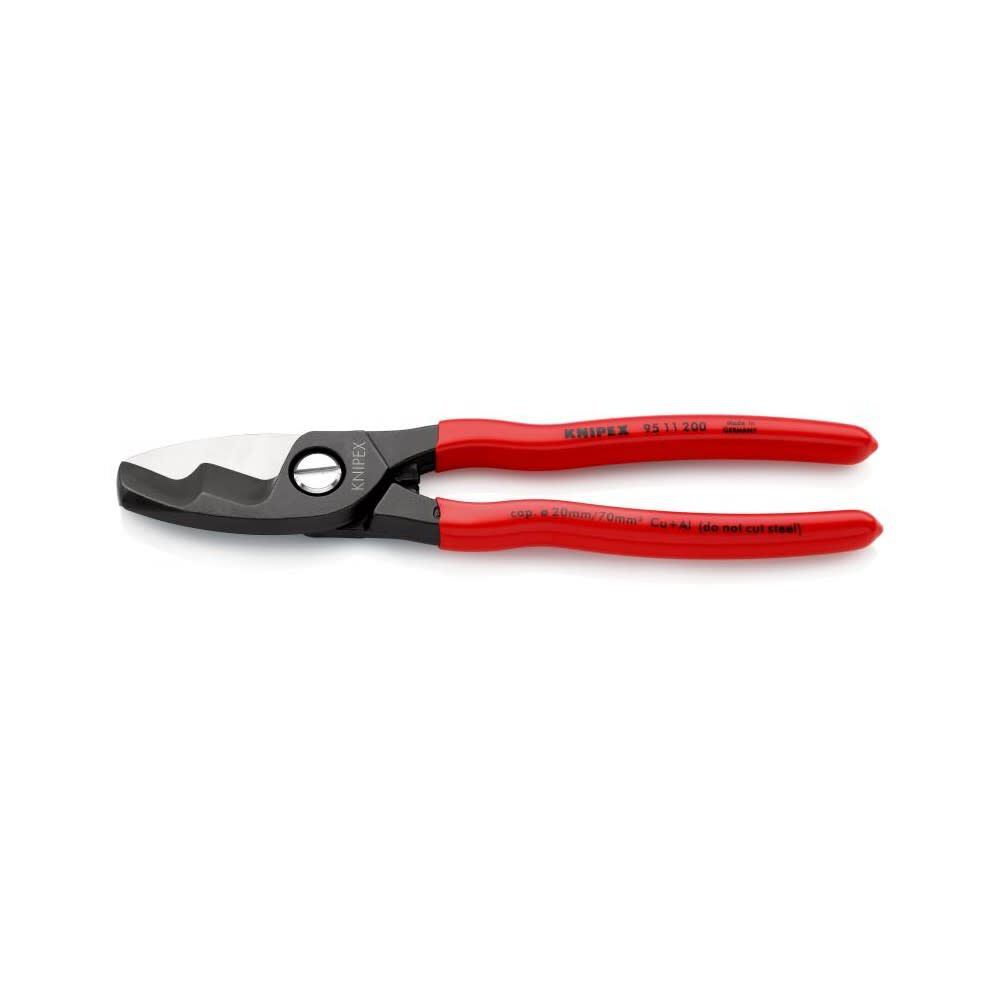

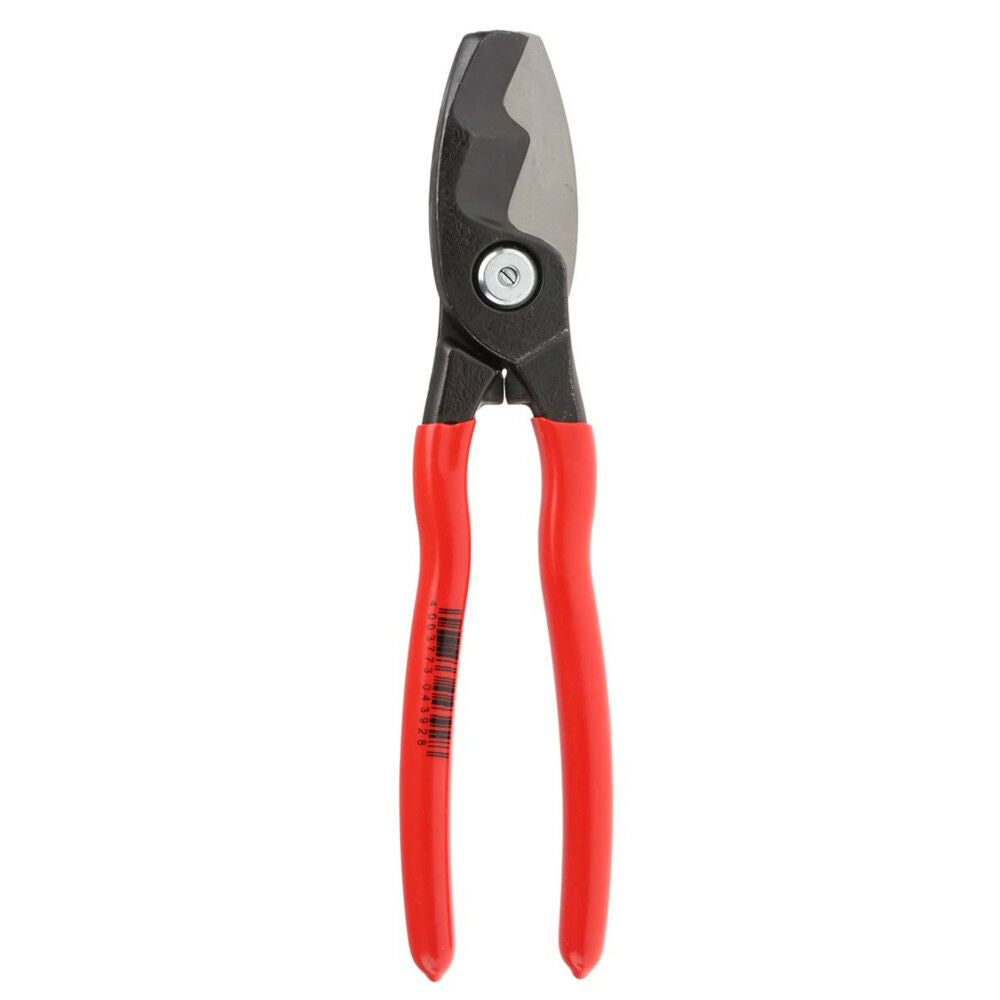

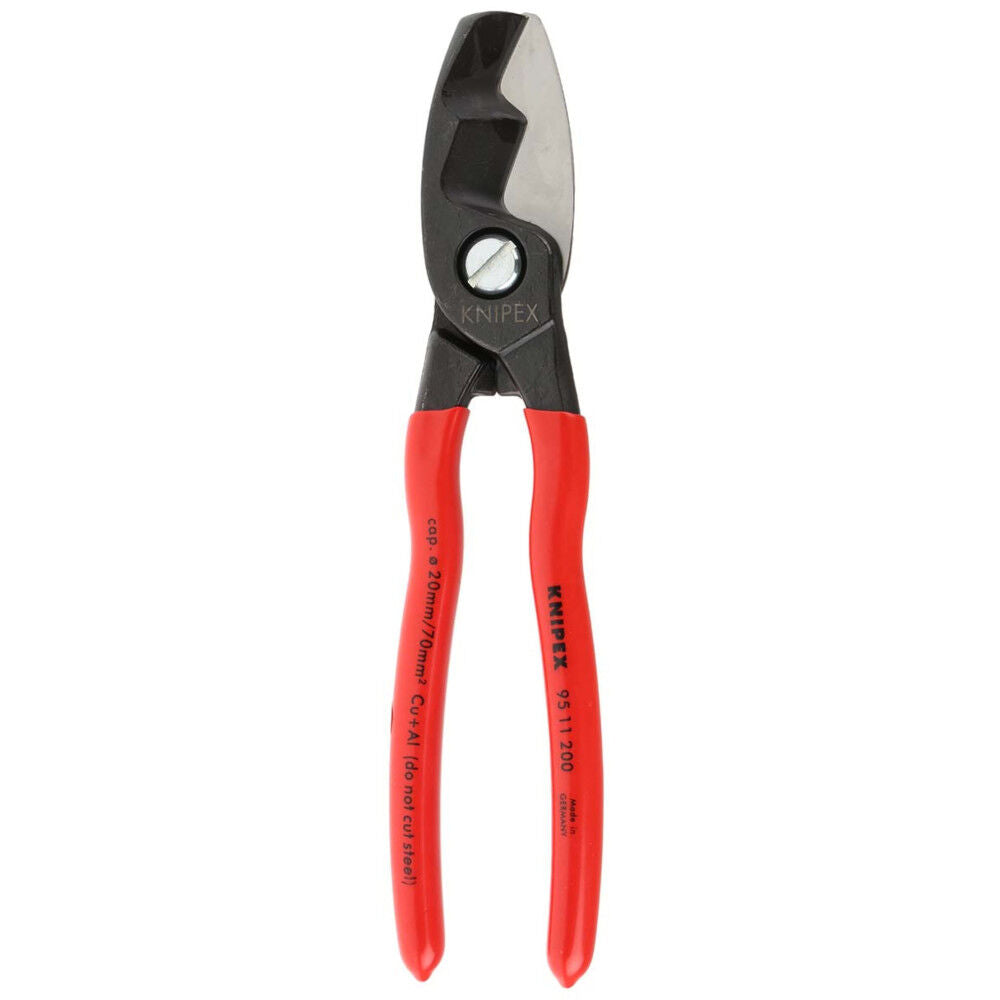

Knipex Cable Shear with Twin Cutting Edge 200mm

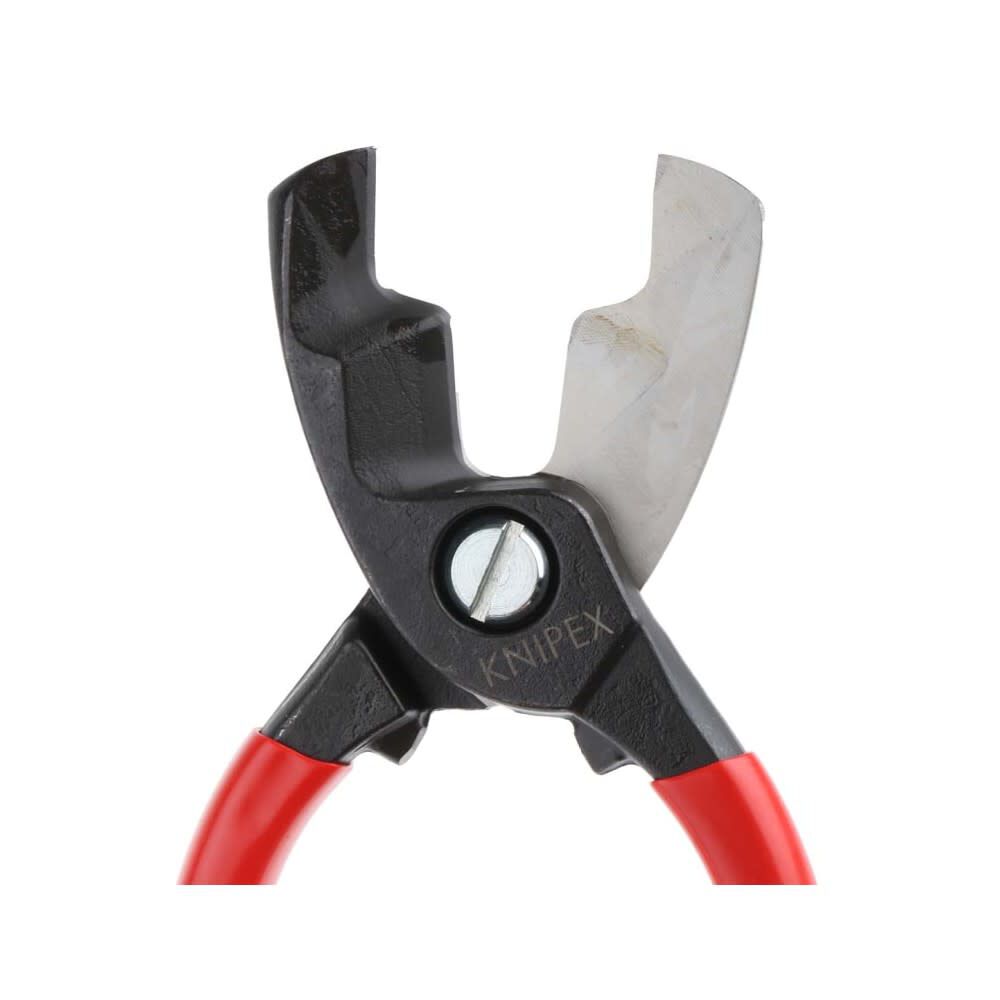

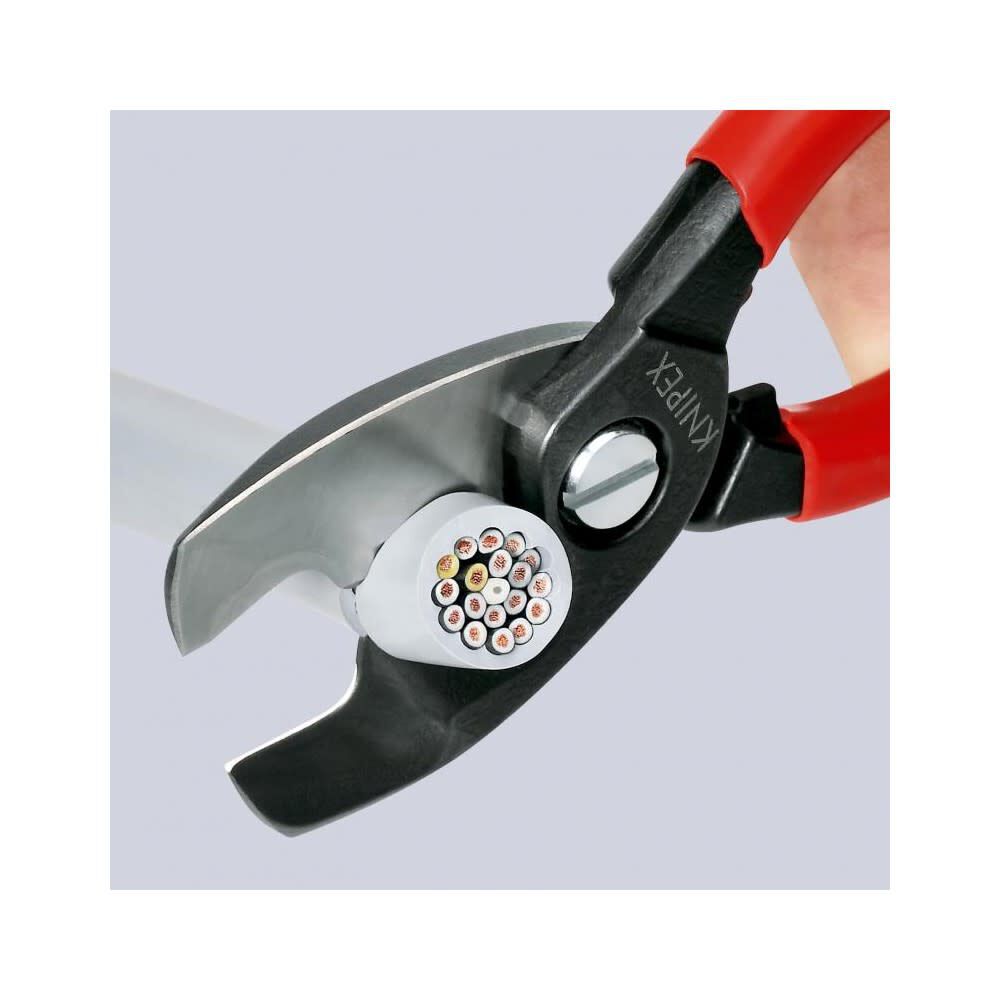

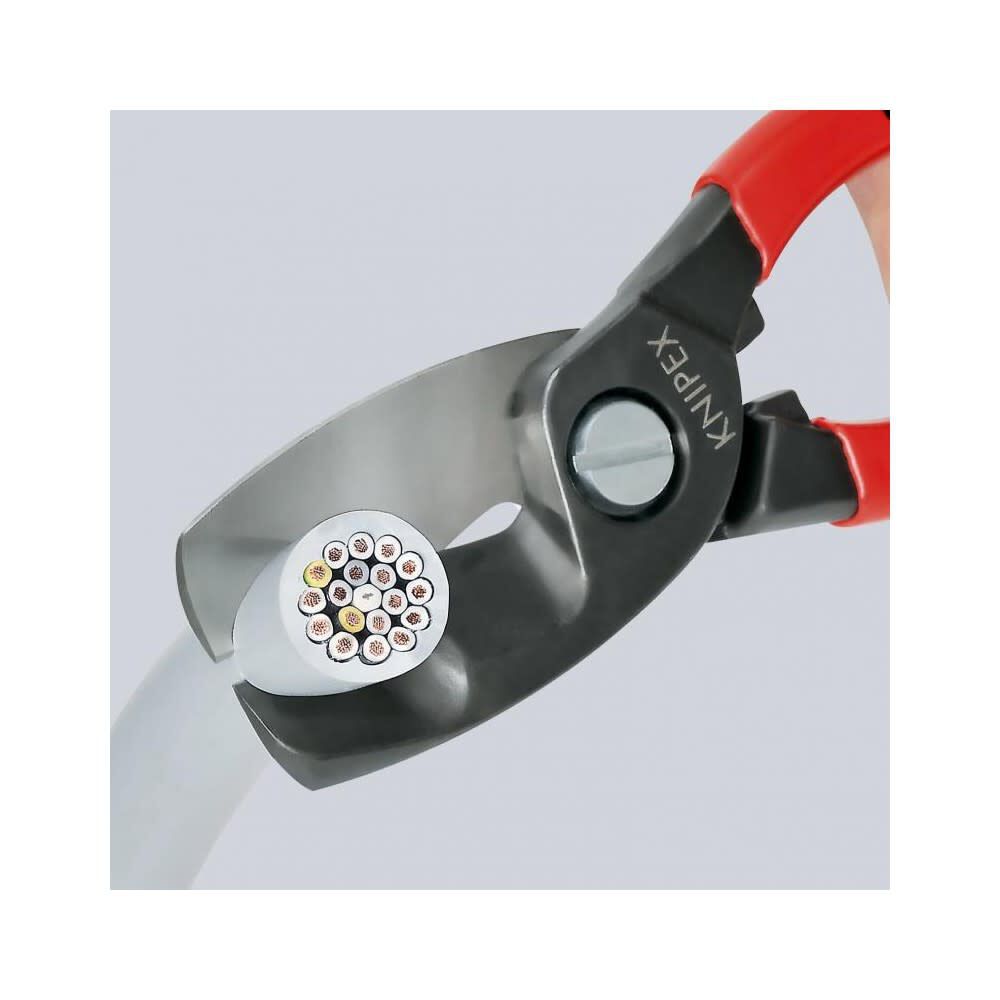

In the front cutter profile of the Knipex 95 11 200 there is an initial cut into the insulating sheath on larger cable cross-sections; the metal conductors are subsequently cut in the back cutter profile.
This division of work on the twin cutting edge makes work easier for the user.
The initial cut in the front profile also provides a hand-friendly grip position for large cross-sections.
Knipex 95 11 200 cable shears cut with the twin cutting edge using a scissors action, and therefore cut very smoothly and cleanly.
Diagonal cutters, with blades that meet at an obtuse angle, and which crush cable insulation and deform cable ends are not really suitable for cutting cable.
The Knipex 95 11 200 cable shears demonstrate their qualities when shortening stranded and finely stranded Cu and Al cables, also with large cross-sections.
For reasons of design, the cable shears must not be used to cut steel wire or hard drawn copper conductors.
Thanks to the precision ground twin cutting edge, the cable shears with twin cutting edge deliver a lasting clean, even cutting result.
Comparatively little effort is required due to the favorable transmission ratio, thereby conserving the manual force of the fitter.
The precisely running bolted joint also contributes to comfortable work using these cable shears.
The bolted joint is self-locking and can be adjusted where necessary.
Knipex cable shears with the twin cutting edge are a tool for electrical installation.
Those who use tools a lot and professionally every day expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use.
We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment.
California Proposition 65 Warning.Features
- For cutting copper and aluminum cables
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Clean and smooth cut without crushing and deformation
- By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables upto 20 mm diameter can be cut in one-hand operation
- Low hand force required due to favorable lever ratio and special blade geometry
- Pinch guard prevents operators' fingers being pinched
- Adjustable bolted joint, self-retaining screw
- High-grade special tool steel, forged, oil-hardened
- Plastic-coated handles
Specifications
Brand Name - Knipex
Application - For Cutting Copper & Aluminum Cables
Assembled Weight (lbs) - 0.55
Blade Material - Steel
Color - Multiple
Country of Origin - Germany
Cutting Capacity - 70 mm2 Multiple-Stranded Copper Cable, 20 mm Multiple-Stranded Copper Cable Diameter
Electrical Accessory Type - Tool
Handle Material - plastic
Insulated - No
MFG Part # (OEM) - 95 11 200 SBA
Material - Burnished High-Grade Special Tool Steel
Package Contents - Cable Shear with Twin Cutting Edge Retail Packaging
Package Depth - 8.2
Package Height - 0.65
Package Weight - 0.55
Product Condition - New
UPC - 843221000332
Warranty Type - Lifetime against Manufacturer's Defects
