SS-3528-ST Tilting Spindle Shaper with Sliding Table 5HP 1007611
SS-3528-ST Tilting Spindle Shaper with Sliding Table 5HP 1007611 is backordered and will ship as soon as it is back in stock.

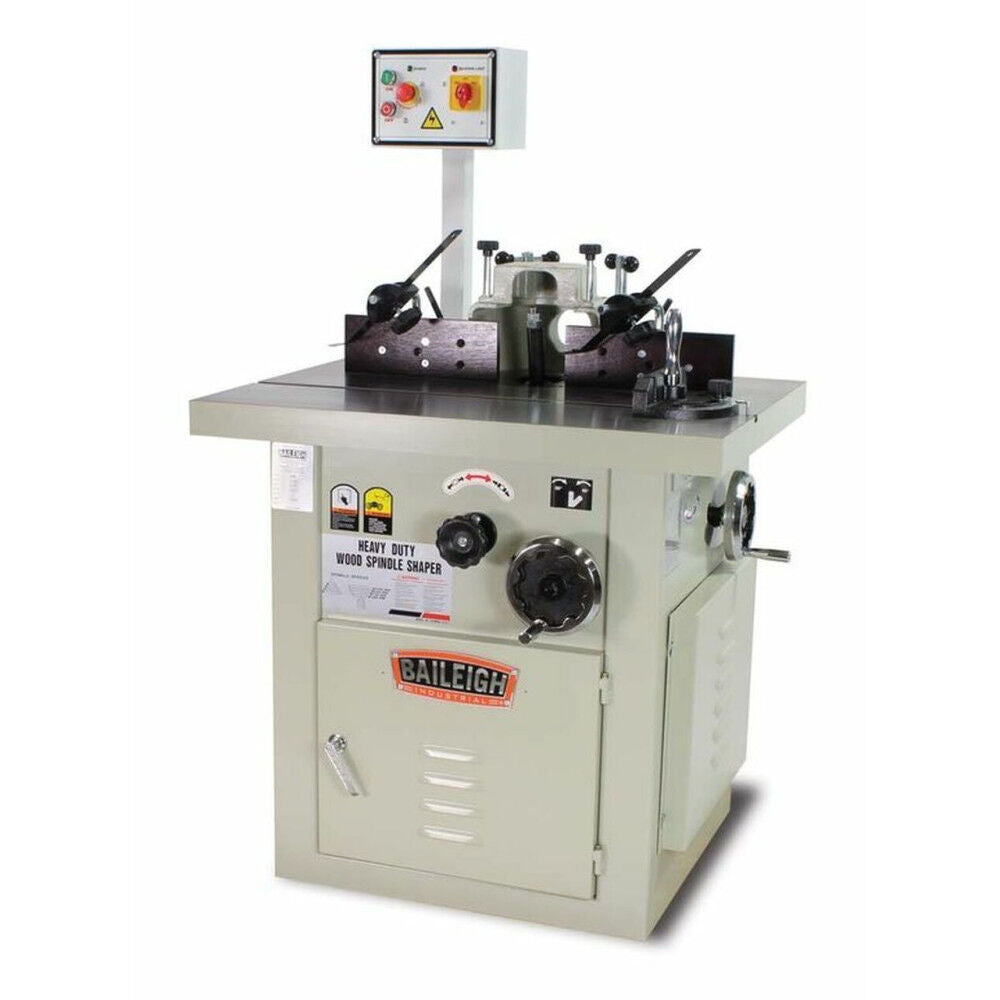

Baileigh SS-3528-ST Tilting Spindle Shaper with Sliding Table 5HP
The SS-3528-ST heavy duty shaper has the most features of the 3528 line of spindle shapers.
This unique machine has a sliding table as well as a tilting spindle for more profiles that can be imagined.
Because of these features the SS-3528-ST is the best option for professional woodworking shops everywhere.
The spindle will tilt to an aggressive 45 Deg.
The SS-3528-ST offers a sliding table to reduce material marring from pushing through the spindle.
The SS-3528-ST spindle shaper is powered by a 5HP 220V 1 Phase motor that offers four spindle speeds.
Speeds are changed by selecting the appropriate belt for the speed desired.
Speeds offered are 3600, 5100, 8000, and 10000 Rpm.
The SS-3528-ST includes 3 spindles, 3/4 In., 1 In.
And 1-1/4 In.
All with corresponding inserts.
California Proposition 65 Warning.Features
- The precision machined 28 In. x 35 In. sliding table has a working height of 35 In., making it very comfortable to work on
- The sliding function is handled by heavy duty roller bearings for smooth action
- Its also comes with all table hardware and fences for accurate placement of material and even an angel miter gauge
- A 4 In. dust port is also standard
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 1050
Country of Origin - Taiwan
Dust Collection - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
Horsepower (hp) - 5
MFG Part # (OEM) - 1007611
Package Contents - Spindle Shape with Sliding Table, (3) Spindles, 3/4 In., 1 In. and 1-1/4 In. All with Corresponding Inserts
Package Depth - 12.34
Package Height - 12.34
Package Weight - 1050
Phase - 1
Product Condition - New
Table Length (in) - 35.5
Table Width (in) - 28
UPC - 400007001480
Variable Speed - Yes
Warranty Type - No Manufacturer's Warranty
