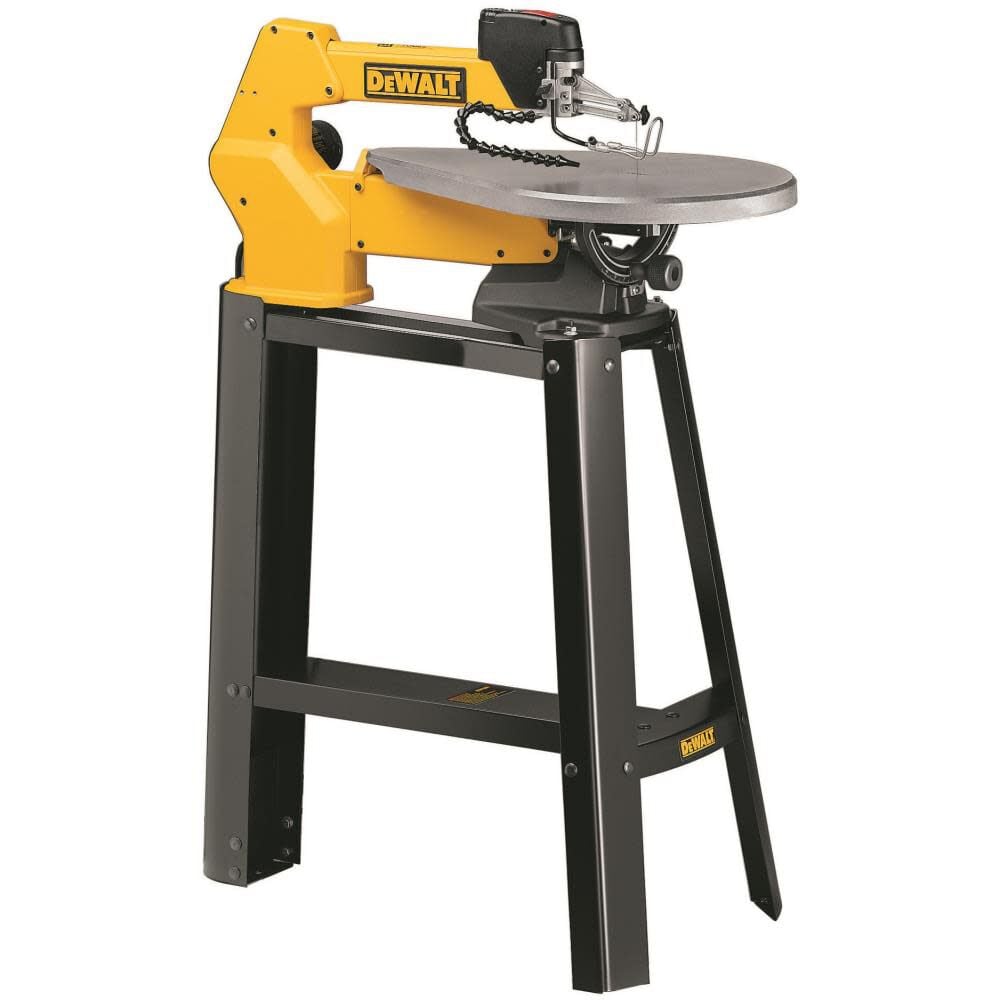

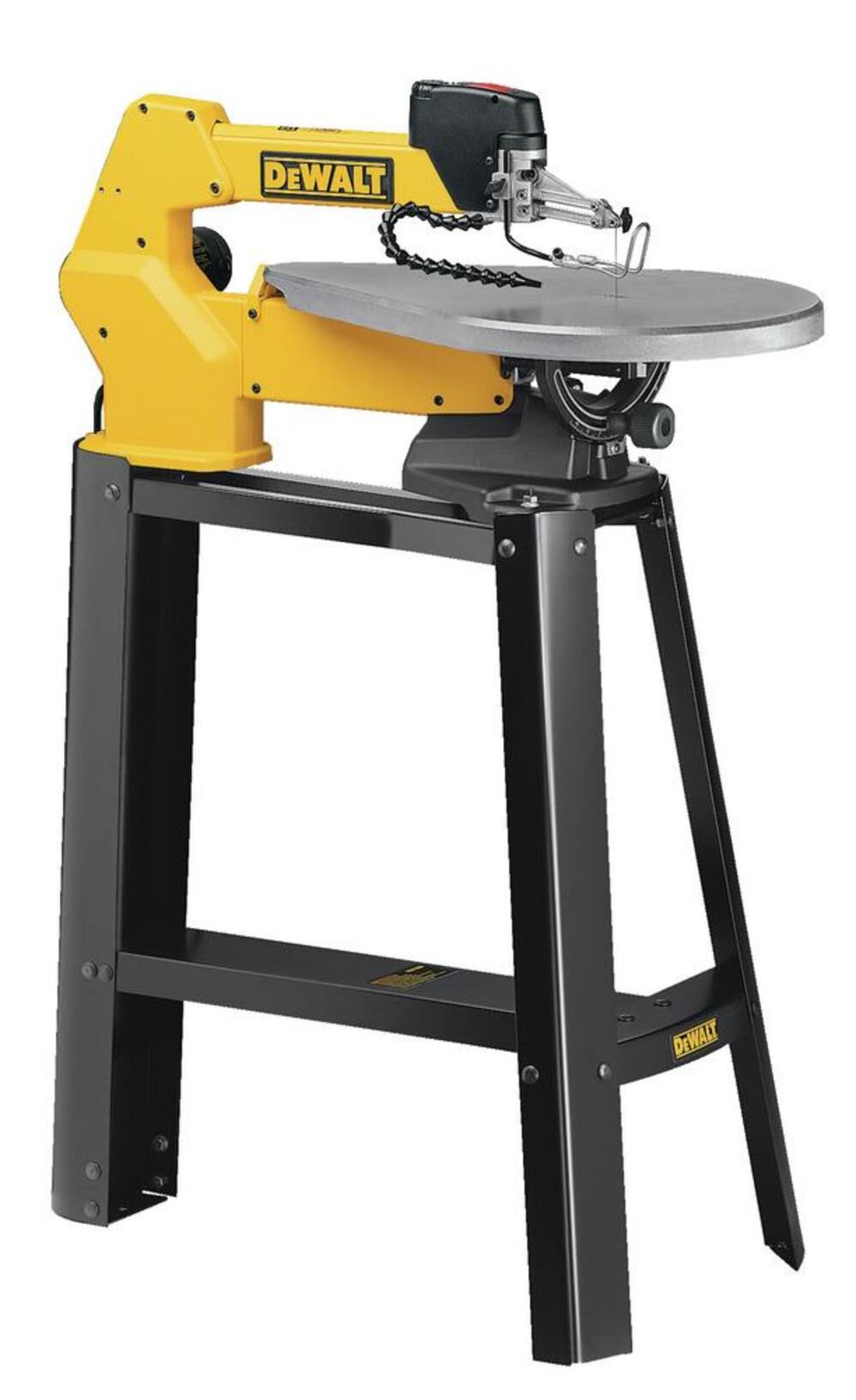

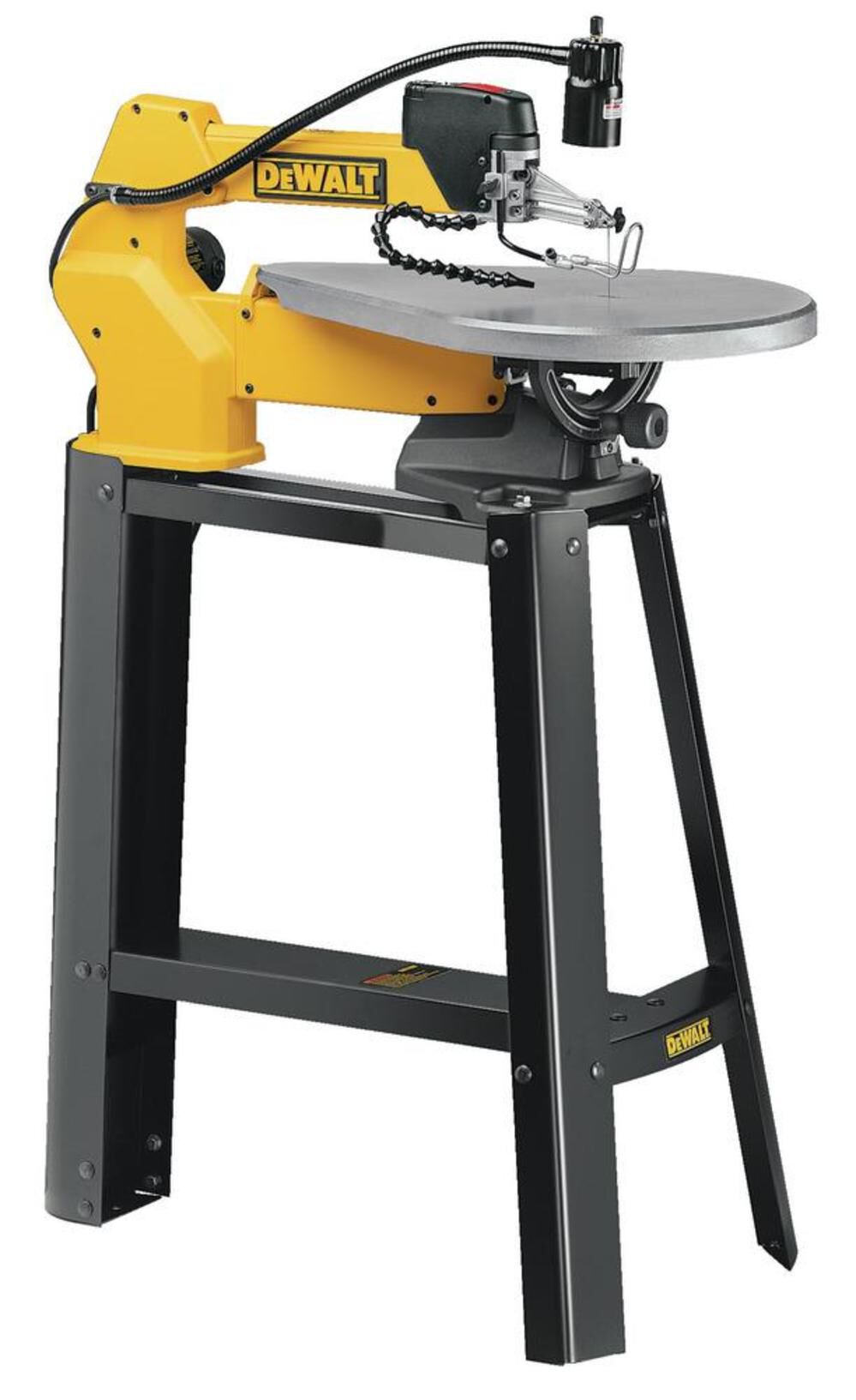

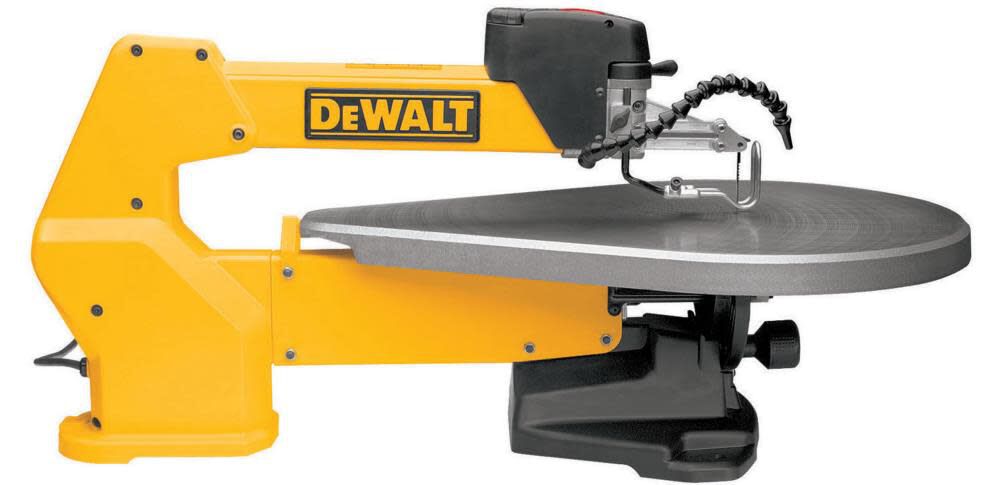

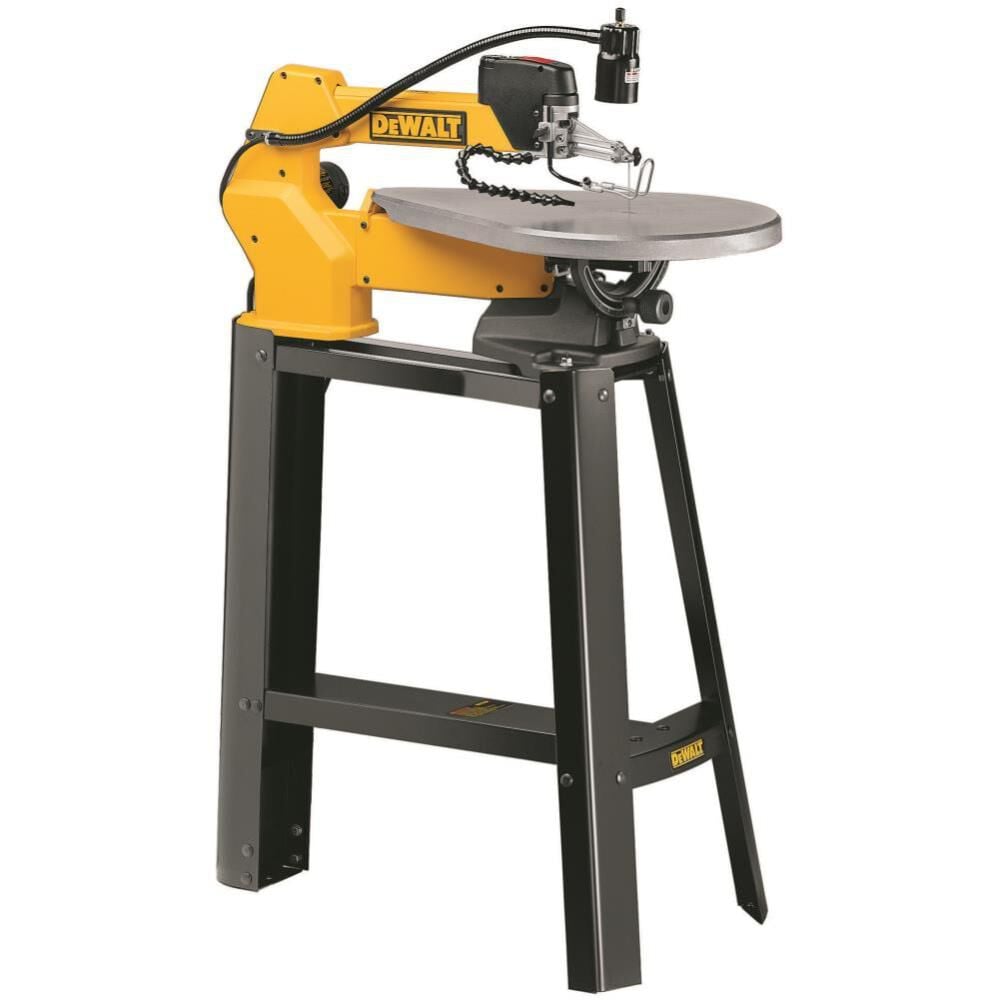

Double parallel link arm design dramatically reduces vibration and noise, for extremely accurate cuts.
Exclusive tool-free blade clamps, On-off switch, electronic variable speed, flexible dust blower and blade-tensioning lever are all located on the front upper arm.
Arm design pivots from the back of the saw to the front and lifts so blade can be easily threaded through the material for inside cuts.
Unique arm design keeps the blade perpendicular to the work.
Oversized, cast-iron table provides excellent material support and bevels 45 degrees left and right.
Specs: Motor 1.3 amp rating, 120V AC.
400-1,750 cutting strokes per minute.
Table size 16 x 23-3/4.
Weighs 56 lbs.
Meets OSHA standards, CSA approved and U.L.
Listed.
Stand Not Included .
Featured length of the flexible shaft is approximately 22 inches long
Double parallel-link arm design dramatically reduces vibration and noise, for extremely accurate cuts

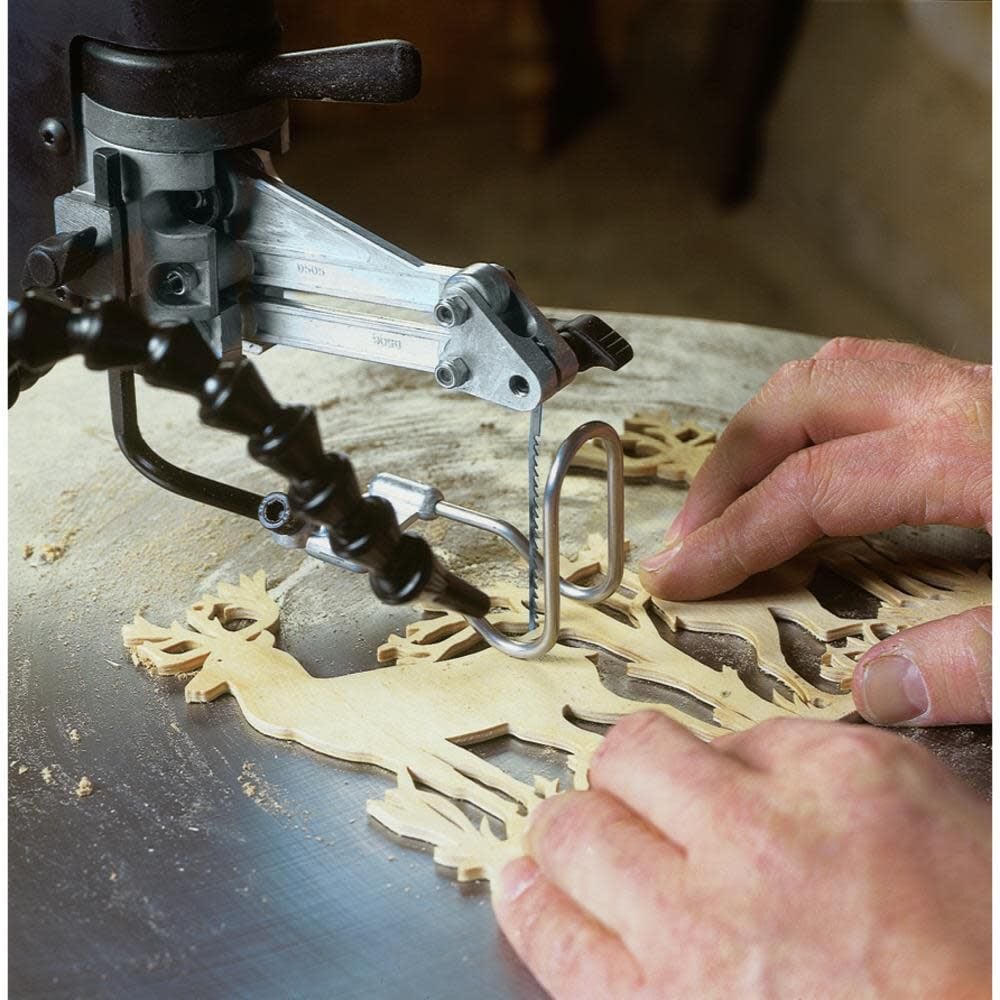

Tool-free blade clamps allow blade changes in seconds
On-off switch, electronic variable speed, flexible dust blower, and blade-tensioning lever are all located on the front upper arm
Arm lifts so that blade can be easily threaded through the material for inside cuts
Arm design keeps the blade perpendicular to the work, dramatically reducing over or under cutting
Oversized, cast-iron table provides excellent material support and bevels 45 degrees (left and right)
Oversized, cast-iron table provides excellent material support and bevels 45° (left and right)
Independently certified to applicable standards
Includes DW788 scroll saw, hex wrench, and blades
Specifications
Color/Finish Family: Yellow
Dimensions
Depth (Inches): 10
Dust Chute Diameter(OD) (Inches): 0
Height (Inches): 10
Length (Inches): 28
Maximum Depth of 45 Degree Cut (Inches): 2
Maximum Depth of 90 Degree Cut (Inches): 2
Maximum Metal Cutting Capacity (Inches): 0
Maximum Throat Width/Depth (Inches): 20
Maximum Wood Cutting Capacity (Inches): 2
Stroke Length (Inches): 0.75
Weight (lbs.): 56
Width (Inches): 19
Features
Adjustable Shoe: No
Amperage: 1.3
Blade Included: Yes
Blade Type: Straight
Built-In Light: No
Chuck Key Storage: Yes
Chuck Type: Keyless
Cordless: No
Dust Blower: No
Dust Chute: No
Dust Collection: No
Guide(s): N/A
Hold Down Foot Included: No
Keyed/Keyless: Keyless
Package Contents: Scroll saw, hex wrench, blades
Speed Range High (SPM): 1750
Speed Range Low (SPM): 400
Table Tilt Range Left (Degrees): 45
Table Tilt Range Right (Degrees): 45
Variable Speed: Yes
Warranty
Warranty: 3-year limited
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: UL safety listing
Miscellaneous
UNSPSC: 27112700
