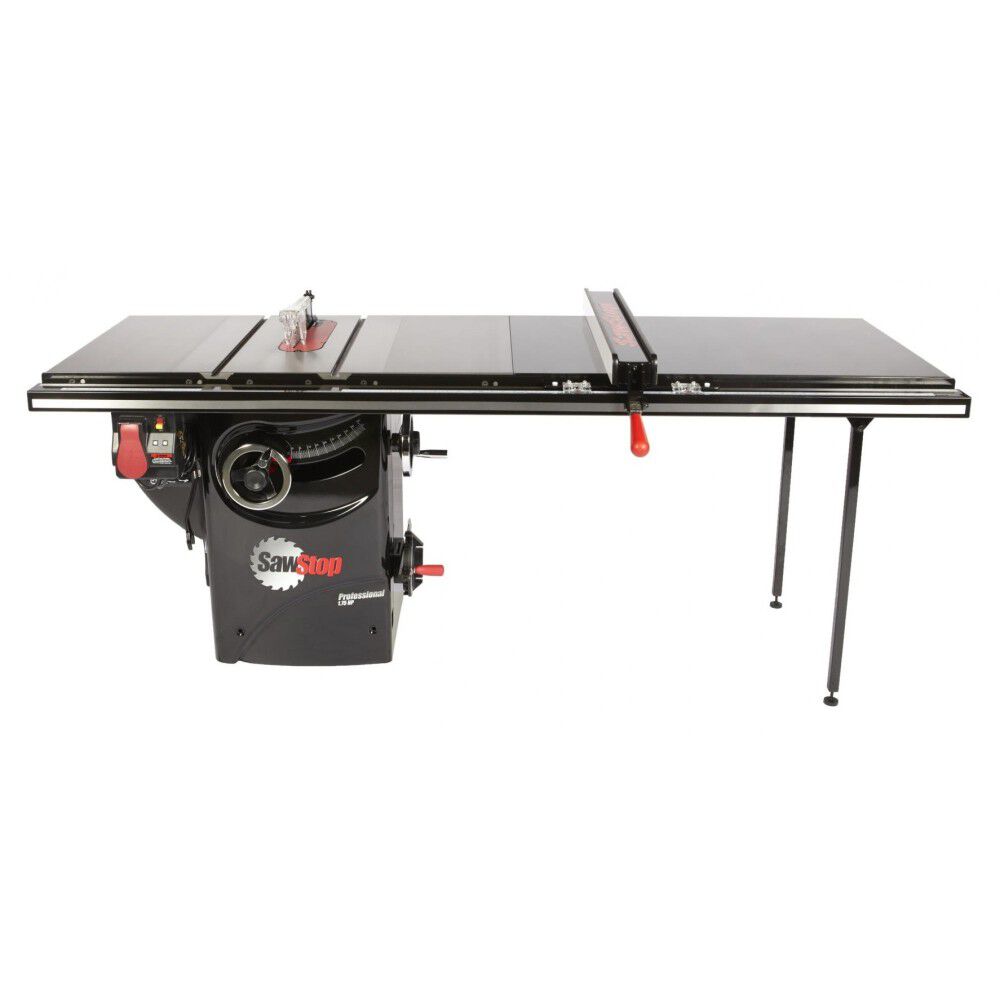

10 in. 1.75 HP Professional Cabinet Saw with 52 in. Fence PCS175-TGP252
10 in. 1.75 HP Professional Cabinet Saw with 52 in. Fence PCS175-TGP252 is backordered and will ship as soon as it is back in stock.
Sawstop 10 in. 1.75 HP Professional Cabinet Saw with 52 in.
Fence
The professional cabinet saw is SawStop's top selling cabinet saw, offering unmatched fit and finish and best-in class cutting performance.
The 52 In.
T-Glide fence & rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.
The trunnion and arbor are built for precision, strength and stability.

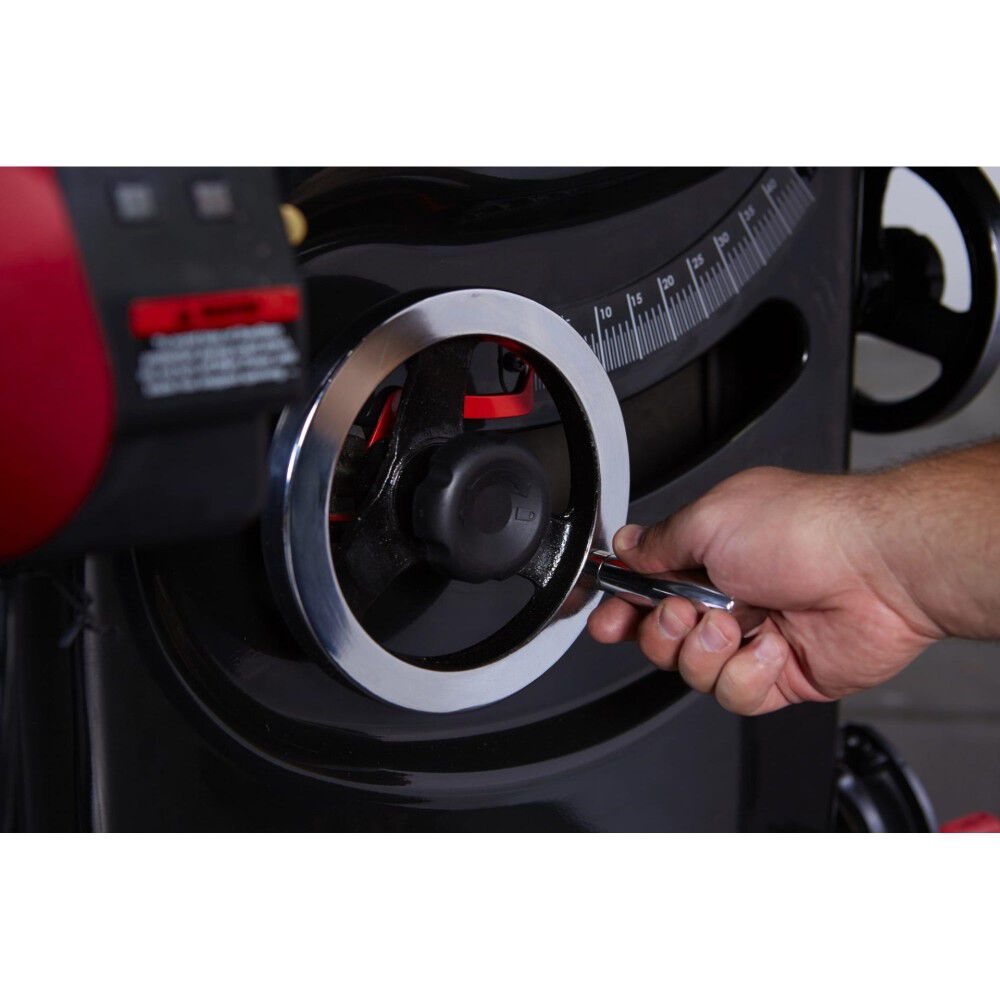

The gas piston elevation delivers smooth and easy adjustability.
Table flatness is measured diagonally at 0.01 In.

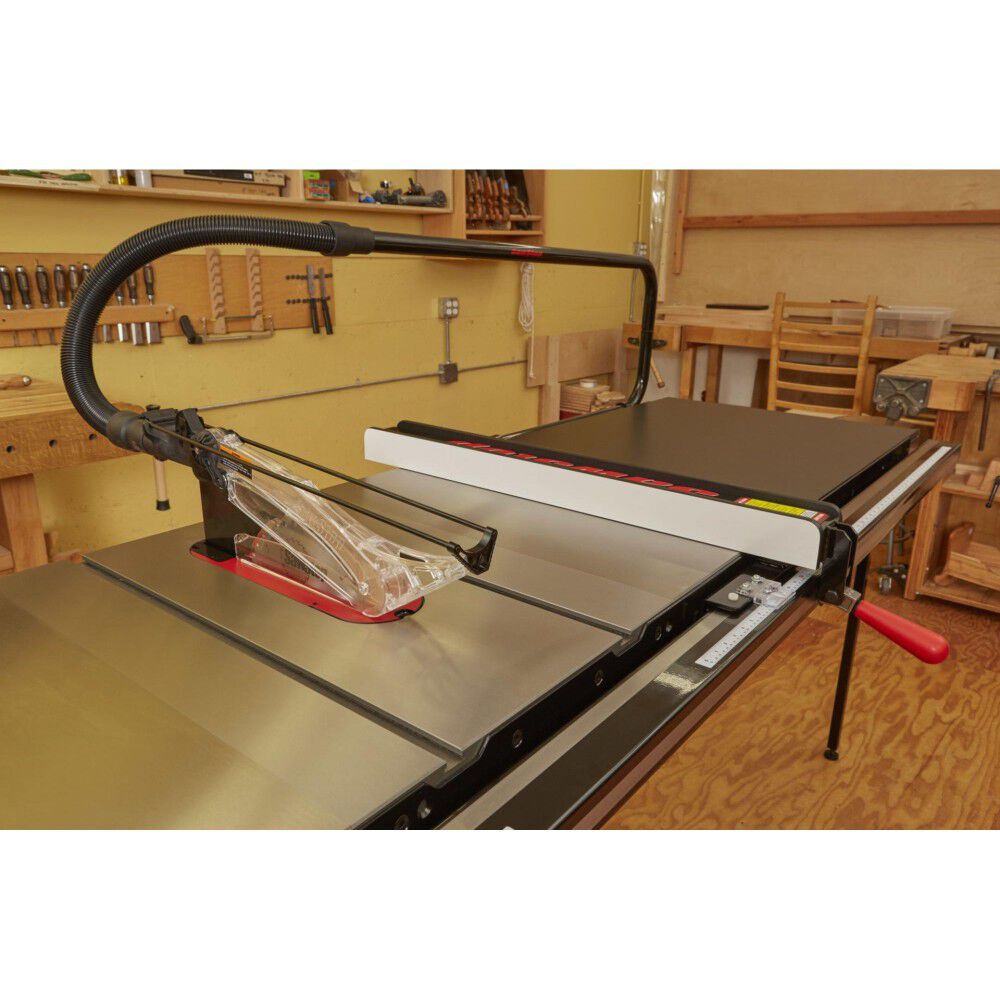

Maximum gap. 99% dust collection is delivered above the table with the available dust collection blade guard (Model # TSG-DC, sold separately), and below the table with advanced shrouding around the blade.
Stops a spinning blade on contact with skin.
The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
The control box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
California Proposition 65 Warning.Features
- 52 In. Professional T-Glide fence system provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection
- Unmatched fit and finish with a keen attention to detail make the professional cabinet saw SawStop's most popular saw
- SawStop Safety system stops on contact with skin
- Assembly: 1.75HP Professional cabinet saw with 52 In. Professional T-Glide fence system, rails & extension table
- Dimension: 85-1/4 In. Width, 33 In. Depth, 34 In. Height
- Self-diagnostic system
- Key lockout safety feature
Specifications
Brand Name - Sawstop
Amperage (A) - 14
Assembled Weight (lbs) - 375
Bench or Stationary - Stationary
Blade Material - Carbide
California Proposition 65 Warning Required - Yes
Color - Black
Country of Origin - Taiwan
Diameter - 10 in
Drive Motor System - Electric
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 1.75
MFG Part # (OEM) - PCS175-TGP252
Material - Cast Iron
Maximum Dado Diameter (In) - 8
Maximum Dado Width (in) - 0.812
Net Tool Weight (lbs) - 367
Package Contents - (2) Cast Iron Extension Wings, (1) Miter Gauge, (1) Micro Blade Guard (1.75HP Models), (1) Dust Collection Blade Guard (3HP Models), (1) Riving Knife, (2) Blade Wrenches, (1) Push Stick, (1) 10" Blade, (1) Standard Lockdown Insert, (1) Standard Brake Cartridge, (1) Owner's Manual, (2) Hardware Packs, (1) 3mm Hex Key, (1) 5mm Hex Key, (1) 8mm Hex Key, (1) Blade Spacing Adjustment Gauge
Package Depth - 42
Package Height - 30
Package Weight - 375
Package Weight (lbs) - 500
Product Condition - New
Size - 0.625 in
Spindle Lock - Yes
Table Height (in) - 34
Table Length (in) - 85.25
Table Width (in) - 29.75
UL Listed - Yes
UPC - 416001000336
Voltage - 110 Volts
Warranty Type - 2 Years
