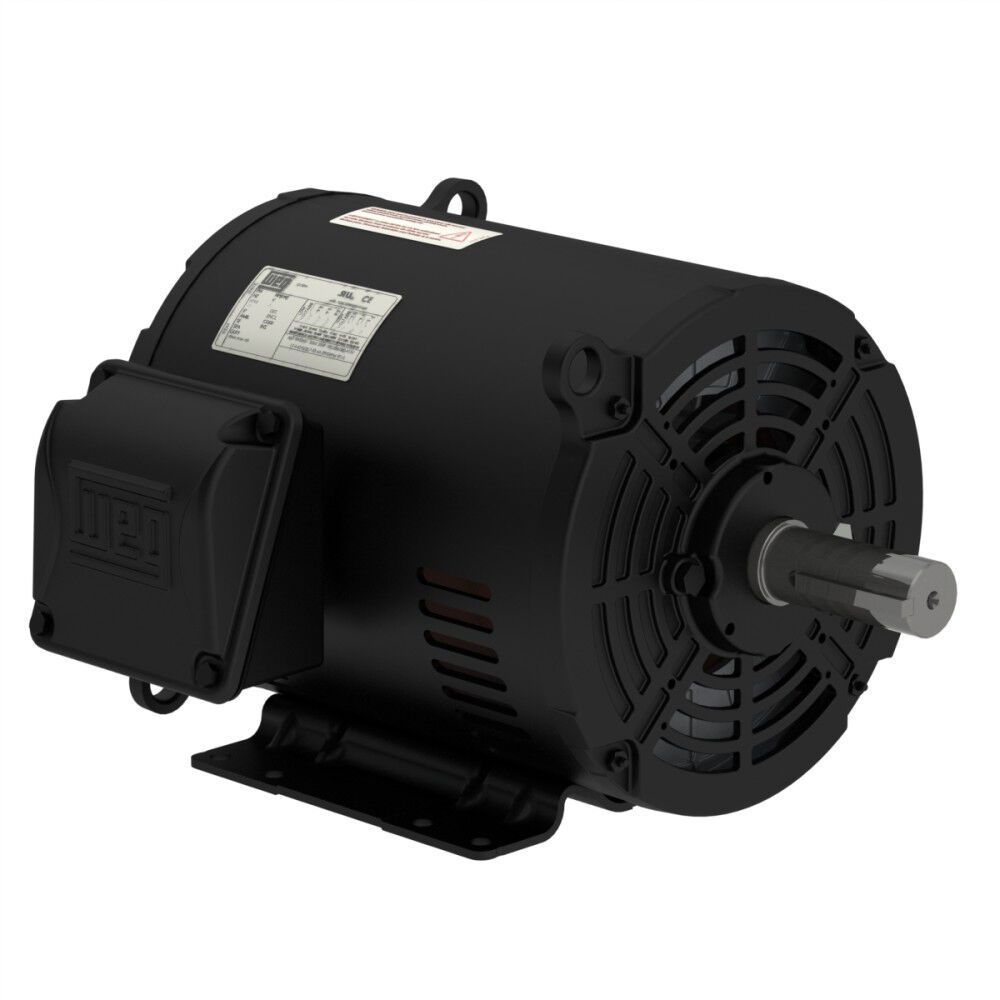

Rolair 230-460V 7.5HP 1770 Rpm General Purpose Compressor Electric Motor
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product.
The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.
California Proposition 65 Warning.Features
- Electrical Ratings: 230/460V, 18.5/9.25A, 50/60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 213/5T, 4 poles
- Service Factor: 1.15
- Rotation: Both clockwise & counter clock wise
- Terminal Box: Left position, 4 poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 116
Compatibility - For Models H75360K30, H75380K30, H75312K30. V75380K30, V75312K30, H75360K50, H75380K50, H75312K50, V75380K50, V75312K50 Compressors
Country of Origin - Brazil
Horsepower (hp) - 7.5
MFG Part # (OEM) - MTRH302/EISA
Material - Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM - 1770
Package Contents - Compressor Motor
Package Depth - 16.57
Package Height - 10.15
Package Weight - 116
Phase - Three Phase
Product Condition - New
Size - 16.575 Length x 12.874 Width x 10.157 In. Height, 1.375 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000003375
Voltage - 230/460
Warranty Type - No Manufacturer's Warranty
