230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor MTRK301/EISA
230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor MTRK301/EISA is backordered and will ship as soon as it is back in stock.

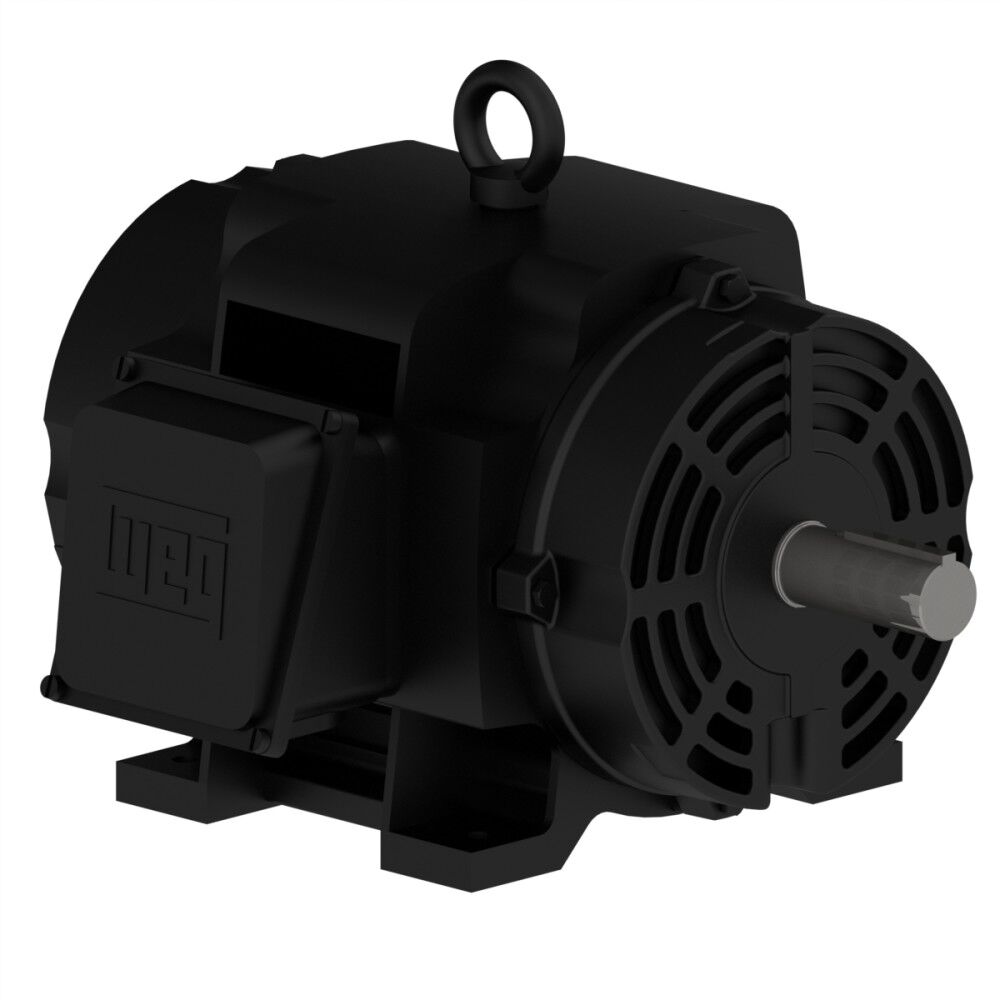

Rolair 230-460V 15HP 1775 Rpm Definite Purpose Compressor Electric Motor
W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.
The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
California Proposition 65 Warning.Features
- Electrical Ratings: 230/460V, 41.1-37.2/18.6A, 50/60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 254T, 4 poles
- Service Factor: 1.15
- Rotation: Both clockwise & counter clock wise
- Terminal Box: Left position, 4 poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 243
Compatibility - For Models H15312K60, H15320K60, H15312K100, H15320K100 Compressors
Country of Origin - Brazil
Horsepower (hp) - 15
MFG Part # (OEM) - MTRK301/EISA
Material - Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM - 1775
Package Contents - Compressor Motor
Package Depth - 20.66
Package Height - 14.36
Package Weight - 243
Phase - Three Phase
Product Condition - New
Size - 20.669 Length x 16.144 Width x 14.369 In. Height, 1.625 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000003474
Voltage - 230/460
Warranty Type - No Manufacturer's Warranty
