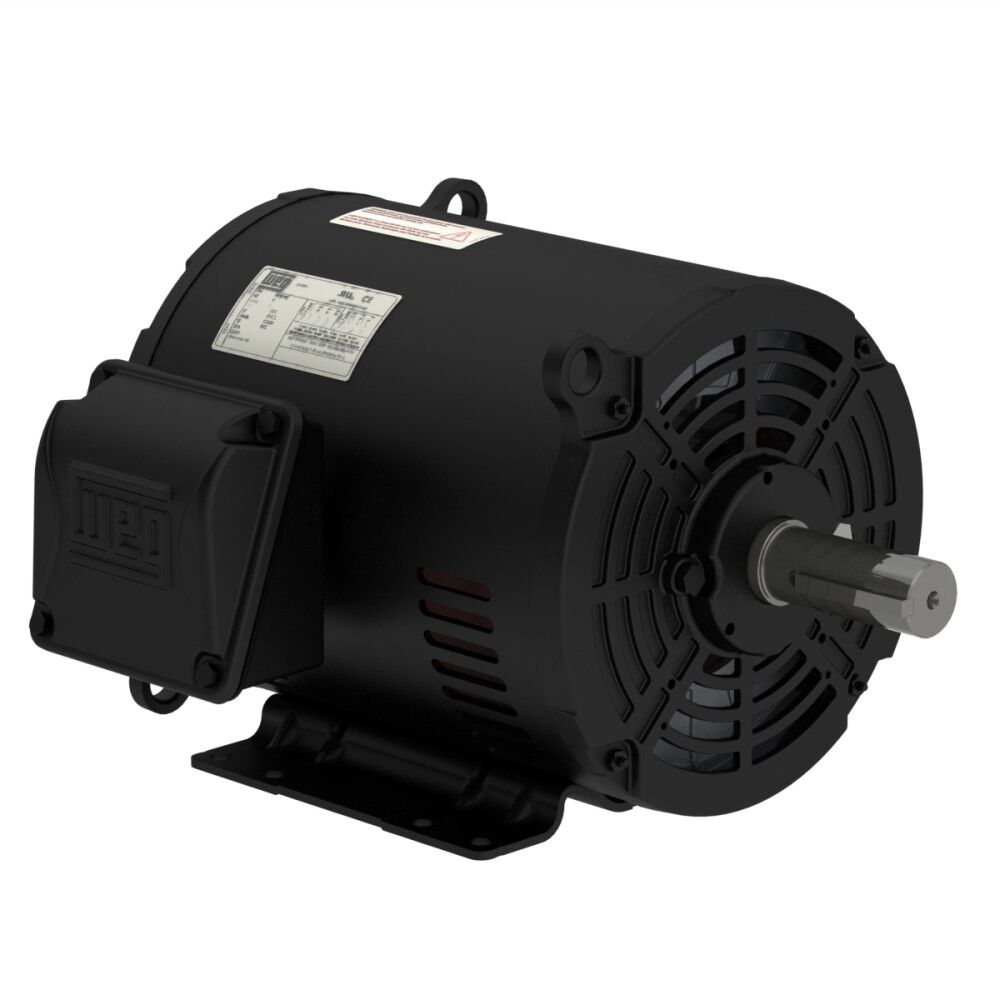

Rolair 230-460 3HP 1760 Rpm General Purpose Compressor Electric Motor
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product.
The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.
California Proposition 65 Warning.Features
- Electrical Ratings: 230/460V, 12.7/6.33A, 50/60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 182/4T, 4 poles
- Service Factor: 1.15
- Rotation: Both clockwise & counter clock wise
- Terminal Box: Left position, 4 poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 79.6
Compatibility - For Models H5330K30, H5360K30, V5360K30, H5380K30, V5380K30, H5312K30, V5312K30, H5330K28, H5360K28, V5360K28, H5380K28, V5380K28, H5312K28, V5312K28, H5330K20H, H5330K28H Compressors
Country of Origin - Mexico
Horsepower (hp) - 5
MFG Part # (OEM) - MTRG303/EISA
Material - Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM - 1760
Package Contents - Compressor Motor
Package Depth - 8.54
Package Height - 16.33
Package Weight - 79.6
Phase - Three Phase
Product Condition - New
Size - 16.339 Length x 11.229 Width x 8.543 In. Height, 1.125 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000003283
Voltage - 230/460
Warranty Type - No Manufacturer's Warranty
