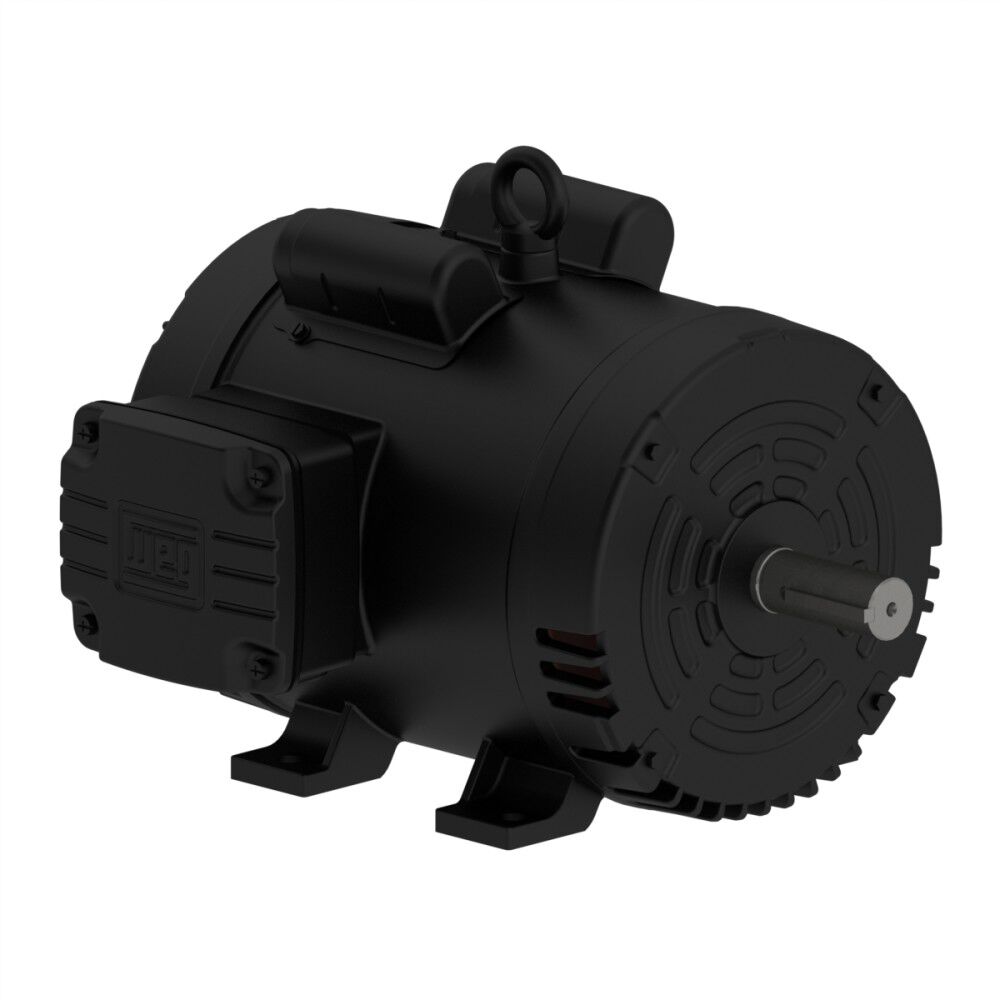

Rolair 208-230V 5HP 1750 Rpm Compressor Electric Motor W/Reset
Rolair 208-230 4 Poles 1725 Rpm open drip proof enclosure compressor motor.
The electric motor for use with models 5230K30, 5230K30CS compressors.
California Proposition 65 Warning.Features
- Electrical Ratings: 208-230V, 23-20.7A, 60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 184T, 4 poles
- Service Factor: 1.15
- Rotation: Both clockwise & counter clock wise
- Terminal Box: Left position, 4 poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 97
Compatibility - For Models 5230K30, 5230K30CS Compressors
Country of Origin - Mexico
Horsepower (hp) - 5
MFG Part # (OEM) - MTRG105
Material - Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft, Plastic Fan
Maximum RPM - 1750
Package Contents - Compressor Motor
Package Depth - 14.87
Package Height - 11.25
Package Weight - 97
Phase - Single Phase
Product Condition - New
Size - 14.875 Length x 12.12 Width x 11.25 In. Height, 1.125 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000000480
Voltage - 208/230
Warranty Type - No Manufacturer's Warranty
