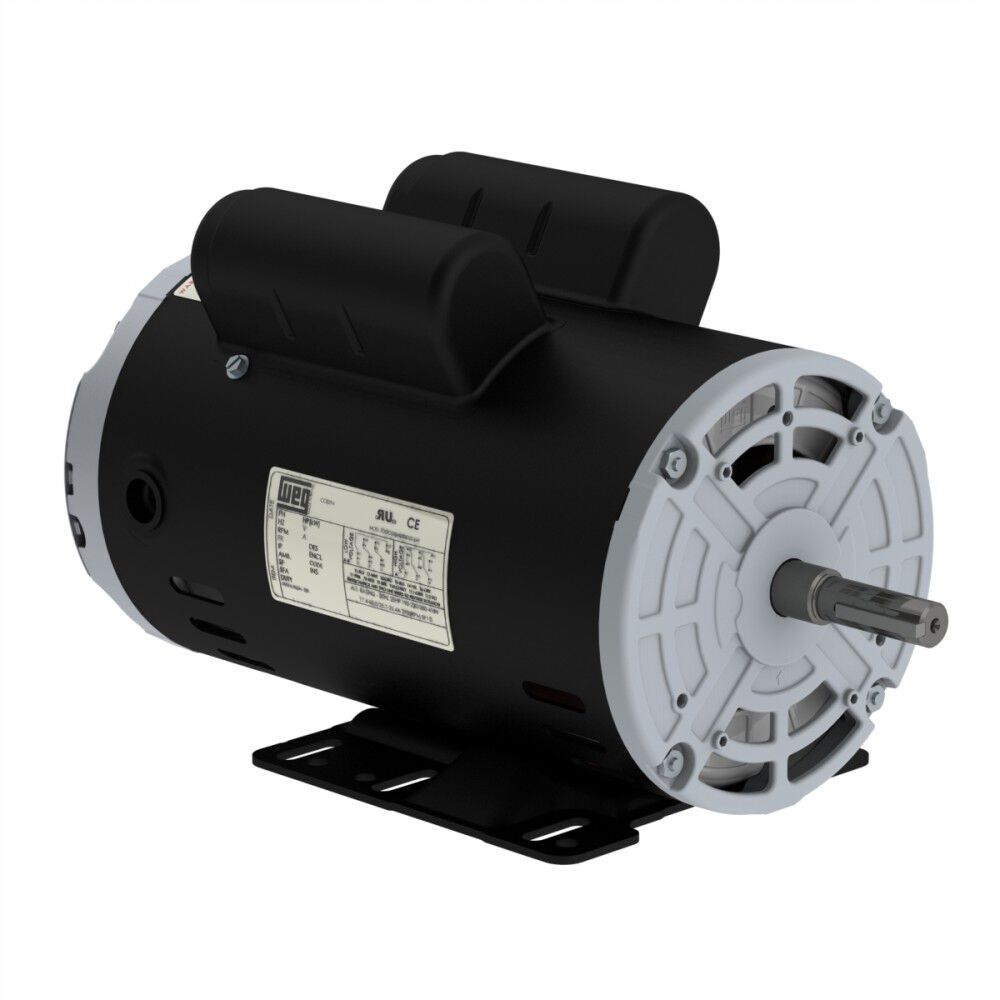

208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor MTRE103
208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor MTRE103 is backordered and will ship as soon as it is back in stock.
Rolair 208-230V 3HP 3480 Rpm Definite Purpose Compressor Electric Motor
Rolair 230/460V 2 Poles 3480 Rpm open drip proof enclosure compressor motor with manual overload & reset.
The electric motor for use with For models H3130K18, H3160K18, V3130K18, V3160K18 compressors.
California Proposition 65 Warning.Features
- Electrical Ratings: 208-230V, 16/13.7-12.7A, 60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 56H, 2 poles
- Service Factor: 1 (1.00 @ 208V)
- Rotation: Both clockwise & counter clock wise
- 2 Poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 8.15
Compatibility - For Models H3130K18, H3160K18, V3130K18, V3160K18 Compressors
Country of Origin - Brazil
Horsepower (hp) - 3
MFG Part # (OEM) - MTRE103
Material - Rolled Steel Frame, SAE 1040/45 Carbon Steel Shaft
Maximum RPM - 3480
Package Contents - Compressor Motor
Package Depth - 12.67
Package Height - 8.15
Package Weight - 8.15
Phase - Single Phase
Product Condition - New
Size - 12.67 Length x 6.535 Width x 8.15 In. Height, 0.625 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000008509
Voltage - 208/230
Warranty Type - No Manufacturer's Warranty
