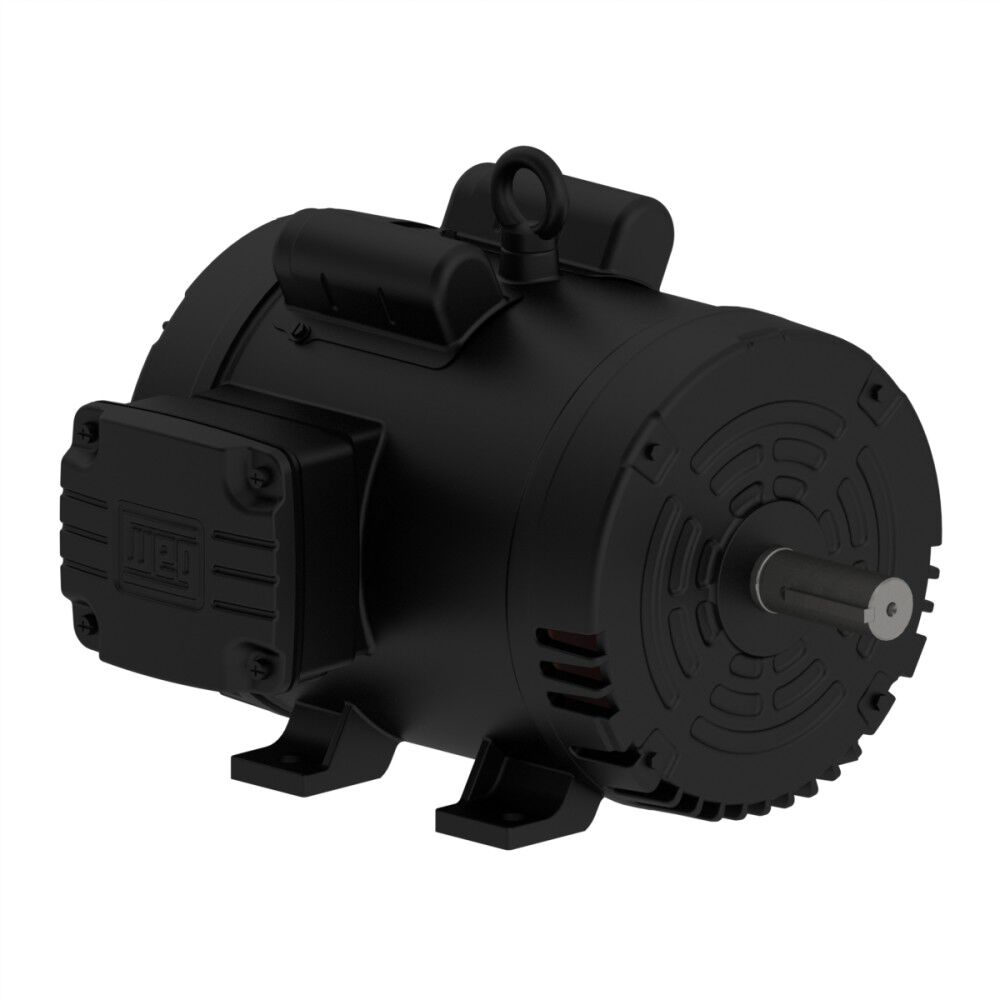

Rolair 208-230V 3HP 1750 Rpm Definite Purpose Compressor Electric Motor
Rolair 208-230 V 4 Poles 1750 Rpm open drip proof enclosure compressor motor with manual overload & reset.
The electric motors for use with For models 095K18, 3230K24, 3230K24CS compressors.
California Proposition 65 Warning.Features
- Electrical Ratings: 208-230V, 16/18.6-17.5A, 60 Hz
- Mounting: F-1 Foot-mounted
- Without flange
- Standard: NEMA MG-1
- Enclosure: Open Drip Proof (ODP)
- Duty Cycle: Continuous (S1)
- Frame: 184T, 4 poles
- Service Factor: 1.15 (1.00 @ 208V)
- Rotation: Both clockwise & counter clock wise
- Terminal Box: Left position, 4 poles
Specifications
Brand Name - Rolair
Assembled Weight (lbs) - 106
Compatibility - For Models 095K18, 3230K24, 3230K24CS Compressors
Country of Origin - Mexico
Horsepower (hp) - 3
MFG Part # (OEM) - MTRE101
Material - Cast Iron Frame, SAE 1040/45 Carbon Steel Shaft, Plastic Fan
Maximum RPM - 1750
Package Contents - Compressor Motor
Package Depth - 15.55
Package Height - 11.45
Package Weight - 106
Phase - Single Phase
Product Condition - New
Size - 15.5 Length x 10.748 Width x 11.457 In. Height, 1.125 In. Shaft Size
Temperature Range - -20 to 40 Deg C
UPC - 413000003122
Voltage - 208/230
Warranty Type - No Manufacturer's Warranty
