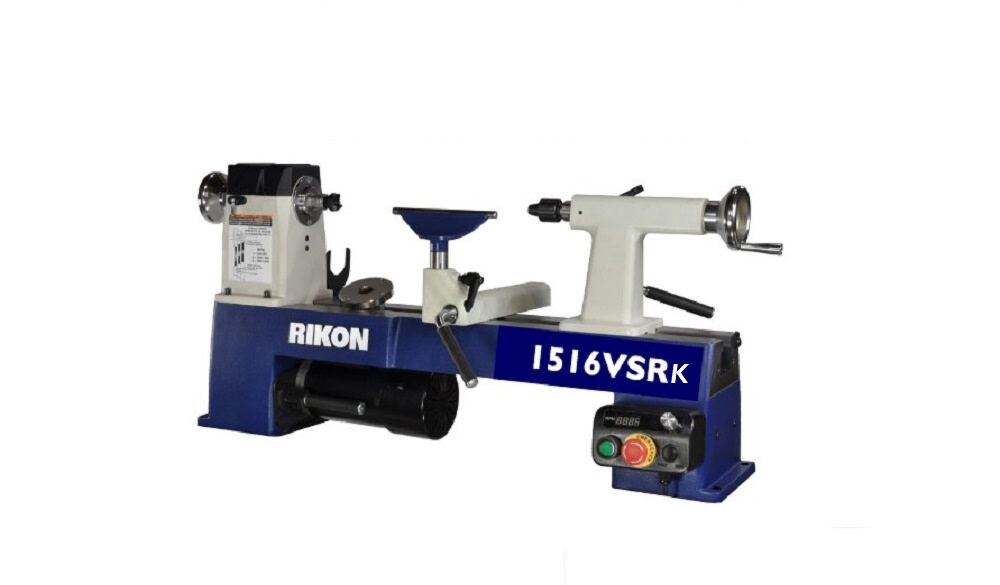

RIKON 12 Inch x 16-1/2 Inch VSR MIDI Lathe with 4-Jaw Chuck
12Äù x 16.5Äù Variable Speed Midi Lathe #70-1516VSR is has been designed to offer features seen on larger industrial lathes.
An ideal lathe for novice to professional turners.
Designed with a powerful 1.25HP DC motor, electronic variable speed controls, a wide range of operating speeds, digital RPM readout, ample diameter and spindle length turning capacities in forward and reverse drives.
Corded control box has a magnetic back that allows it to be moved along the front of thecast iron lathe bed, and positioned where you want it for easiest access when turning.
Left, outboard end of the lathe bed is milled to take a special 13-1/2" bed extension (#70-903 sold separately) to allow outboard turning of diameters up to 15" .
Lathe includes spur center, live center, 3Äù faceplate, 6" tool rest with 1" diameter post, knock-out bar, wrenches and tool holder.The RIkon 70-1516VSR-K comes with a 4-jaw chuck (K).
Variable speed ranges from 250-850 RPM, to 430-1450 RPM to 950-3200 RPM depending on your turning needs.
Forward and reverse. 6 amps, 60HZ, up to 3200 RPM.
Single phase, 115V.
Features
- 3 Variable speeds and 4-jaw chuck included
- 115V, 1.25 HP, 250-3200 RPM
- Machined edges and optional bed extension
- Heavy duty cast iron
- Swing over bed: 12"; 15" w/extension
- Swing over tool rest: 9-1/4"
- Working distance between centers: 16.5"
- Tool rest post diameter: 1"
- MT2 Head & tailstock taper
- 3 Speed RPM ranges
Specifications
Brand Name - RIKON
Amperage (A) - 10
Assembled Weight (lbs) - 95
Built-In Accessory Storage - No
California Proposition 65 Warning Required - Yes
Country of Origin - China
Dust Collection - No
Horsepower (hp) - 1.25
MFG Part # (OEM) - 70-1516VSR-K
Material - Cast
Maximum Speed (rpm) - 3200
Net Tool Weight (lbs) - 95
Package Contents - Lathe, spur center, live center, 3" faceplate, 6" tool rest, knock-out bar, wrenches & tool holder
Package Depth - 10.24
Package Height - 34.65
Package Weight - 103
Package Weight (lbs) - 103
Product Condition - New
Swing Over Bed - 12
UPC - 814463016269
Variable Speed - Yes
Voltage - 120
Warranty Type - 5 Years Limited
Weight (lbs) - 95
