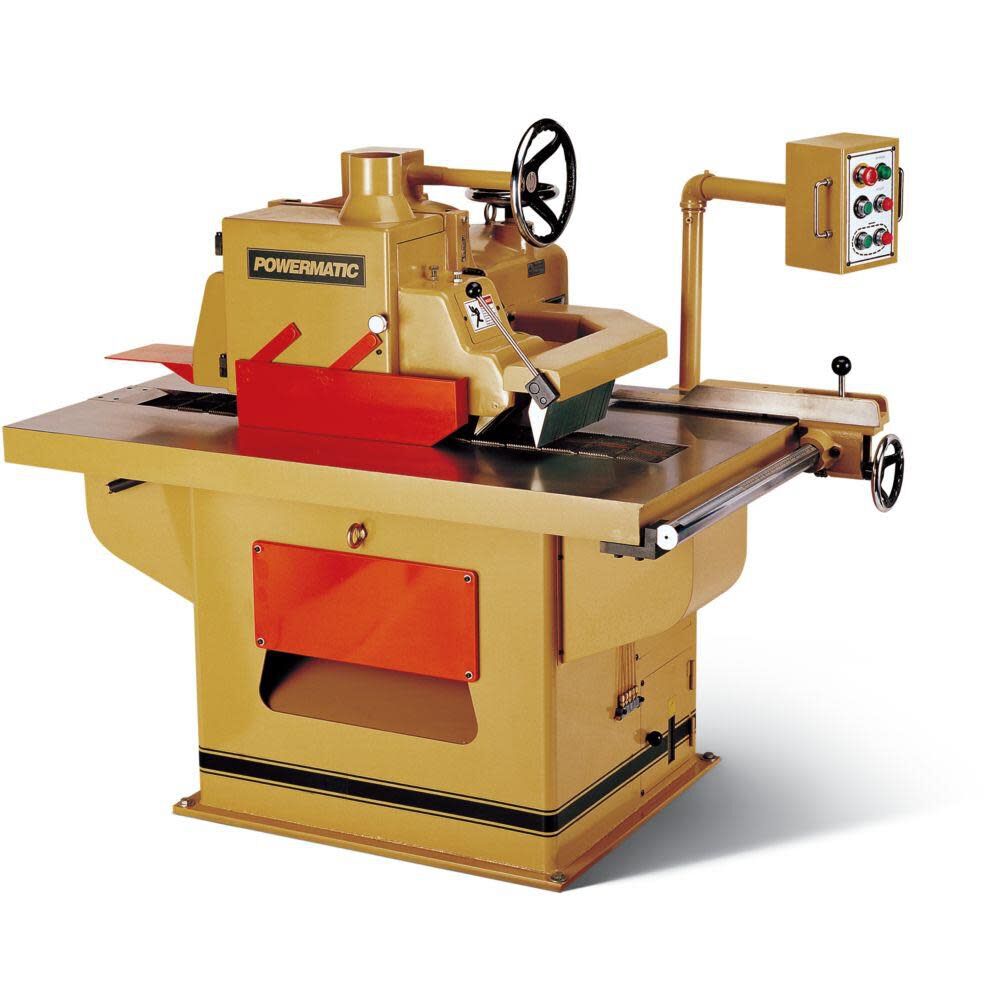

Whether it's face frames, long runs or full production, the SLR12 straight line rip saw has every job covered.
Powered by a 15 HP main motor, this saw has the capacity for virtually any job.
The 12 In.
main blade mounts on a high alloy, heat treated arbor that is precision ground and dynamically balanced for maximum stability and long durability.
The caterpillar feed chain blocks are constructed of special grade cast iron that is heat treated and precision machined.
The track travels on hardened V way guides insuring rigidity and accuracy.
A full brush cleaning system with auto-oiler and shut-off gives the conveyor a long service life.
All of this is driven by a 2 HP feed motor with variable speed to perfectly match the feed rates with your production and finish requirements.
A series of seven stock hold downs keep each work piece flat and straight throughout the cutting cycle.
Dual anti-kickback devices help prevent discharge of work pieces.
Full cast iron construction for rock-solid operation
15 HP main motor, 2 HP feed motor for large production capacity
Auto-oiler with shut off ensures long conveyor chain life
Seven pressure rollers with dual anti-kickback devices help prevent stock discharge
Variable feed speeds to accommodate different type stock
Large 18 In rip and 3-7/8 In depth of cut capacities for virtually any job
Adjustable position control box for operator convenience
Voltage conversion to 460V requires, main motor 460V overload relay, separate purchase, part number SLR12-611A and conveyor motor with 460V overload relay, also separate purchase SLR12-609AA
Specifications
Series Name: Professional
Type: Contractor
Dimensions
Arbor Diameter: 1-in
Bevel Capacity (Degrees): 0
Blade Size (Inches): 12
Cutting Depth (Inches): 3.0875
Depth Control: Yes
Left Rip Capacity (Inches): 18
Maximum Depth at 45 Degrees (Inches): 3.0875
Maximum Depth at 90 Degrees (Inches): 3.0875
Right Rip Capacity (Inches): 18
Saw Blade Diameter: 12-in
Table Height (Inches): 32
Table Length (Inches): 35
Table Width (Inches): 55
Weight (lbs.): 2090
Features
Amps: 50
Auxiliary Handle: No
Blade Included: Yes
Blade Material: Carbide-tipped
Caster Platform Included: No
Cordless: No
Dust Handling: Port
Maximum Blade Speed (RPM): 4500
Micro Adjust Rip Fence: Yes
Portable: No
Repetitive Cut Marking System: No
Spindle Lock: Yes
Stand Type: Fixed
Voltage: 230
Worm Drive: Yes
Warranty
Warranty: 3-year
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: Not safety listed
Miscellaneous
UNSPSC: 23101500
