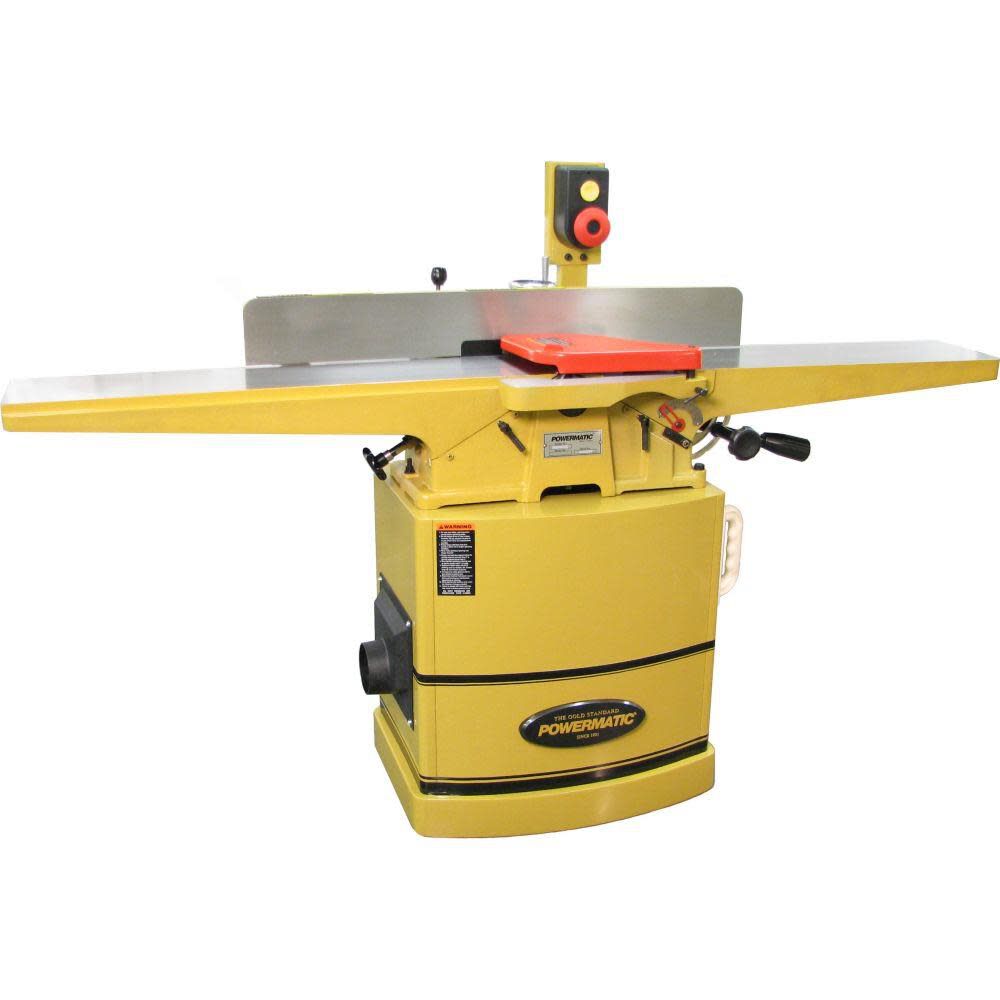

Heavy Duty Bench Jointer with Helical Head, Cast Iron Table and Fence, Accessories Included, Multiple Colors/Finishes 1610086K
Heavy Duty Bench Jointer with Helical Head, Cast Iron Table and Fence, Accessories Included, Multiple Colors/Finishes 1610086K is backordered and will ship as soon as it is back in stock.
This 8 In.
jointer meets the demand for accuracy while combining unique, user-friendly functions.
The Infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth.
Fence tilting is accomplished by a worm gear system, smoothly operated by a simple hand wheel.
The tables provide 73 In.
long extended support.
A non-mar insert in the fence protects the table from scratches during adjustments.
The jointer is available with a three knife cutter head, or a helical cutter head with four-sided knife inserts.
The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

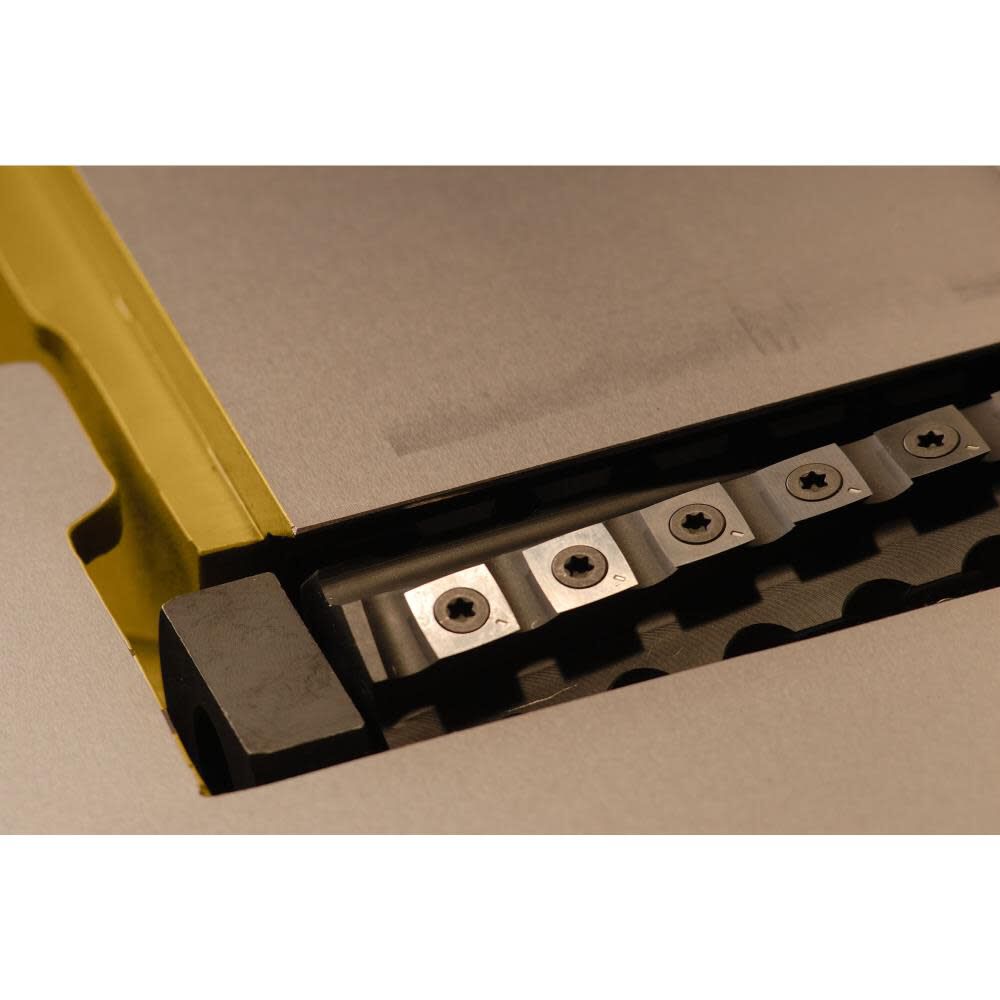

Helical cutter head with four-sided inserts provides smoother, quieter cutting and a superior finish
Extra long tables are mounted on dovetailed ways, for extended workpiece support
Adjustment lever offers quick Infeed table positioning and fine-tuning of cut depth
High mount switch for operator convenience
Specifications
Color/Finish Family: Multiple colors/finishes
Dimensions
Adjustable Depth Stops: No
Assembled Height (Inches): 46
Assembled Width (Inches): 25
Blade Length (Inches): 1.18
Depth Adjustment: No
Depth Measurement System: No
Fence Height (Inches): 5.25
Fence Length (Inches): 38
Maximum Board Thickness (Inches): 0.50
Maximum Board Width (Inches): 8
Maximum Cutting Depth (Inches): 0.50
Rabbeting Depth (Inches): 0.75
Table Length (Inches): 73
Table Width (Inches): 8.5
Tool Weight (lbs.): 411
Features
Accessories Included: Yes
Amperage (Amps): 20
Blade Material: Steel
Dust Collection: Yes
Fence Material: Cast iron
Fence Tilt: Yes
Fence Tilt Range in Degrees: 45
Heavy Duty Stand Included: Yes
Helical Head: Yes
Lock On Switch: Yes
Maximum RPM: 7000
Number of Blades: 54
Positive Stops: Yes
Quick-Change Knife System: No
Table Material: Cast iron
Variable Speed: No
Voltage (Volts): 230
Warranty
Warranty: 5-year limited
Certifications
CA Residents: Prop 65 Warning(s): Yes
