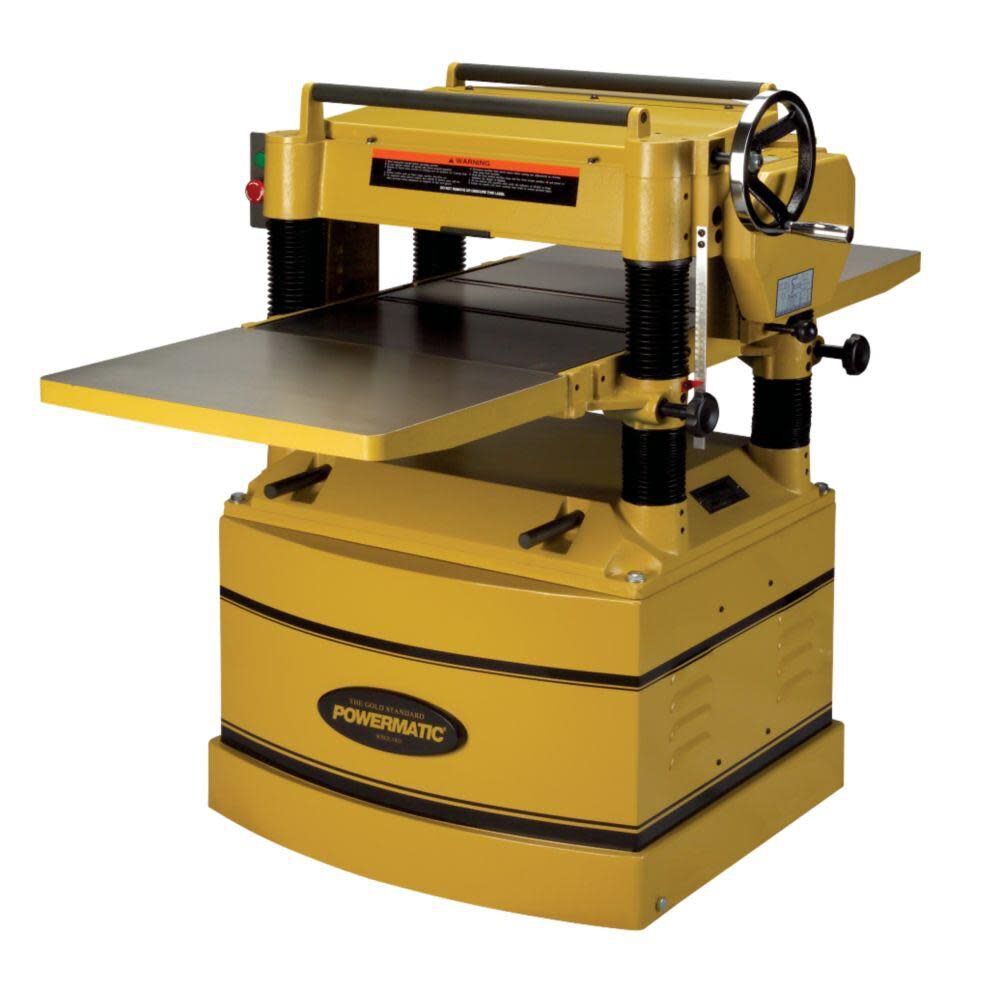

Powermatic 209HH 20in Planer 5HP 1PH 230V Helical Cutter Head
The 209HH, 20-Inch Planer, 5HP 1PH 230V, With Helical Cutterhead, makes it easy to get a consistent thickness on your boards by shaving them down at their highest points.

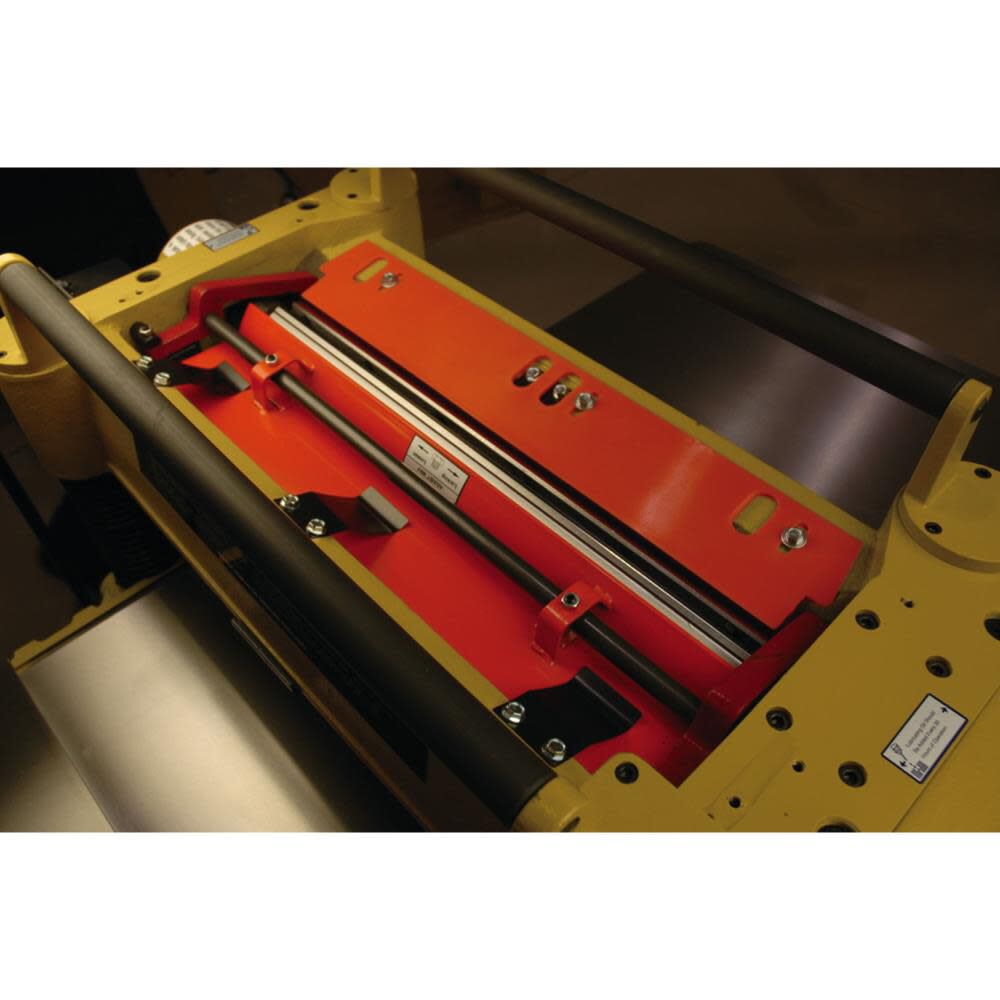

It sports a 5 hp motor that runs the helical cutterhead at up to 5,000 rpm to quickly remove excess.
This Powermatic 209HH planer's variable feed system operates at your choice of 16/20 or 24/31 feet per minute for better control.
The cast iron table is robust and rigid to give you consistent results.
This Powermatic planer can accommodate a board up to 20 inches wide, which makes it ideal for mid-size projects.
Casters on the cabinet base make it easy to move the table around.
Its 5-inch dust port helps to keep particles out of your eyes.
Features
- Powermatic 209HH planer comes with 3 open-end wrenches, 4 hex wrenches, Torx plus drive socket adapter and 10 knife inserts
- Shaves down the highest point of a board to make it uniformly thick
- 5 hp Powermatic planer has a top cutting speed of 5,000 rpm
- Feed system's variable speed moves at either 16/20 or 24/31 fpm
- Heavy-duty planer's cast iron table stays rigid for consistent cutting
- Maximum board width of 20 inches
- Casters provide exceptional mobility
- 5-inch dust port for keeping sawdust away from your eyes
- 5-year warranty for residential use; 2-year warranty for commercial users
Specifications
Brand Name - Powermatic
Amperage (A) - 21
Assembled Weight (lbs) - 800
Bench or Stationary - Stationary
Blade Count - 99
Blade Type - See Description
California Proposition 65 Warning Required - Yes
Color - Gold
Country of Origin - Taiwan
CSA Certified - No
Drive Motor System - Electric
ETL Listed - No
Height (in) - 41.375
Horsepower (hp) - 5
Lock-on Switch - Yes
MFG Part # (OEM) - 1791315
Maximum Cutting Depth (in) - 0.09375
Maximum RPM - 0
Maximum Width Cutting Capacity (in) - 20
Overall Weight (lbs) - 890
Package Contents - Accessories Included
Package Depth - 26
Package Height - 36.62
Package Weight - 890
Package Weight (lbs) - 890
Phase - 1
Product Condition - New
Reversible - No
Switch Type - Push Button
UL Listed - No
UPC - 662755915420
Variable Speed - No
Voltage - 220 Volts
Warranty Type - 5 Years
