16in Jointer 7.5HP 3PH 230/460V Helical Head 1791283
16in Jointer 7.5HP 3PH 230/460V Helical Head 1791283 is backordered and will ship as soon as it is back in stock.

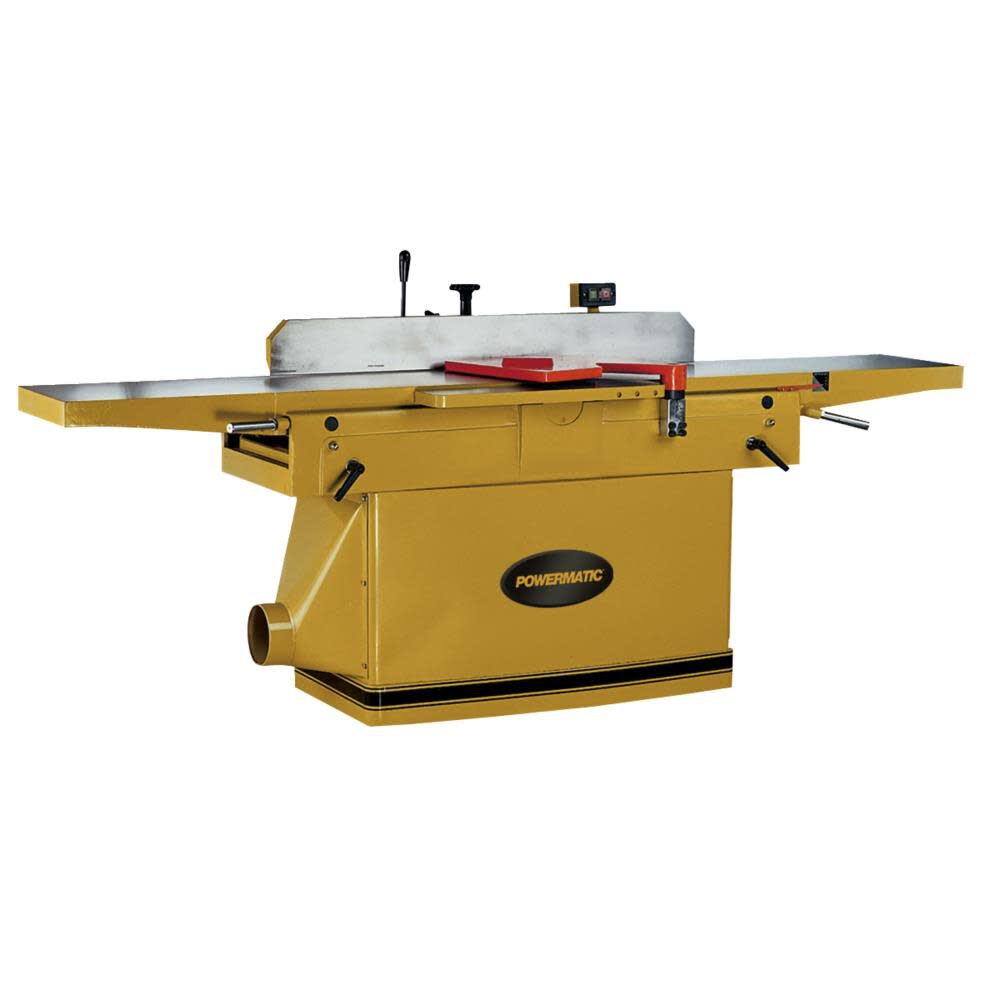

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head
This 16" jointer offers big capacity and performance in a machine that is loaded with features.

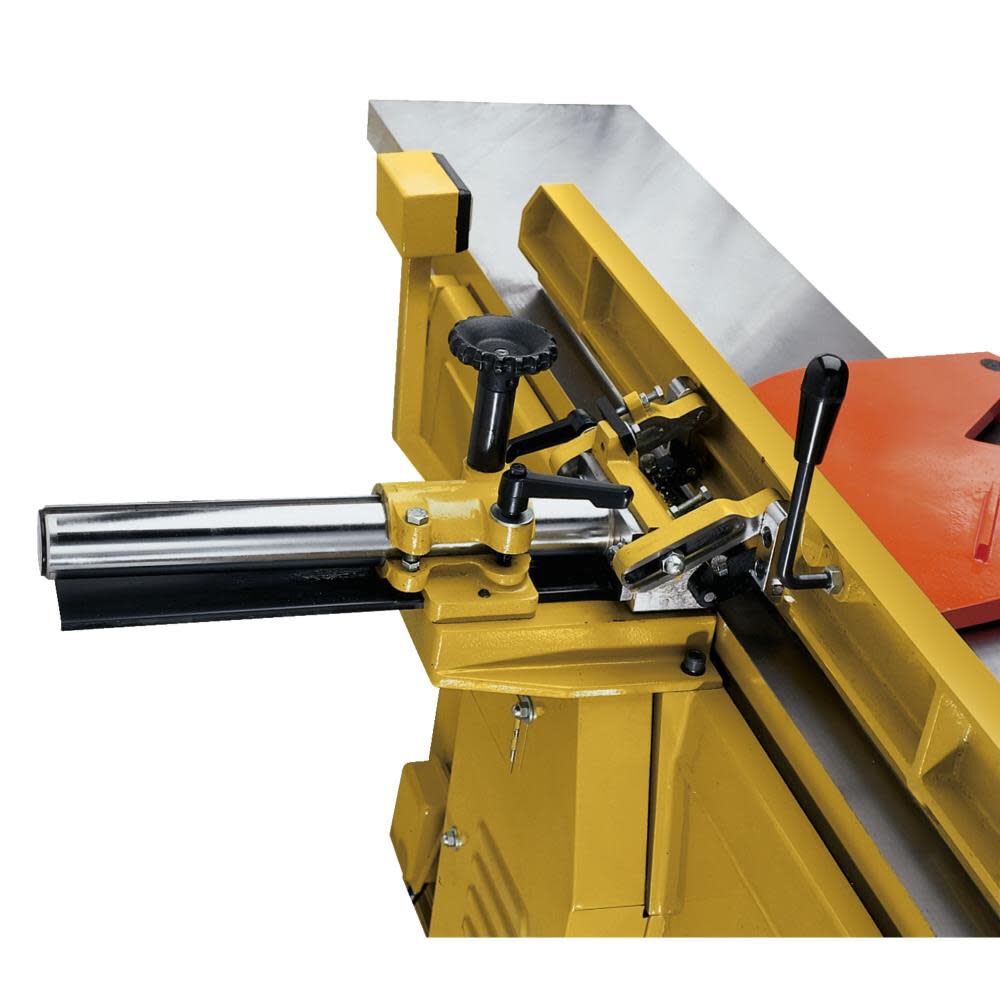

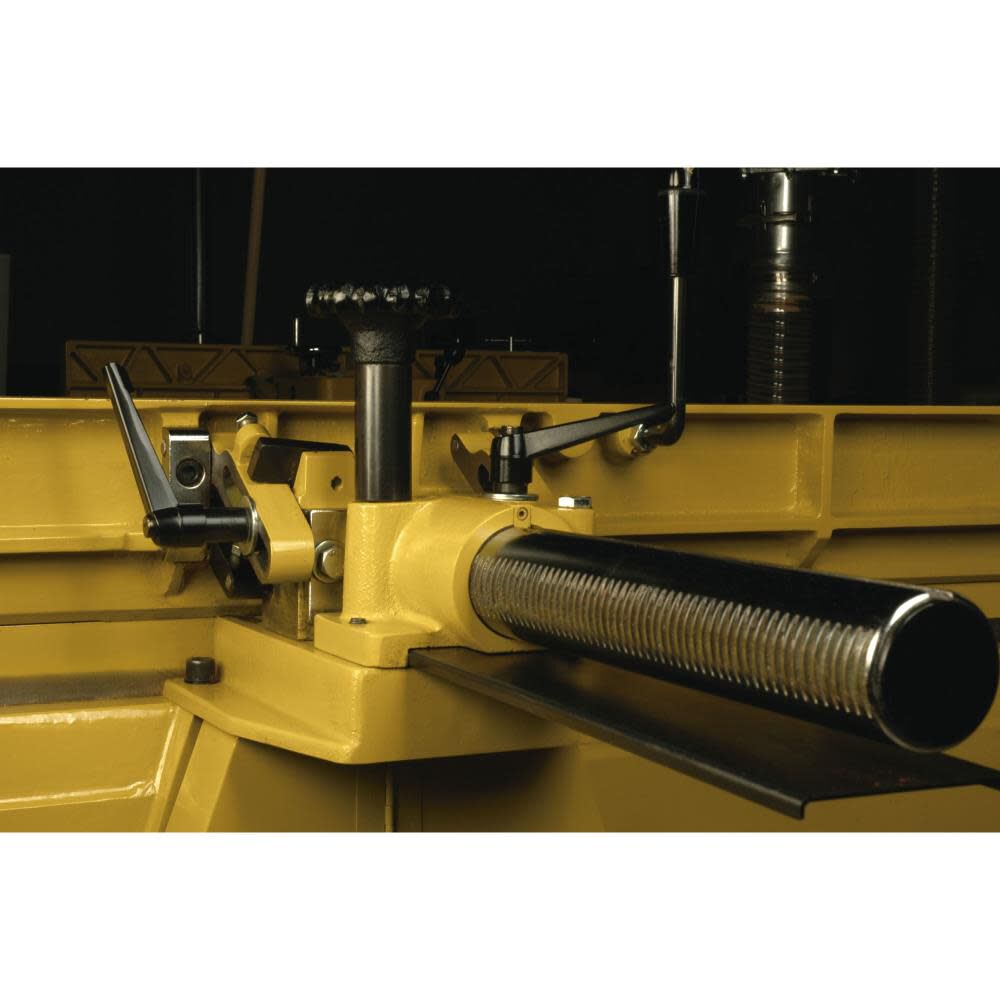

Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock.

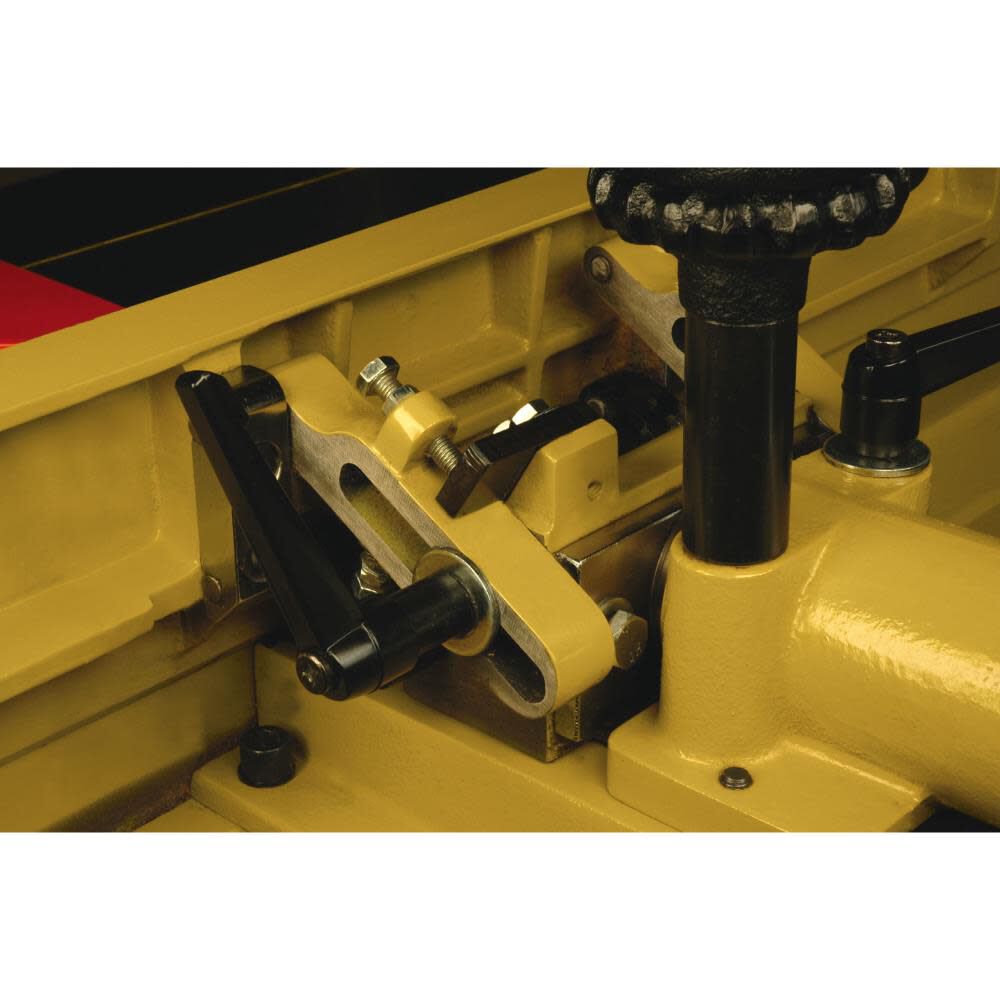

Preset stops on the fence body allow for fast angle set-up at 45∞ in and out, and a positive stop for perfect 90∞ angles.
The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment.
This design also ensures the tables remain perfectly parallel even after years of tough duty.

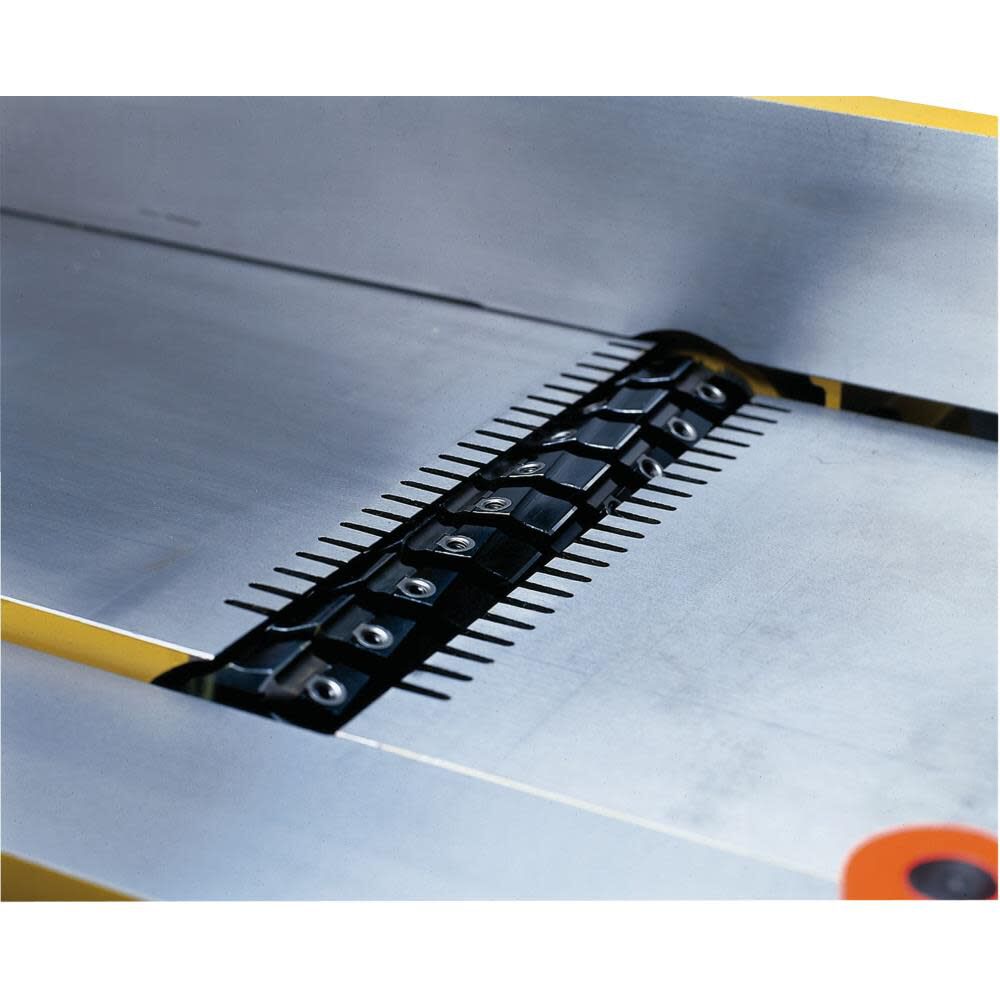

The specially designed solid steel helical cutter head consists of six rows of precision ground staggered inserts.
This system makes fast work of knife changing and never needs adjustment.
The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.
Features
- Helical cutter head with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
- Parallelogram construction maintains close table-to-cutter head proximity and ensures table parallelism

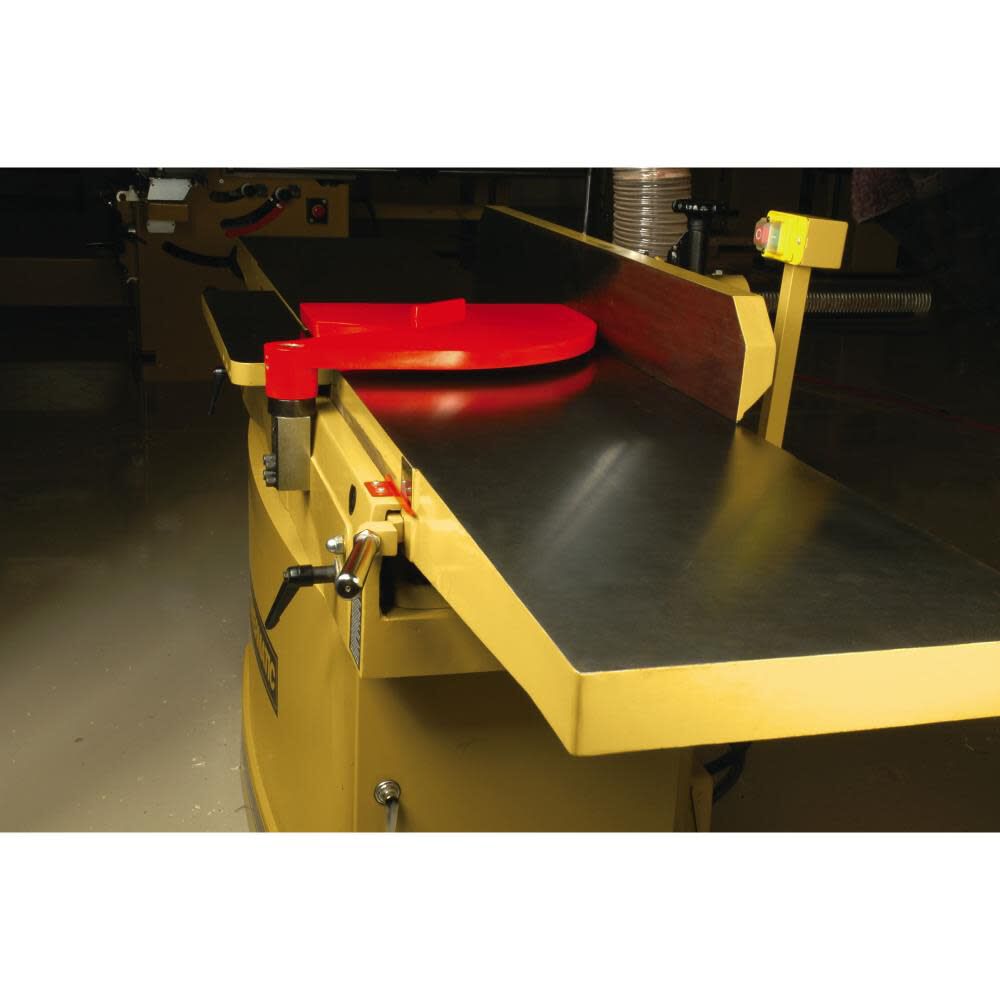

- Large 96x16-in table surface for maximum support and fine finish
- Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
- Full size rabbeting table supports large workpieces for rabbets up to 3/4-in deep
- 7.5HP motor for industrial duty
- Helical cutter head with inserts
- Tilting fence
- Dust collection adapter
- Cutter head guard
Specifications
Brand Name - Powermatic
Amperage (A) - 2
Assembled Weight (lbs) - 1280.0
Bench or Stationary - Bench
Blade Count - 58
Blade Material - Steel
California Proposition 65 Warning Required - Yes
Color - Yellow
Country of Origin - Taiwan
CSA Certified - Pending
Dust Port - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - 1791283
Maximum Cutting Depth (in) - 0.75
Maximum Speed (rpm) - 5200
Package Contents - 16" Jointer 7.5HP 3PH 230/460V Helical Head
Package Depth - 103.5
Package Height - 41.0
Package Weight - 1400.0
Package Weight (lbs) - 1400
Product Condition - New
Speeds - 5200
Table Length (in) - 96
Table Width (in) - 16
UPC - 662755464225
Voltage - 230 Volts
Warranty Type - 5 Years
