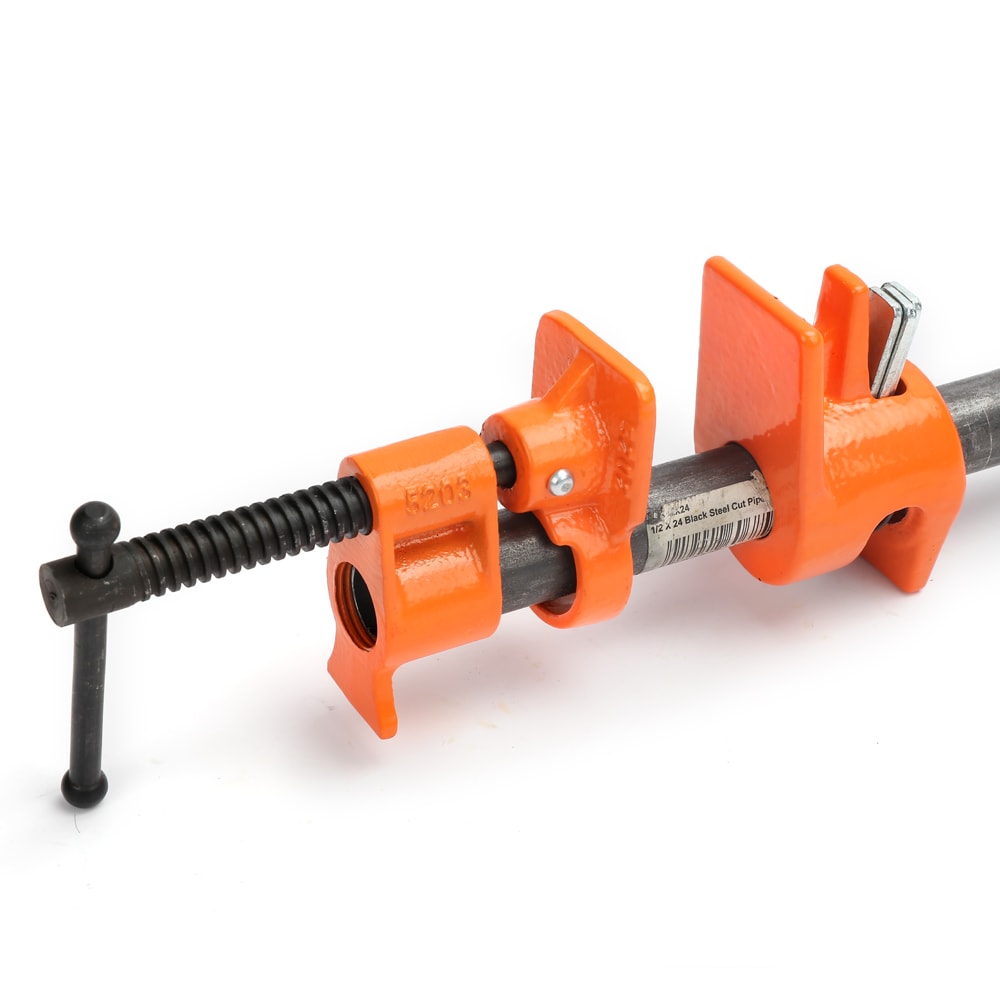

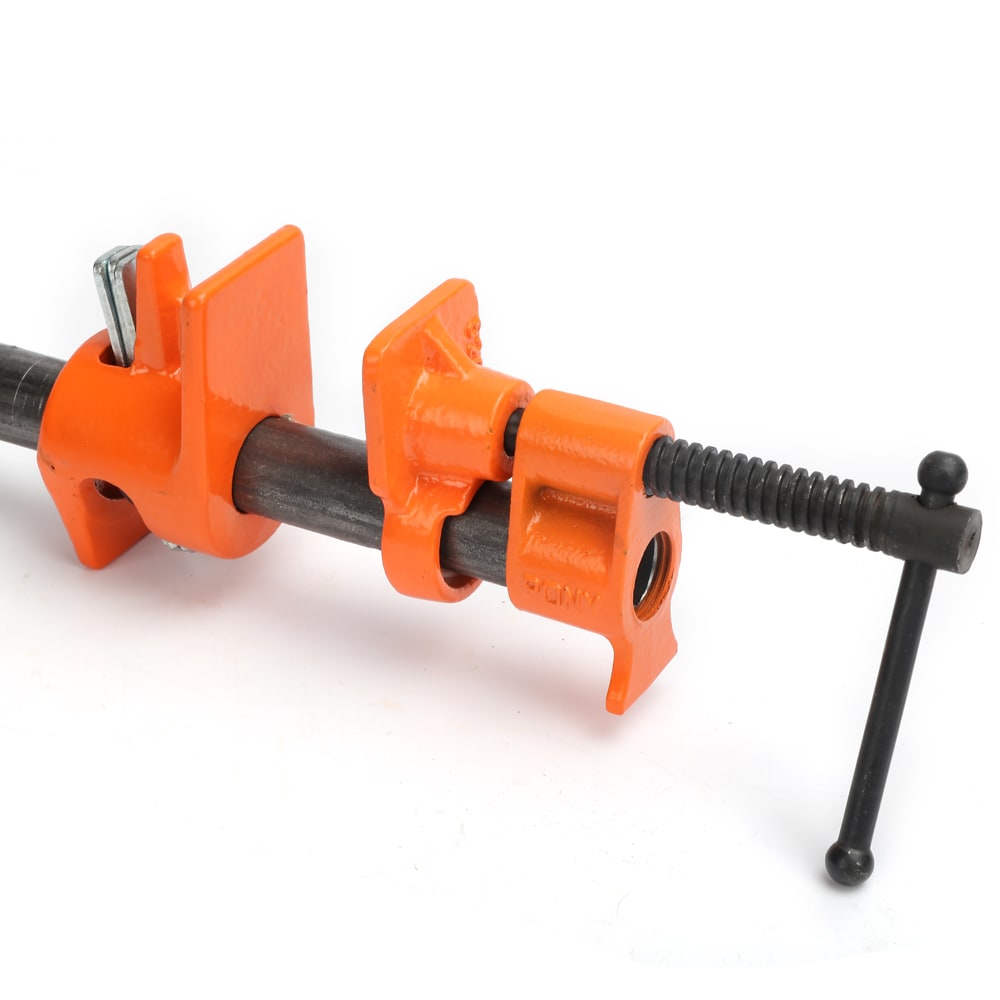

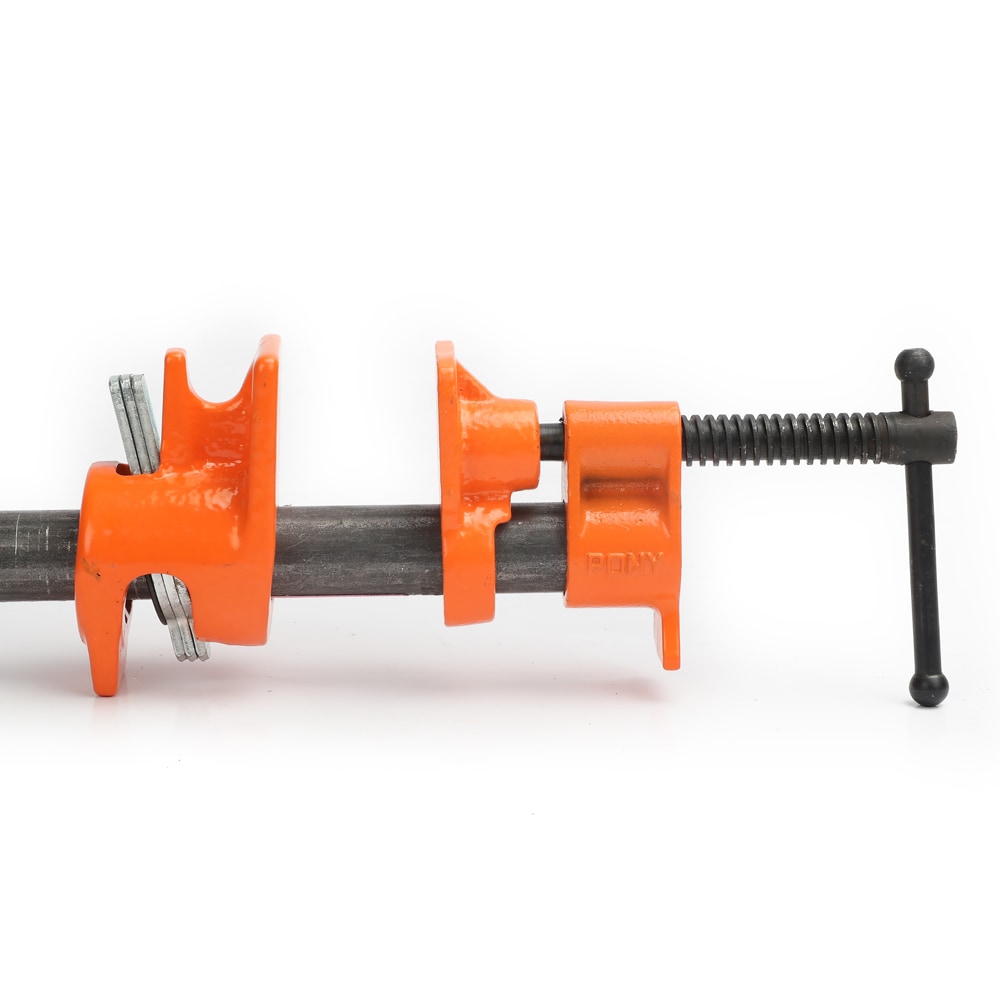

Pony style 52 clamp fixture for 1/2 In.
black pipe is smaller, lighter and less expensive than other clamp fixtures for pipe.
Ideal for do-it-yourself projects and light industrial/commercial applications.
Mounts on any length 1/2 In.
black pipe with both ends threaded (pipe not furnished).
One set of Pony clamp fixtures can be used to make any number of different length bar clamps simply by using the fixtures on different lengths of pipe.
Heavy-duty black pipe is recommended.
No tools are required for assembly.
Simply screw the head assembly onto the pipe threads at one end.
Slide the tail-stop onto the pipe at the other end.
Then apply the coil-spring stop to the pipe threads at the tail-stop end of the pipe to prevent the tail-stop from sliding off the pipe during adjustment away from the work being clamped.
Pony clamp fixtures are interchangeable from one pipe length to another, so one set can serve several needs.
(Note: make sure that pipe lengths are at least 7 In.
longer than work to be clamped.) Pony clamp fixtures feature the original multiple-disc-clutch design which allows a secure hold at any point along the pipe; no slipping, no pipe crushing...just instant adjustment either toward or away from the work being held.
The extended clutch discs are accessible above and below the pipe for easy Release.
Castings are malleable and/or ductile iron; orange and black baked-enamel finish.
Screw is 1/2 In.
diameter steel with special, smoothly cut acme threads; hardened steel thrust bearing in sliding head prevents wear at point of screw; crank-type handle.
Multiple-disc-clutches are plated hardened steel; 3 pieces per set.
Clamping faces are approximately 1-1/2 In.
square.
One coil-spring stop is included with each clamp fixture and prevents tail-stop from sliding off pipe.
Pony clamp fixtures are designed for long life.

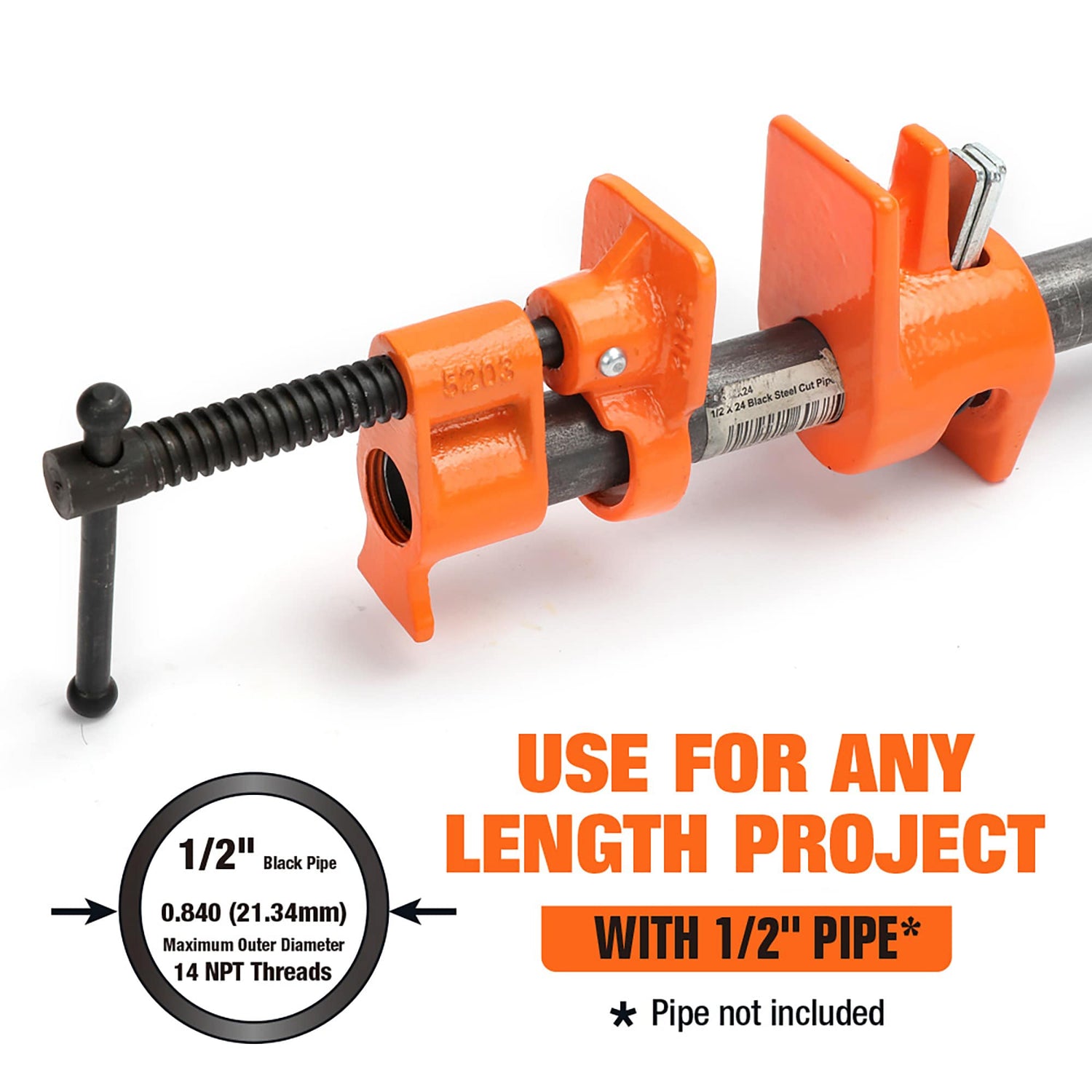

Mounts on any length 1/2” black pipe with both ends threaded (pipe not furnished)
Multiple-disc-clutch design which allows a secure hold at any point along the pipe
Clamping faces are approximately 1-1/2” square
Clamping capacity only limited by length of pipe used
Specifications
Color/Finish Family: Orange
Series Name: 1/2in
Type: Pipe
Dimensions
Throat Depth (Inches): 1.375
Features
Clamping Force (lbs.): 1000
Material: Steel
Maximum Jaw Opening: N/A (Pipe clamp)
Package Quantity: 1
Ratcheting: No
Warranty
Warranty: Limited lifetime
Certifications
CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
UNSPSC: 27112100
