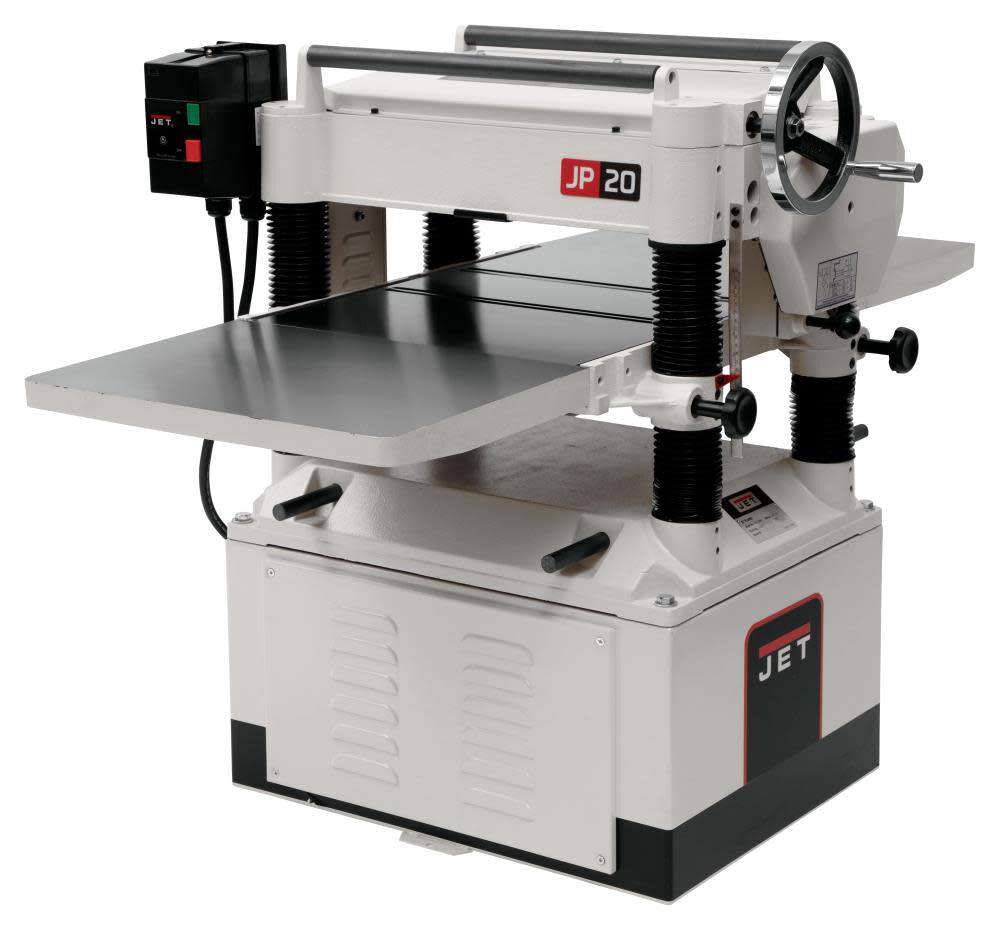

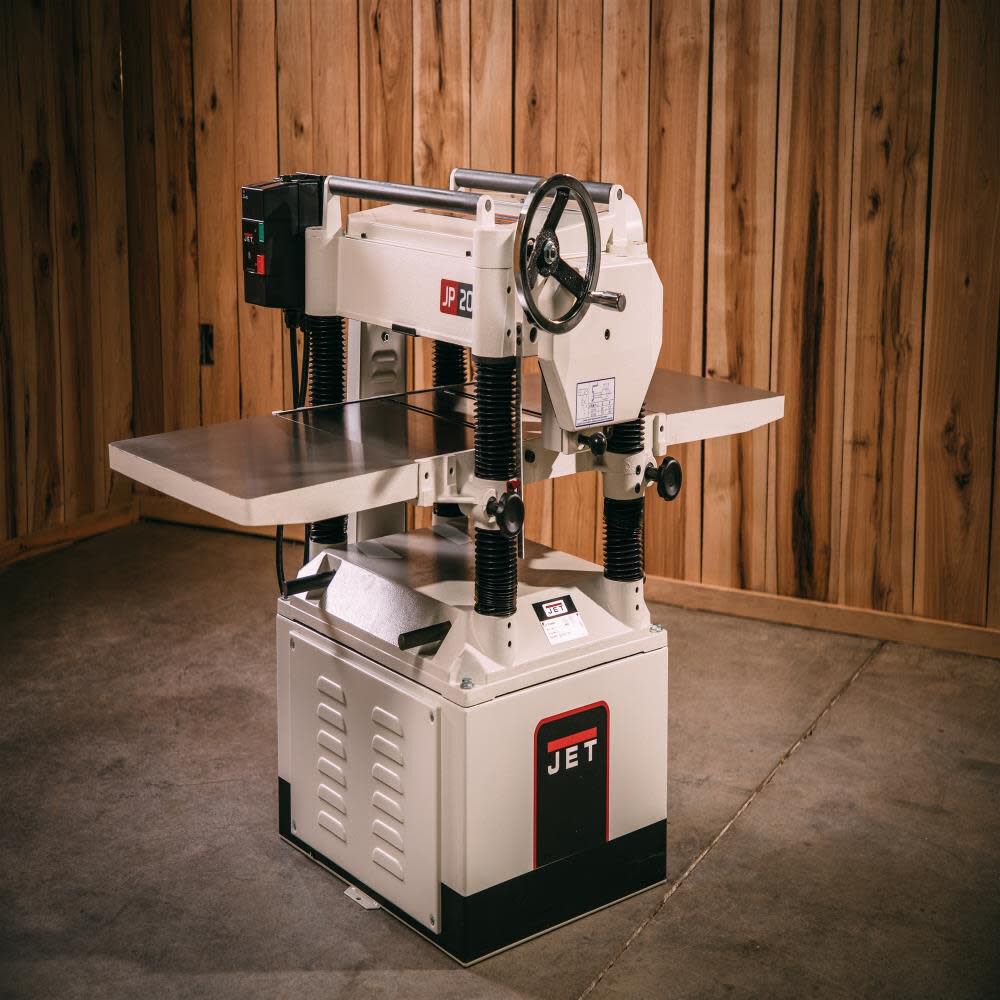

JET JWP-208HH 20in Planer 5 HP 1Ph Helical Head
Get a fine finish on rough stock with the JETÆ JWP-208HH, 20-Inch Planer 5HP 1Ph, Helical Head.
The planer operates with a powerful 5 hp motor that turns the cutter blade at up to 5000 rpm.
The Jet helical head planer accepts boards up to a maximum thickness of 8 inches and a width of 20 inches, so it's equipped to handle large stock.

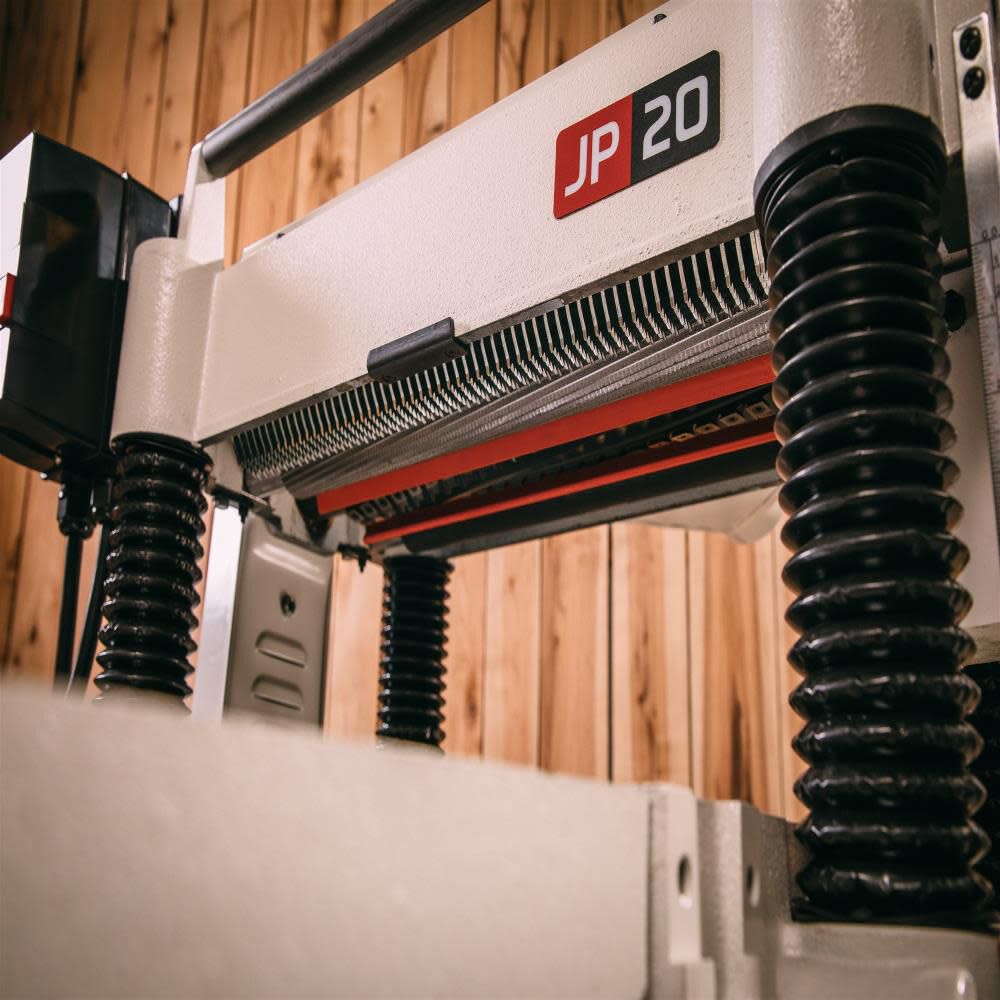

The helical cutting blade, with staggered waves of 92 carbide knives on a cylindrical head, provides an ultra-smooth finish with minimal operating noise.

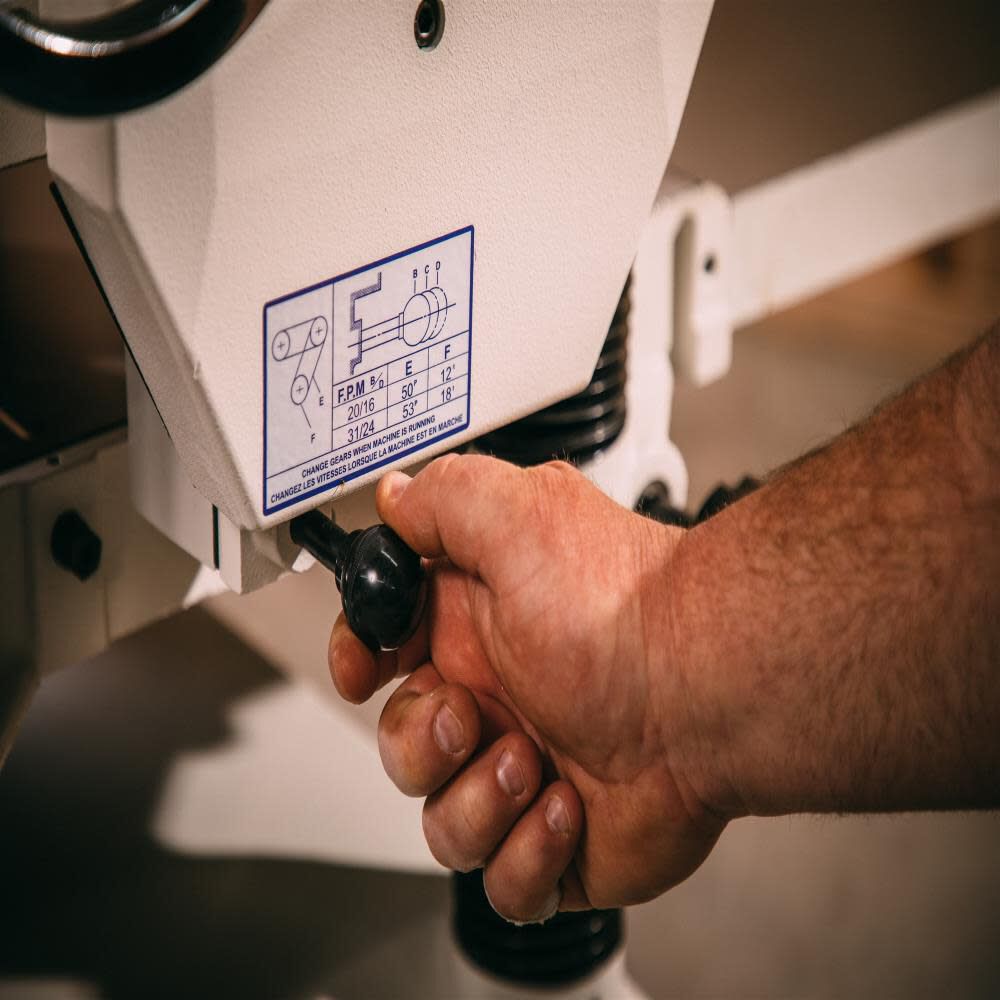

A 2-speed gearbox lets you feed boards into the Jet 20-inch planer at either 24 or 31 fpm, and steel infeed and outfeed rollers maintain the position of the cutterhead against the board, eliminating snipe.
An all cast-iron, precision-ground feed table enhances the accuracy of planer depth and provides a stable work surface.
The Jet planer includes a canted dust collection port to keep the collection hose angled away from the work area.
California Proposition 65 Warning. View Warning LabelFeatures
- Jet helical head planer surfaces large stock to a fine finish
- 5 hp motor puts out 5000 rpm of cutterhead speed
- Planer smooths boards up to 8 inches thick and 20 inches wide
- Cutterhead has 92 helical rows of carbide knife blades
- Jet 20-inch planer has adjustable feed rates of 24 and 31 fpm
- Feed tables have steel rollers to prevent snipe
- Cast-iron, machine-engineered table provides work stability and cutting accuracy
- Planer has a dust collection port
- Jet planer comes with a 5-year limited warranty
Specifications
Brand Name - JET
Amperage (A) - 12.5
Assembled Weight (lbs) - 753
Bench or Stationary - Stationary
Blade Count - 92
Blade Type - Helical
California Proposition 65 Warning Required - Yes
Color - Gray
Country of Origin - China
CSA Certified - No
Drive Motor System - Electric
ETL Listed - No
Height (in) - 23
Horsepower (hp) - 5
Lock-on Switch - Yes
MFG Part # (OEM) - 708544
Maximum Cutting Depth (in) - 0.15625
Maximum RPM - 5000
Maximum Width Cutting Capacity (in) - 20
Overall Weight (lbs) - 837
Package Contents - Accessories Included
Package Depth - 26
Package Height - 41.375
Package Weight - 837
Package Weight (lbs) - 837
Product Condition - New
Reversible - No
Switch Type - Push Button
UL Listed - No
UPC - 662755955891
Variable Speed - No
Voltage - 220 Volts
Warranty Type - 2 Years Limited
