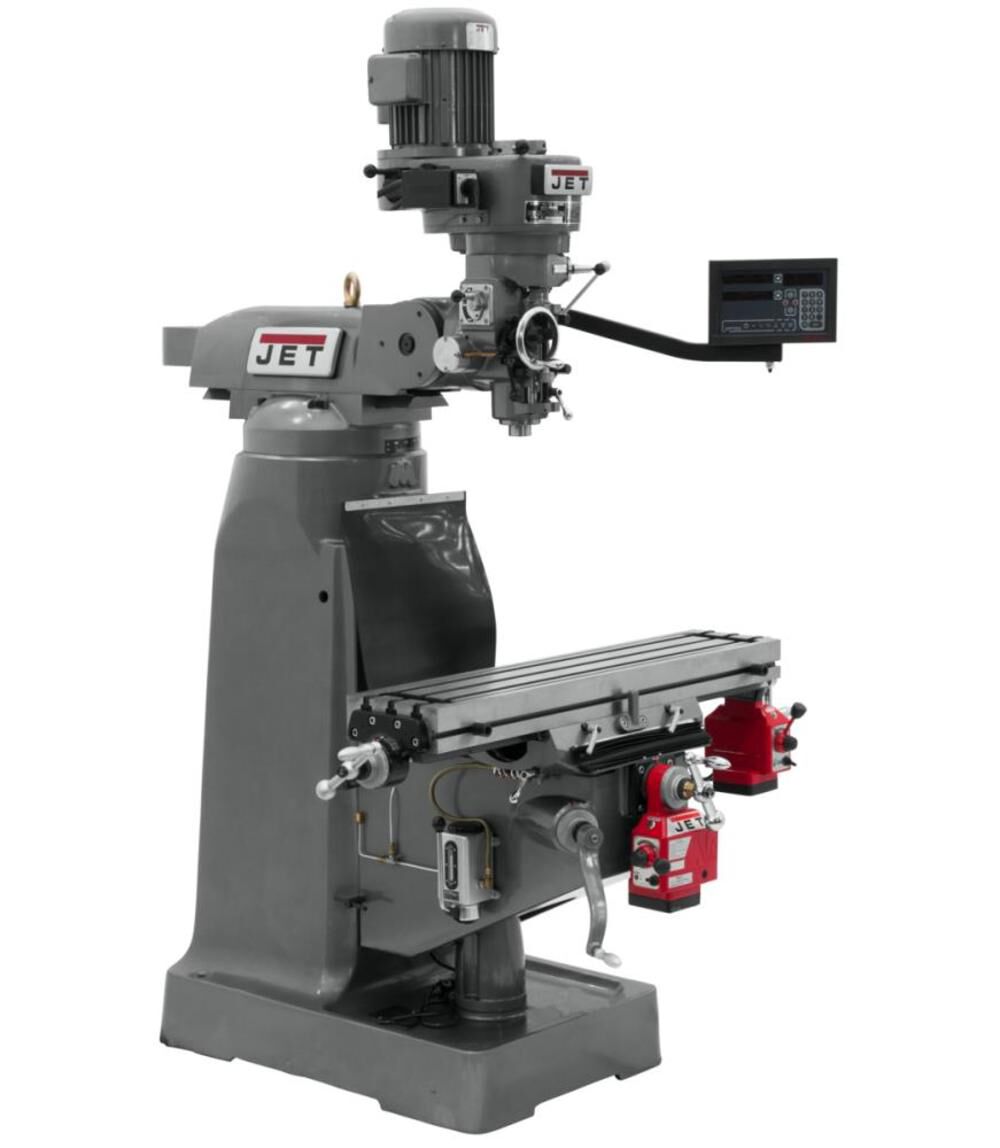

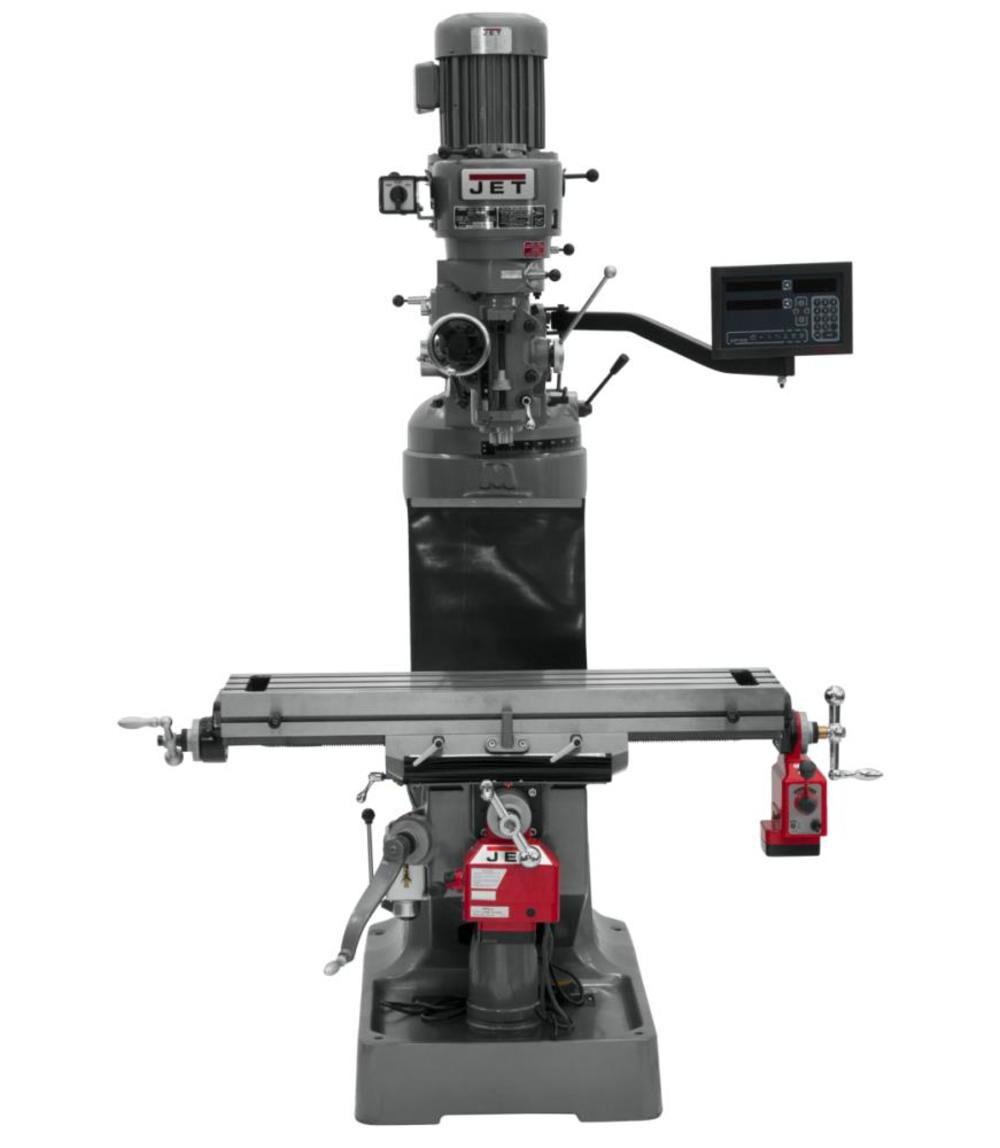

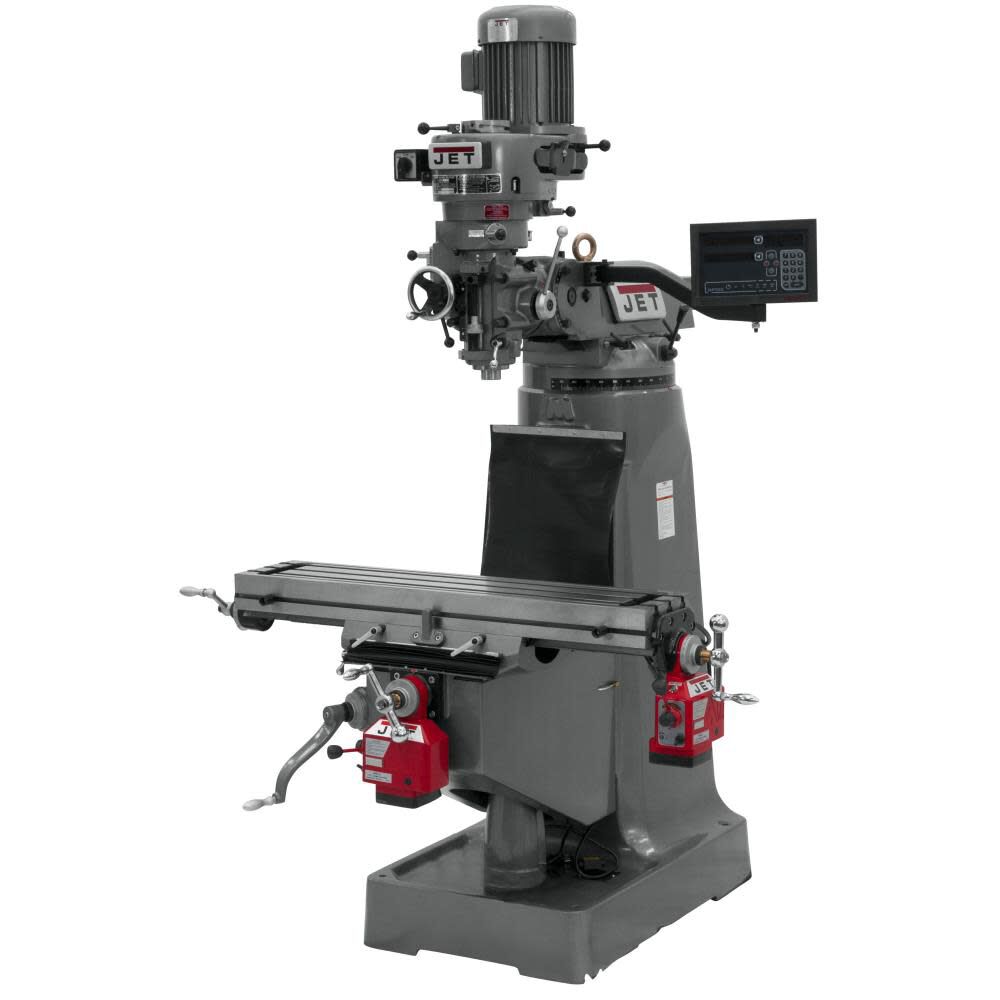

JET Vertical Milling Machine JTM-1 9X42 MILL with DP700M DRO & X-Y
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of MeehaniteÆ castings ensures you get everything you need from the JTM-1 and 2 models.
The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features
- Certified Meehanite® Castings
- Chrome lead screws on X and Y axis
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty splined motor drive
- One piece quill pinion and shaft
Specifications
Brand Name - JET
Assembled Weight (lbs) - 2200
California Proposition 65 Warning Required - Yes
Capacity - 550 Lbs
Chuck Design - Keyless
Color - Gray
Country of Origin - Taiwan
CSA Certified - No
Digital / Analog - Digital
ETL Listed - No
Head Tilt (Left Or Right) - 90
Height (in) - 82.0
MFG Part # (OEM) - 691189
Material - Cast Iron
Package Contents - Vertical Milling Machine JTM-1 9X42 MILL with DP700M DRO & X-Y
Package Depth - 0
Package Height - 0
Package Weight - 2200.0
Package Weight (lbs) - 2200
Product Condition - New
Quill Diameter - 3.375
RPM - 1720
Stand Included - Yes
Switch Type - Push Button
UL Listed - No
Unit of Measurement - Inch
UPC - 662755513459
Variable Speed - Yes
Voltage - 230 Volts
Warranty Type - 2 Years Limited
Weight (lbs) - 2200.0
X Axis, Longitudinal (in) - 0.0
Y Axis, Cross (in) - 0.0
Z Axis, Knee (in) - 0
