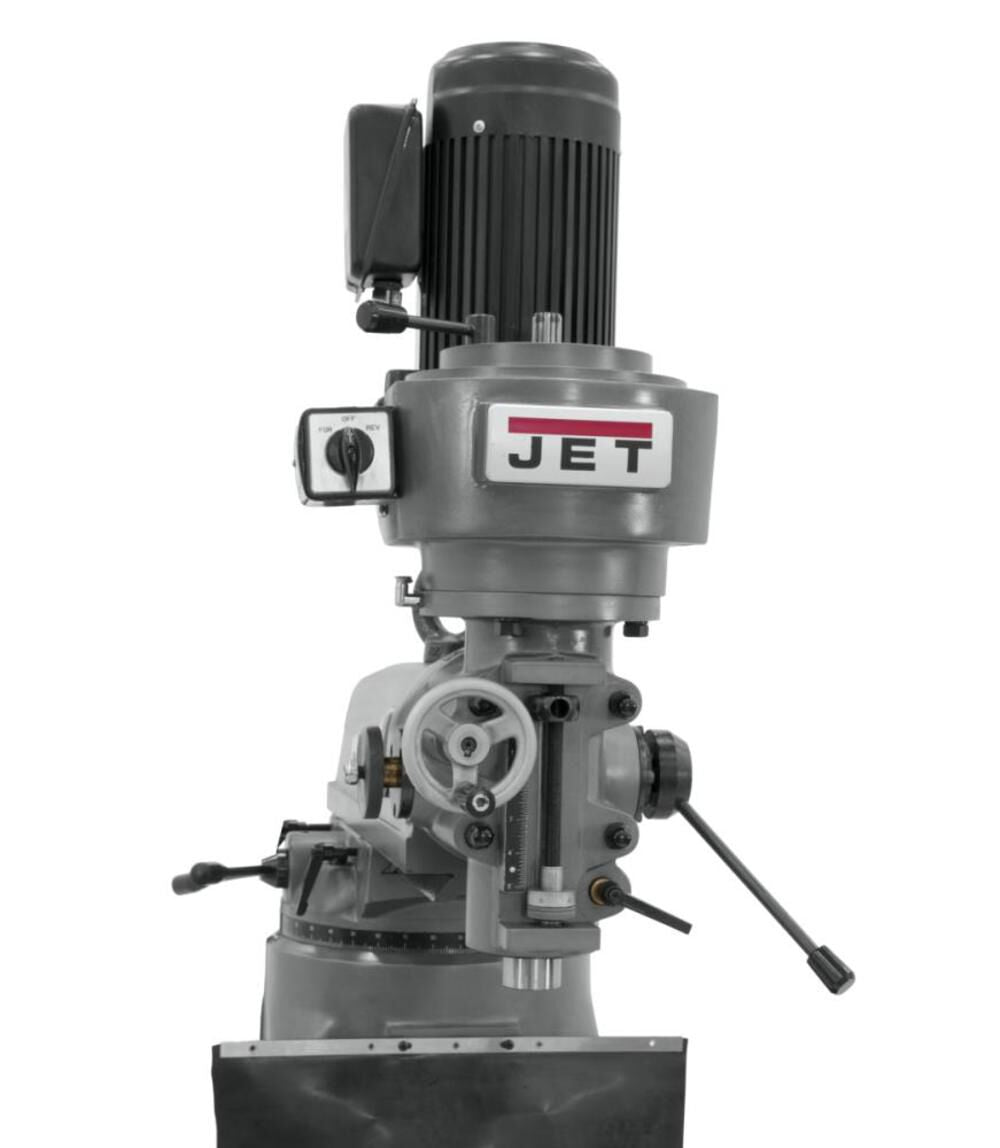

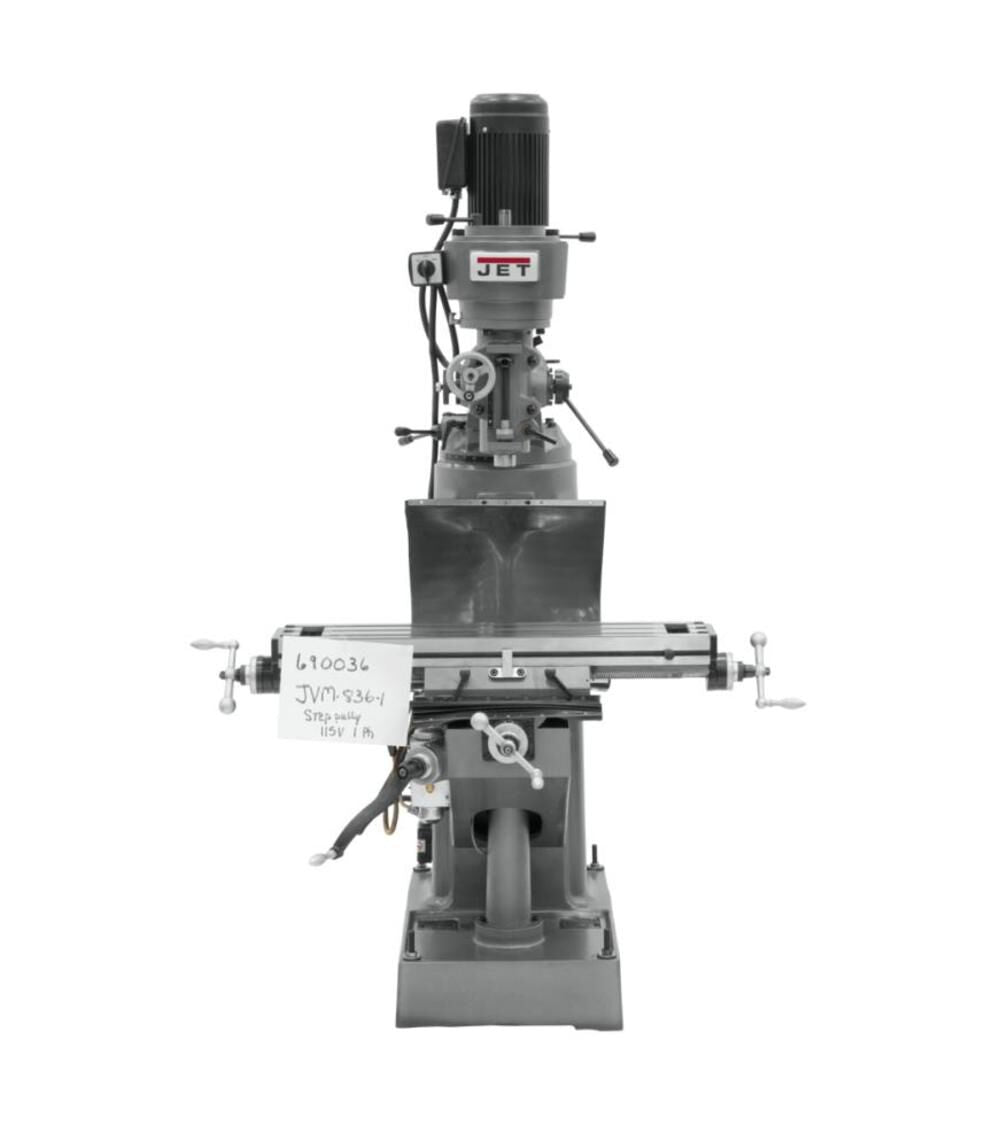

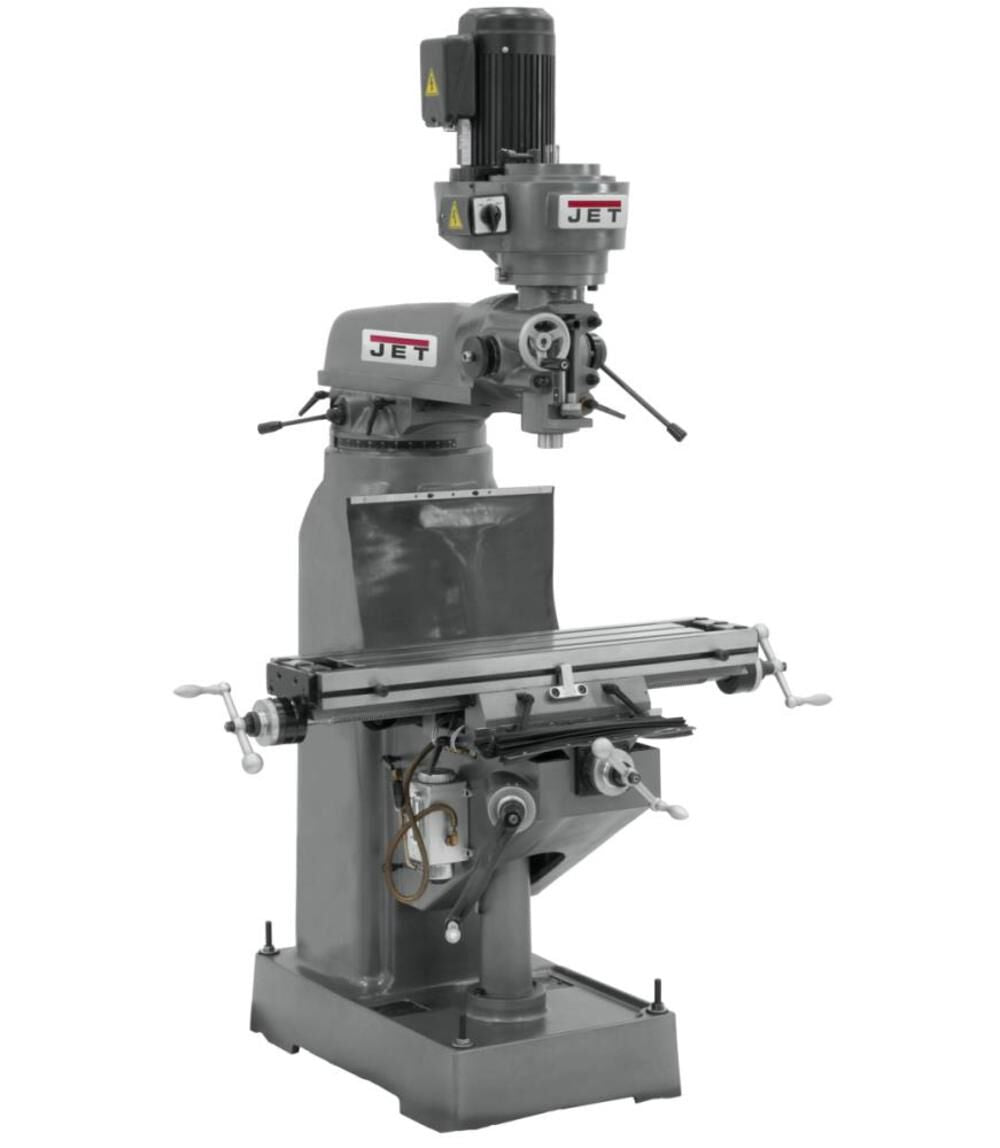

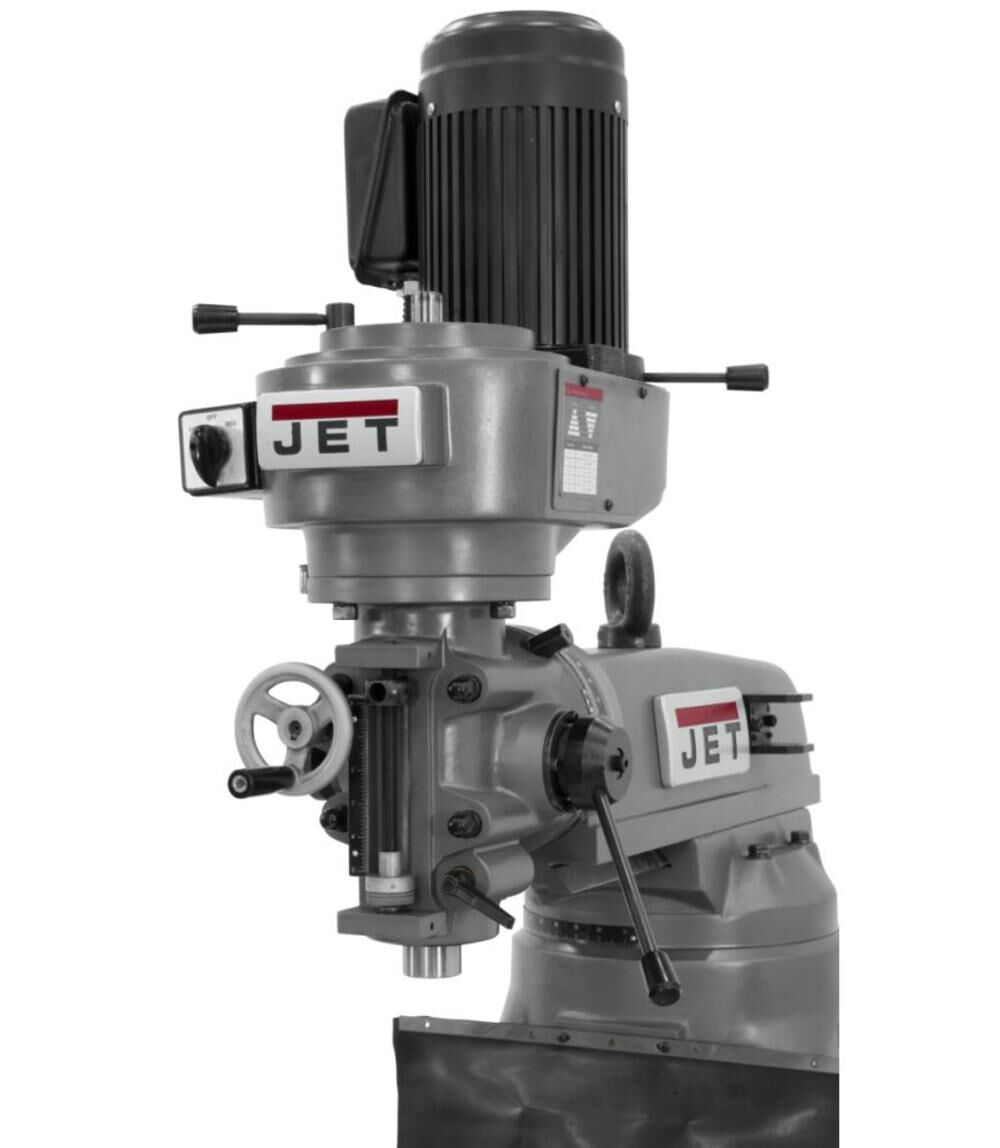

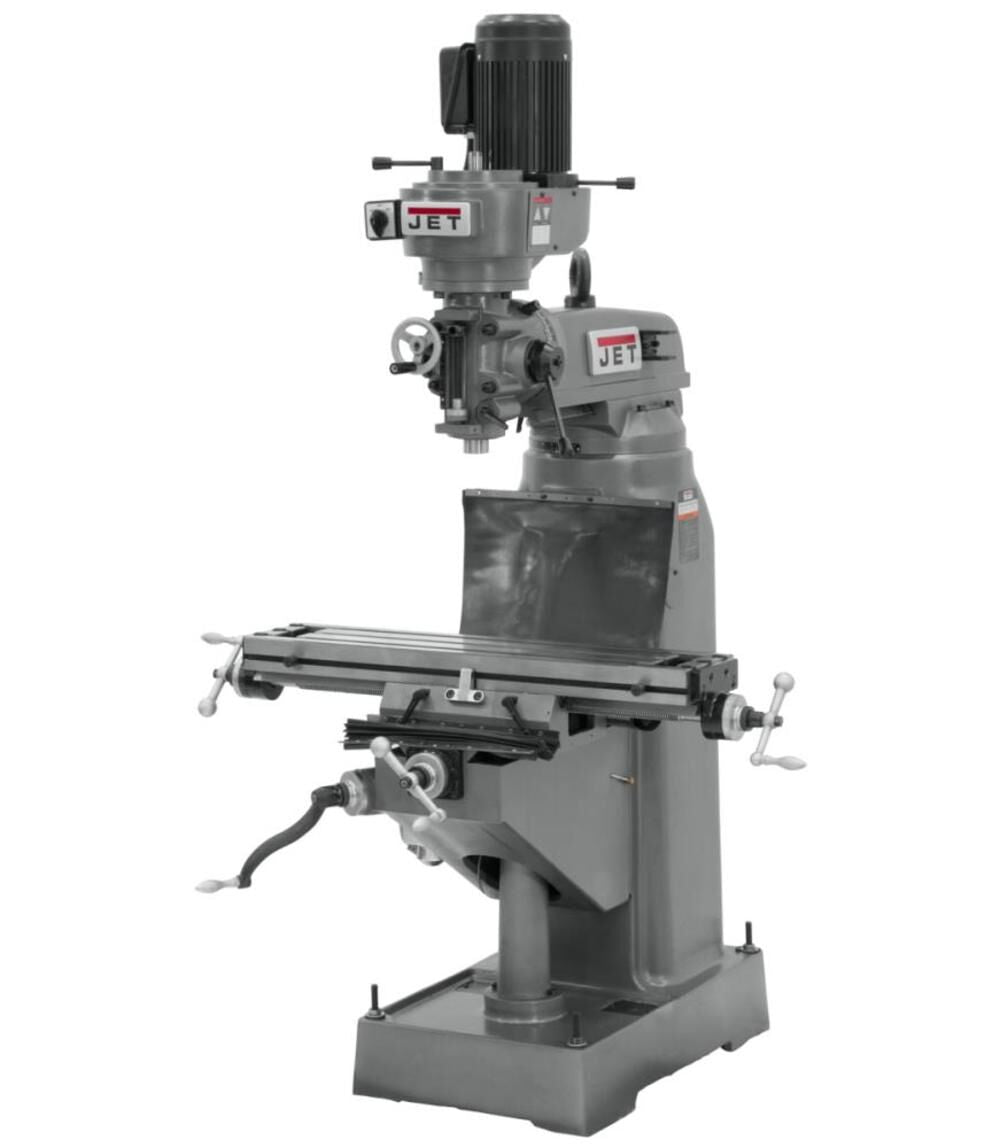

JVM-836-1 Step Pulley Milling Machine 115V 1PH 690036
JVM-836-1 Step Pulley Milling Machine 115V 1PH 690036 is backordered and will ship as soon as it is back in stock.
JET JVM-836-1 Step Pulley Milling Machine 115V 1PH
JETÆ milling machines and components provide consistent quality and performance year after year.
Precision-built and designed to last, the complete line of JETÆ step pulley, variable speed and CNC mills allows your shop greater flexibility to meet the needs of any job.
Professional manuals get you up and running, and every JETÆ machine is backed by our industry-leading two-year warranty.
Features
- Vertical milling machine - JVM-836-1/3
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision spindle bearings
- Over 1 In. of front to back ram travel
- Locks on all movable surfaces
- Hardened and ground precision table
- Head tilts left or right
- Graduated scale on column
- Precision ground dovetail ways
Specifications
Brand Name - JET
Assembled Weight (lbs) - 1617
California Proposition 65 Warning Required - Yes
Capacity - 500 Lbs
Chuck Design - Keyless
Color - Gray
Country of Origin - China
CSA Certified - No
ETL Listed - No
Head Tilt (Left Or Right) - 90
Height (in) - 67
Horsepower (hp) - 1.5
MFG Part # (OEM) - 690036
Material - Cast Iron
Package Contents - JVM-836-1 Step Pulley Milling Machine 115V 1PH
Package Depth - 66
Package Height - 67
Package Weight - 1617
Package Weight (lbs) - 1617
Product Condition - New
Quill Diameter - 3.38
RPM - 240–1550
Stand Included - No
Switch Type - Push Button
UL Listed - No
Unit of Measurement - Metric
UPC - 662755143724
Variable Speed - Yes
Voltage - 115/230 Volts
Warranty Type - 2 Years Limited
Weight (lbs) - 1617
X Axis, Longitudinal (in) - 22.25
Y Axis, Cross (in) - 9.5
Z Axis, Knee (in) - 0
