Description
Description

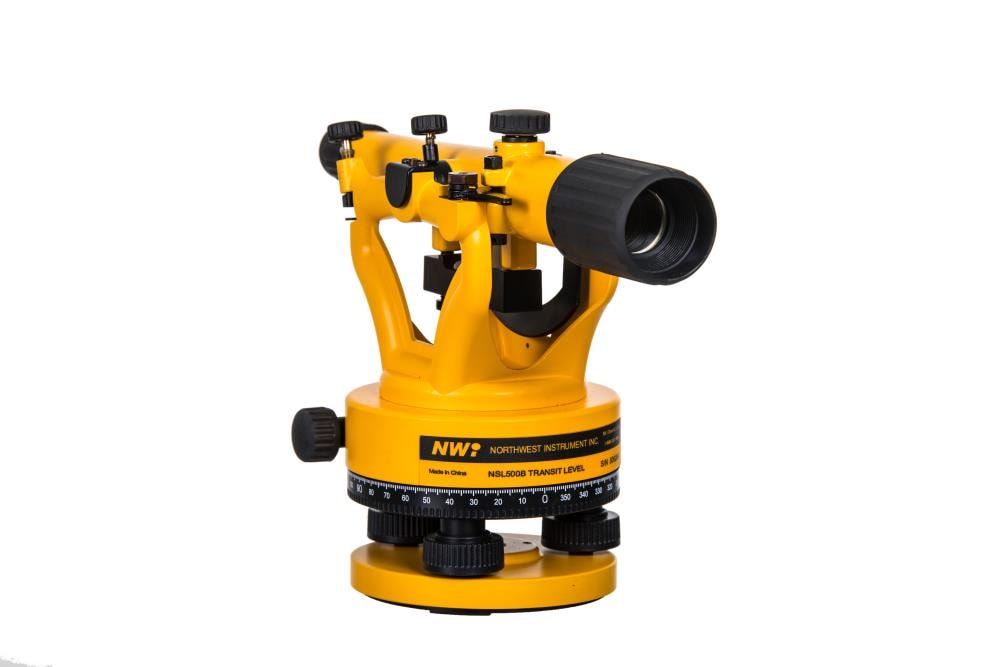

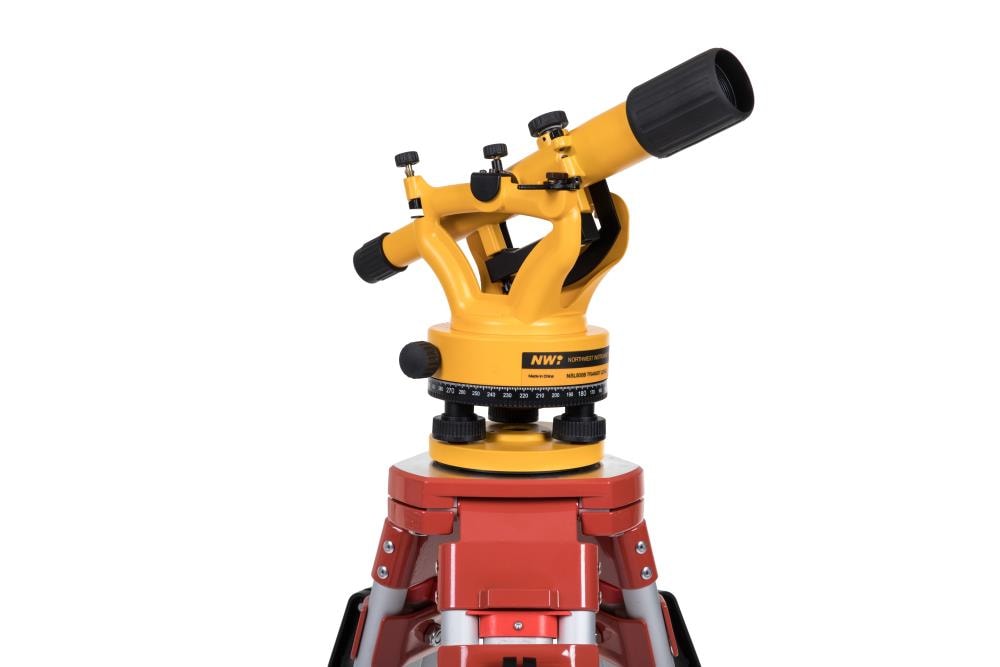

The NWi NSLP500B Transit Level Package is for builders and surveyors that require horizontal angle measurements, plumbing vertical columns, measuring property lines, excavating trenches and running pipelines.
This optical instrument has a working range of up to 200 feet and provides 20x magnification.

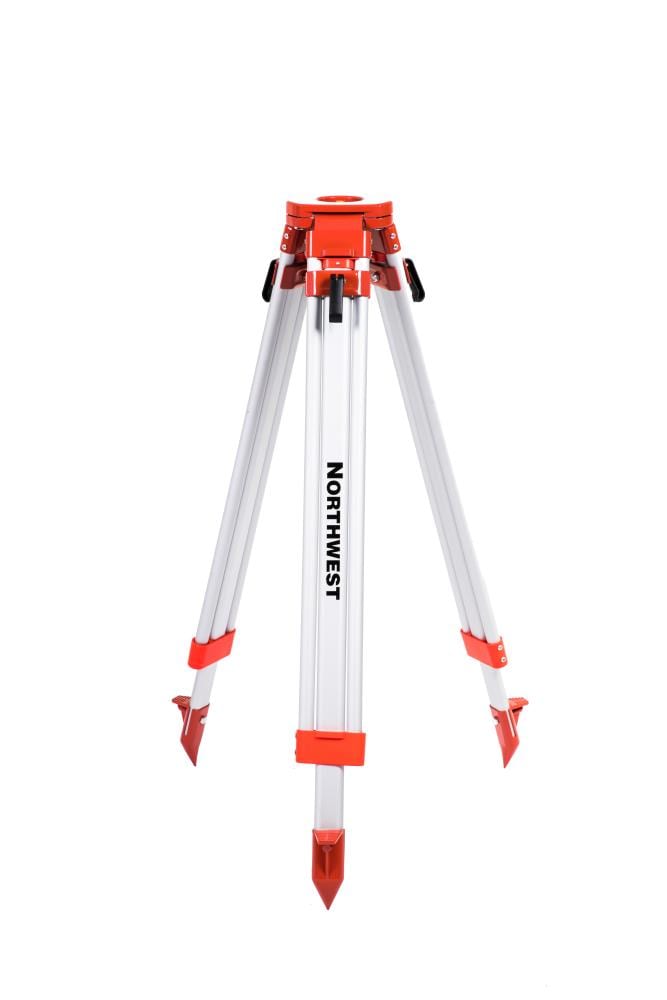

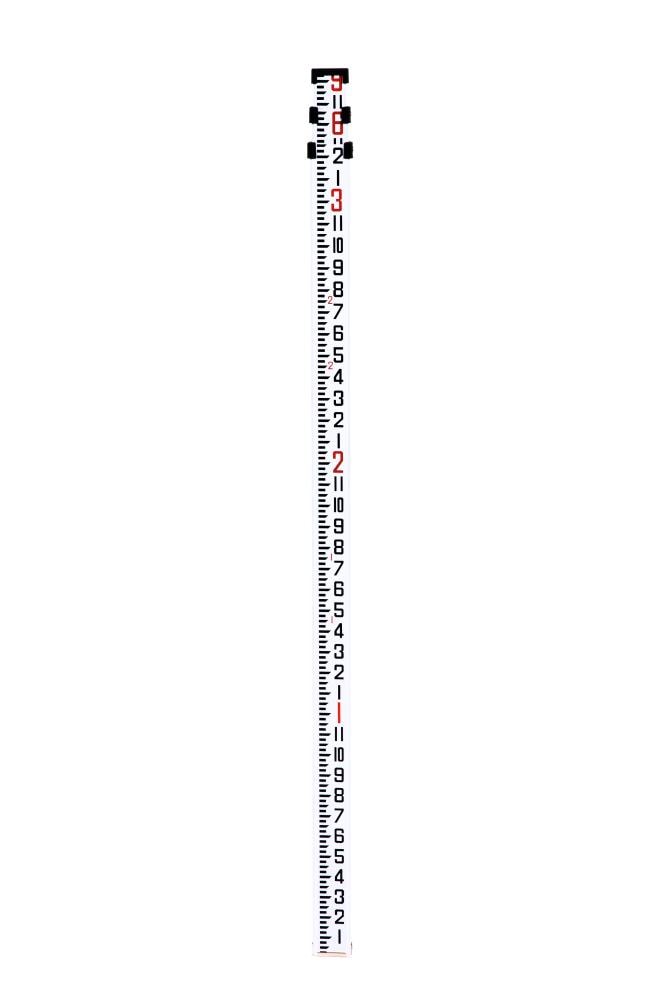

It also features clamps and tangents that bring the instrument quickly on target and includes a heavy-duty aluminum tripod and 9' grade rod (feet and inches) for fast setup and stable measurements.
The NSLP500B is capable of measuring vertical angles ±45 degrees and horizontal angles to within 1-degree accuracy.
It can also be used as a level by locking the telescope into place.
Its level vial has an accuracy of 1/4-inch at 100 feet, making it ideal for elevation measurements and grading applications.
For easy level rod readings, this transit level’s telescope has exceptionally clear optics and stadia lines allowing you to determine the distance of the transit from the level rod.
The Siteline 500B also offers manual leveling using three leveling screws and leveling vial.
With a 5/8 x 11 thread, the NSLP500B base fits both flat head and dome head tripods.
With reinforced rubber pads and an IP-54 rating, this transit level’s delicate portions are protected for added durability.
It also features rubber lens jacket that guards the lens and provides sun shade to reduce glare.
360° Horizontal circle with vernier scale for precise measuring of horizontal angles; +/- 45-degree transit capability for measuring vertical angles
Multi-layer coated lens and rubber lens jacket provide ample sun shade and light for clear rod readings
20x magnification for a range that exceeds 200-ft and 1/4-in at 100-ft accuracy of range

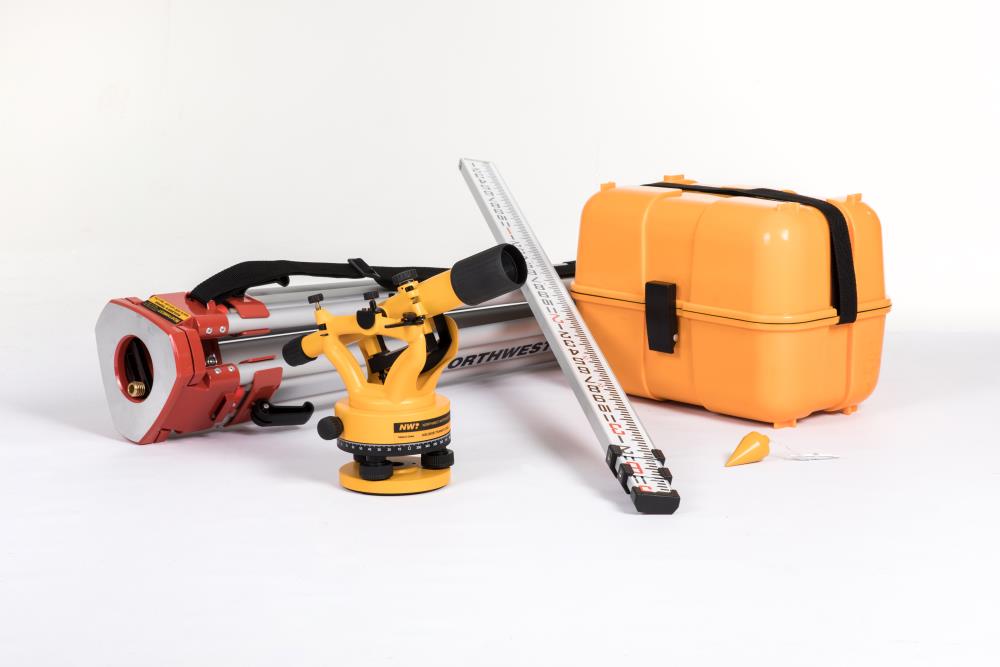

Package includes: transit level, hard carrying case, heavy-duty aluminum tripod, 9-ft grade rod (feet and inches), plumb bob, user manual, and 3-year limited warranty card
Specifications
Color/Finish Family: Yellow
Series Name: N/A
Sub-Brand: Builder's 20X Optical Kit
Dimensions
Weight (lbs.): 7.5
Features
Case Included: Yes
Field of View (Degrees): 1
Horizontal Circle (Degrees): 360
Horizontal Graduation (Degrees): 1
Level Type: Transit level
Magnification: 20
Material: Metal, Rubber, Plastic, Glass
Maximum Distance (Feet): 200
Minimum Focusing Distance (Feet): 3.5
Number of Vials Measuring Level: 1
Package Contents: Package includes: transit level, hard carrying case, heavy-duty aluminum tripod, 9-ft grade rod (feet and inches), plumb bob, user manual, and 3-year limited
Warranty
cardSelf Leveling: No
Stadia Ratio: 1:100
Tripod Included: Yes
Vertical Arc (Degrees): 45
Vertical Graduation (Degrees): 45
Certifications
CA Residents: Prop 65 Warning(s): No
Miscellaneous
UNSPSC: 27111800
