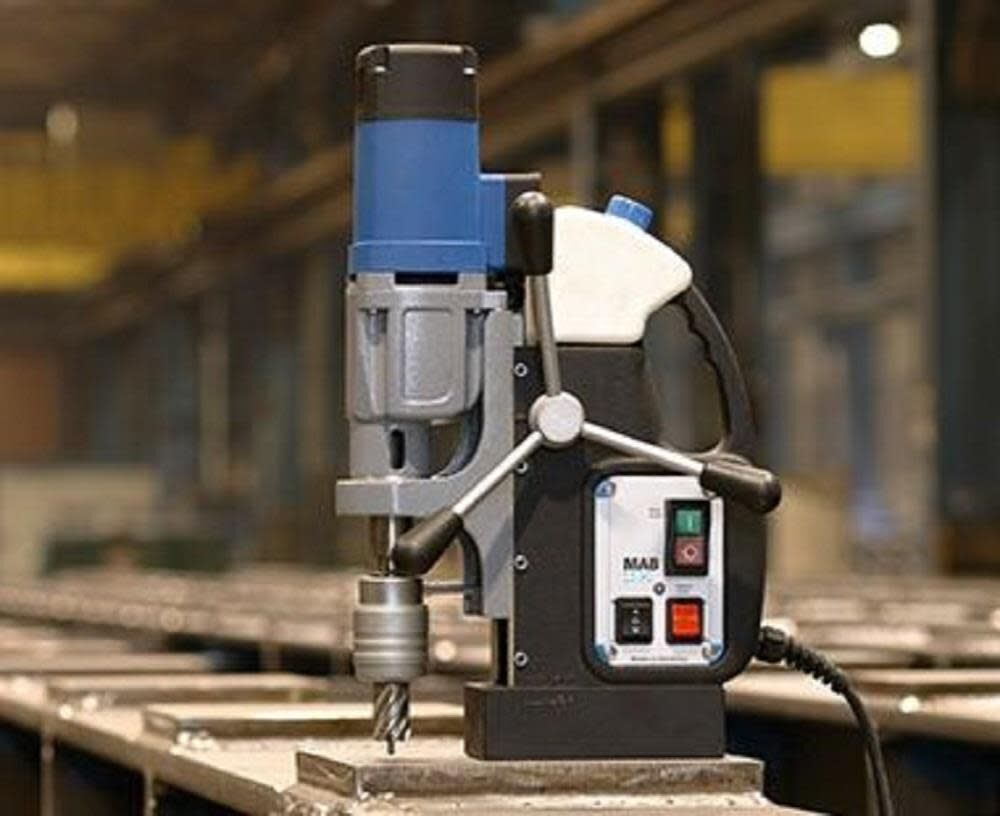

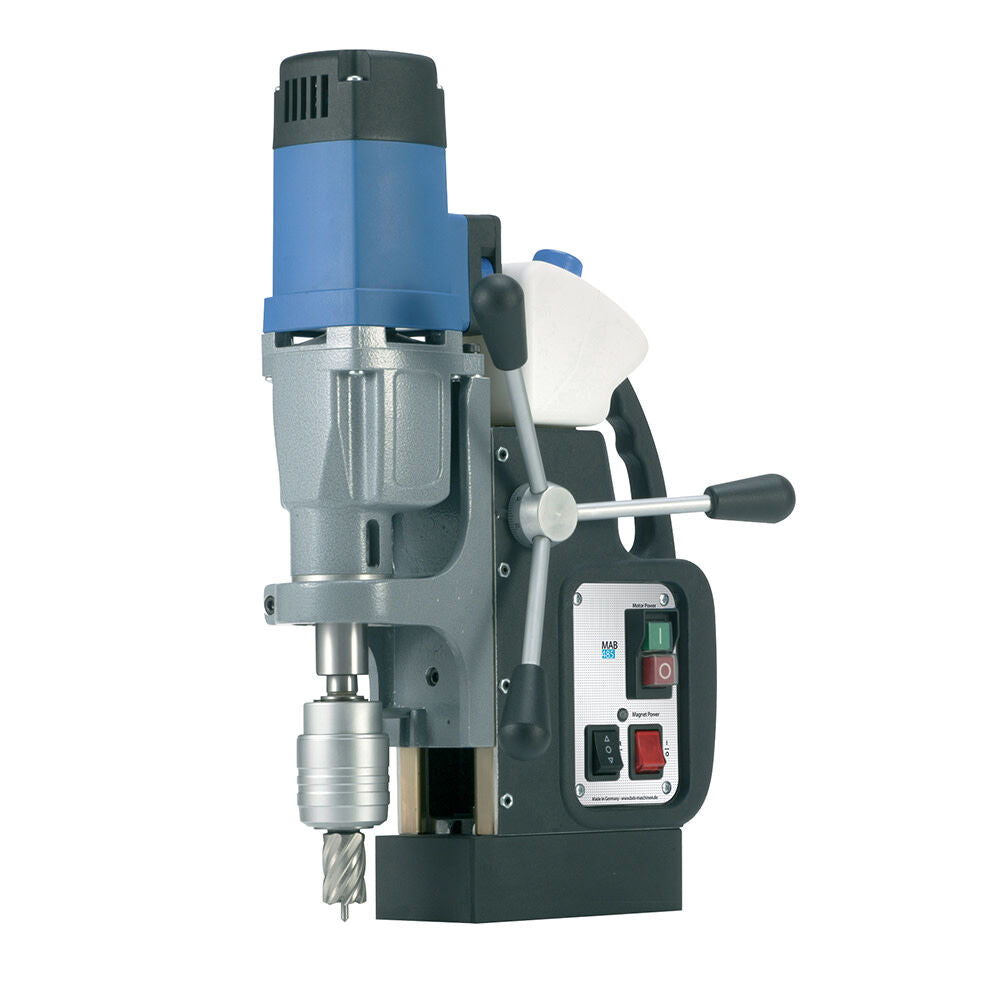

CS Unitec Portable Magnetic Drill

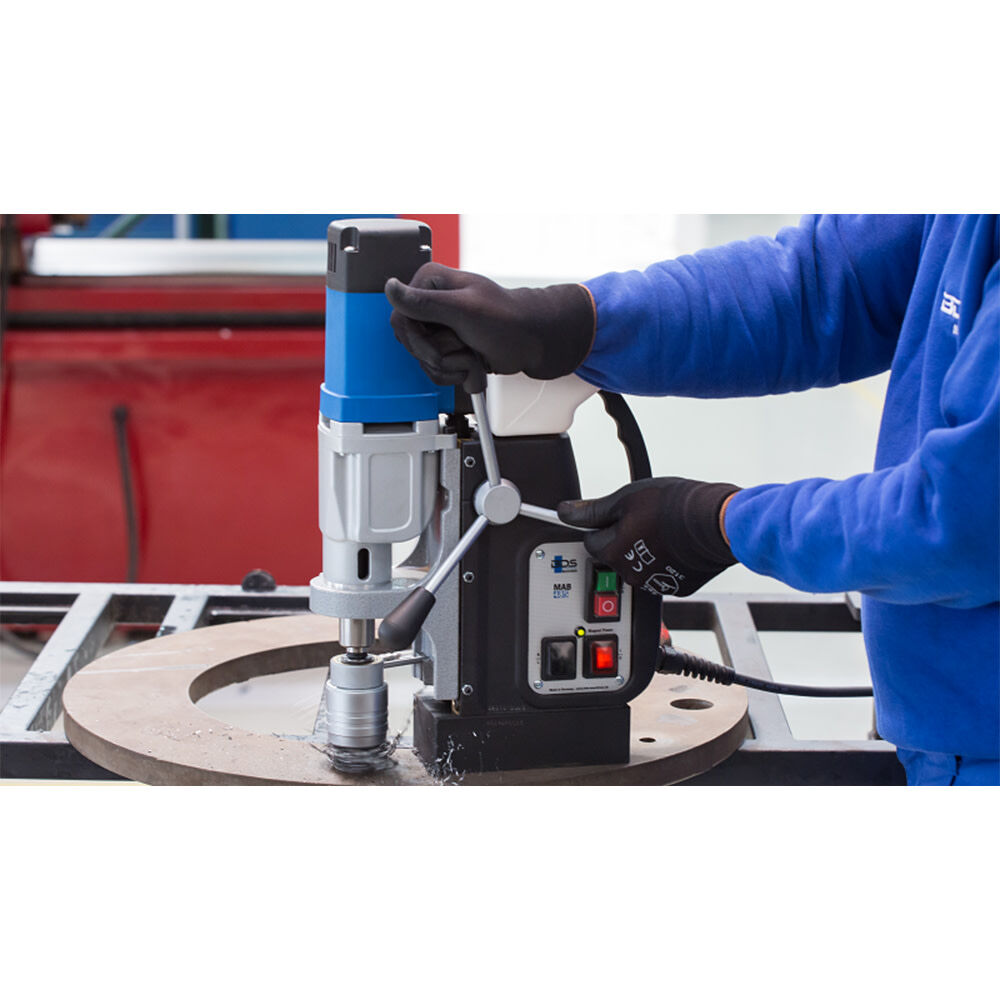

The MAB 485 magnetic drill has a hole cutting capacity up to 2-1/16Äù dia.
In structural steel and other metals.

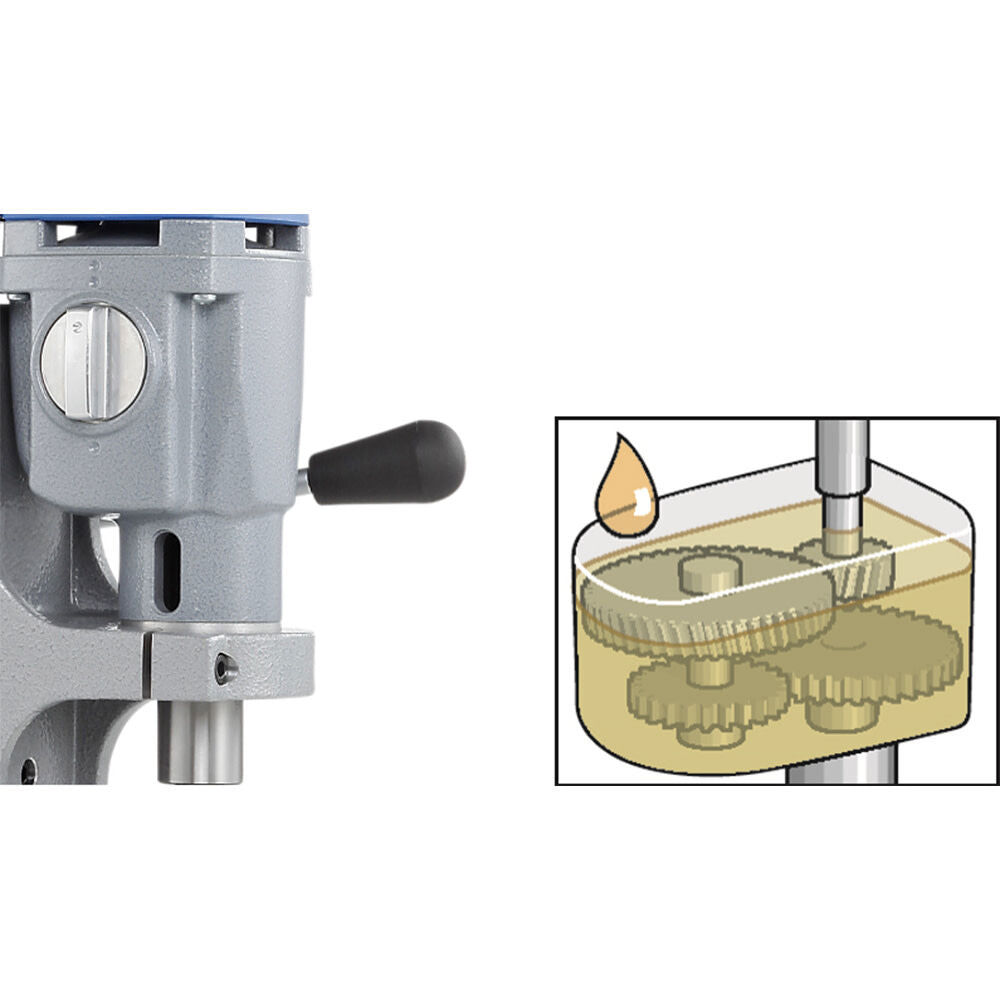

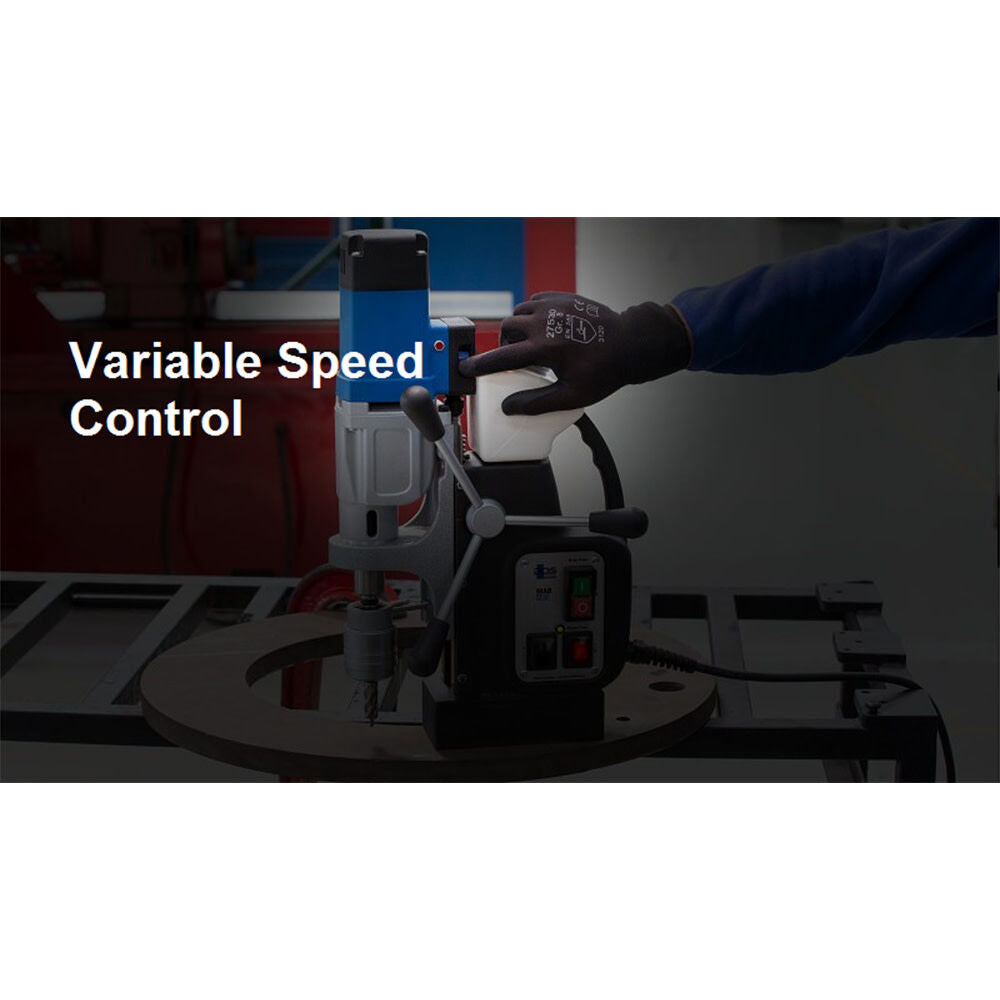

The 10.5 amp, double-insulated, reversible motor has fully variable speed through a 2-gear oil bath gearbox (70-280 and 180-580 RPM) ideal for annular cutters and twist drills.

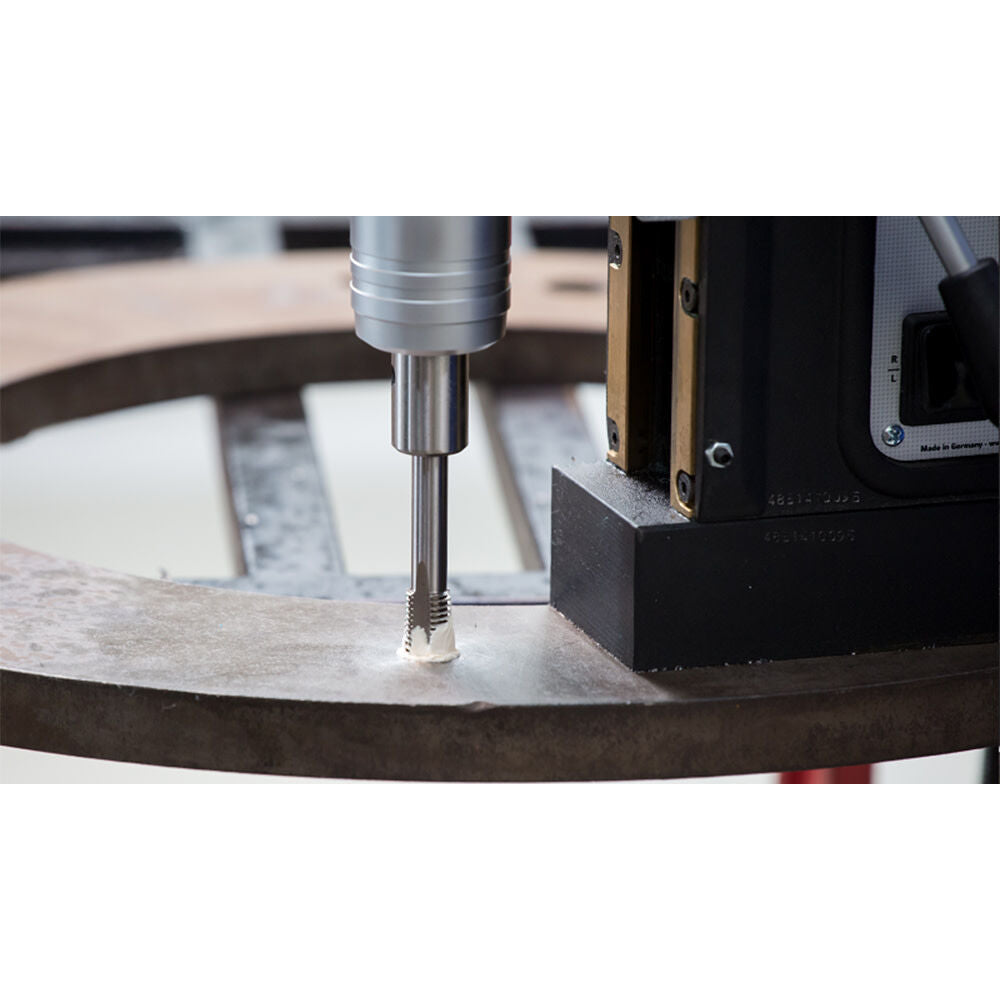

Additional capabilities include twist drilling up to 7/8Äù dia., tapping up to 15/16Äù dia., reaming up to 7/8Äù dia.

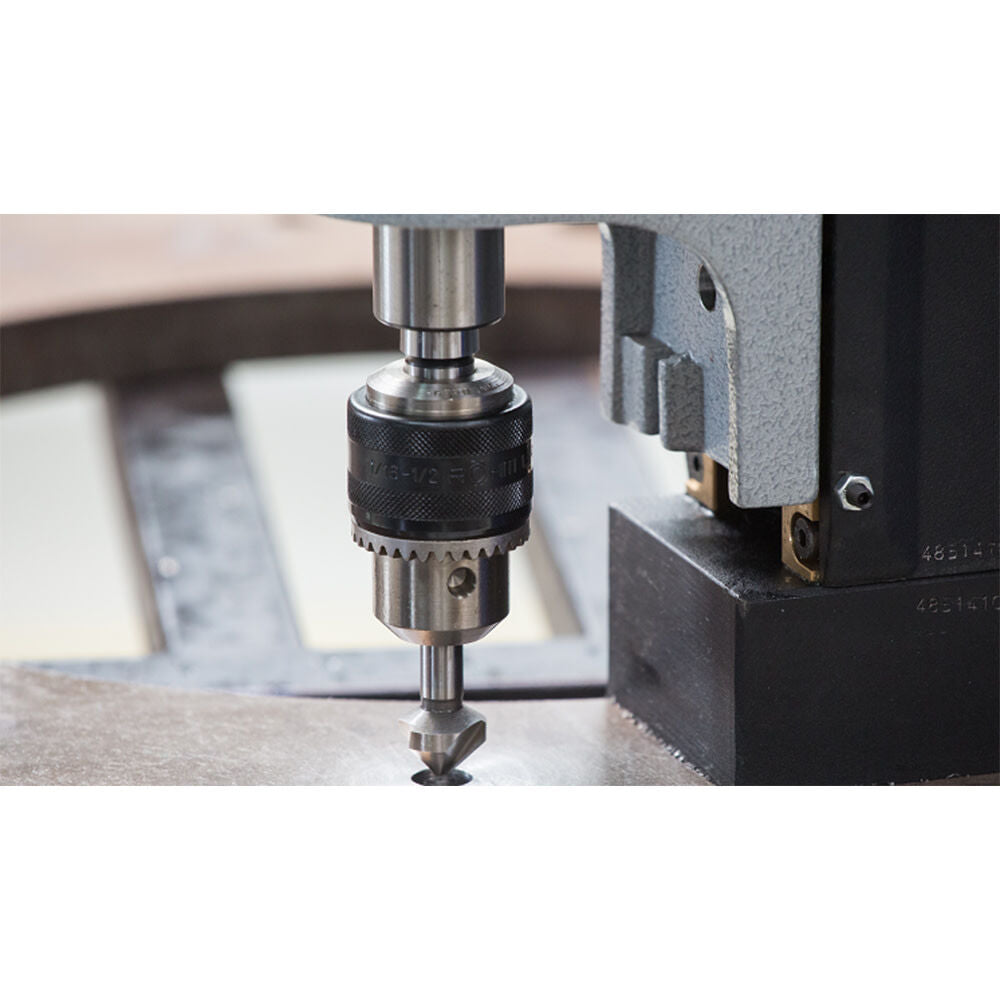

And countersinking up to 1-5/8Äù.
This unit has a quick-change keyless cutter system for 3/4Äù Weldon shanks, saving time and money.
With a 3/4Äù drill chuck, the MAB 485 easily converts to a standard drill press. Integrated sensors in the MAB 485 include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material.
An internal cable routing system helps protect the motor power cord from external damage.
The magnet has a holding force of 8,000 lbs.
California Proposition 65 Warning.Features
- Professional-grade, variable speed, reversible through 2 gears amazing versatility
- 2-1/16" diameter hole cutting capacity
- Integrated cable routing: No threading and getting caught, No tearing or snapping off
- CoolMag‚Ñ¢: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.

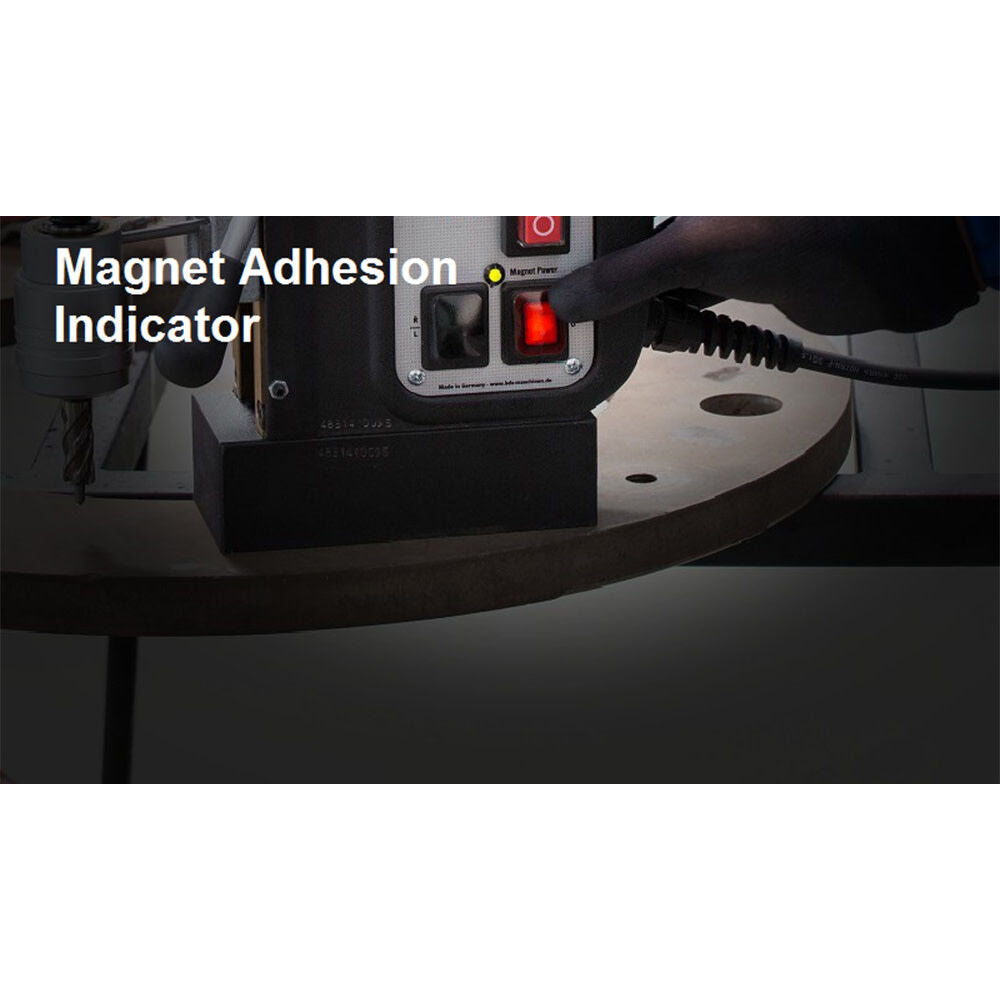

- SafeMag‚Ñ¢: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).

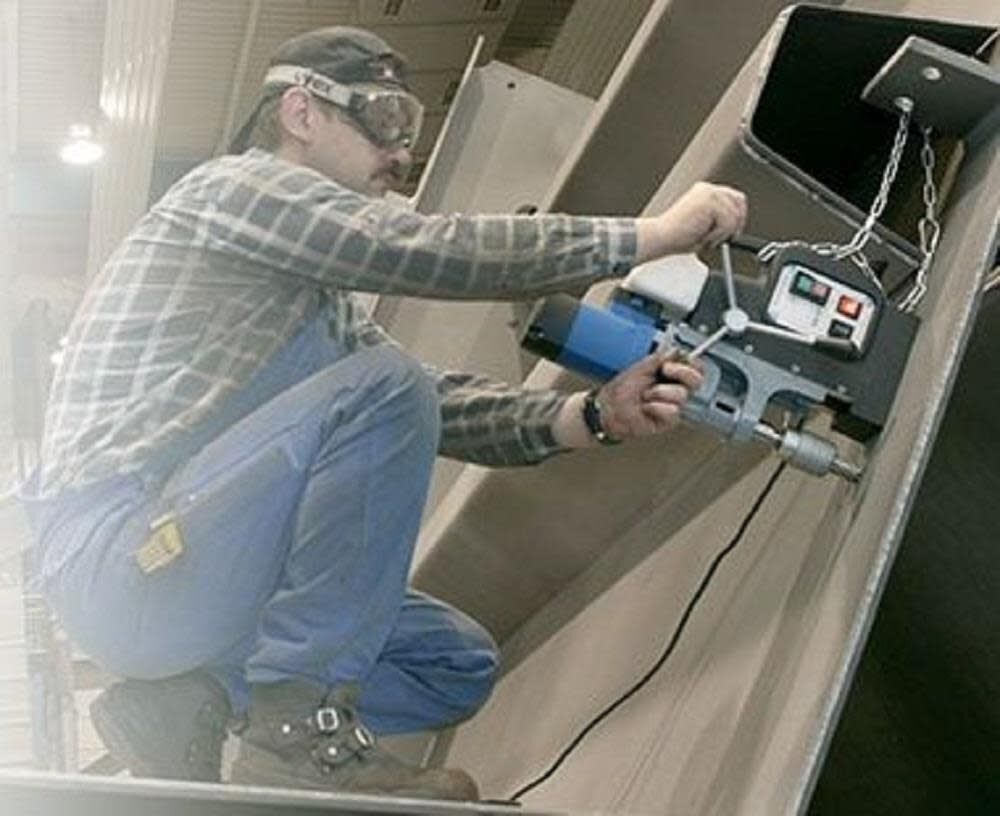

- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment

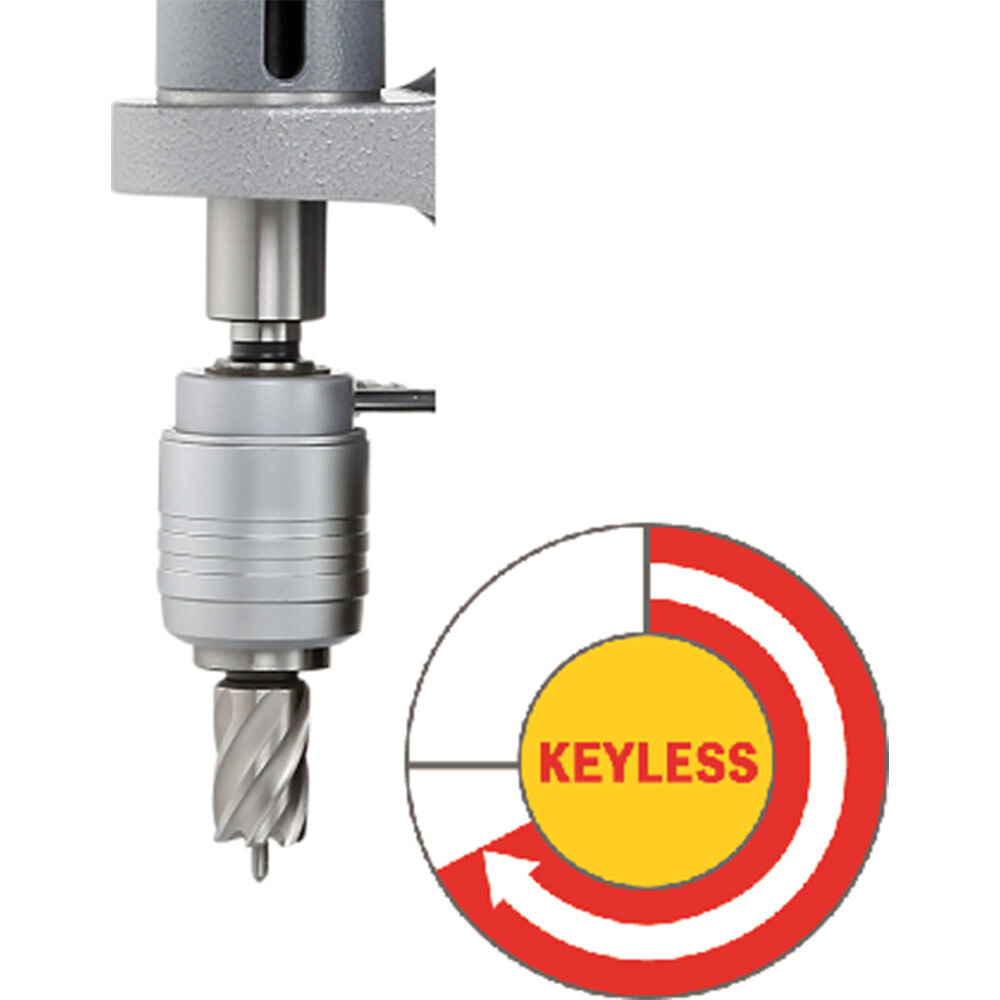

- Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools
- Automatic internal lubrication
- Morse Taper 3 to 3/4" Weldon Tool Holder
Specifications
Brand Name - CS Unitec
Amperage (A) - 10.5
Assembled Weight (lbs) - 27
California Proposition 65 Warning Required - Yes
Chuck Design - Keyless
Color - Blue
Country of Origin - Germany
Drill Press Type - Portable

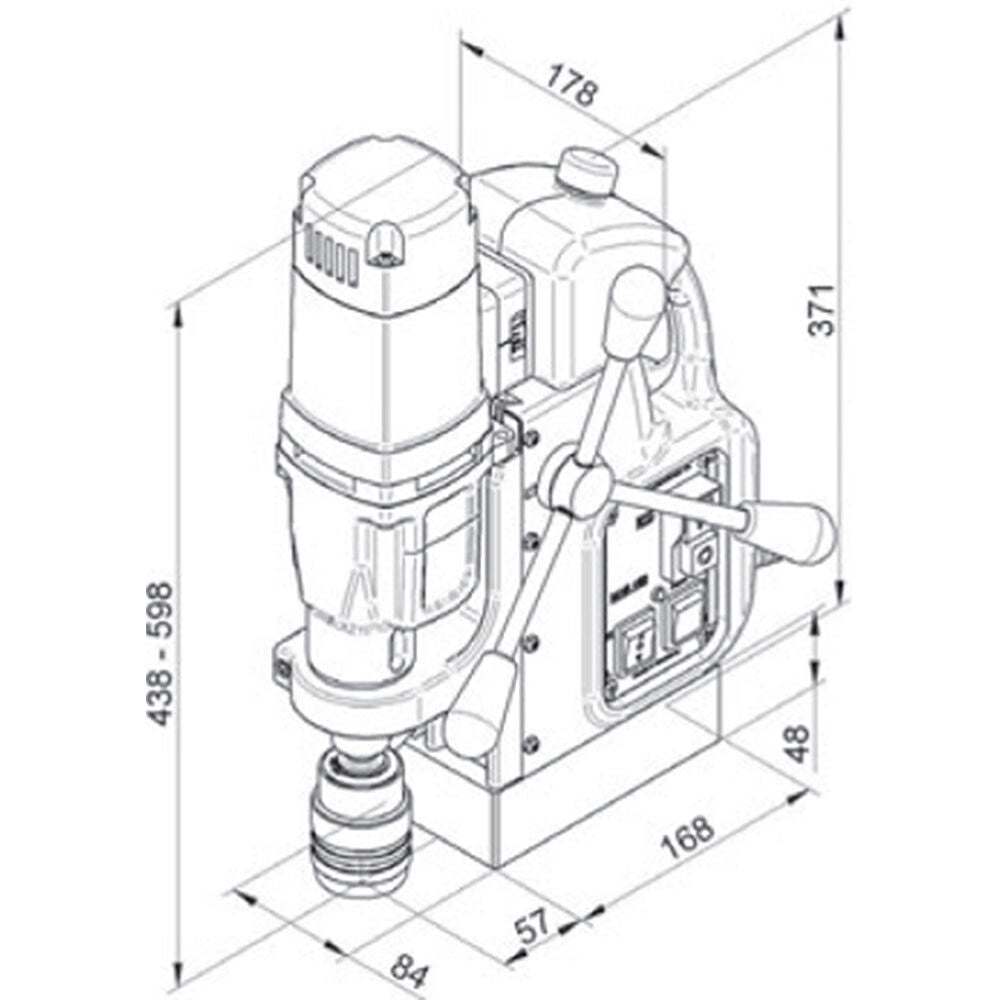

Height (in) - 11.61
Integrated Laser Guide - No
MFG Part # (OEM) - MAB 485
Net Tool Weight (lbs) - 29
Package Contents - (1) MAB 485 (1) Carrying Case (1) Safety Strap (1) Operating manual (1) Warranty Certificate (1) Coolant bottle (2) Pilot/Ejector Pin (2) Hex Keys (1) 3/4" Weldon Quick-Change Tool Holder w/ internal Lubrication, MT2 (1) 3/4" Standard Weldon Tool Holder w/ internal Lubrication, MT2 (1) 3/4" Geared Drill Chuck, MT2 (1) MT2 Drift Key (4) Tap Collet Adapters 1 each (1/4", 3/8", 1/2", 3/4")
Package Depth - 23
Package Height - 23
Package Weight - 48
Package Weight (lbs) - 32
Product Condition - New
Speeds - 2
UL Listed - Yes
UPC - 413000002392
Voltage - 110 Volts
Warranty Type - 1 Year Limited
