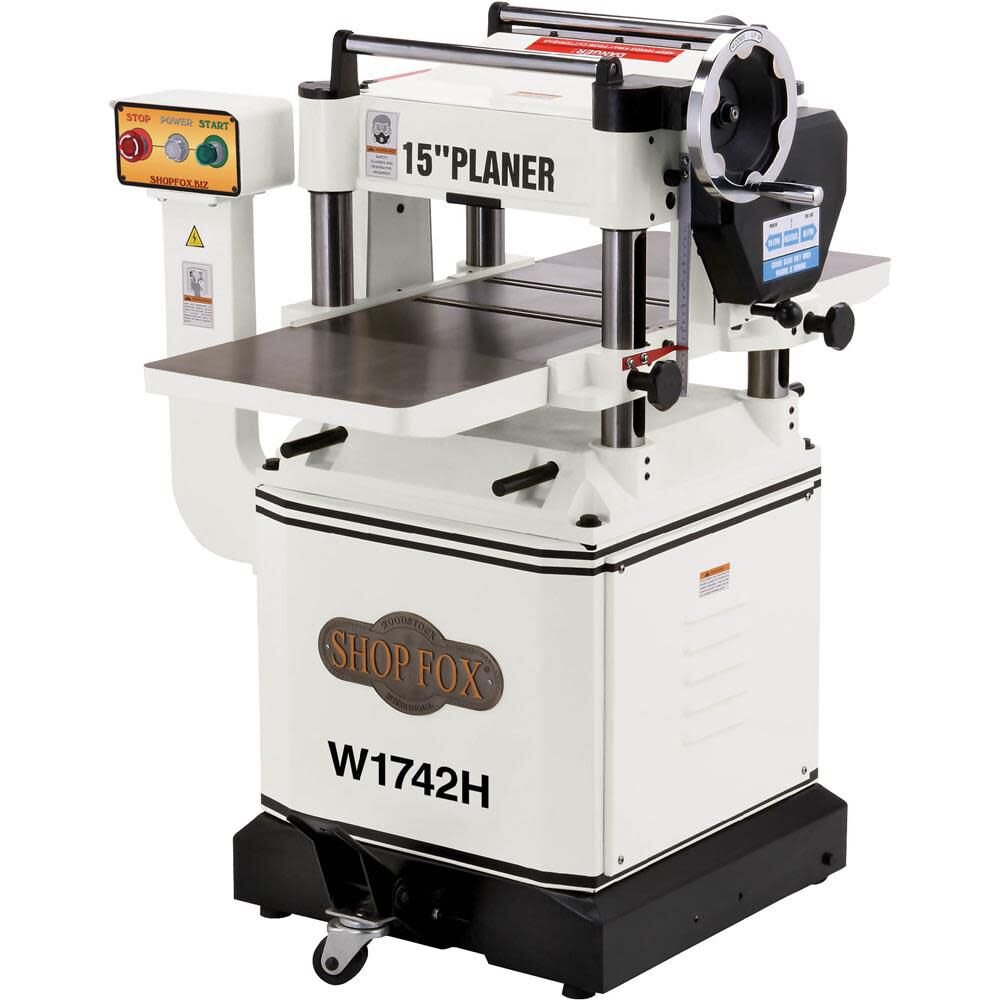

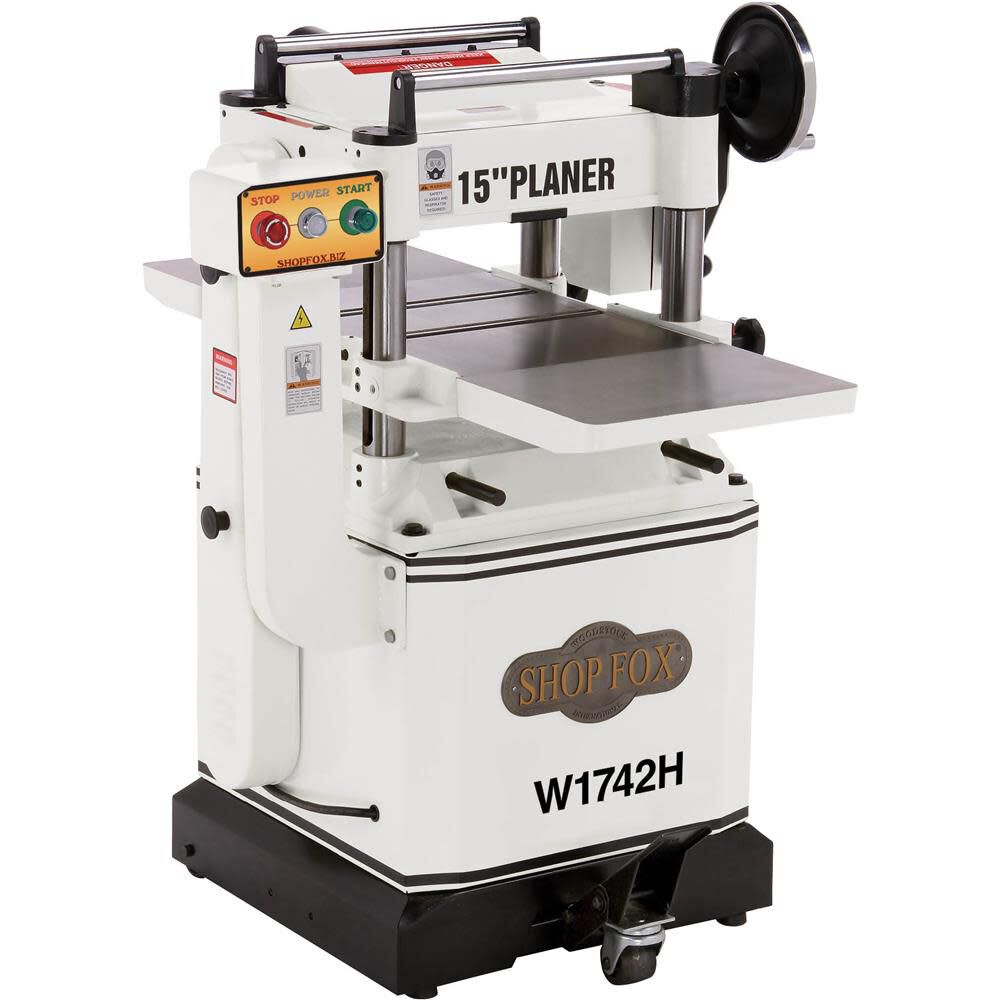

240V 3HP 15in Planer with Mobile Base & Cutterhead W1742H
240V 3HP 15in Planer with Mobile Base & Cutterhead W1742H is backordered and will ship as soon as it is back in stock.
Shop Fox 240V 3HP 15in Planer with Mobile Base & Cutterhead
This 15 In.
Planer is equipped with a pedestal-mounted thermal-overload safety switch, cast-iron extension wings, an enclosed cabinet stand, two-speed gearbox, a helical cutterhead and a built-in mobile base.
You'll find everything you ever wanted in a 15 In.
Planer.
Please Note: For machines manufactured before March 2015, order the D4018 for replacement carbide inserts.
For machines manufactured after April 2015, order the D3379 replacement carbide inserts.
Helical cutterhead with 75 indexable carbide inserts.
BuiltÄêIn, easyÄêtoÄêuse mobile base.
Chip breaker & pressure bar.
PrecisionÄêGround castÄêiron extension wings.
PedestalÄêMounted control switch.
Inch and metric measurement table elevation scale.
Two adjustable bed rollers.
TopÄêMounted board return rollers.
FourÄêColumn support with positive table locks.
TwoÄêSpeed automatic board feed.
California Proposition 65 Warning.Features
- Helical cutterhead with 75 indexable carbide inserts
- Built‚ÄêIn, easy‚Äêto‚Äêuse mobile base
- Chip breaker & pressure bar
- Precision‚Äêground cast‚Äêiron extension wings
- Pedestal‚Äêmounted control switch
- Two adjustable bed rollers
- Top‚Äêmounted board return rollers
- Four‚Äêcolumn support with positive table locks
- 2‚ÄêSpeed automatic board feed
- Certified to meet CSA 22.2 #71.2-10 and UL 987-7th standards.
Specifications
Brand Name - Shop Fox
Amperage (A) - 15
Assembled Weight (lbs) - 667
Bench or Stationary - Stationary
Blade Count - 74
Blade Length (in) - 15
Color - White
Country of Origin - China
CSA Certified - Yes
Drive Motor System - Electric
Horsepower (hp) - 3
MFG Part # (OEM) - W1742H
Maximum Cutting Depth (in) - 1/8
Maximum RPM - 5000
Maximum Width Cutting Capacity (in) - 15
Package Contents - 15 In. Planer with Built-in Mobile Base & Helical Cutterhead
Package Depth - 30
Package Height - 47
Package Weight - 667
Product Condition - New
Switch Type - Magnetic Switch with Overload Protection
UPC - 754001107427
Warranty Type - 2 Years
