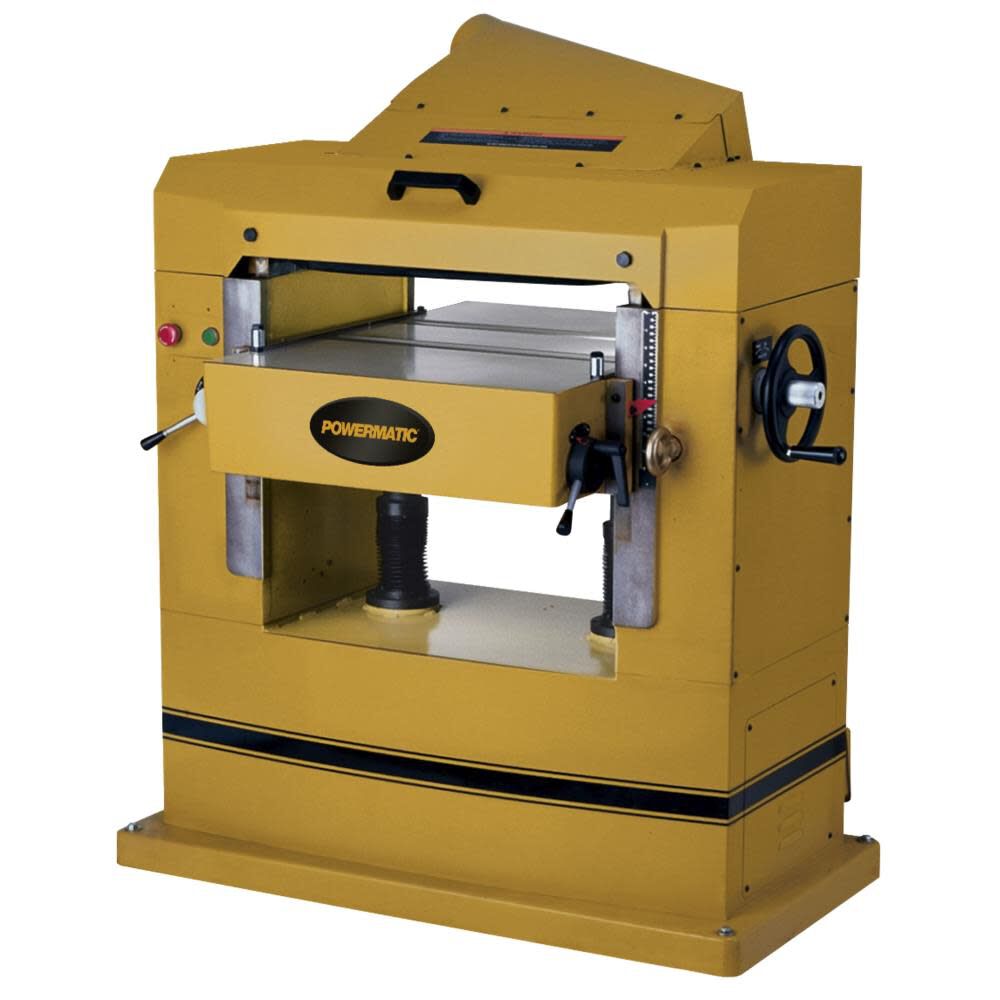

Powermatic 22 in Planer 7.5HP 1PH 230V
This 1,300 lb.
Heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come.
The hinged top allows easy access to the rollers and knives.
The hood comes standard with a 5" dust port for easy attachment to any dust collection system.

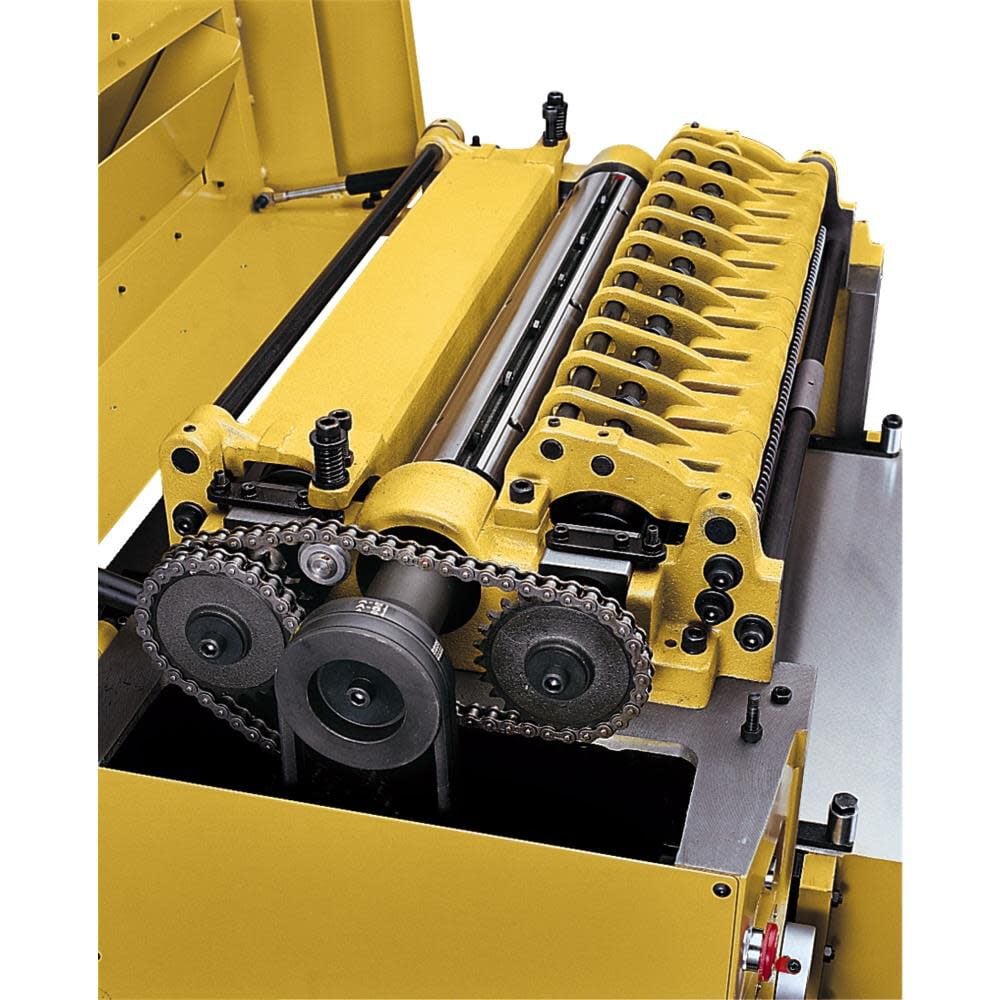

The cutter head is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute.
The anti-kick back fingers and pressure bar are located in close proximity to the cutter head for an exceptional finish.
The well designed indeed and outfeed rollers are fitted with roller bearings for long roller life.
The sectional indeed and chip breaker are specially designed to allow multiple boards to be planed at the same time.
The adjustable bed roller facilitates both rough and finish planing.

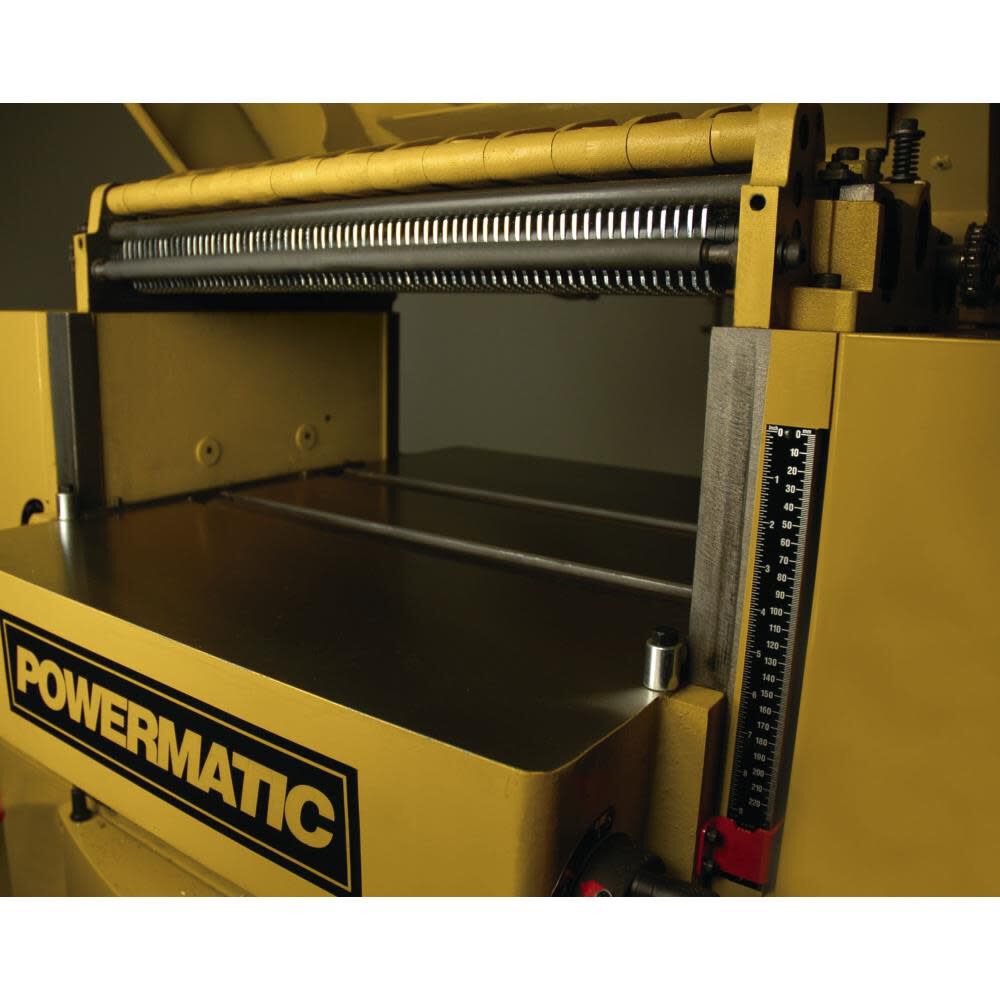

The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding.

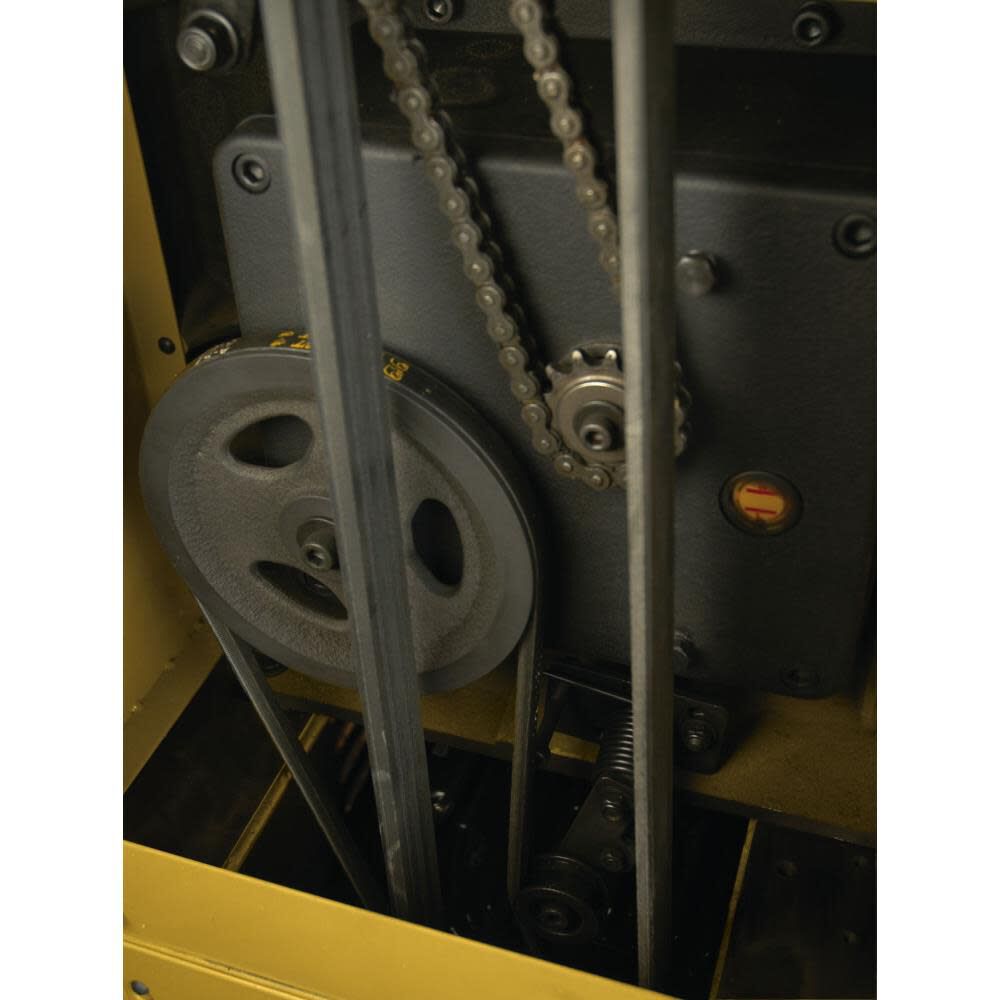

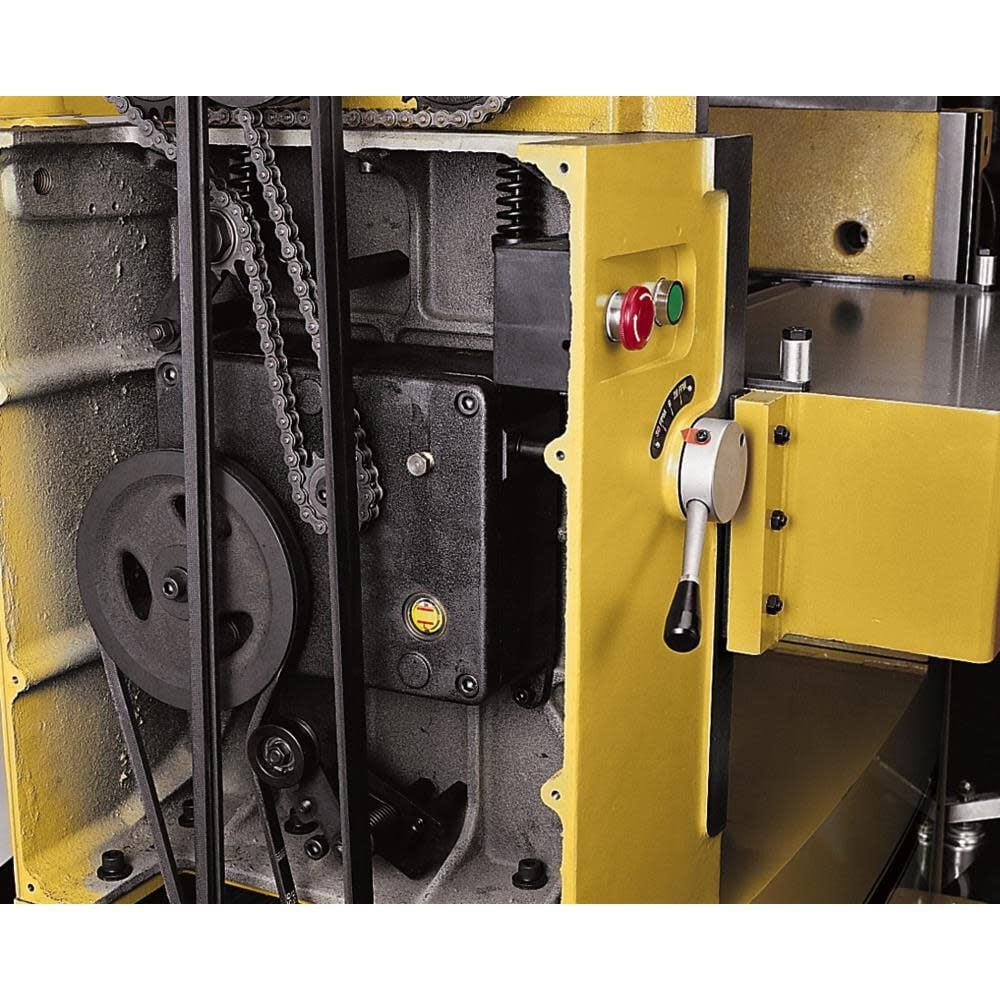

The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work.

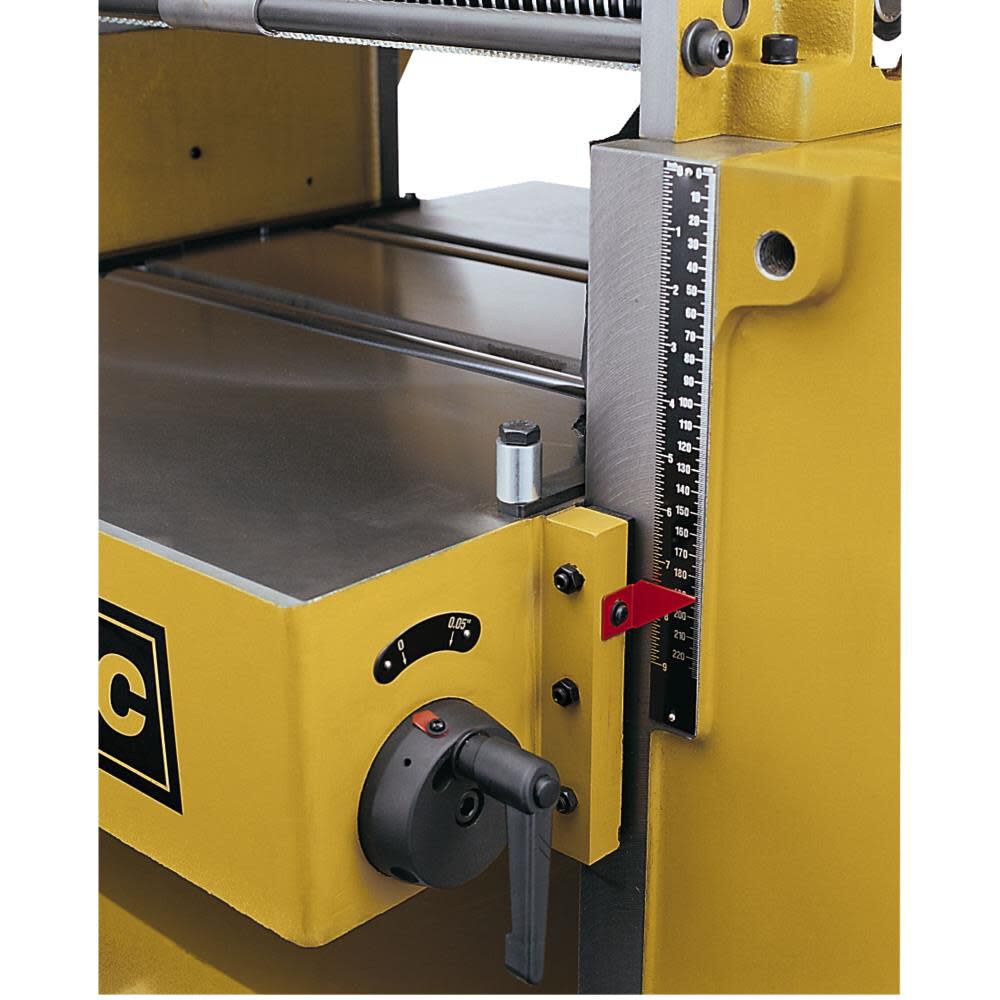

You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel.
This planer is perfect for the small to medium shop with continuous planing requirements.
Features
- Cast iron 1300 lb. construction for solid performance without vibration
- 2 Feed speeds - 20/30 pm - accommodates rough and fine finish work
- Segmented indeed roller with sectional chip breaker allows multiple board planing
- 4-Knife head offers 19,200 cuts per minute and widest capacity in its class
- Roller bearing-mounted feed rollers for long life
- Adjustable bed rollers allow smooth feeding of rough or finished workpieces
- Oversized cast iron table travels on 2 large lead screws for heavy duty support
- Dust collection chute with 5-in port
- Adjustable foot pads
- Knife setting gauge
Specifications
Brand Name - Powermatic
Amperage (A) - 50
Assembled Weight (lbs) - 1350
Bench or Stationary - Stationary
Blade Count - 4
Blade Type - Straight Knife
California Proposition 65 Warning Required - Yes
Color - Yellow
Country of Origin - Taiwan
CSA Certified - Yes
ETL Listed - Yes
Height (in) - 59
Horsepower (hp) - 7.5
MFG Part # (OEM) - 1791261
Maximum Cutting Depth (in) - 0.1875
Maximum RPM - 4800
Maximum Width Cutting Capacity (in) - 22 in
Overall Weight (lbs) - 1430
Package Contents - 22 in Planer 7.5HP 1PH 230V
Package Depth - 42.0
Package Height - 59.0
Package Weight - 1430.0
Package Weight (lbs) - 1430
Product Condition - New
UL Listed - Yes
UPC - 662755296970
Voltage - 230 Volts
Warranty Type - 5 Years
