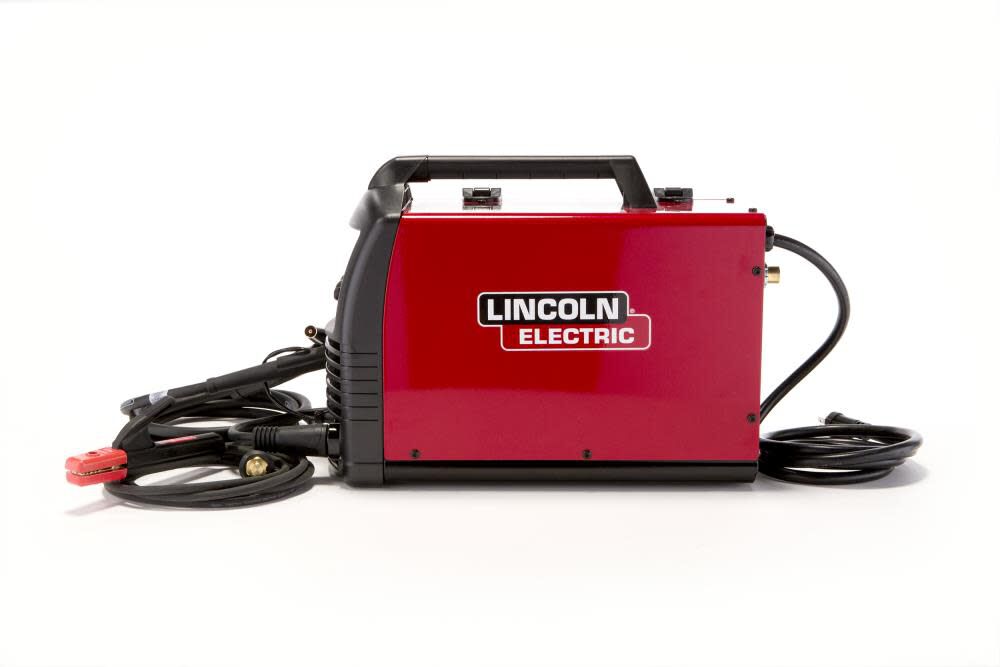

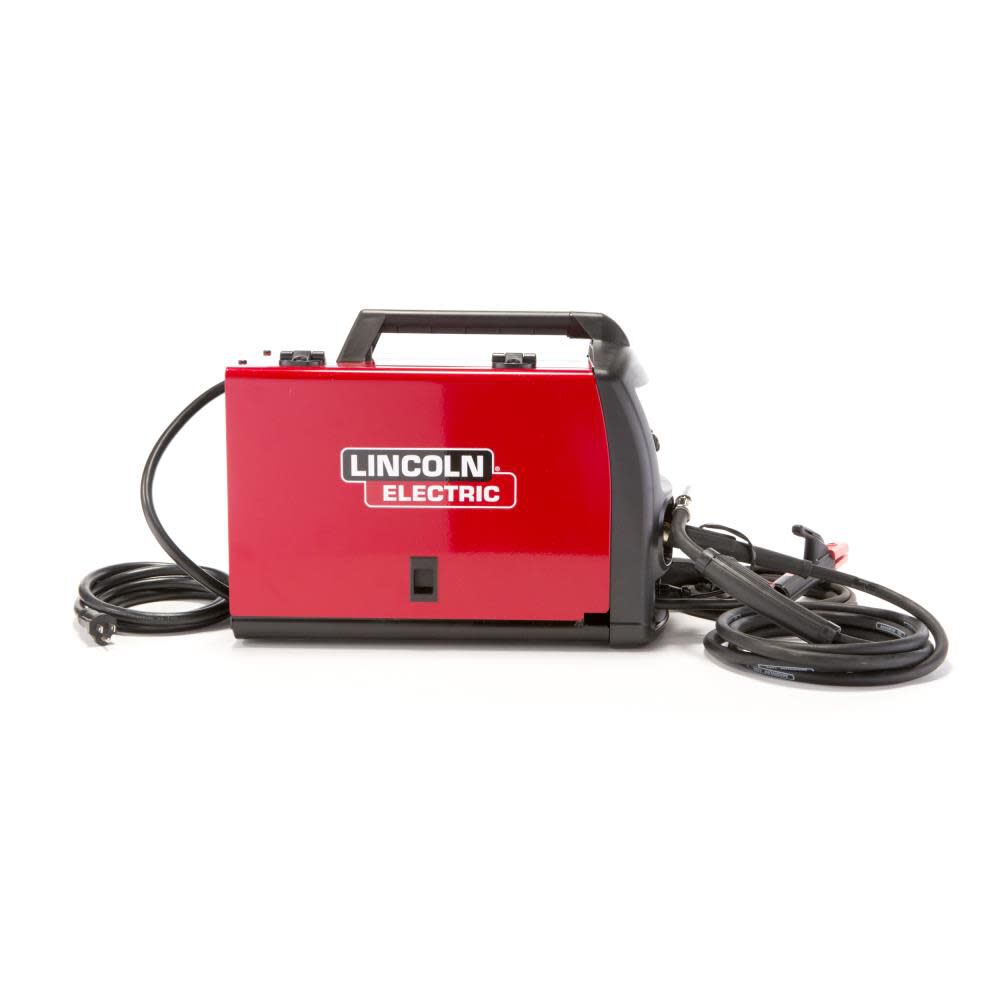

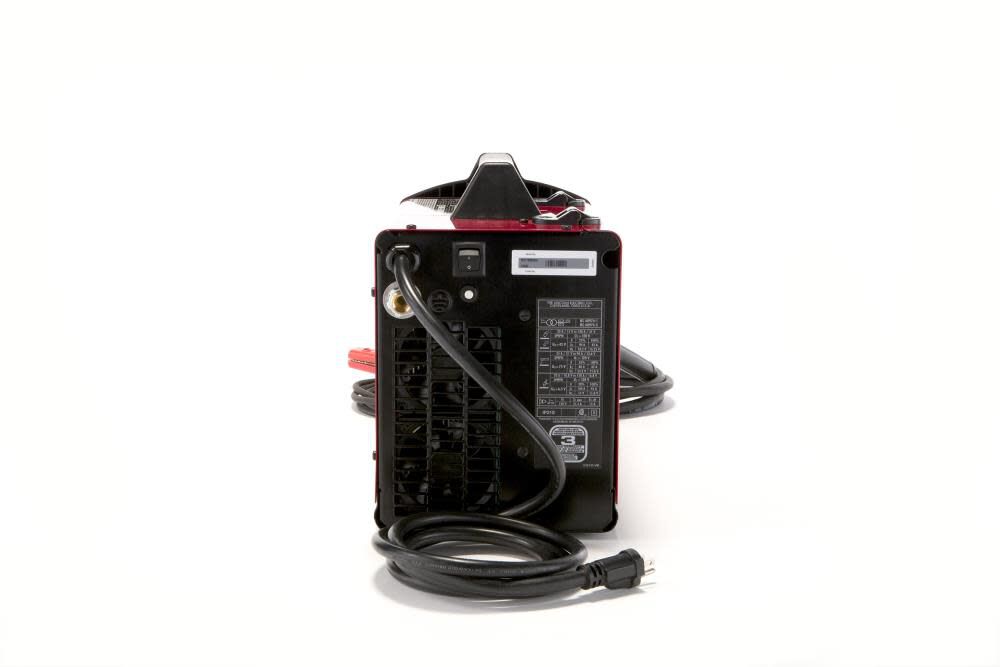

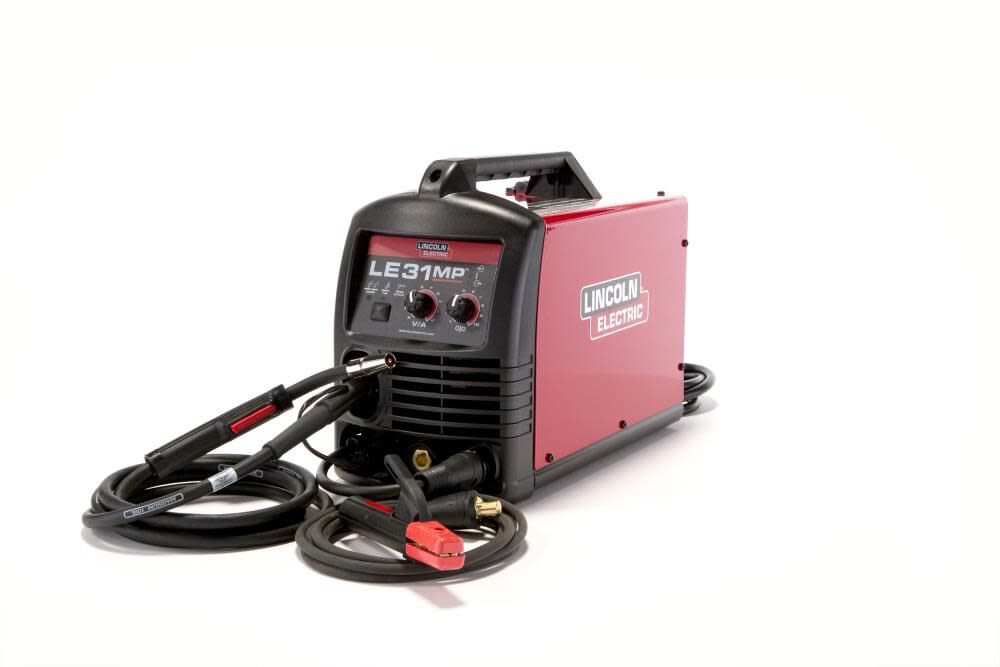

The Lincoln Electric LE31MP lightweight and portable welder connects to 120-Volt power and is an excellent choice for MIG, stick, spool gun, flux-cored, or TIG welding.

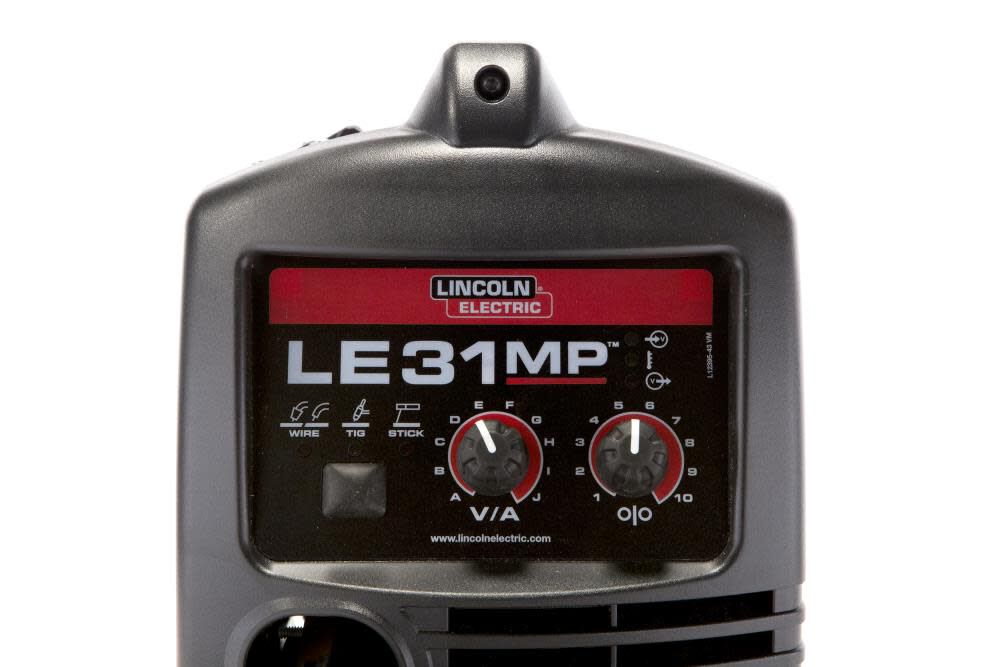

The intuitive user interface, easy setup, and full list of accessories permits welding in no time.

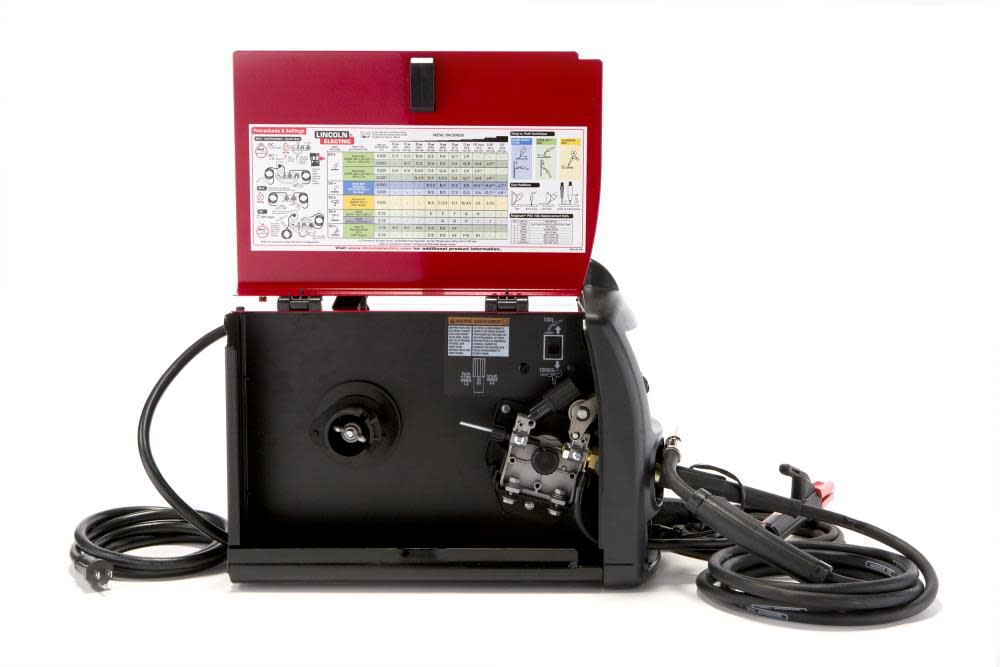

Fast tool-less drive roll changeovers.
The dual track drive roll ensures positive flux-cored wire feeding with common wire diameters.
Multi-Process Welder: MIG weld, Flux-Core weld, and Stick weld
MIG - wide 30-140 Amp welding output for MIG, FCAW and spool gun allows welding on 24 gauge to 5/16 in material
MIG - durable cast aluminum gear box delivers added torque, quiet operation and brass to brass gun connection enhancing conductivity
TIG - the wide 10-120 Amp range permits welding on thin and thick steel and stainless
TIG - weld with or without a foot pedal, the machine will automatically detect and configure when a foot pedal is connected
Stick - smooth arc starts prevent sticking
Stick - heavy duty electrode holder and cable included
Applications: Shop, Farm, Home and Autobody
Includes: (1) Magnum® PRO 100L Gun and 10ft Cable Assembly for Wire Feed Welding (3) .025 Contact Tips (3) .035 Contact Tips (1) Gasless Nozzle, Gas Nozzle (1) Spindle Adapter for 8in diameter spools (1) Drive Roll for .025 - .035 wire (1) Shield Gas Apparatus (1) Sample Spool of SuperArc® (1) Sample Spool of NR®-211-MP (1) Work Clamp with 10ft Cable Instruction Manual Quick Start Guide (1) Electrode Holder with 10ft Cable for Stick Welding
Dimensions
Depth (Inches): 15.5
Ground Cable Length: 6 feet
Height (Inches): 20.0
Maximum Weldable Thickness (Mild Steel): 5/16-in
Maximum Wire Thickness: 0.035mm
Minimum Weldable Thickness (Mild Steel): 24 gauge
Minimum Wire Thickness: 0.025mm
Weight (lbs.): 15.5
Welding Gun Cable Assembly Length: 6 feet
Width (Inches): 16.0
Features
Amperage: 140.0
Contact Tips Included: Yes
Drive Motor Overload: No
Duty Cycle (Percentage): 60
Hand Shield Included: No
Helmet Included: No
Input AC Voltage: 120
Instructional Media Included: No
Maximum Wire Feed (Inches per minute): 500
Minimum Wire Feed (Inches per minute): 40
Primary Circuit Breaker: No
Process: Multi-process
Sample Flux Wire Included: Yes
Sample MIG Wire Included: Yes
Thermal Overload Protection: Yes
Uses Argon Gas: Yes
Uses Argon/Carbon Dioxide Mixed Gas: Yes
Work Clamp Included: Yes
Warranty
Warranty: 3-year
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: CSA safety listing
Miscellaneous
UNSPSC: 23271400
