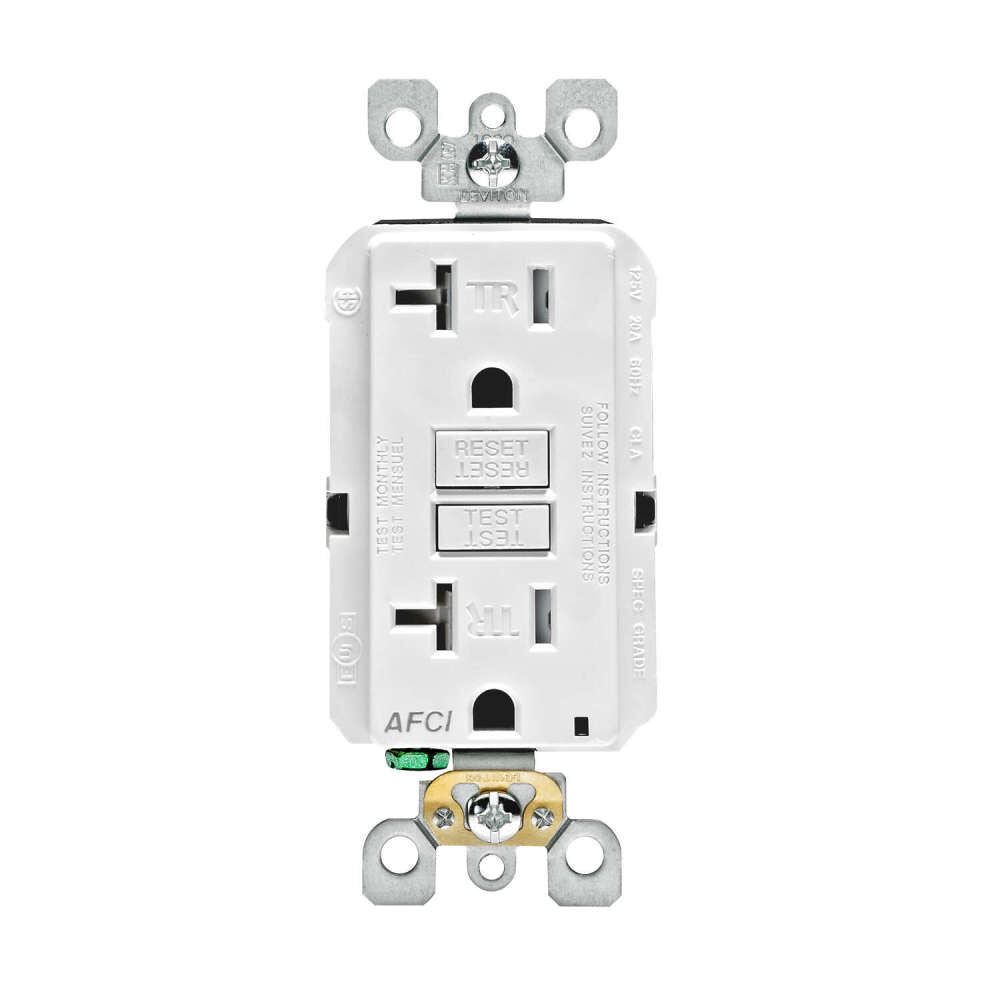

Leviton SmartlockPro AFCI Outlet 20A 125V White NEMA 5-20R
The SmartlockPro Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults.
Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power.
This helps reduce the likelihood of the home's electrical system being an ignition source of a fire.
Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture.
AFCIs are now required by the National Electrical Code in many areas of the home.
California Proposition 65 Warning.Features
- Terminals allow for easy wiring options back and side wire capable
- Use of test and reset buttons is similar to traditional GFCI receptacles of which consumers have become familiar with
- This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the reset button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- Superior resistance to electrical surges and over-voltages
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face
- Downstream devices; a green LED indicator on the AFCIs face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the devices compliance with the latest NEC requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
Specifications
Brand Name - Leviton
Assembled Depth (in) - 1.27
Assembled Weight (lbs) - 1
Assembled Width (in) - 1.68
Color - White
Commercial / Residential - Commercial/Residential
Country of Origin - China
CSA Certified - Yes
Height (in) - 1.27
MFG Part # (OEM) - 3809464
Material - Polycarbonate
Maximum Amperage (A) - 20
Package Contents - AFCI Outlet
Package Depth - 1.31
Package Height - 3.63
Package Weight - 1
Product Condition - New
Size - 1.68 In. Width x 1.27 In. Depth x 1.27 In. Height
UL Listed - Yes
UPC - 078477657867
Warranty Type - 2 Years Limited
