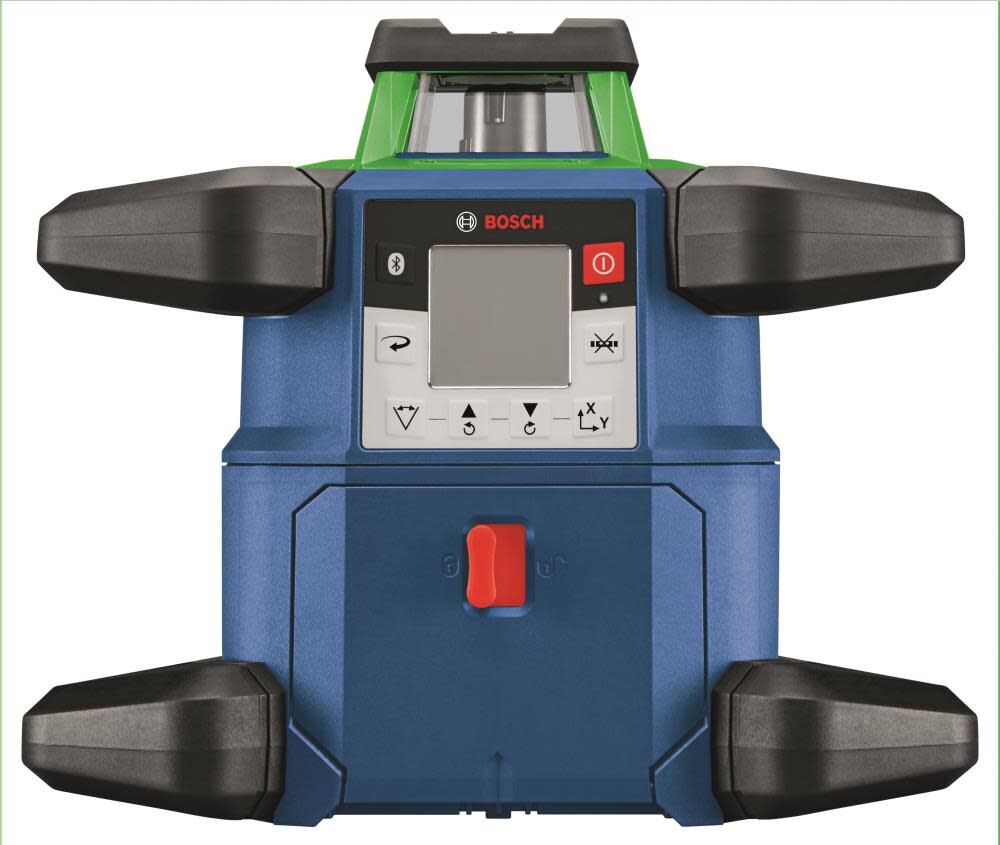

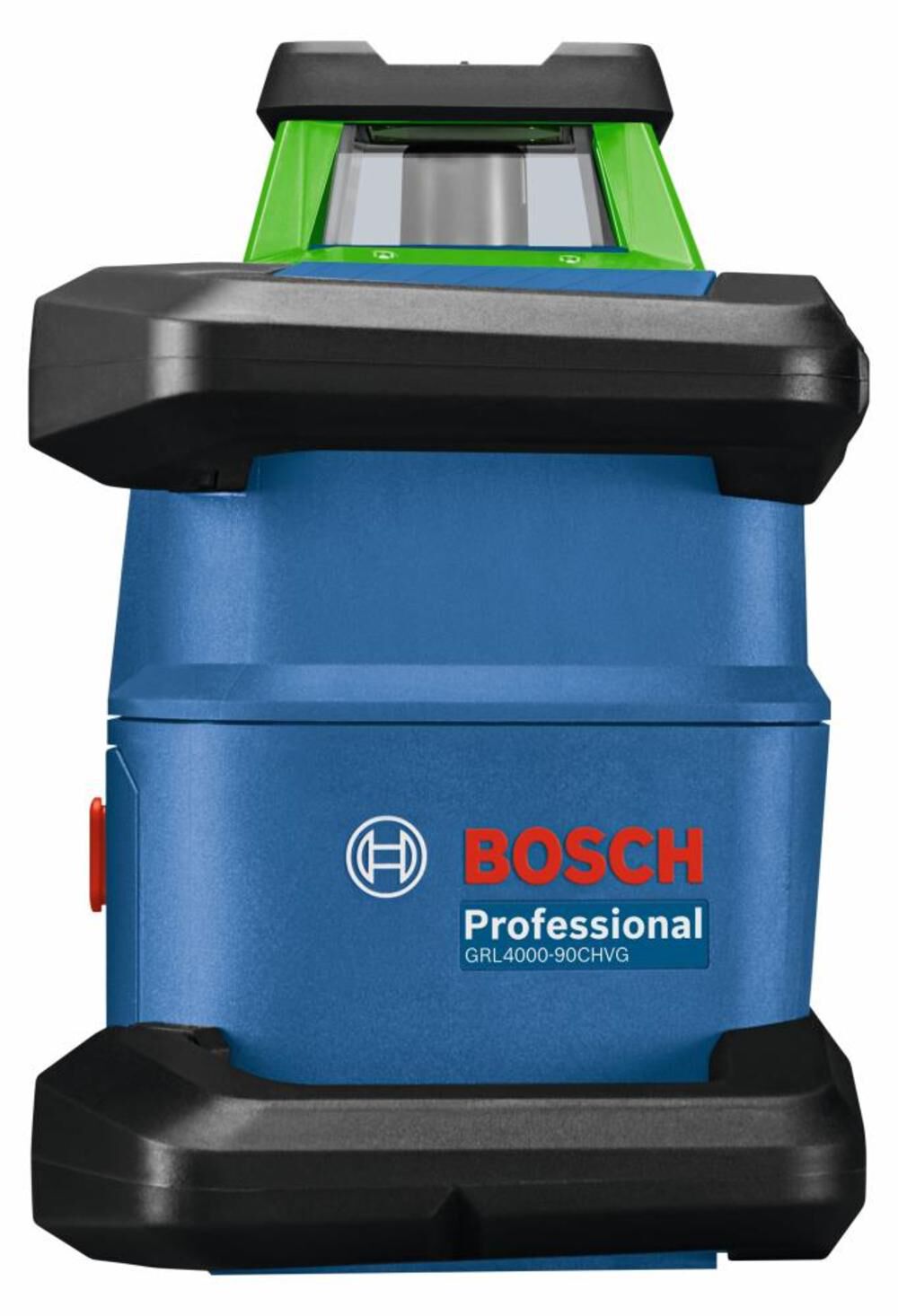

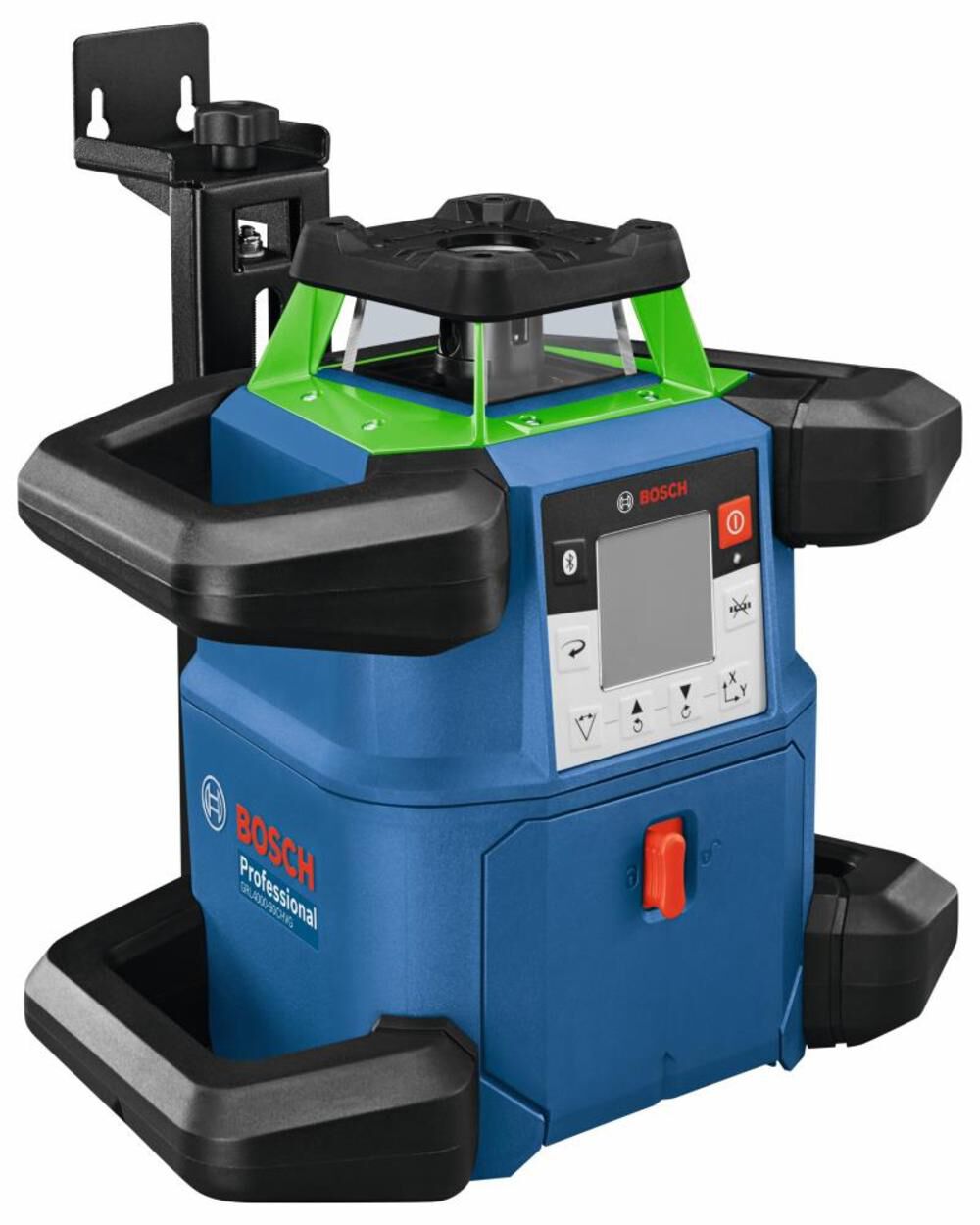

Bosch 18V REVOLVE4000 Connected Rotary Laser Kit

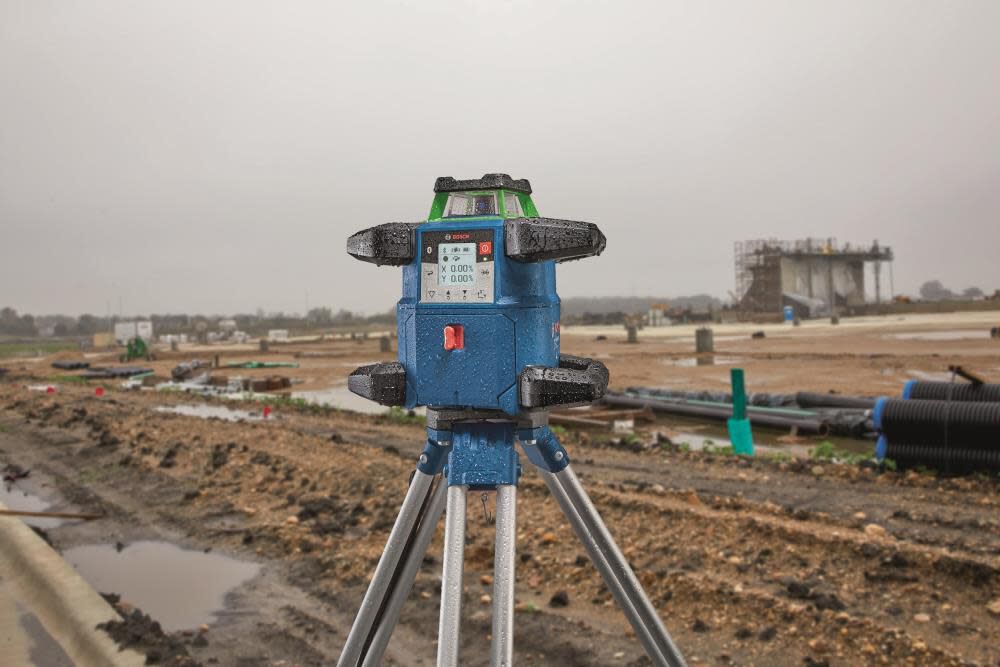

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling.

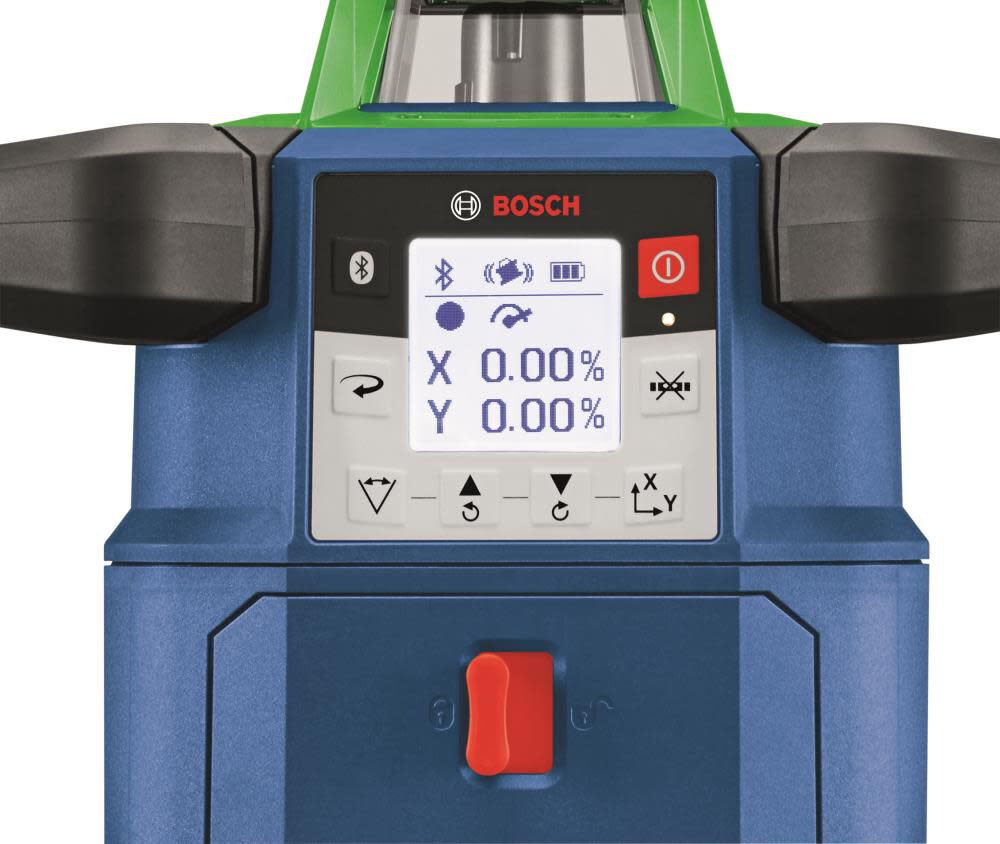

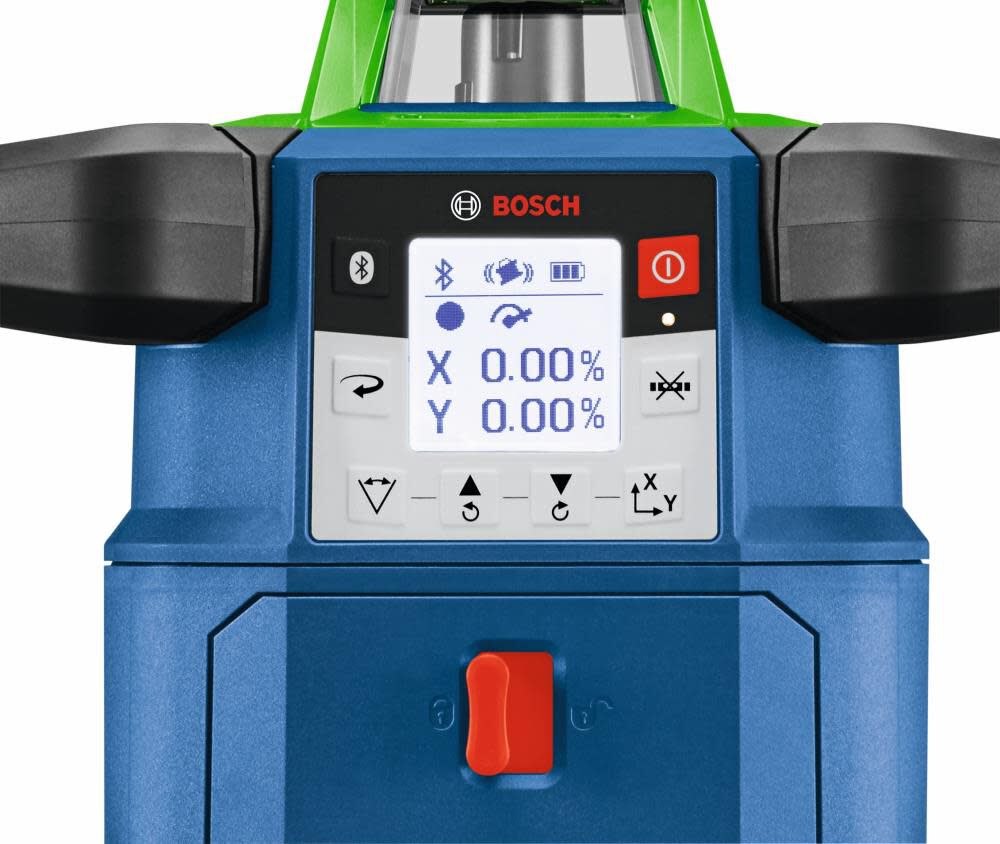

It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications.

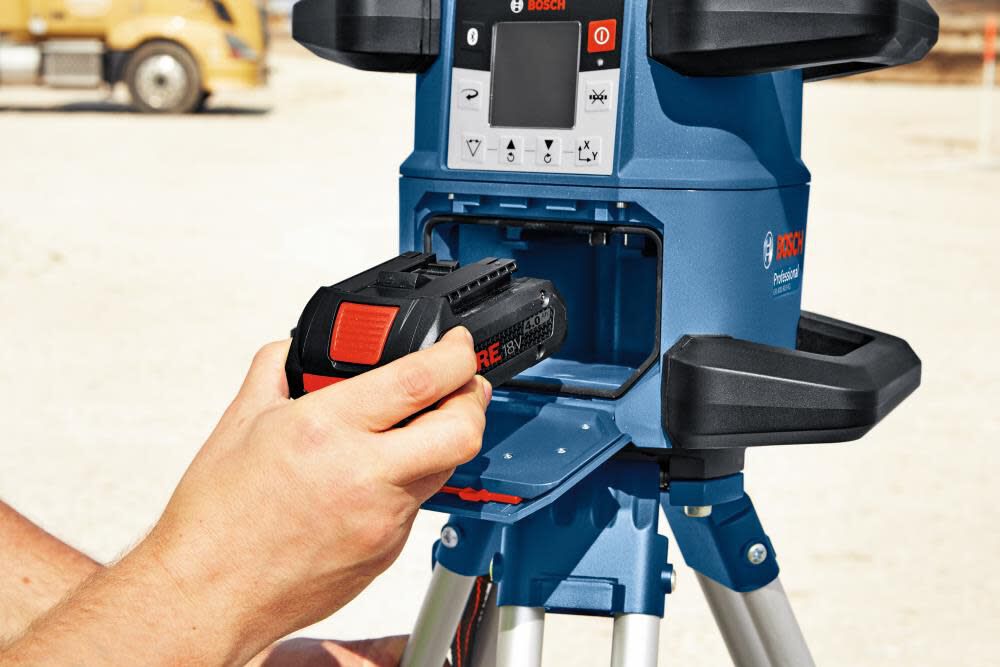

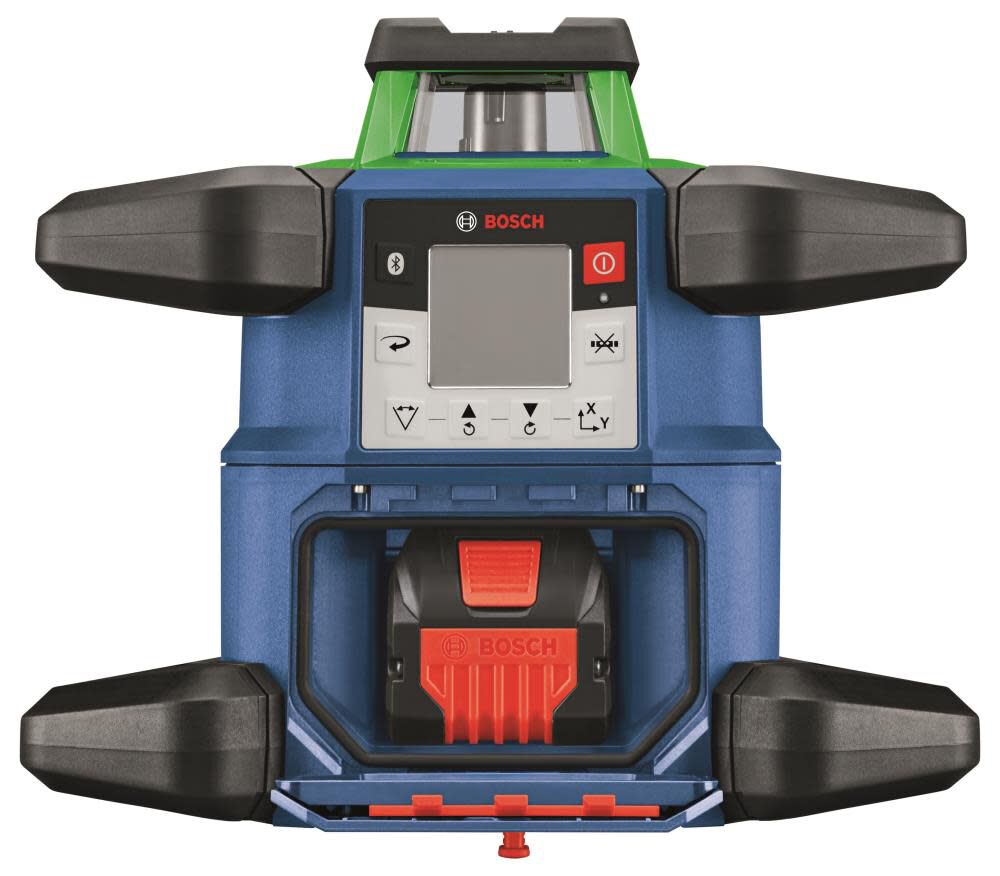

This laser is powered by a Bosch CORE18VÆ 4 Ah battery, providing extended runtime.
Its green-beam laser is up to 4X brighter than standard red beams.

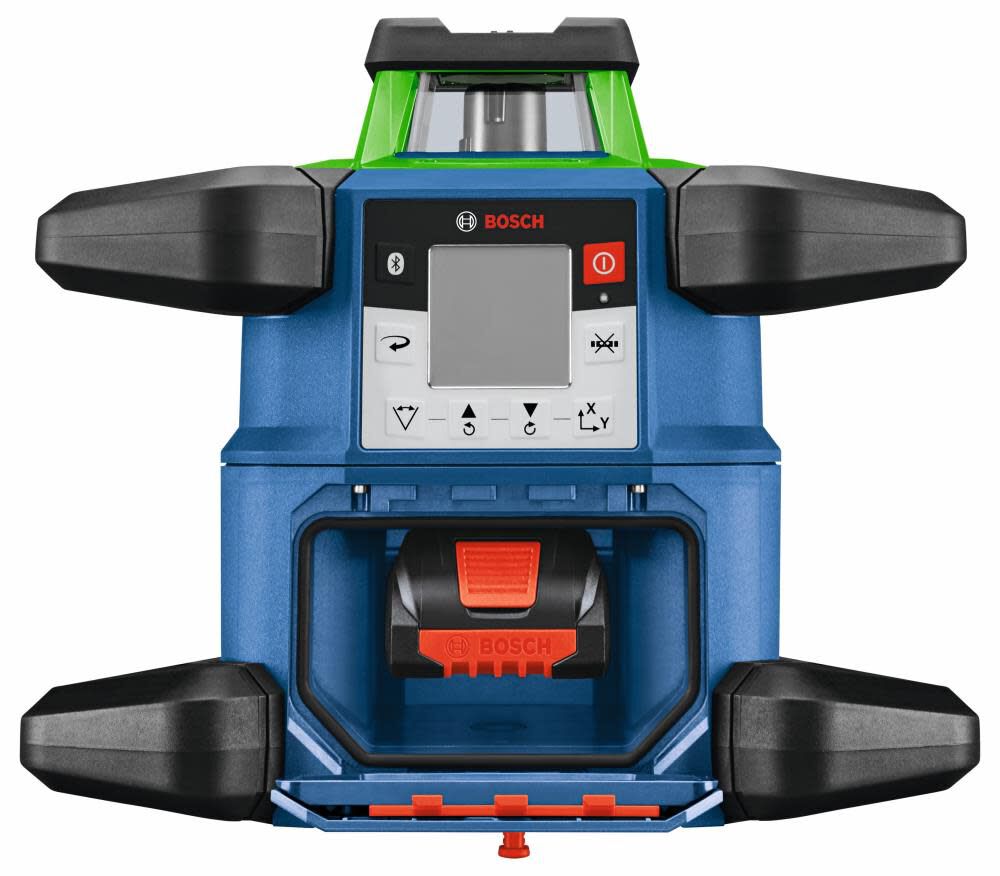

The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18VÆ Li-ion batteries.

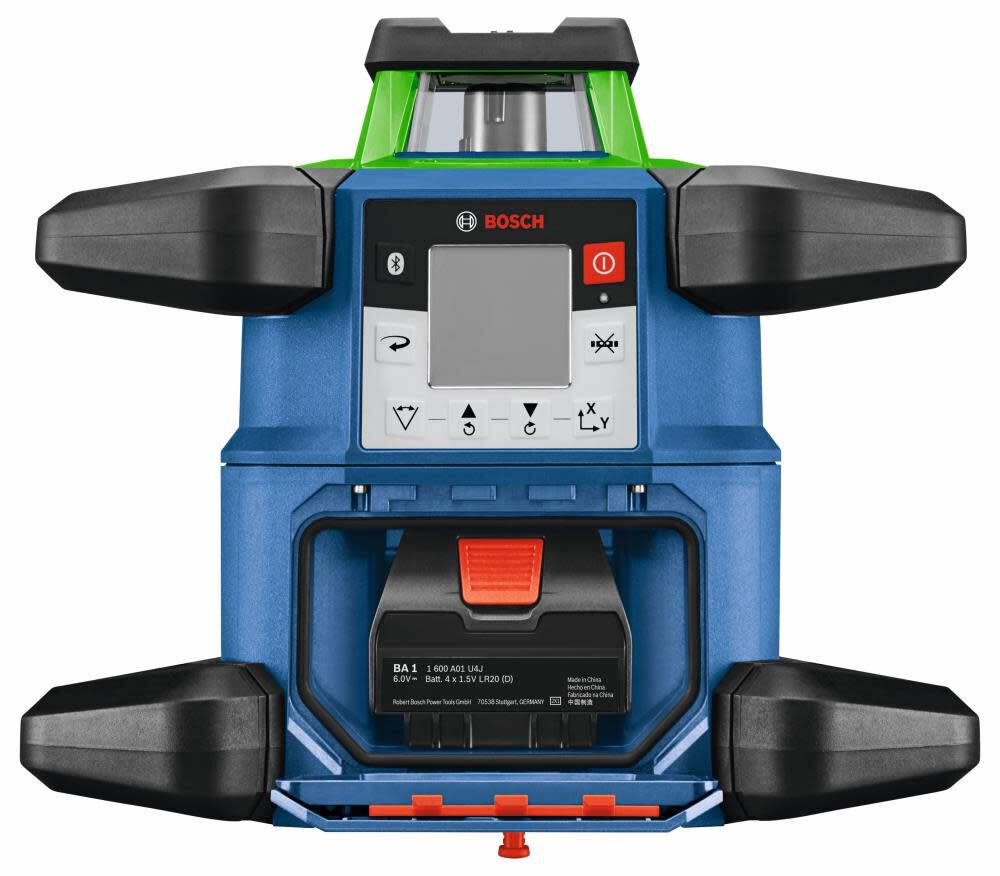

It also features an alkaline adapter to use four (D) cells.

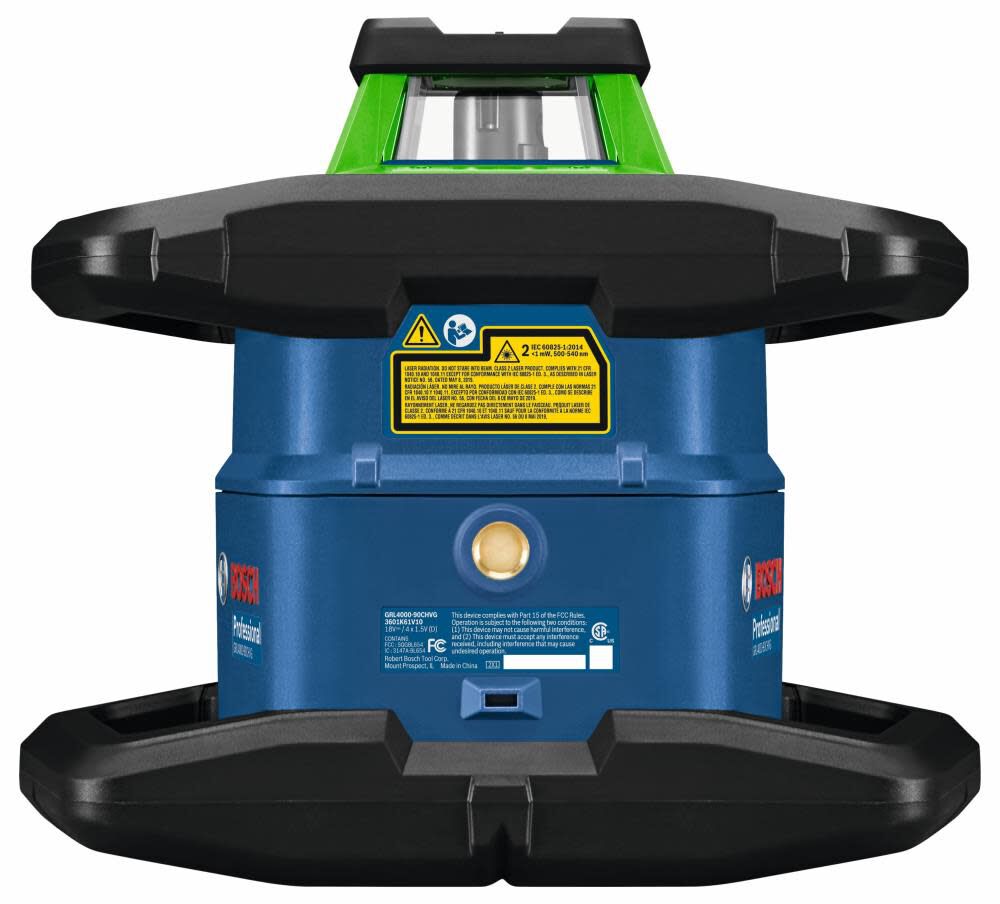

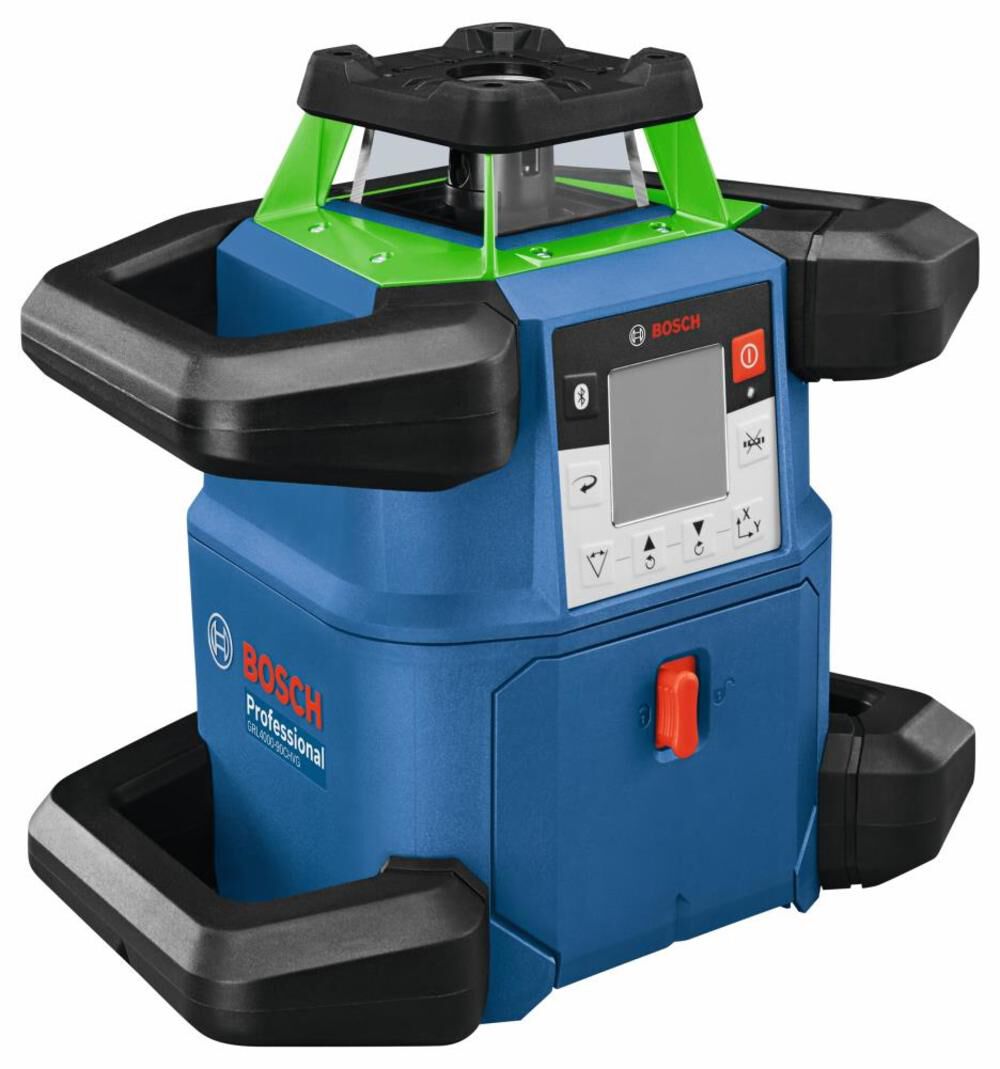

The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards.

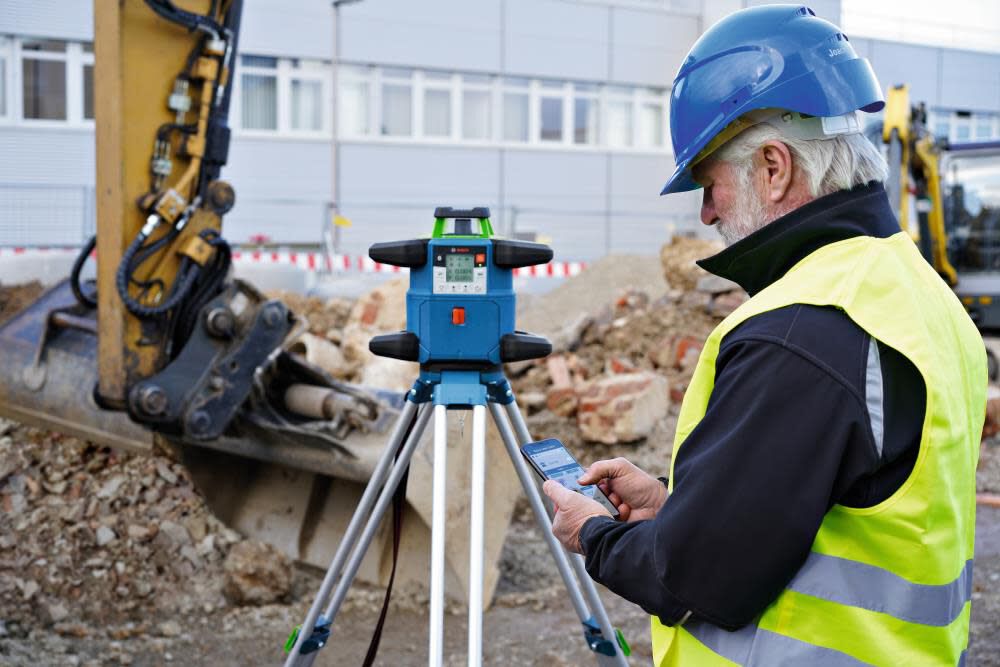

It features BluetoothÆ connectivity to a connected device, linking to the Bosch Leveling Remote App.
This app controls on/off, Dual Dial-In Slope, and more.
The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process.
This avoids tool down time and provides confidence that the laser is accurate.
It delivers accuracy of up to ±1/16 In.
At 100 Ft.
In horizontal applications and ±1/8 In.
At 100 Ft.
In vertical mode, and a range of up to 4,000 Ft.
With laser receiver.
The laser features a vertical beam at 90∞ point for layout, squaring and plumb applications.

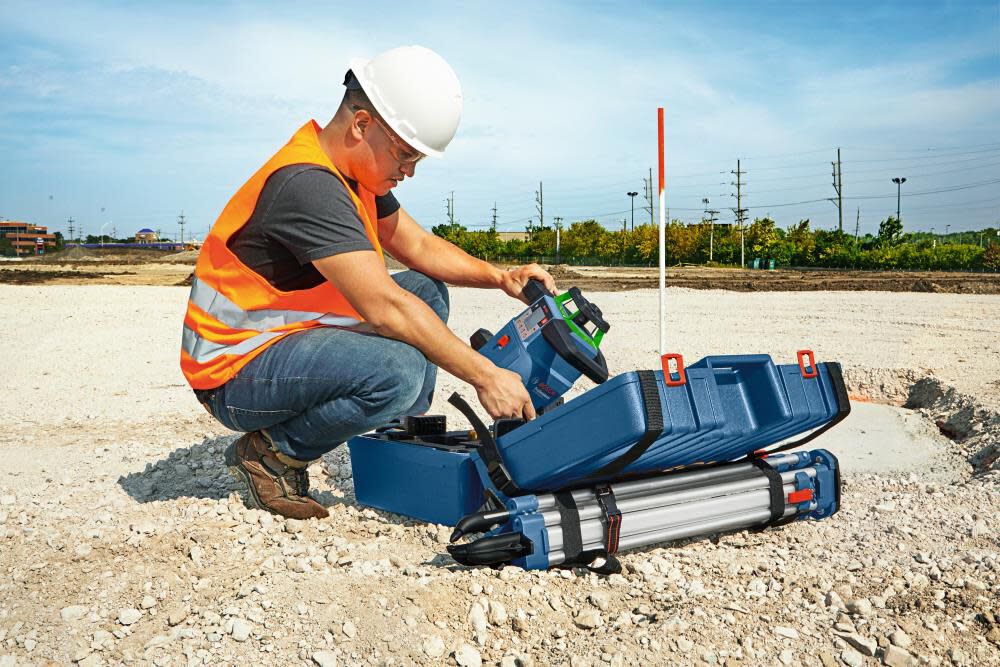

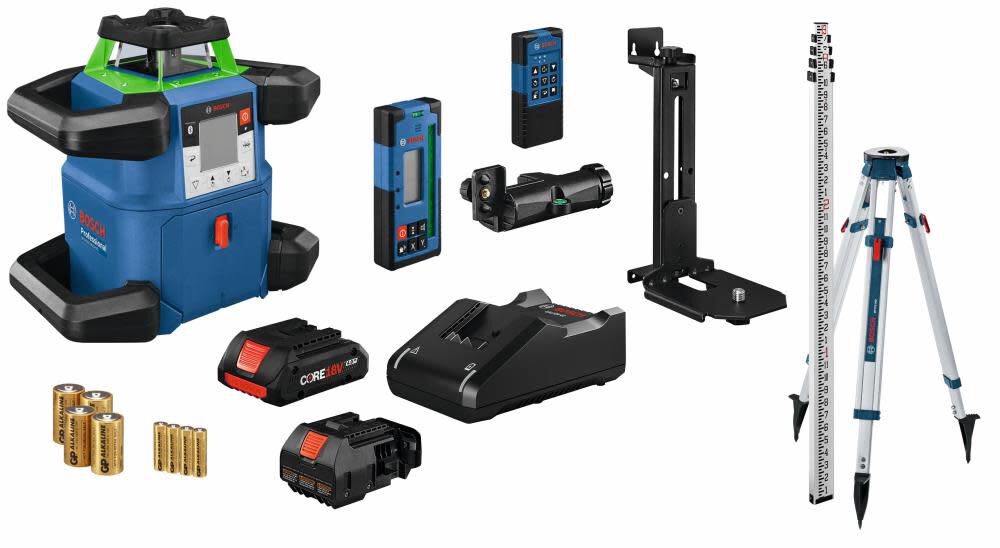

The comprehensive kit includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.
California Proposition 65 Warning.Features
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
- Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries

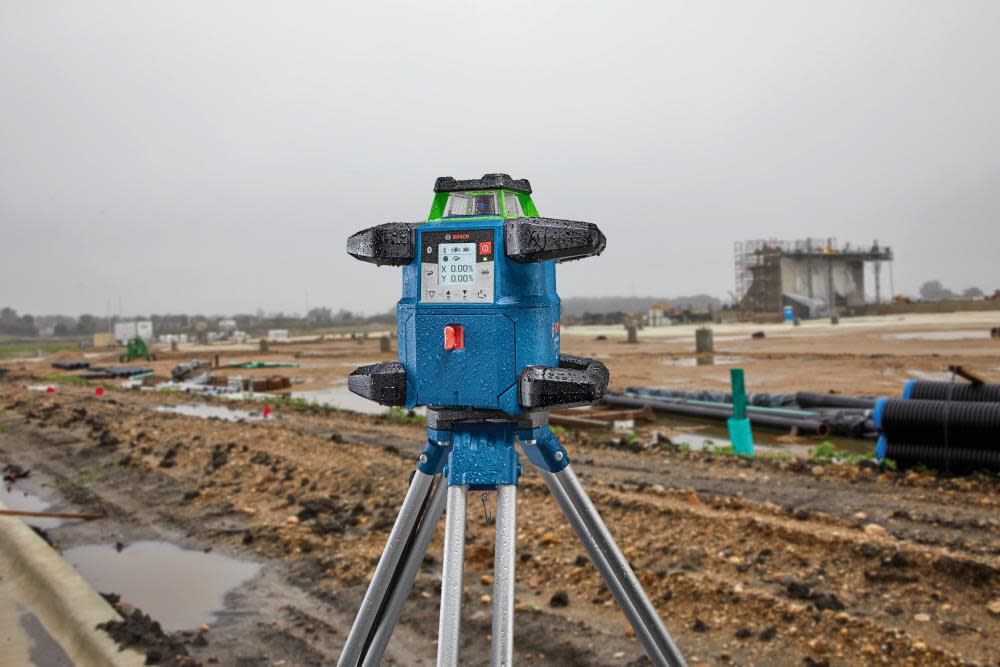

- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode

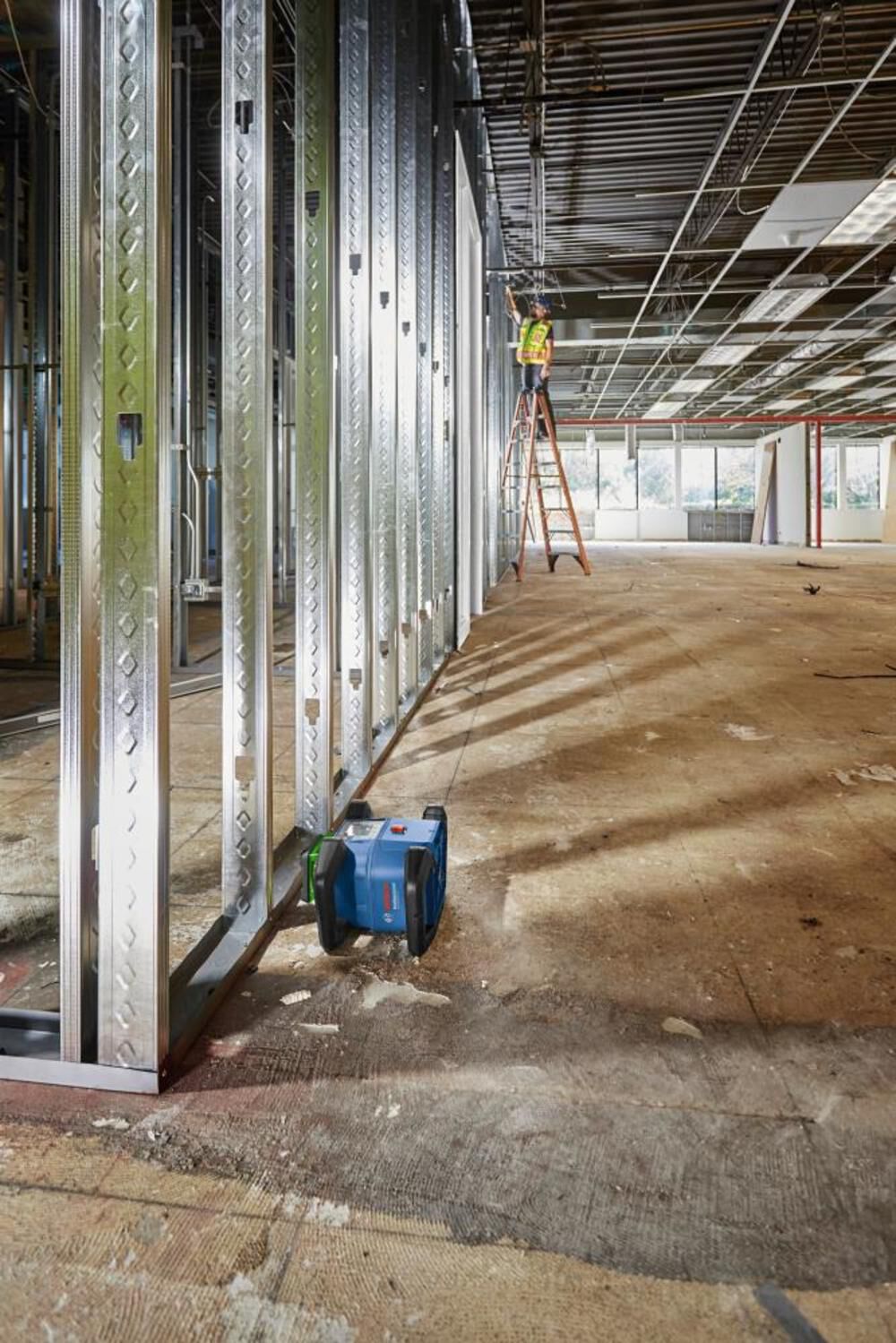

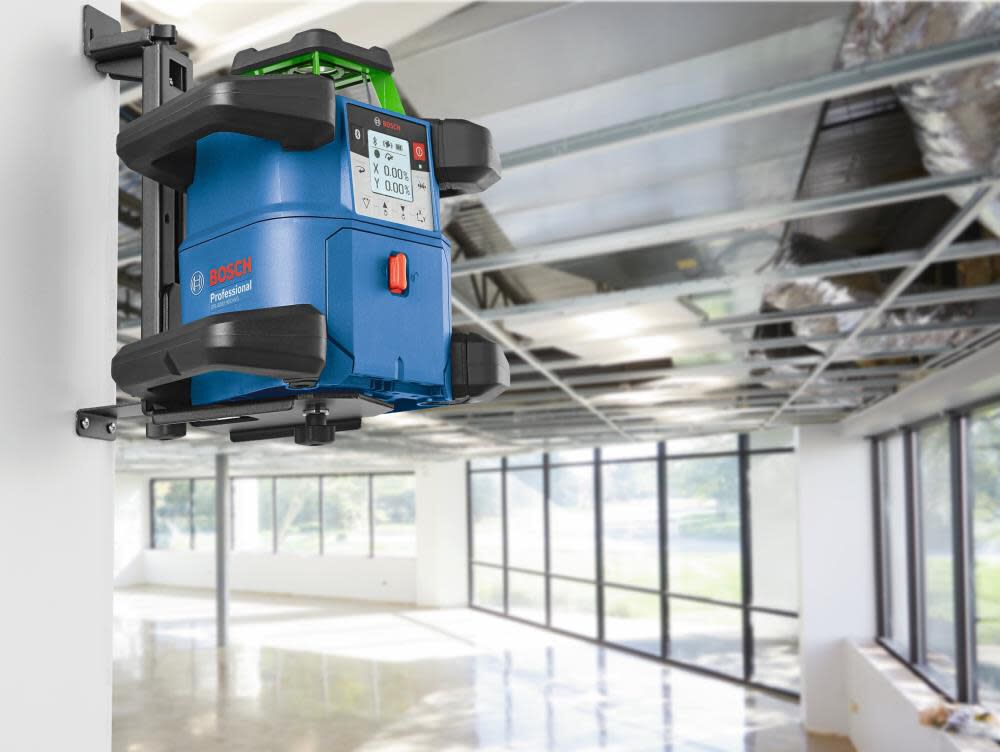

- Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications

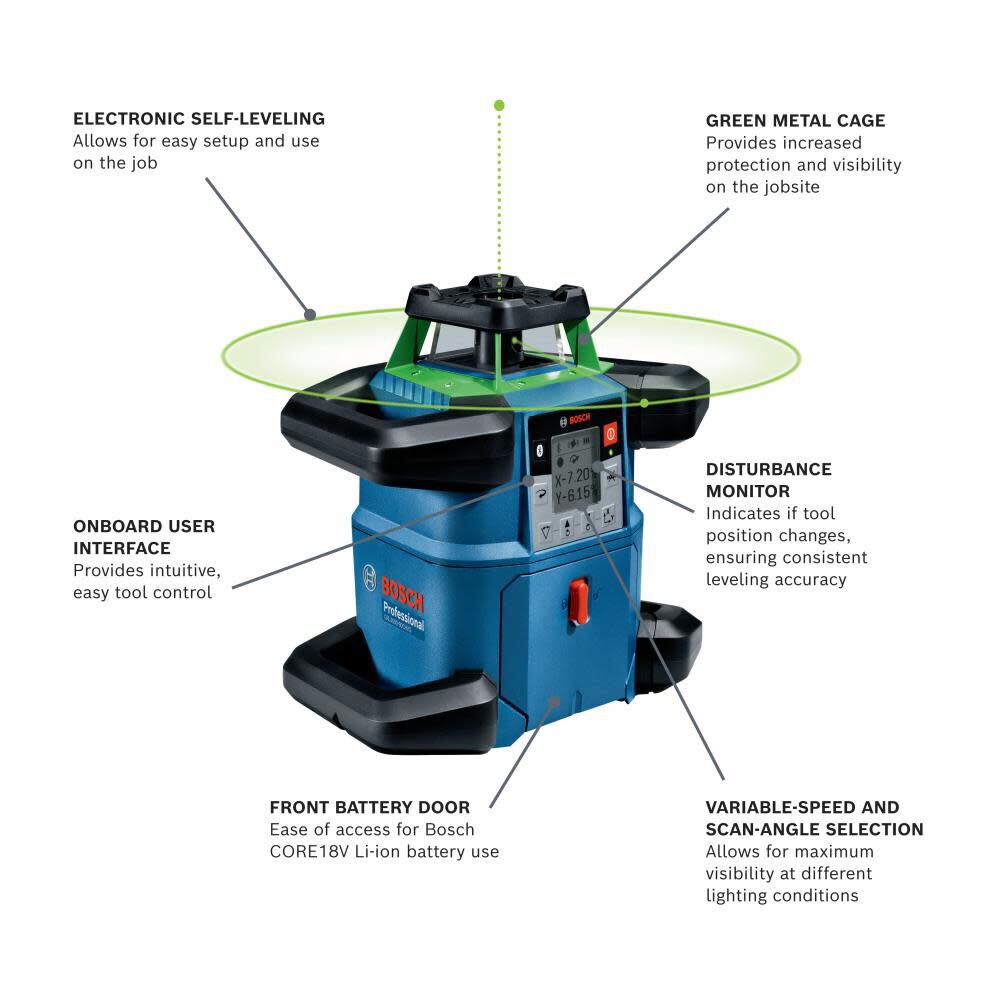

- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
Specifications
Brand Name - Bosch
Assembled Weight (lbs) - 8.2
California Proposition 65 Warning Required - No
Color - Blue
Country of Origin - China
Indoor / Outdoor - Indoor/Outdoor
Laser Level Type - Rotary
MFG Part # (OEM) - GRL4000-90CHVGK
Material - Plastic Composite
Mounting Type - Wall or Tripod
Package Contents - GRL4000 90CHVG 18V REVOLVE4000 Connected Green Beam Self Leveling Rotary Laser, LR40G Green Beam Rotary Laser Receiver with Mounting Bracket, BT170HD Tripod, GR13 Grade Rod, BA1 Battery Adapter, GBA18V40 18V CORE18V Lithium Ion 4.0 Ah Compact Battery, GAL18V 40 18V Charger, RC5 Remote, WM6 Wall Mount, (2) AA Batteries and (4) D Cell Batteries, Carrying Case,Accessories Included,Case,Tripod
Package Depth - 25.15
Package Height - 11.15
Package Weight - 47.3
Product Condition - New
Projects Beam 360 degrees - Yes
Self Leveling - Yes
UPC - 000346662870
Warranty Type - 1 Year Limited
Weight (lbs) - 8.2
Wireless Remote Control Included - Yes
