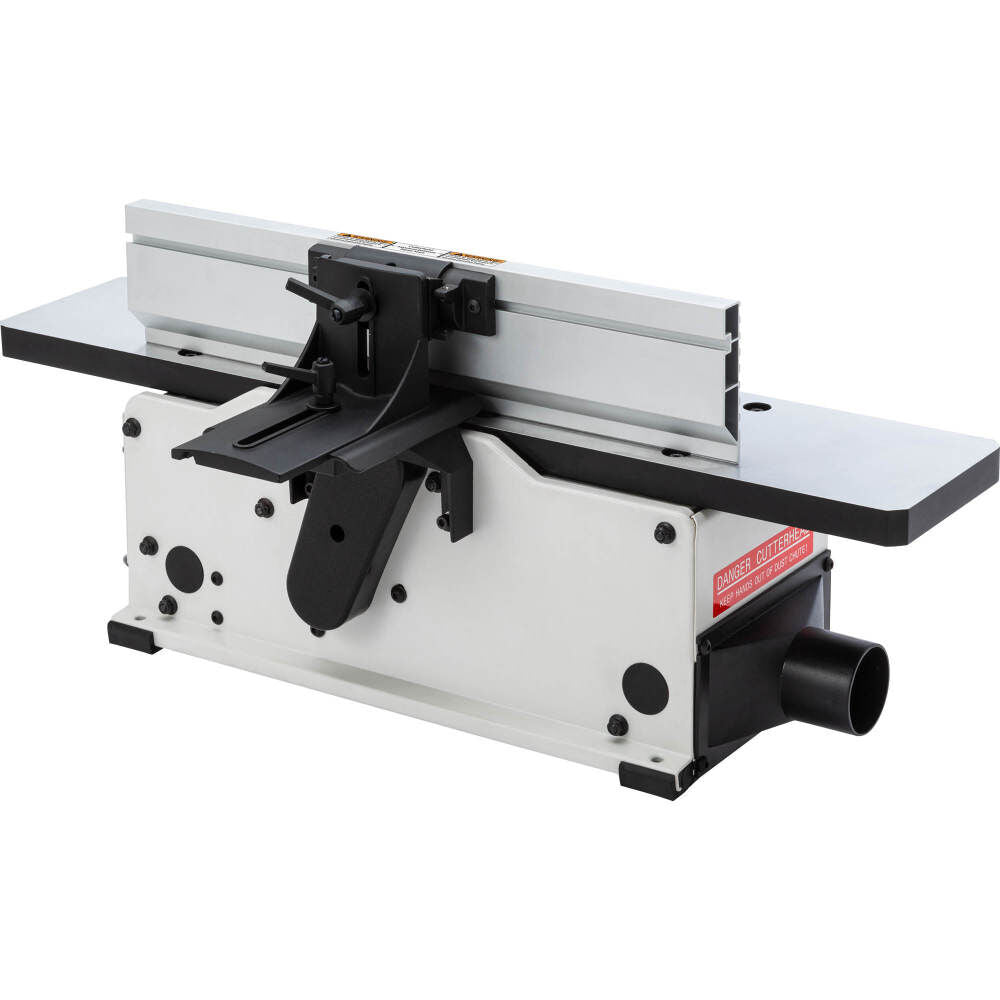

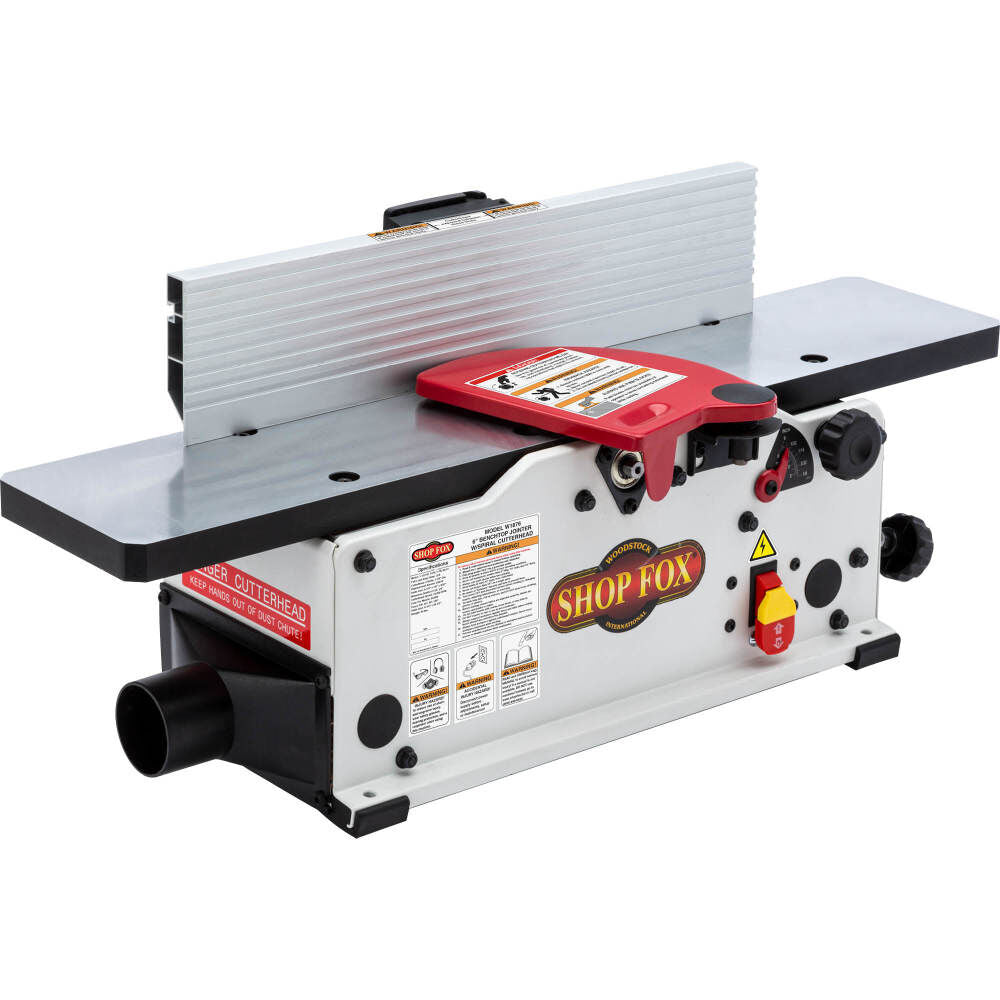

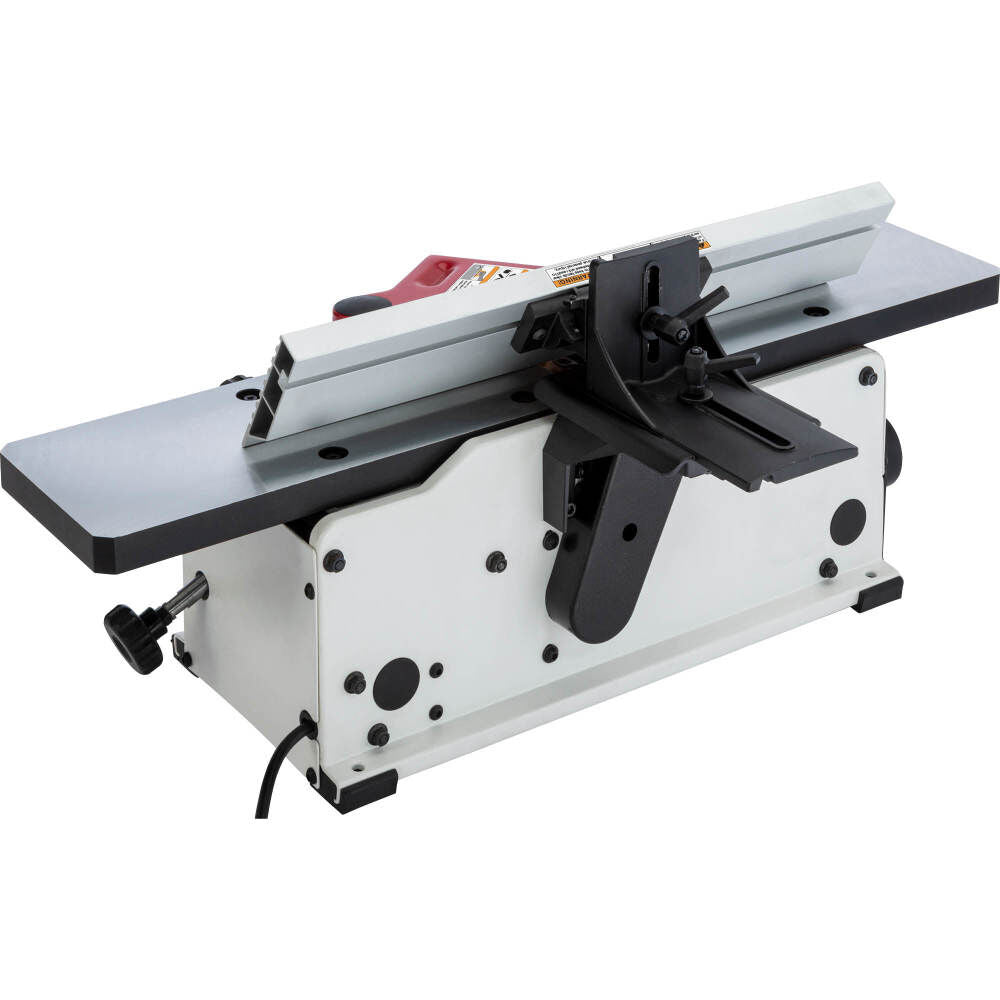

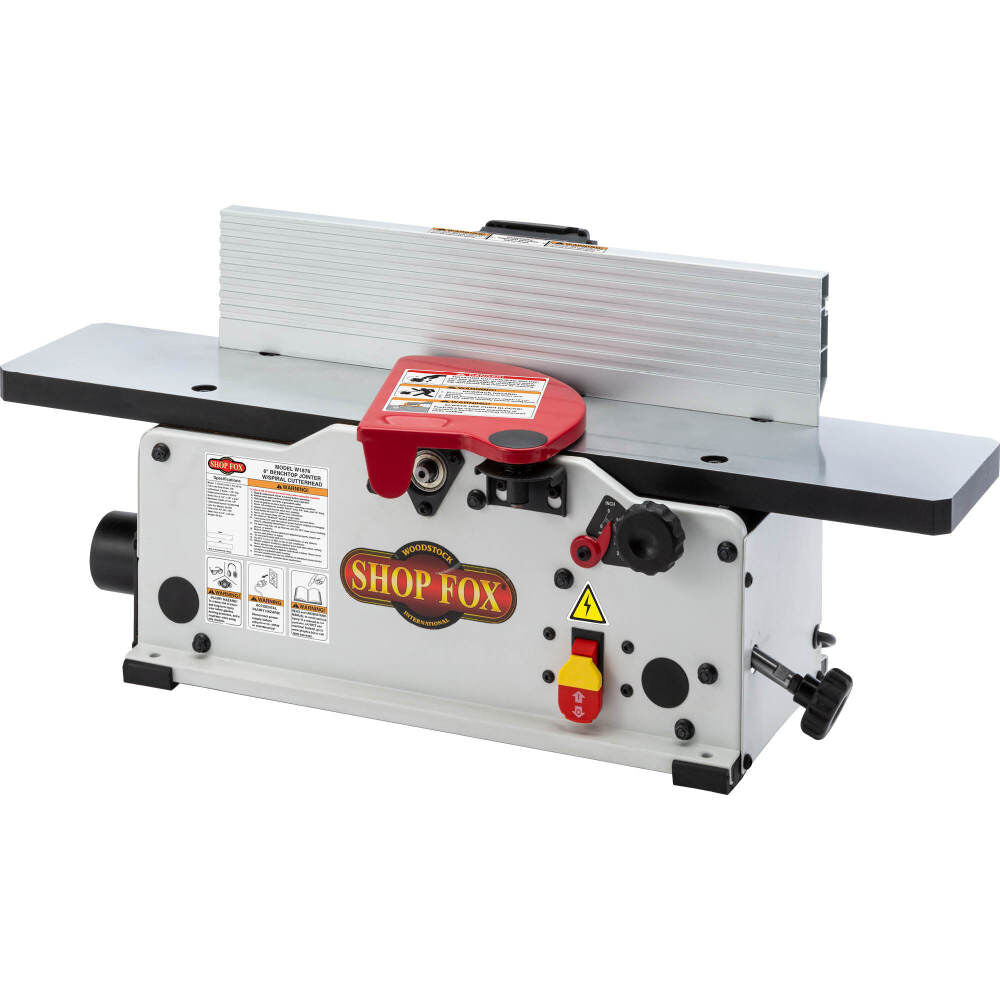

Shop Fox Benchtop Jointer 6 Inch 1-1/2HP Spiral-Style Cutterhead
This is a lot of jointer in a small-package.
It features a spiral-style cutterhead with high speed steel indexable inserts, knob-adjustable infeed table with lock for ultra-precision cutting depth adjustments, an inch and metric cut depth indicator and an east-to-adjust extruded-aluminum fence.
You won't find a more feature-packed 6 in.
Benchtop jointer anywhere else.
California Proposition 65 Warning.Features
- Motor: 1-1/2 HP, 120-Volt, single-phase, 10 Amp
- Maximum depth of cut: 1/8 in.
- Maximum with of cut: 6 in.

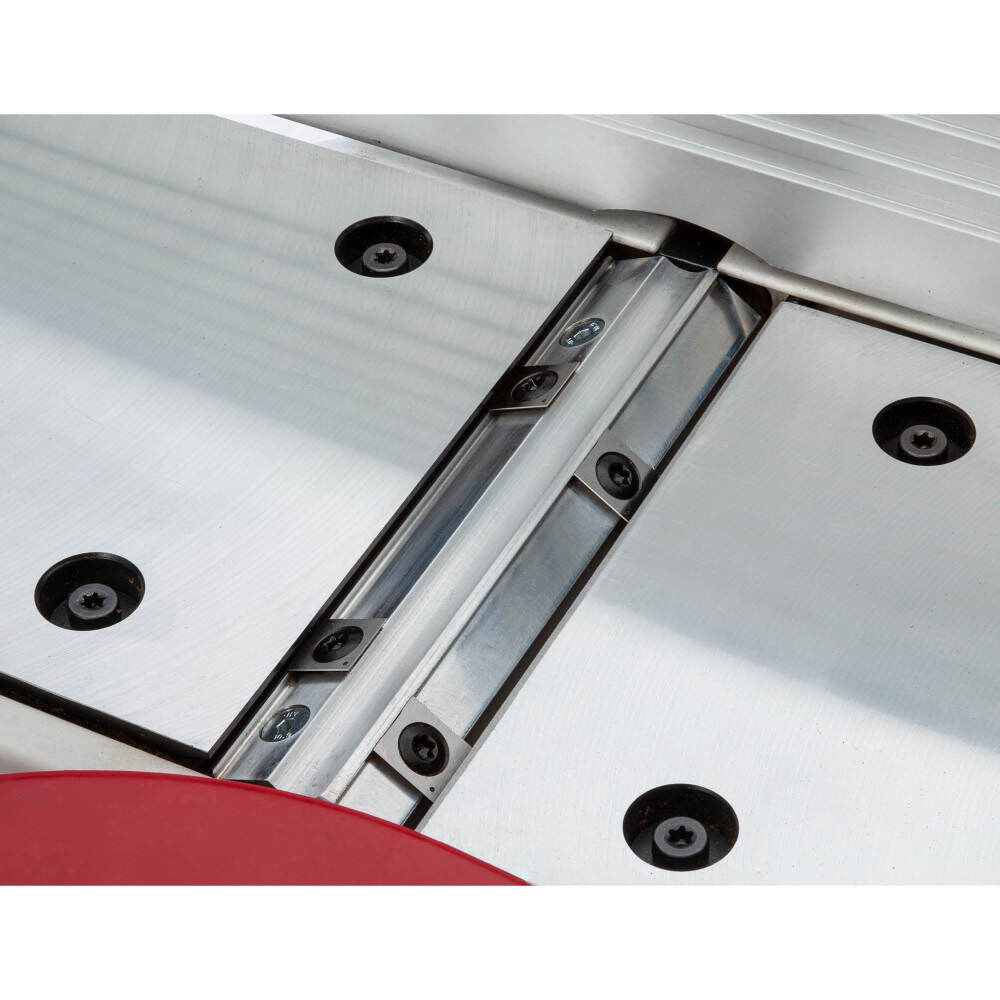

- Cutterhead type: spiral-style with 12 two-sided indexable inserts
- Cutterhead speed: 12,000 RPM
- Table size: 6-1/4 x 30
- Dust port size: 2-1/2 in.
- Dimensions: 30 x 17-1/2 x 13-1/2 in.
- High speed steel insert size: 14mm x 14mm x 2mm
Specifications
Brand Name - Shop Fox
Amperage (A) - 15
Assembled Depth (in) - 17.5
Assembled Weight (lbs) - 43
Assembled Width (in) - 30
Bench or Stationary - Bench
Blade Count - 12
Blade Cutting Material - High Speed Steel
Blade Length (in) - 6 in.
Blade Material - Steel
Blade Type - High speed steel
Color - White
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 2-1/2in.
ETL Listed - Yes
Height (in) - 13.5
Horsepower (hp) - Universal Motor
MFG Part # (OEM) - W1876
Material - Steel
Material Cut - Wood
Package Contents - 6" Benchtop Jointer
Package Depth - 33
Package Height - 12
Package Weight - 43
Phase - 1
Product Condition - New
Sharpenable - No
Speeds - 19,000 RPM
Stand Included - No
Switch Type - On/ Off
Table Height (in) - 8-5/16 in.
Table Length (in) - 30 in.
Table Width (in) - 6-1/4 in.
UL Listed - Yes
UPC - 754001018372
Warranty Type - 2 Years
Weight (lbs) - 43
