8 In. Parallelogram Jointer with Helical Cutter Head 1610082
8 In. Parallelogram Jointer with Helical Cutter Head 1610082 is backordered and will ship as soon as it is back in stock.

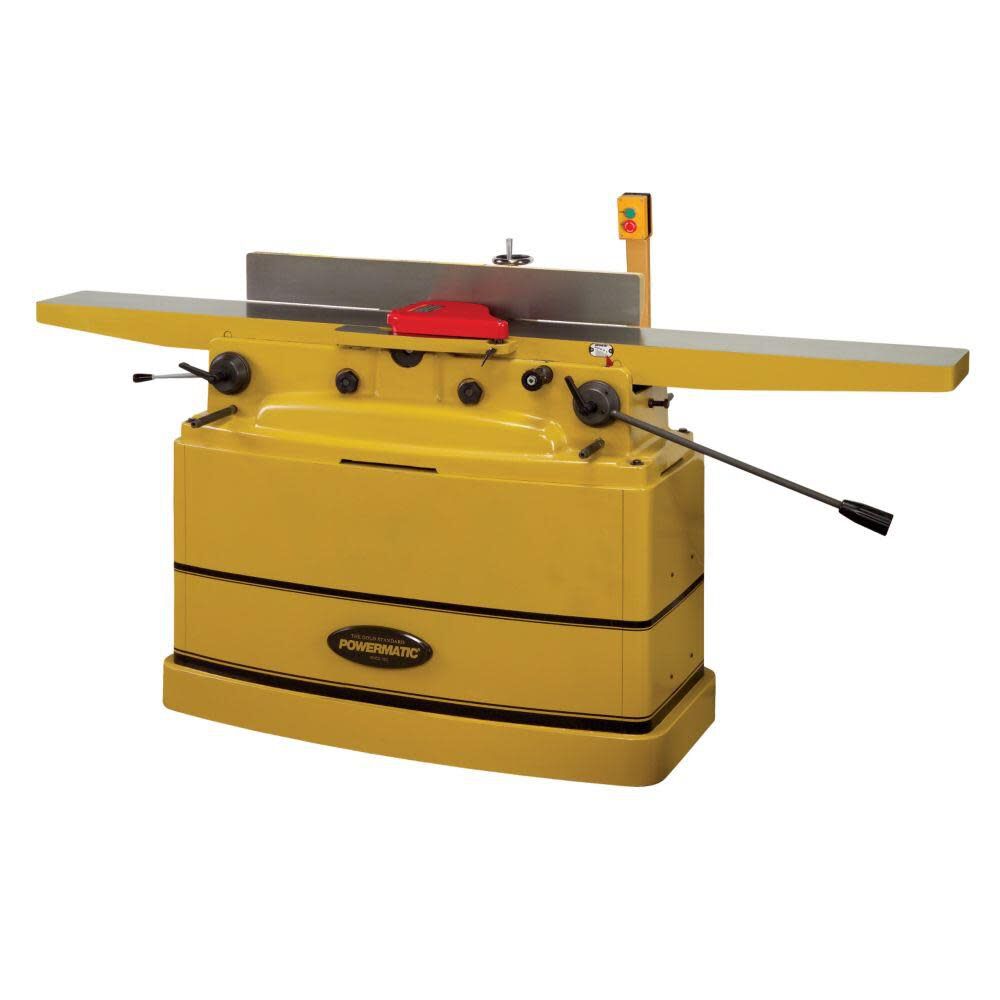

Powermatic 8 In.
Parallelogram Jointer with Helical Cutter Head
The 8 In.
Parallelogram jointer offers performance and value in a machine loaded with features.
The cutter head is a helical design with 54 four-sided knife inserts these produce a superior finish and much quieter operation than conventional cutter heads, and the inserts do not require adjustment once installed.
The jointer has an extra long 82 In.
Bed for better work support and is equipped with an innovative single hand wheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees.
A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments.
The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment.
This design also insures the table remains perfectly parallel, even after years of heavy use.
The 2 HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
Features
- Helical cutter head with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Extra long 82 In. table for expanded work support
- Parallelogram design helps maintain table parallelism and eases table raising and lowering
- Hand wheel with worm gear system for precise fence tilting (Patented)
Specifications
Brand Name - Powermatic
Amperage (A) - 9
Assembled Weight (lbs) - 610
Bench or Stationary - Stationary
Blade Count - 54
Blade Material - Steel
Blade Width (in) - 0
California Proposition 65 Warning Required - Yes
Color - Gold
Country of Origin - Taiwan
CSA Certified - Yes
Drive Motor System - Electric
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 2
MFG Part # (OEM) - 1610082
Material - Cast Iron
Maximum Cutting Depth (in) - 0.5
Maximum Speed (rpm) - 7000
Package Contents - 1 Jointer, 1 Cutter head guard, 2 Push blocks, 1 4 mm Hex wrench, 1 5 mm Hex wrench, 1 Owner's Manual, 1 Warranty Card, 2 Star point screwdrivers, 10 Knife insert screws, 5 Knife inserts.
Package Depth - 82.25
Package Height - 43.5
Package Weight - 744
Package Weight (lbs) - 744
Product Condition - New
Speeds - 1
Spindle Lock - No
Stand Included - No
Switch Type - Push Button
Table Height (in) - 31.3125
Table Length (in) - 82
Table Width (in) - 8
UL Listed - No
UPC - 662755955839
Voltage - 220 Volts
Warranty Type - 5 Years
