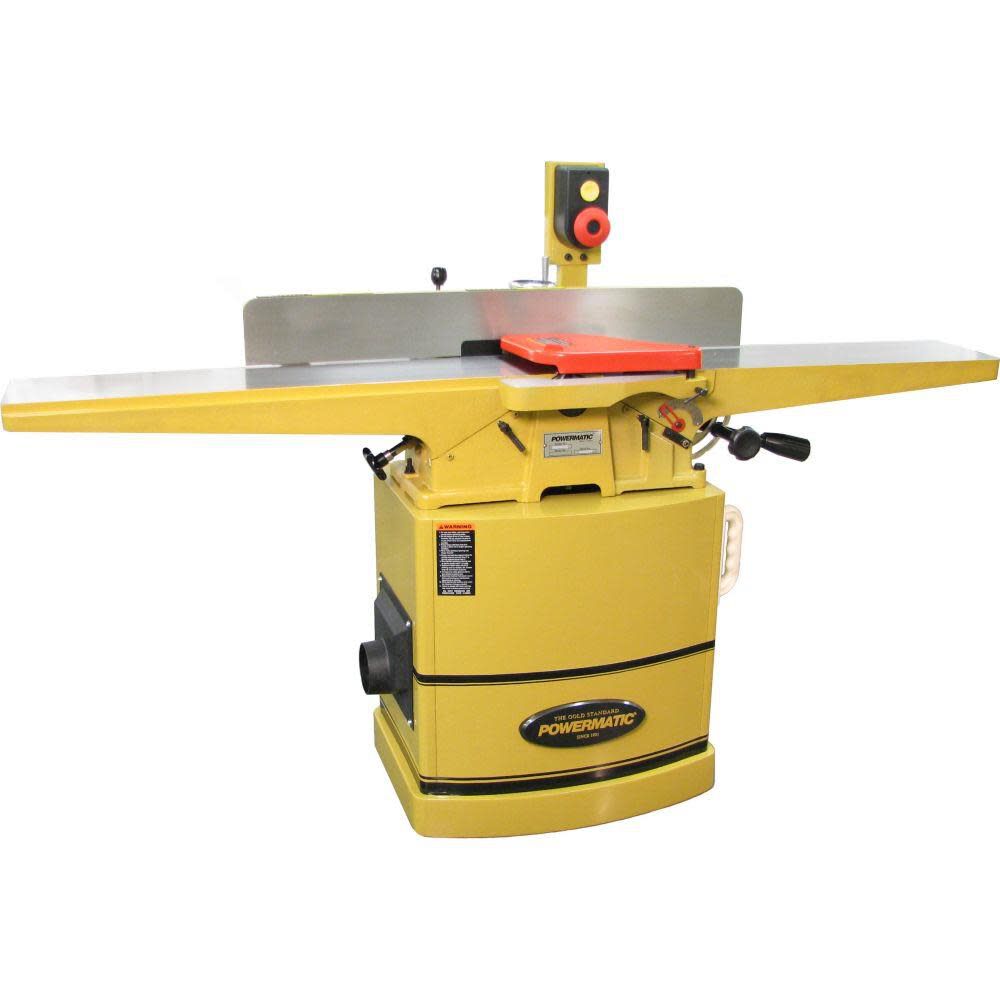

Heavy Duty Gold Bench Jointer with Stand, 8-in Blade, Cast Iron Table and Fence, Dust Collection, 230V, 490 lbs. 1610084K
Heavy Duty Gold Bench Jointer with Stand, 8-in Blade, Cast Iron Table and Fence, Dust Collection, 230V, 490 lbs. 1610084K is backordered and will ship as soon as it is back in stock.
This 8 In.
jointer meets the demand for accuracy while combining unique, user-friendly functions.
The Infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth.
Fence tilting is accomplished by a worm gear system, smoothly operated by a simple hand wheel.
The tables provide 73 In.
long extended support.
A non-mar insert in the fence protects the table from scratches during adjustments.
The jointer is available with a three knife cutter head, or a helical cutter head with four-sided knife inserts.
The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Hand wheel operated worm gear system for smooth fence tilting
Extra long tables are mounted on dovetailed ways, for extended workpiece support
Adjustment lever offers quick Infeed table positioning and fine-tuning of cut depth
High mount switch for operator convenience
Specifications
Color/Finish Family: Gold
Dimensions
Adjustable Depth Stops: Yes
Assembled Height (Inches): 46
Assembled Width (Inches): 25
Blade Length (Inches): 8
Depth Adjustment: Yes
Depth Measurement System: Yes
Fence Height (Inches): 4.025
Fence Length (Inches): 38
Maximum Board Thickness (Inches): 0.5
Maximum Board Width (Inches): 8
Maximum Cutting Depth (Inches): 0.5
Rabbeting Depth (Inches): 0.5
Table Length (Inches): 73
Table Width (Inches): 8.5
Tool Weight (lbs.): 490
Features
Accessories Included: No
Amperage (Amps): 20
Blade Material: Steel
Dust Collection: Yes
Fence Material: Cast iron
Fence Tilt: Yes
Fence Tilt Range in Degrees: 45
Heavy Duty Stand Included: Yes
Helical Head: No
Lock On Switch: Yes
Maximum RPM: 7000
Number of Blades: 3
Positive Stops: Yes
Quick-Change Knife System: No
Table Material: Cast iron
Variable Speed: No
Voltage (Volts): 230
Warranty
Warranty: 5-year limited
