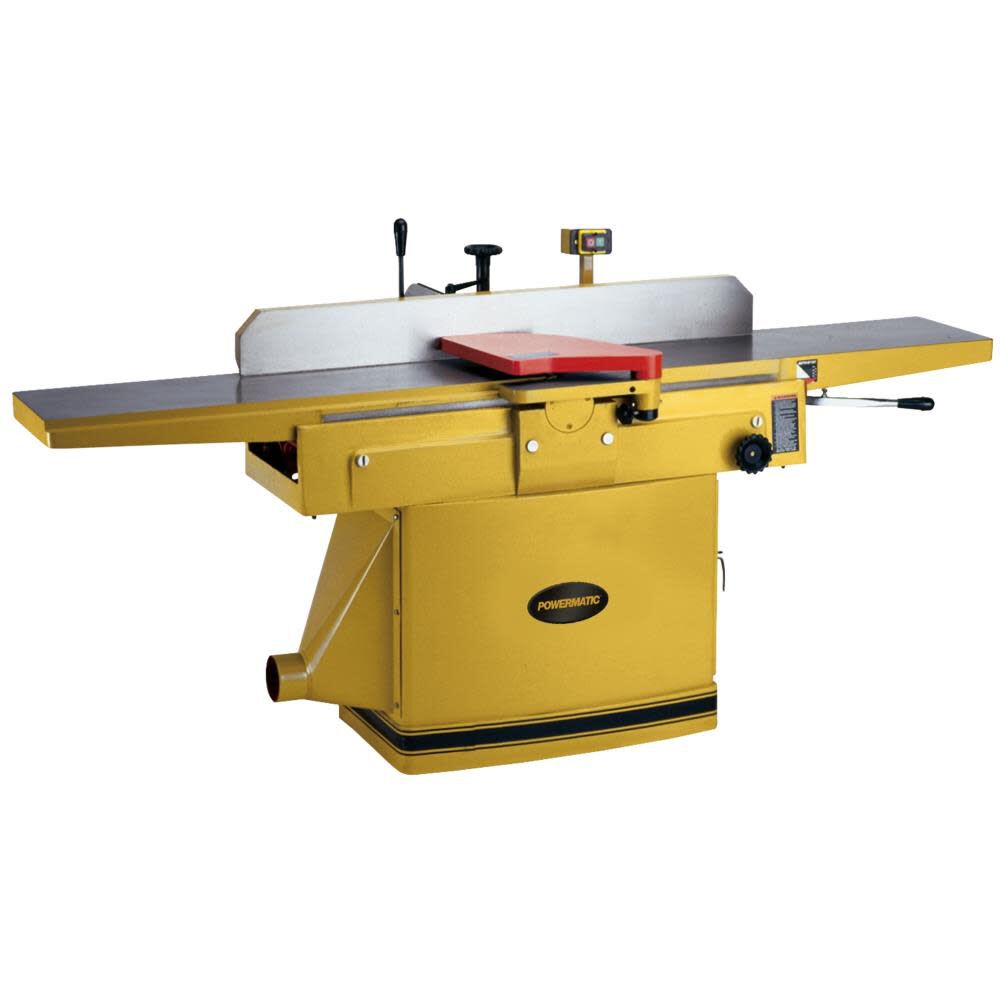

Heavy Duty Gold Bench Jointer with 84-in x 12-in Cast Iron Table, 3-Blade Quick-Change Knife System, Fence Tilt, and Dust Collection 1791241

Powermatic  |  MPN: 5181457
Cash
$12,004.84
Standard price
Pro
$11,644.69
With tools.com Pro
Finance
$246.76
/week
More options
Join Proto save $360.15
Save on every purchase
Theft replacement plan
Try 14 days of tools.com Pro free. Cancel anytime
This 12" jointer offers big capacity and performance in a machine that is loaded with features.

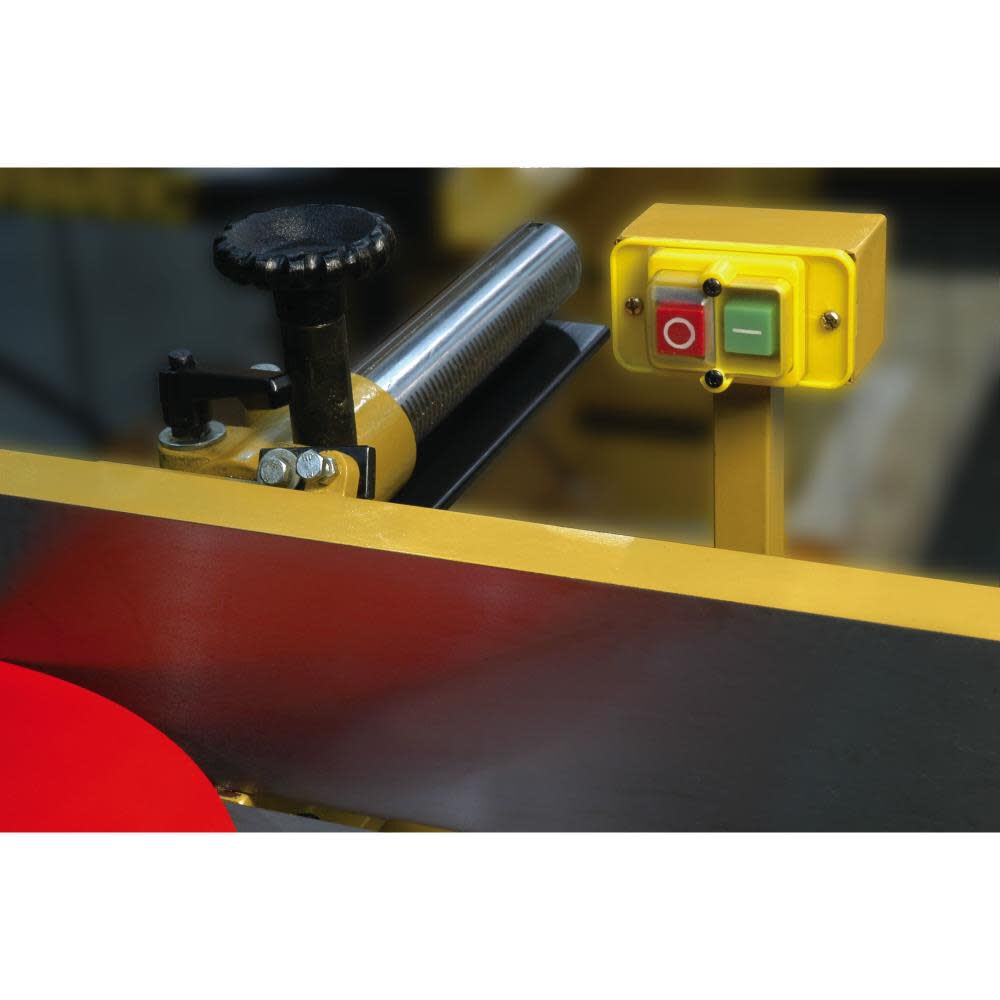

Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock.

Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.

The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment.

This design also ensures the tables remain perfectly parallel even after years of tough duty.

Choose either the standard three-knife cutter head or the solid steel helical cutter head.

The helical system makes fast work of knife changing and never needs adjustment.

Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play

Parallelogram design for close table-to-cutter head proximity and fast depth of cut adjustments

Large 84 inch x 12 inch table surface for heavy-duty work

Table "lips" on both sides of cutter head aid in noise reduction

Full size rabbeting ledge supports large workpieces for rabbets up to 3/4 inch deep

3HP motor provides plenty of power

Cutter head guard

Heavy duty fence

Dust port

Specifications

Color/Finish Family: Gold

Dimensions

Adjustable Depth Stops: Yes

Assembled Height (Inches): 44

Assembled Width (Inches): 38

Blade Length (Inches): 12

Depth Adjustment: Yes

Depth Measurement System: Yes

Fence Height (Inches): 5.025

Fence Length (Inches): 47

Maximum Board Thickness (Inches): 0

Maximum Board Width (Inches): 11.025

Maximum Cutting Depth (Inches): 0.75

Rabbeting Depth (Inches): 0.075

Table Length (Inches): 84

Table Width (Inches): 12

Tool Weight (lbs.): 762

Features

Accessories Included: Yes

Amperage (Amps): 30

Blade Material: Steel

Dust Collection: Yes

Fence Material: Cast iron

Fence Tilt: Yes

Fence Tilt Range in Degrees: 90

Heavy Duty Stand Included: Yes

Helical Head: No

Lock On Switch: Yes

Maximum RPM: 5000

Number of Blades: 3

Positive Stops: Yes

Quick-Change Knife System: Yes

Table Material: Cast iron

Variable Speed: No

Voltage (Volts): 230

Warranty

Warranty: 5-year limited

Certifications

CA Residents: Prop 65 Warning(s): Yes
