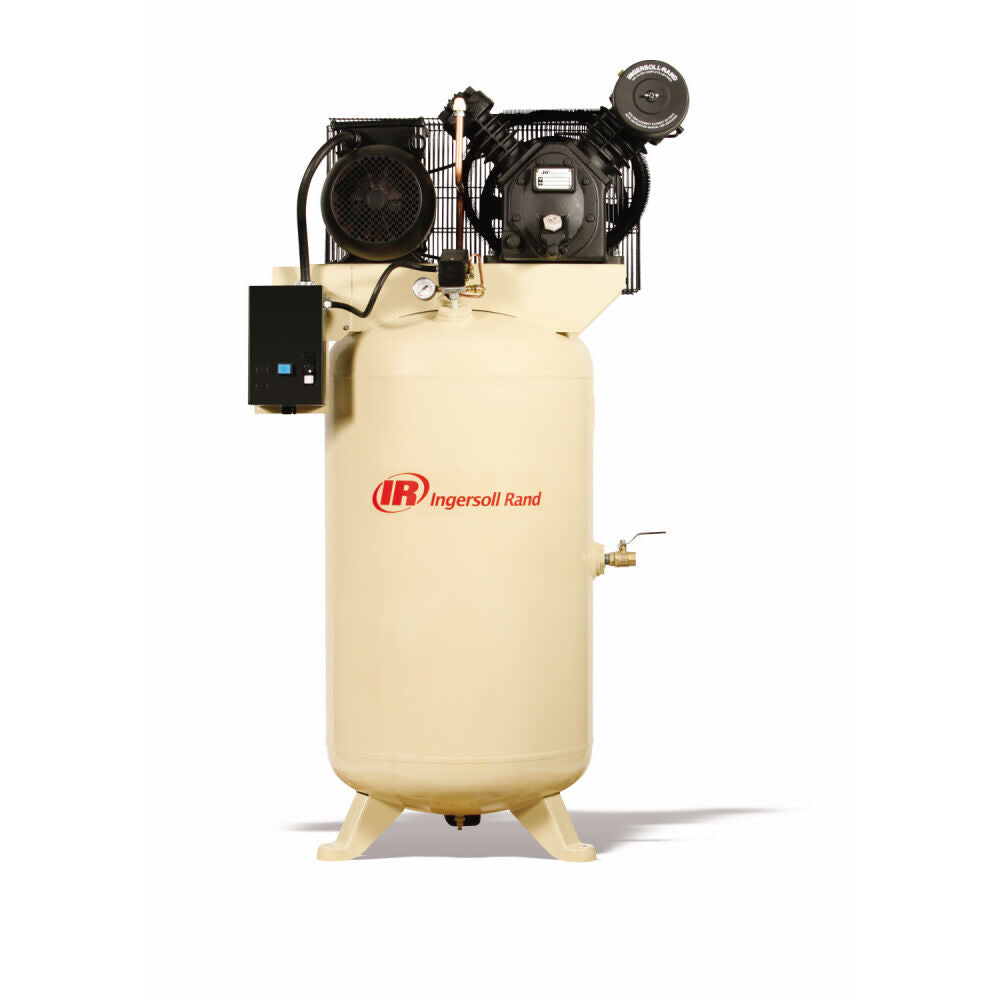

Ingersoll Rand 7.5 HP 80 gal 230 V 1 Ph Vertical Air Compressor
Featuring a durable cast-iron air pump, the Ingersoll RandÆ 7.5 HP 80 Gal 230 V 1 PH Vertical Air Compressor takes on any continuous-duty air delivery challenge.
It has precision-engineered components, including a one-piece connecting rod, stainless steel finger valves, an overhung crankshaft and individually cast cylinders.
They enhance efficiency and reliability and simplify pump maintenance.
The Ingersoll Rand 230V, single-phase vertical air compressor's 7.5-horsepower motor and 80-gallon air tank generate 175 pounds per square inch of pressure (psi) and deliver 24 cubic feet per minute (CFM) of air.
The unit's vertical design reduces the floor space needed for installation.Ingersoll Rand's 7.5-horsepower 80-gallon vertical air compressor has a pre-filter and air-cooled aftercooler that deliver clean, dry air to pneumatic tools.
An electric drain removes condensate from the air tank, and the raised tank provides quick access to drain components.
The oil sight glass lets you monitor pump coolant levels, and a NEMA-1 pressure switch and automatic start/stop control manage air pressure.
ASME fittings simplify equipment connections, and a reliable magnetic starter controls the pump.
The industrial air compressor is prewired for 230V single-phase power.
It has a weather-resistant, powdercoat finish.
California Proposition 65 Warning.Features
- 7.5 HP
- 80 Gallon tank size
- Vertical configuration
- 230 Volt 1 phase
- 100% cast-iron cylinder head with deep groove directional cooling fins
- Oversized industrial-grade bearings for extended pump life
- High-efficiency stainless steel valves
- 100% cast-iron pump
- High-efficiency inlet air filter with sound attenuation baffles
Specifications
Brand Name - Ingersoll Rand
Air Compressor Pump Design - Oil Lubricated
Amperage (A) - 40
Assembled Weight (lbs) - 611
California Proposition 65 Warning Required - Yes
Color - Tan
Compressor Design - Vertical
Country of Origin - United States
Decibel Rating (dB) - 85
ETL Listed - No
Full Roll Cage - No
Handle Included - No
Height (in) - 76
Horsepower (hp) - 7.5
Lock-on Switch - No
MFG Part # (OEM) - 45465408
Maximum Pressure Rating (psi) - 175
Operating Position - Vertical
Package Contents - Value package includes compressor, magnetic starter (except 2340 models with single-phase voltage), manual drain, and automatic start/stop control with pressure switch.
Package Depth - 0
Package Height - 0
Package Weight - 611
Package Weight (lbs) - 611
Phase - 1
Product Condition - New
Side Handle - No
Switch Type - Magnetic motor starter
Tank Capacity (gal) - 80
Tank Configuration - Single
Tank Material - Cast iron
Tank Pressure Gauge - Yes
UL Listed - No
UPC - 678384654081
Voltage - 230
Warranty Type - 1 Year Limited
Weight (lbs) - 611
Wheeled - No
