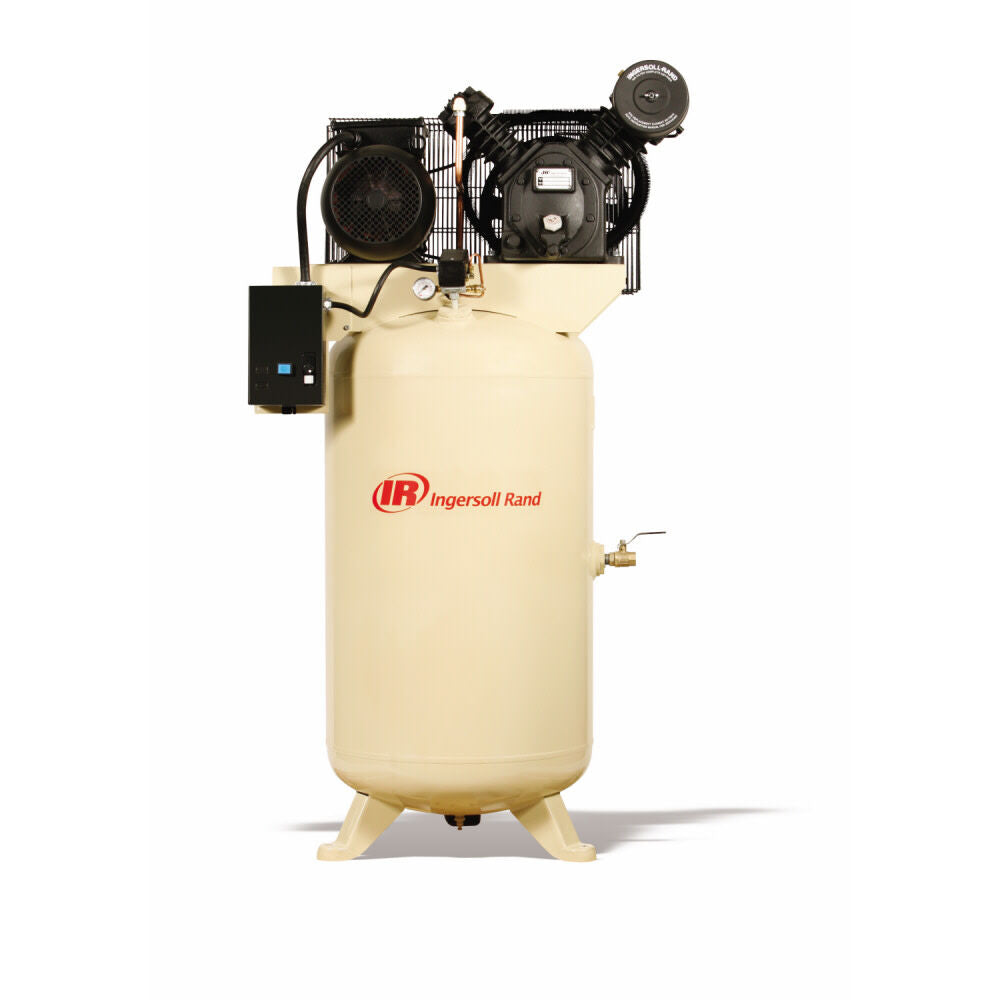

Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor
The Ingersoll RandÆ 5 HP 80 Gal 230 V 1 PH Vertical Air Compressor offers a reliable performance for auto repair, commercial and light industrial applications.
As a two-stage reciprocating compressor, it delivers a large volume of air at a higher pressure than a single-stage compressor.
As well, its finned intercooler enables improved energy efficiency compared to a single-stage model, thereby reducing running costs.
The Ingersoll Rand 230V single-phase vertical air compressor includes an 80-gallon vertical tank with a weather-resistant powder coating and manual draining.
Its 100 percent cast-iron pump is rated for more than 15,000 hours of steadfast use.
An automatic start/stop pressure switch turns the Ingersoll Rand 5HP 80-gallon vertical air compressor on and off to maintain the desired pressure differential.
The compressor has a 16.8 cubic feet per minute flow rate at its maximum 175 pounds per square inch (psi) of pressure.
Supplied with it is the manufacturerís All Season Select startup kit, including synthetic lubricant and replacement air filter elements.
Features
- 5 HP
- 80 Gallon tank size
- Vertical configuration
- 230 Volt 1 phase
- 100% cast-iron cylinder head with deep groove directional cooling fins
- Oversized industrial-grade bearings for extended pump life
- High-efficiency stainless steel valves
- 100% cast-iron pump
- High-efficiency inlet air filter with sound attenuation baffles
Specifications
Brand Name - Ingersoll Rand
Air Compressor Pump Design - Oil Lubricated
Amperage (A) - 22.8
Assembled Weight (lbs) - 505
California Proposition 65 Warning Required - Yes
Color - Tan
Compressor Design - Vertical
Country of Origin - United States
Decibel Rating (dB) - 85
ETL Listed - No
Full Roll Cage - No
Handle Included - No
Height (in) - 76
Horsepower (hp) - 5
Lock-on Switch - No
MFG Part # (OEM) - 45465101
Maximum Pressure Rating (psi) - 175
Operating Position - Vertical
Package Contents - Value package includes compressor, magnetic starter (except 2340 models with single-phase voltage), manual drain, automatic start/stop control with pressure switch.
Package Depth - 0
Package Height - 0
Package Weight - 505
Package Weight (lbs) - 505
Phase - 1
Product Condition - New
Side Handle - No
Switch Type - Magnetic motor starter
Tank Capacity (gal) - 80
Tank Configuration - Single
Tank Material - Cast iron
Tank Pressure Gauge - Yes
UL Listed - No
UPC - 400475000251
Voltage - 230
Warranty Type - 1 Year Limited
Weight (lbs) - 505
Wheeled - No
