120 Gallon Horizontal 10 HP TX0314 3 Phase 230V CE8001
120 Gallon Horizontal 10 HP TX0314 3 Phase 230V CE8001 is backordered and will ship as soon as it is back in stock.

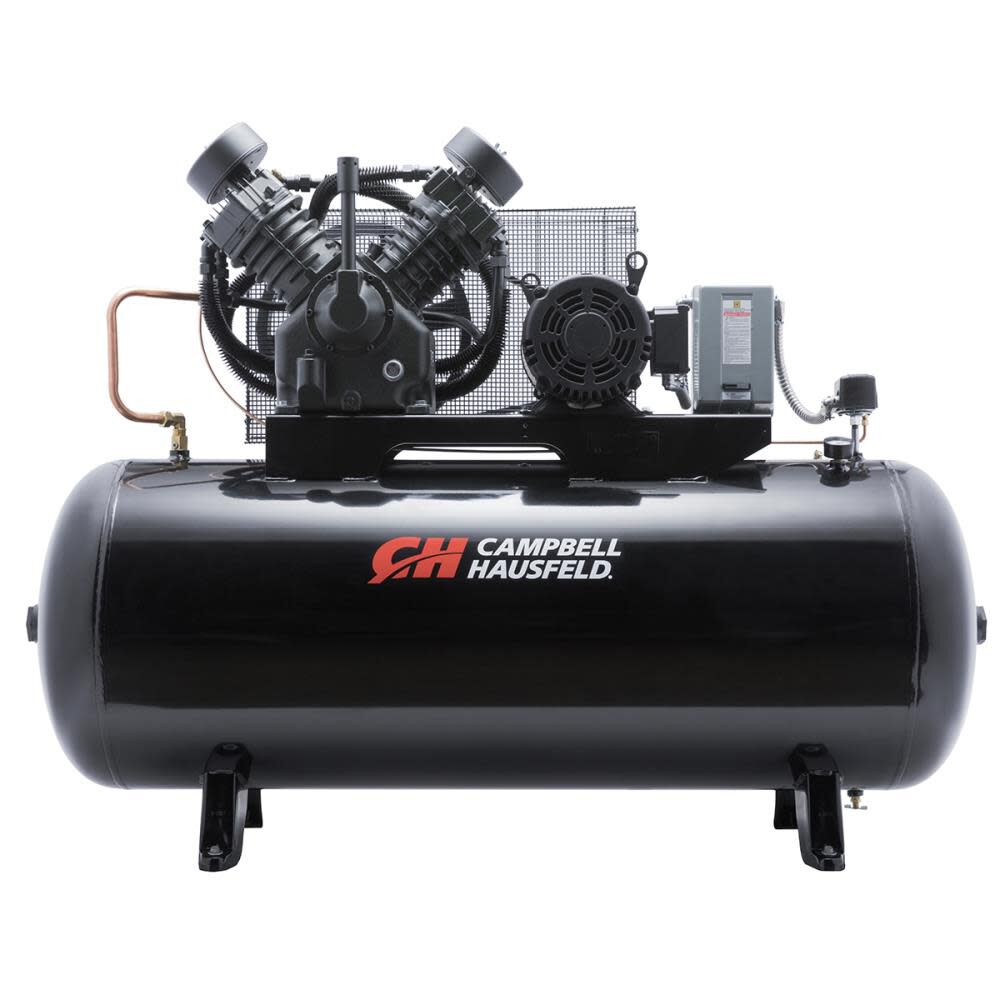

Campbell Hausfeld 120 Gallon Horizontal 10 HP TX0314 3 Phase 230V
The Campbell Hausfeld 120-gallon, 10 hp, horizontal, two-stage air compressor (CE8001) is ideal for auto repair facilities and tire repair outlets.
This air compressor has a high air flow of 36 CFM @ 90 PSI to power multiple, high-demand air tools.
Its industrial-rated NEMA motor operates on three-phase electrical power, driving a long-life, cast-iron, two-stage pump thatÄôs designed to deliver more than 15,000 hours of operation.
The pump head and valve plate feature an advanced design with Viton(r) high-temperature O-rings for superior high-pressure sealing when compared to paper gaskets.
For smooth, low-vibration operation, the crankshaft is fabricated of ductile iron and optimally balanced.
Features
- Commercial Duty Cast Iron, Oil-Lubricated, Two Stage Pump
- Mounted and wired motor starter for quick electrical hook up
- Industrial-rated NEMA motor for reliable service
- Fully enclosed metal belt guard for safe operation
Specifications
Brand Name - Campbell Hausfeld
Amperage (A) - 27
Assembled Weight (lbs) - 880
California Proposition 65 Warning Required - Yes
Color - Black
Compressor Design - Horizontal (Stationary)
Country of Origin - China
CSA Certified - Yes
ETL Listed - No
Fuel Type - Gas
Height (in) - 56
Horsepower (hp) - 10
MFG Part # (OEM) - CE8001
Maximum Pressure Rating (psi) - 175
Operating Position - Horizontal
Package Contents - 120 Gallon Horizontal 10 HP TX0314 3 Phase 230V
Package Depth - 29.50
Package Height - 56
Package Weight - 880
Product Condition - New
Tank Capacity (gal) - 120
Tank Configuration - Single
Tank Material - cast iron
Tank Pressure Gauge - No
UL Listed - Yes
UPC - 045564627201
Warranty Type - 3 Years Limited
Weight (lbs) - 880
Wheeled - No
