PM55A 600V AC/DC Pocket Multimeter PM55A PcktMultimeter
PM55A 600V AC/DC Pocket Multimeter PM55A PcktMultimeter is backordered and will ship as soon as it is back in stock.

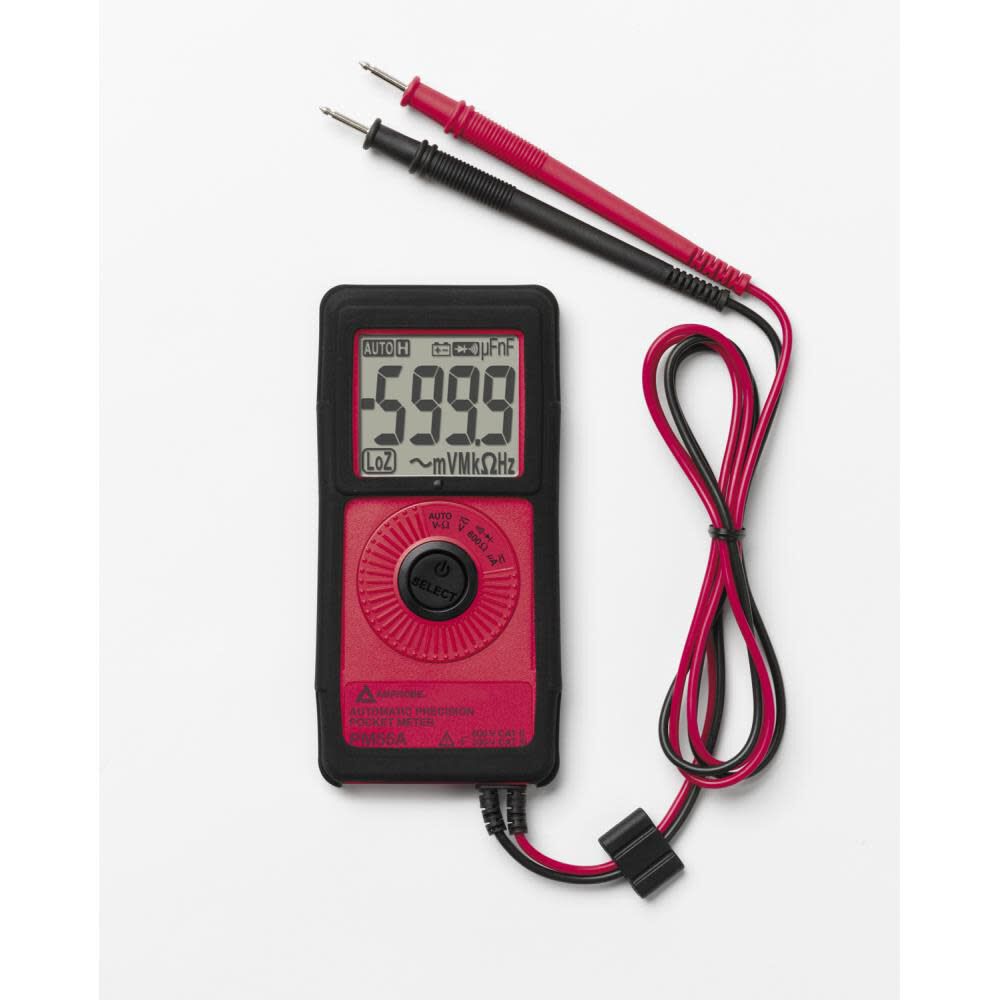

Amprobe PM55A 600V AC/DC Pocket Multimeter
The Amprobe PM55A is the ultimate pocket-sized multimeter.
Only 3/8 in.
Thick and less than 3 oz in weight with full functionality offering AC and DC voltage measurement to 600 V, AC and DC current to 2000 ?A, resistance to 6 Megohm, capacitance to 2000 ?F, frequency to 30 kHz, diode test and continuity with beeper.
It also offers VolTect√Çô, a built-in, non-contact voltage detection feature for AC voltages.
Another key feature of this pocket multimeter is AutoTect, which automatically selects between AC and DC voltage, or resistance measurement based on the test point to which the leads are connected.
Fully auto ranging, this meter offers nine different measurement functions plus features that are usually found in much more expensive and larger meters.
The digital display is oversized with large digits and unit icons in the display.
In spite of its size, this pocket multimeter is fully safety rated to CAT III 300 V, CAT II 600 V and is UL Listed.
No other meter this small offers such performance and high safety ratings.
The PM55A pocket multimeter includes a silicone protective holster, deluxe carrying case, attached test leads, battery and manual.
California Proposition 65 Warning.Features
- AutoTect‚Ñ¢ feature directs the meter to know if it is measuring AC or DC volts or resistance with no user interface
- The AutoTect‚Ñ¢ feature has lower input impedance which zeros out ghost voltages
- Measures AC/DC current, capacitance, frequency, continuity with beeper
- VolTect‚Ñ¢ feature is a built-in, non-contact voltage detector
- Power supply 3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC)
- Automatic power off
Specifications
Accuracy - 600.0 Ω, ± (2.0%+6 dgt); 6.000 KΩ, ± (1.2%+6 dgt); 60.00 kΩ, 600.0 kΩ ± (1.0%+4 dgt); 6.000 MΩ, ± (2.0%+4 dgt)
Brand Name - Amprobe
Assembled Weight (lbs) - 0.5
Battery Type - 3-Volt
California Proposition 65 Warning Required - Yes
Color - Red
Country of Origin - Taiwan
DC Voltage Accuracy - 6.000 V, ± (0.5 %+3 dgt); 60.00 V, ± (1.0 %+5 dgt); 600 V (AutoTect™ Lo-Z), 2.0 %; 600 V (Hi-Z only), 1.5 % + 5 dgt
Digital / Analog - Digital
MFG Part # (OEM) - PM55A PcktMultimeter
Material - Hard Plastic
Package Contents - Amprobe PM55A Pocket Multimeter with VolTect‚Ñ¢ Non-Contact Voltage Detection includes carrying case, battery (installed), and users manual.,Case
Package Depth - 0
Package Height - 0
Package Weight - 0.5
Package Weight (lbs) - 0.5
Product Condition - New
Temperature Range - 0°C to +40°C (32°F to 104°F)
UPC - 095969365314
Warranty Type - 1 Year
Weight (lbs) - 0.1875
