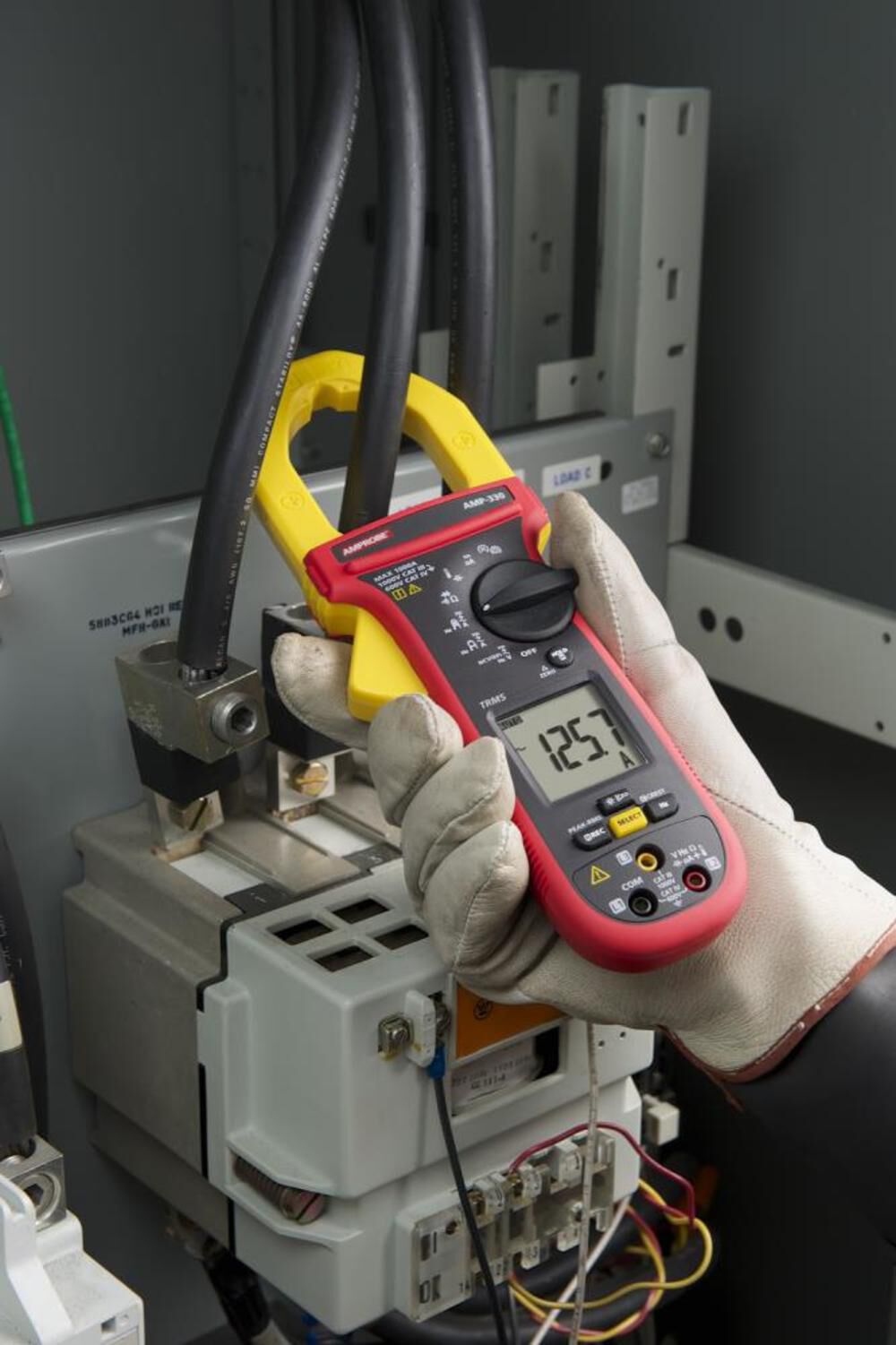

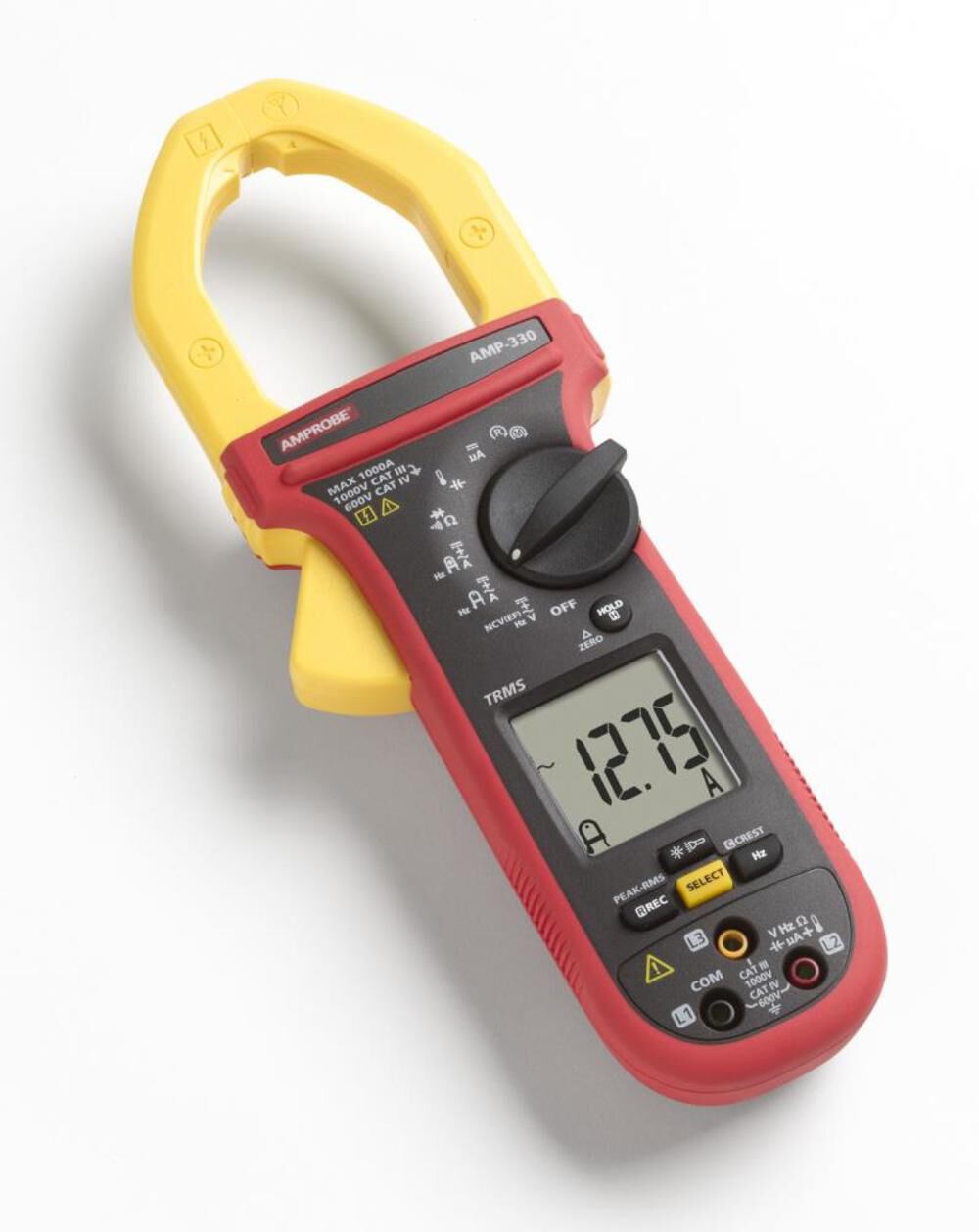

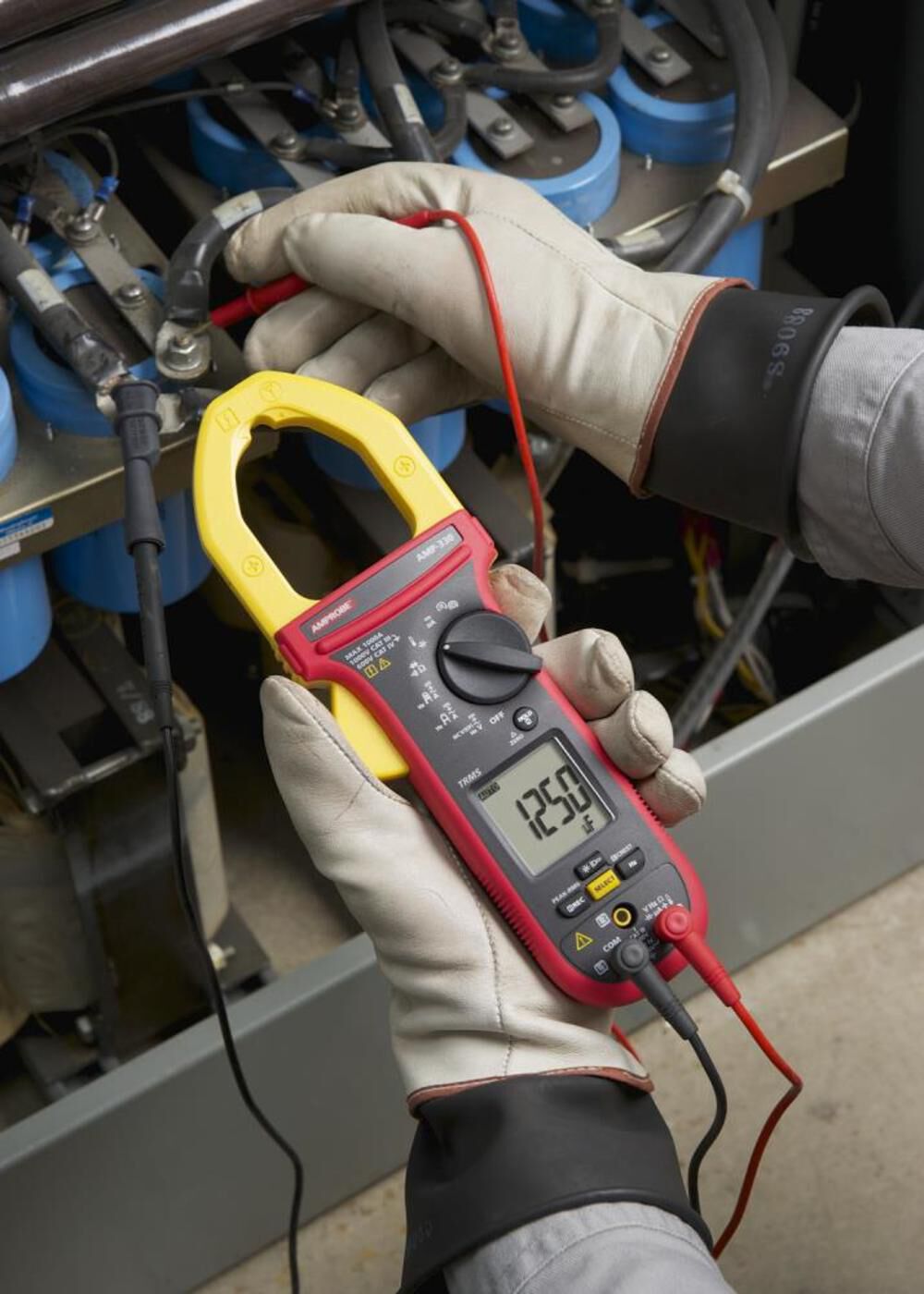

Amprobe Motor Maintenance Clamp Meter 1000A AC/DC TRMS
If youÄôre looking for a versatile clamp-on amp meter for electrical motor maintenance and HVAC testing in high voltage industrial environments, the AMP-330 Clamp Meter is the best clamp meter for the job.
It is the best clamp meter in the AMP-300 Series line including all the features of the AMP-320 plus a work light, peak hold, CAT IV 600 V, CAT III 1000 V safety rating and large 2.0 inch (51 mm) jaw.
HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors.
It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring.
The low pass filter allows you to accurately measure current and voltage on variable frequency drives.
The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires.
It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, and continuity.
California Proposition 65 Warning.Features
- Measures AC/DC Current to 1000 A and AC/DC Voltage to 1000 V
- Measures temperature from -40° to 752°F, (-40° to 400°C)
- Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
- Measures capacitance, test diodes, and features a continuity beeper
- Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
- Monitors inrush current during motor start-up
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Specifications
Brand Name - Amprobe
Assembled Weight (lbs) - 2.2
California Proposition 65 Warning Required - No
Country of Origin - Taiwan
MFG Part # (OEM) - AMP-330
Package Contents - Motor Maintenance Clamp Meter 1000A AC/DC TRMS
Package Depth - 12.6
Package Height - 7.01
Package Weight - 1.68
Product Condition - New
UPC - 095969770897
Warranty Type - 1 Year
