Heater 480V3 Phase 5000W Fan Forced Unit P3P5605T
Description
Description

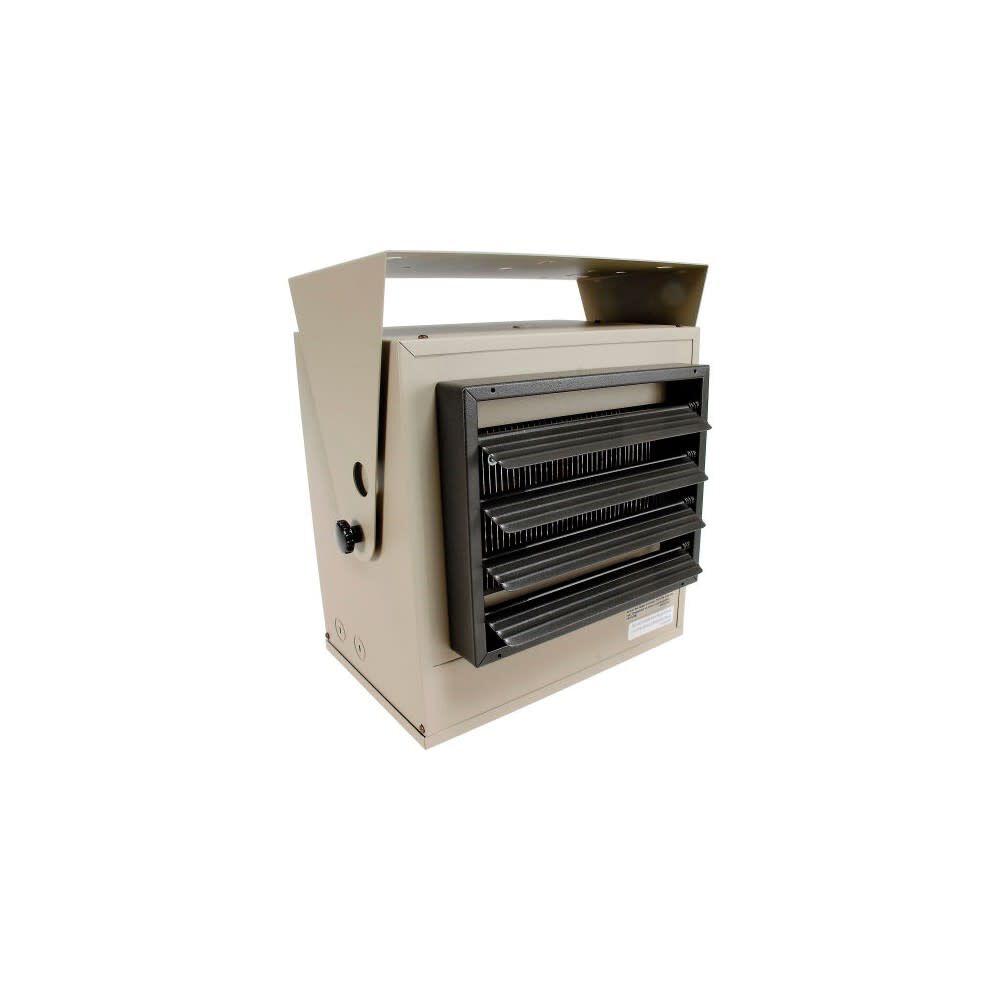

TPI Corporation Heater 480V3 Phase 5000W Fan Forced Unit
Fabricated of die formed, heavy gauge steel and finished with two tone, brown and beige, durable powder coated paint.

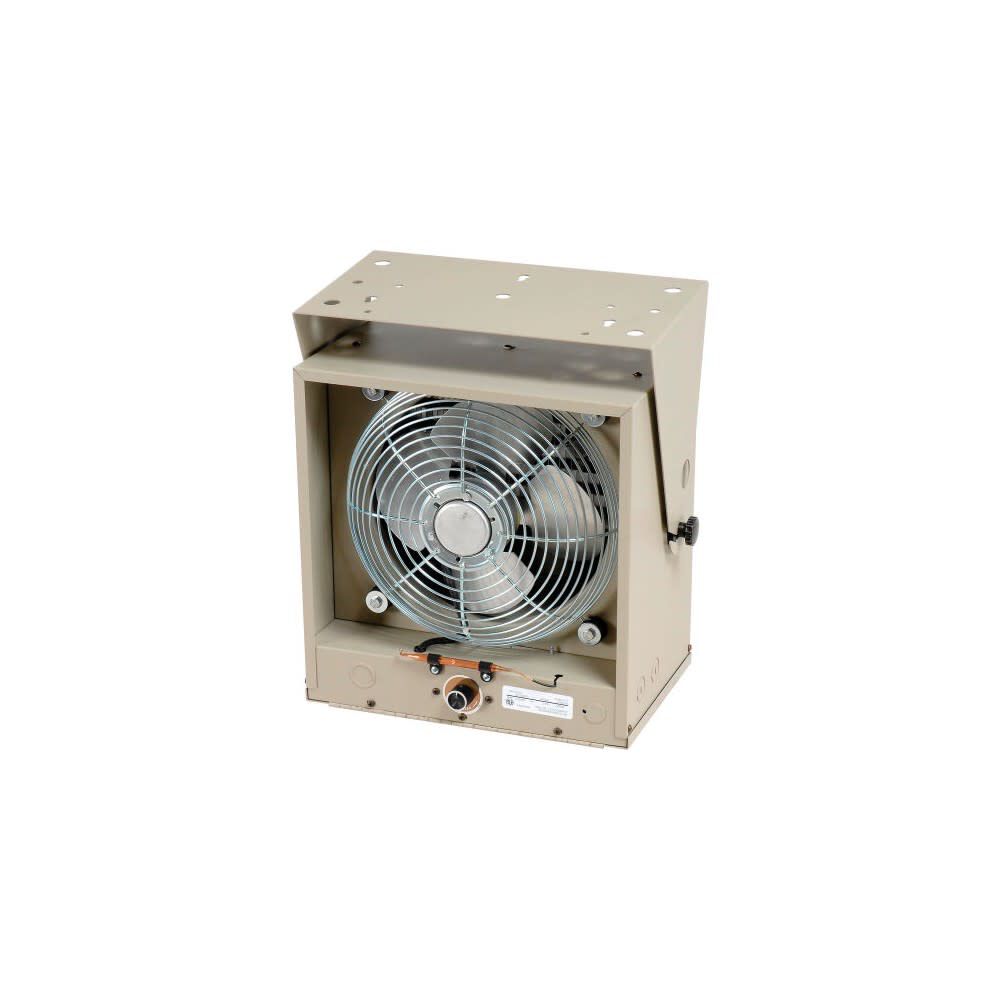

Supply air is drawn through the rear heavy duty expanded steel inlet grill.

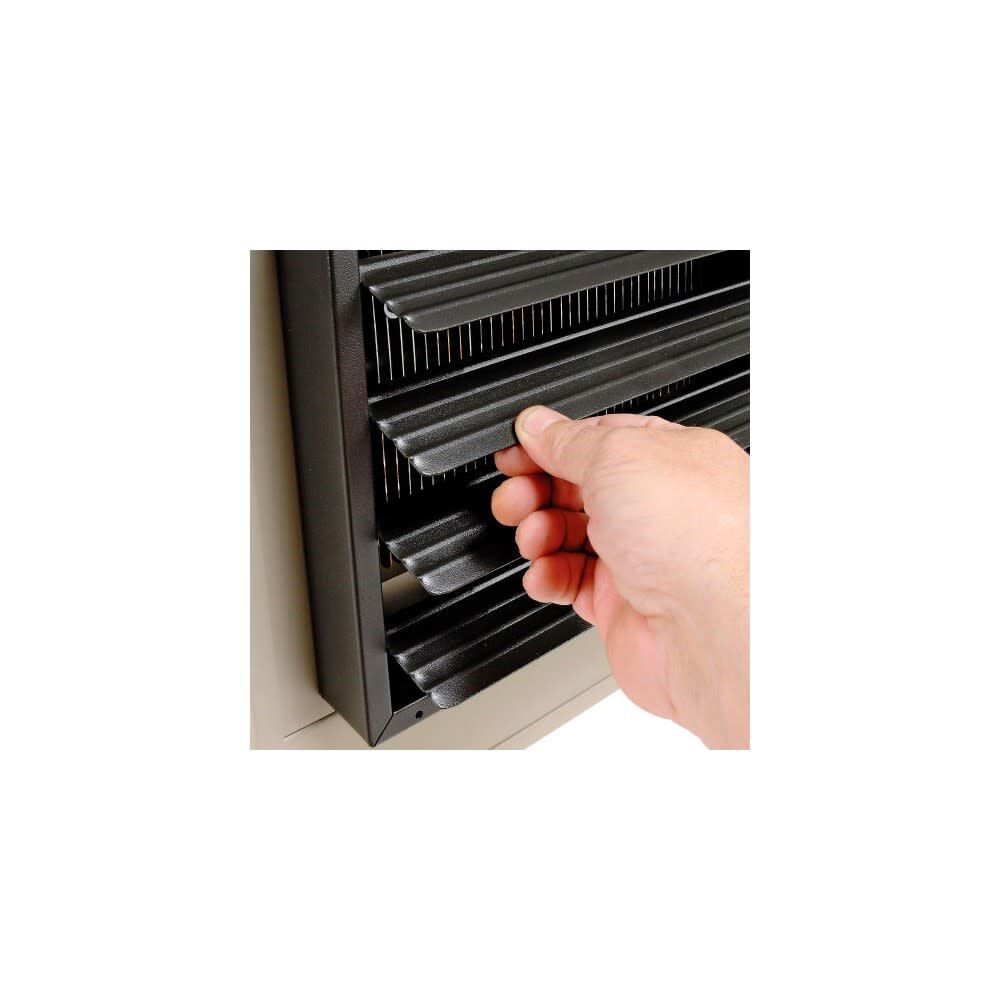

Heated air is discharged through front adjustable louvers, which are spring loaded for individual adjustment.
Made in U.S.A.
Heavy-duty block fin element design.
The multiple tap electric connection design allows field conversion to eight wattage settings at 240V/480V, 3 Phase.
Motor shall be totally enclosed, permanently lubricated, all angle industrial rated with thermal overload protection.
Wiring to terminal block adjacent to incoming knockout in accordance with NEC and local codes.
All heaters shall be equipped with an automatic reset thermal cutout to shut down the element and motor circuits if unsafe operating temperatures are exceeded.
The heater shall have a heavy-duty hydraulic thermostat factory installed and wired.
All controls and wiring shall be in a large wiring compartment with hinged door for easy access.
An optional disconnect switch shall be available for field installation.
Heaters are standard with a three position-mounting bracket for wall, ceiling or workbench.

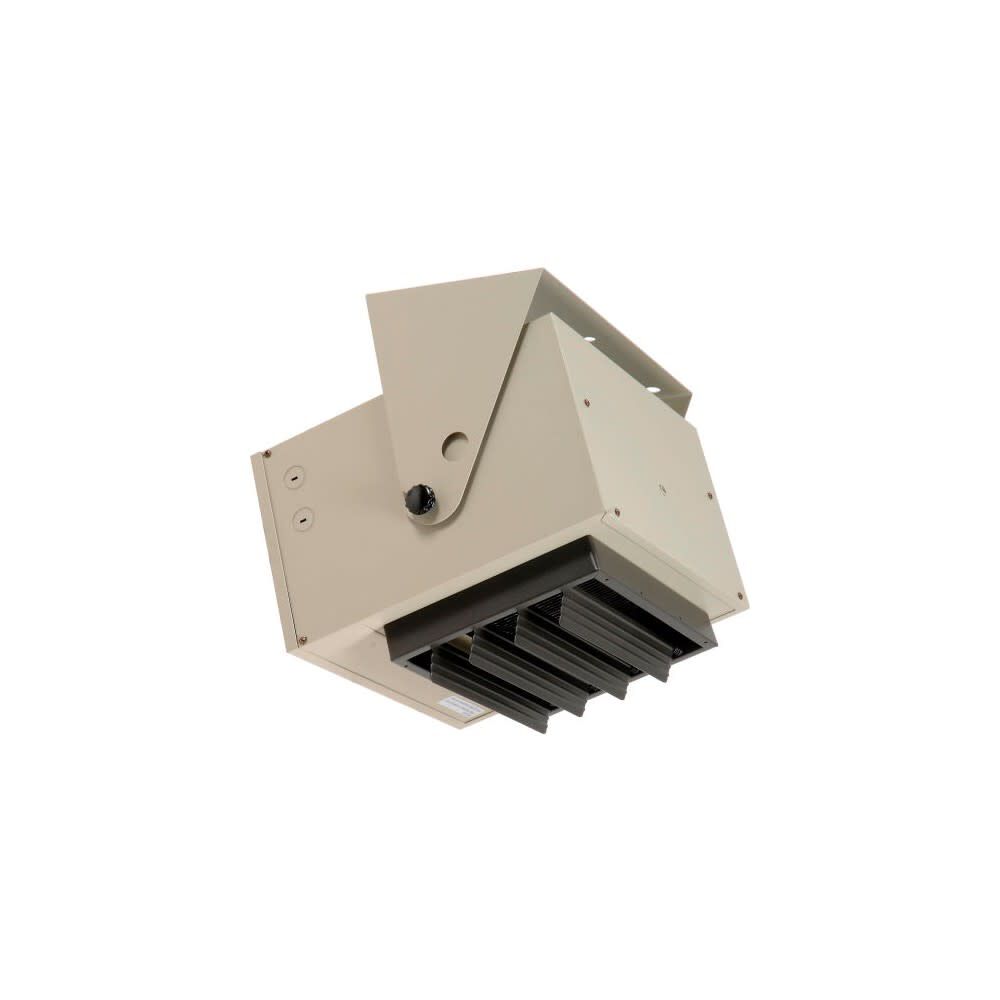

Heaters can be mounted for horizontal or vertical discharge.
Note: Minimum mounting height is 6 Ft., and minimum distance from side of heater to nearest wall is 6 In..
Note: Approved for residential applications.
California Proposition 65 Warning.Features
- Casing & Construction: Fabricated of die formed, heavy gauge steel and finished with two tone, brown and beige, durable powder coated paint
- Element: Heavy-duty block fin element design
- Motor: Motor shall be totally enclosed, permanently lubricated, all angle industrial rated with thermal overload protection
- Wiring: Wiring to terminal block adjacent to incoming knockout in accordance with NEC and local codes
- Thermal Overload: All heaters shall be equipped with an automatic reset thermal cutout to shut down the element and motor circuits if unsafe operating temperatures are exceeded
- Controls: The heater shall have a heavy-duty hydraulic thermostat factory installed and wired
- Mounting: Heaters are standard with a three position-mounting bracket for wall, ceiling or workbench
- ETL-CUS listed
Specifications
Brand Name - TPI Corporation
Air Volume (CFM) - 275
Amperage (A) - 6
Assembled Weight (lbs) - 32
BTU Heat Rating - 17065
Country of Origin - United States
ETL Listed - Yes
Heater Type - Flameless
MFG Part # (OEM) - P3P5605T
Maximum BTU - 17065
Maximum CFM - 275
Package Contents - Unit Heater
Package Depth - 11.75
Package Height - 14
Package Weight - 32
Product Condition - New
Thermostat - Yes
Tip-Over Safety Switch - No
UPC - 686334707305
Warranty Type - 1 Year Limited
