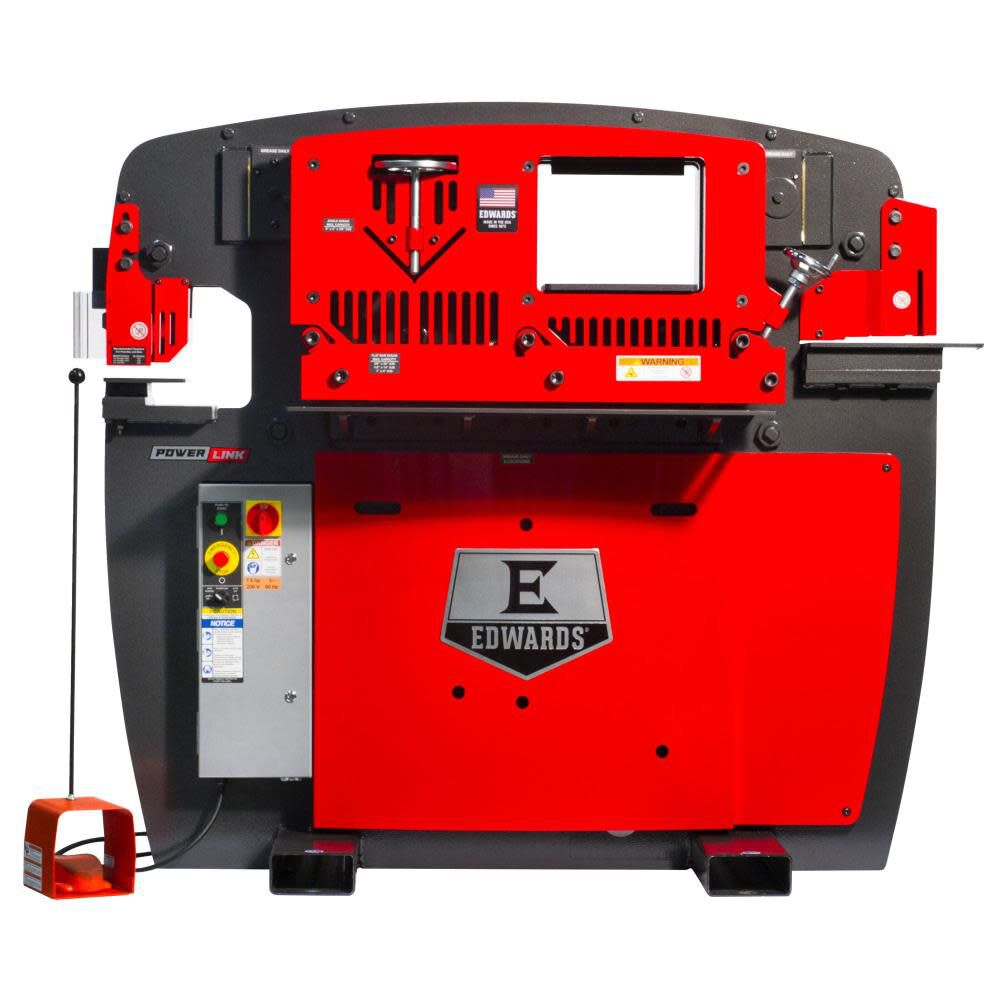

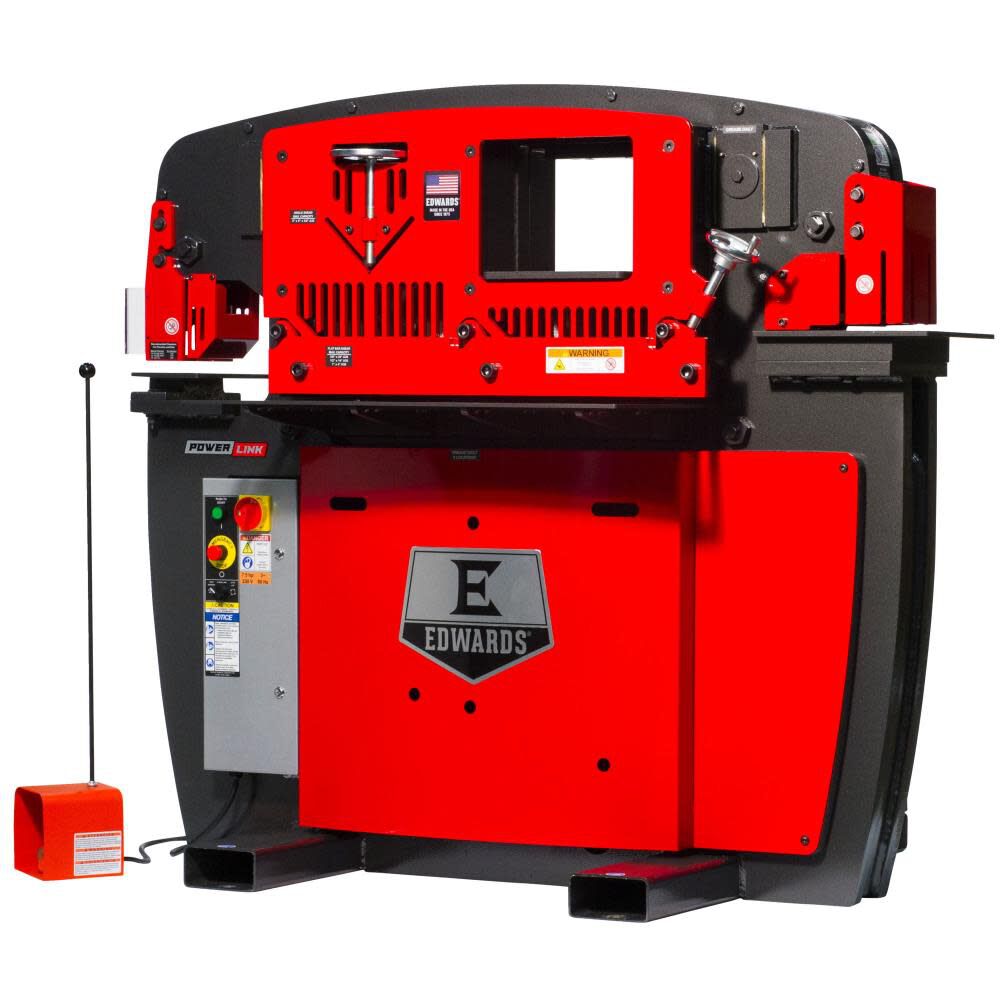

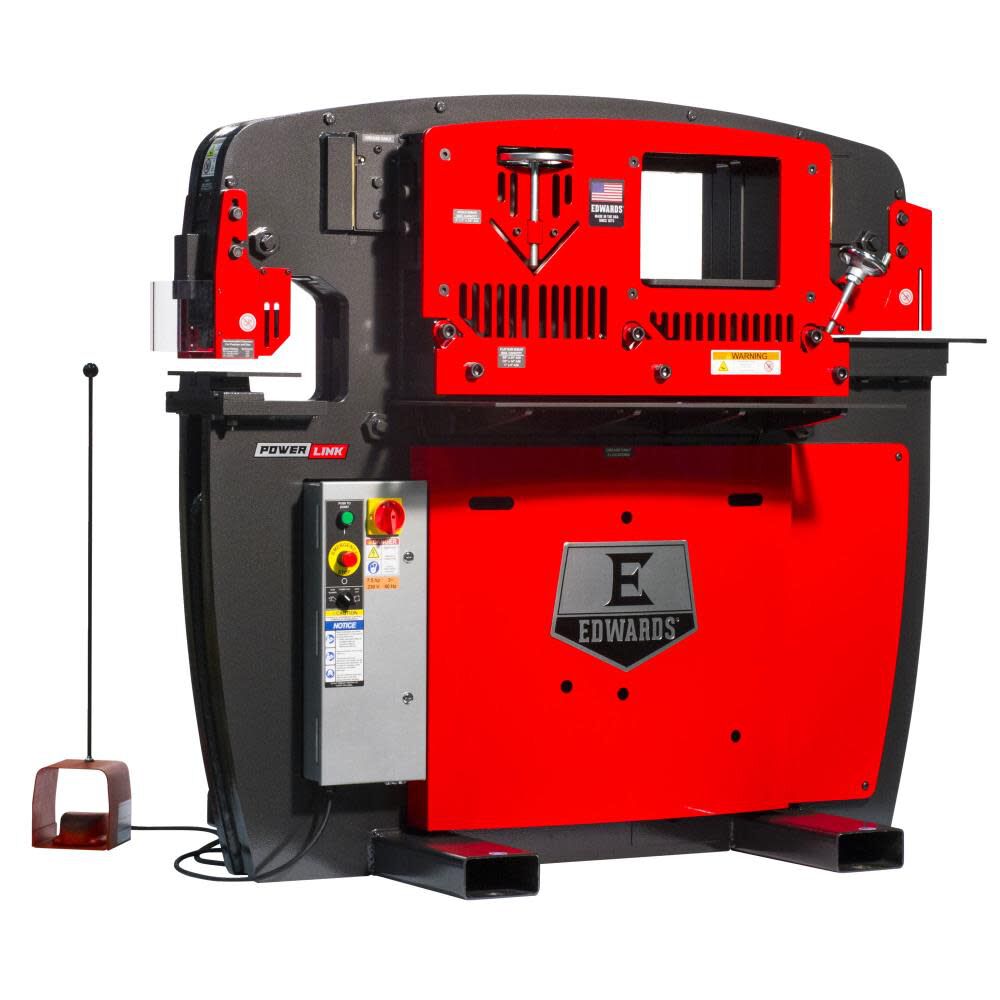

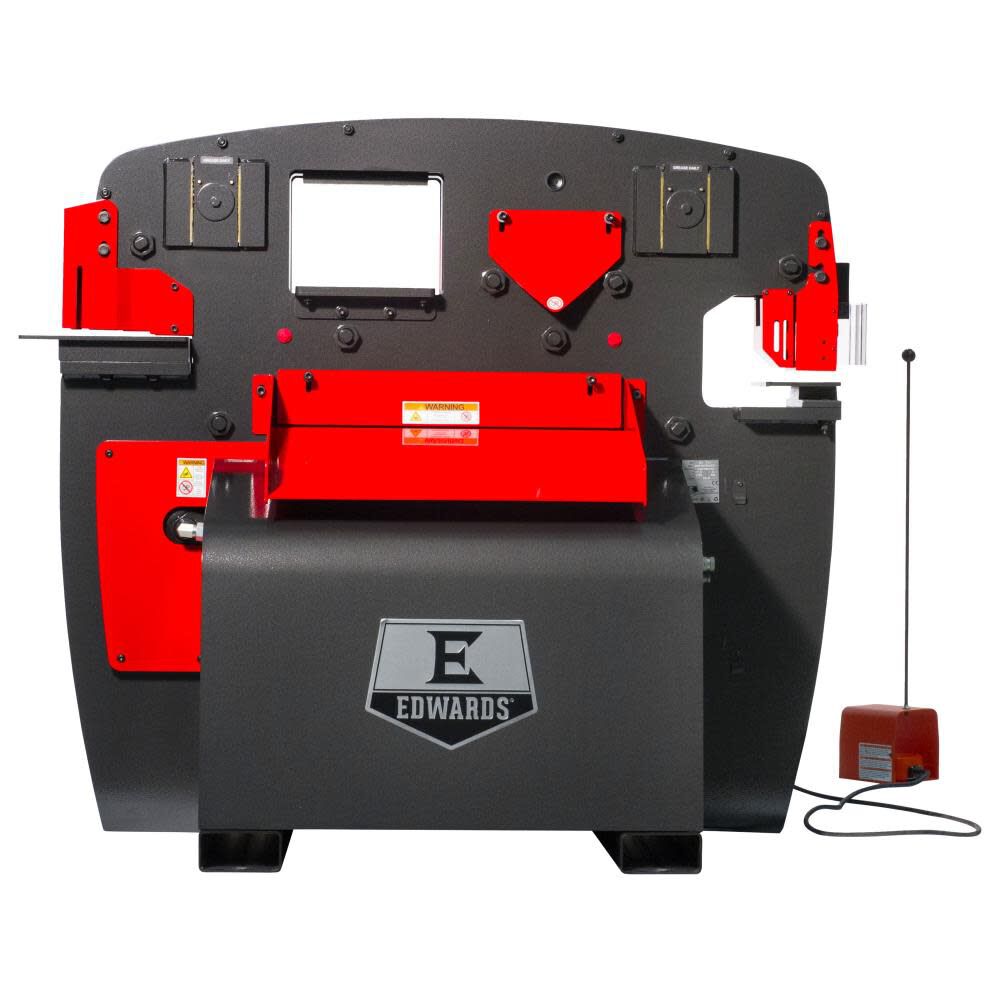

Edwards 65 Ton Ironworker 3 Phase 230v with PowerLink System
The five workstations of the Edwards 65 ton jaws ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs.
Standard features include a punch assembly with pedestal die table, 24 In.
Wide flat bar shear, angle shear, coper notcher and a universal open tooling station designed for optional tooling accessories.

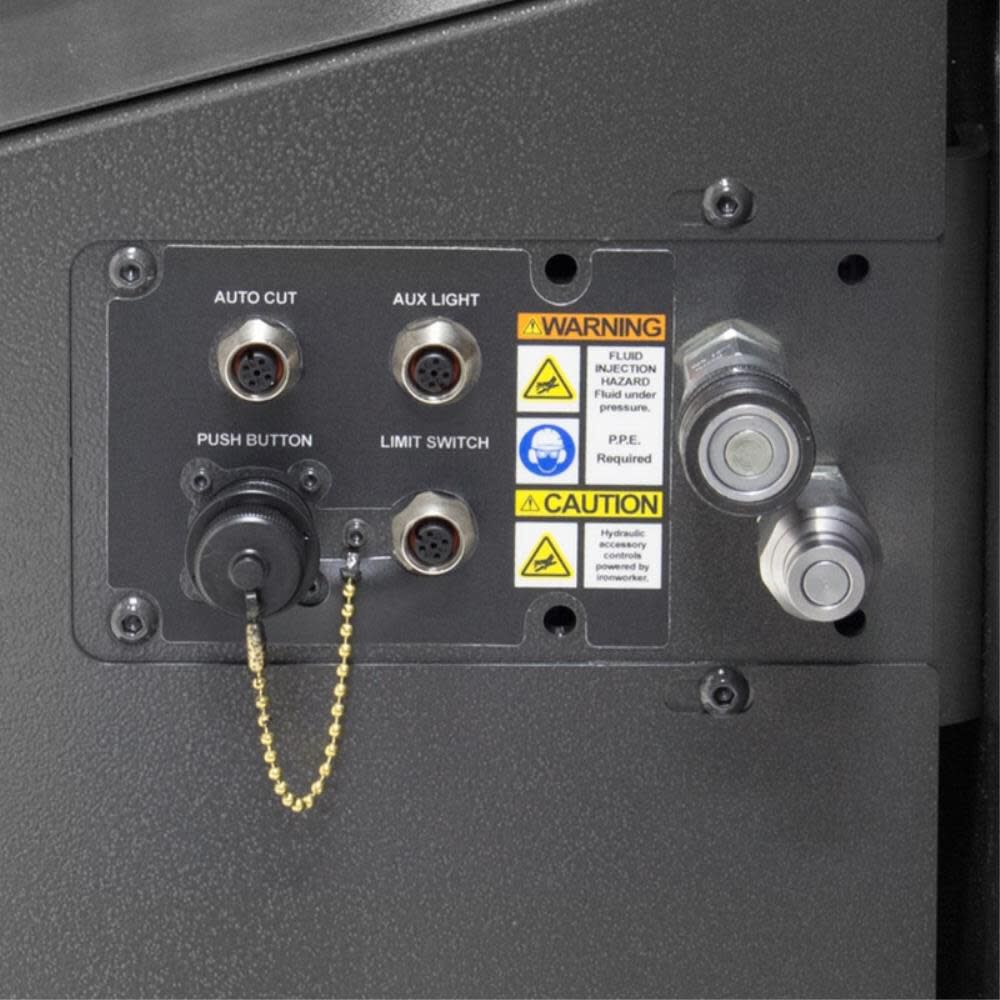

The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
- Our most versatile machine
- Five workstations: standard (5) - punch, flat bar shear, angle shear, coper notcher & rod shear
- 10 interchangeable attachments available to tailor the ironworker to your project
- ANSI B11.5 - 1988(02) compliant guarding
- ETL/UL approved controls
- Integrated e-stop, lock-out/tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
- The PowerLink system allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press
Specifications
Brand Name - Edwards
Amperage (A) - 22.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 4655.0
California Proposition 65 Warning Required - Yes
Capacity - 130000 Lbs
Color - Gray
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - IW65-3P230-AC600
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 10.5
Maximum RPM - 1765
Overall Height (in) - 63.0
Overall Length (in) - 46.0
Overall Width (in) - 69.0
Package Contents - Notcher
Package Depth - 46
Package Height - 63
Package Weight - 4750
Package Weight (lbs) - 4750
Pressure Rating (psi) - 3500
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325556612
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 4655.0
