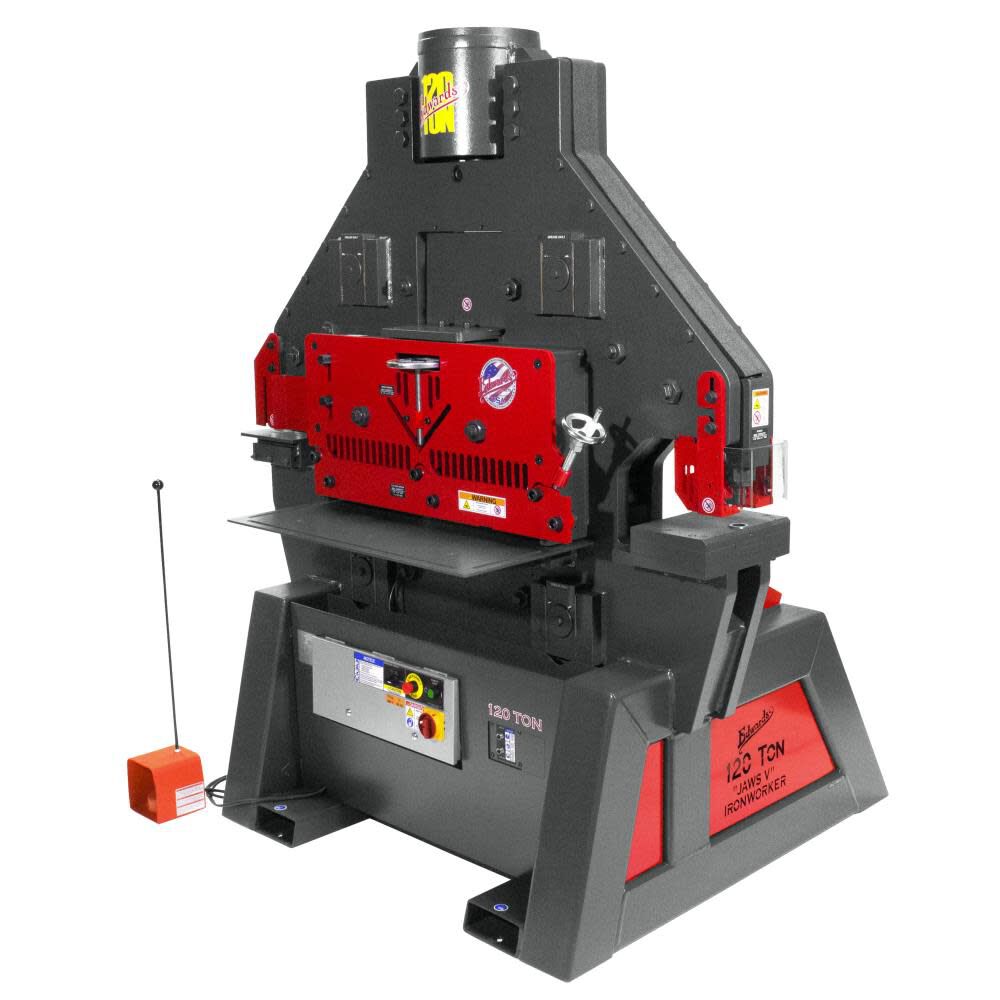

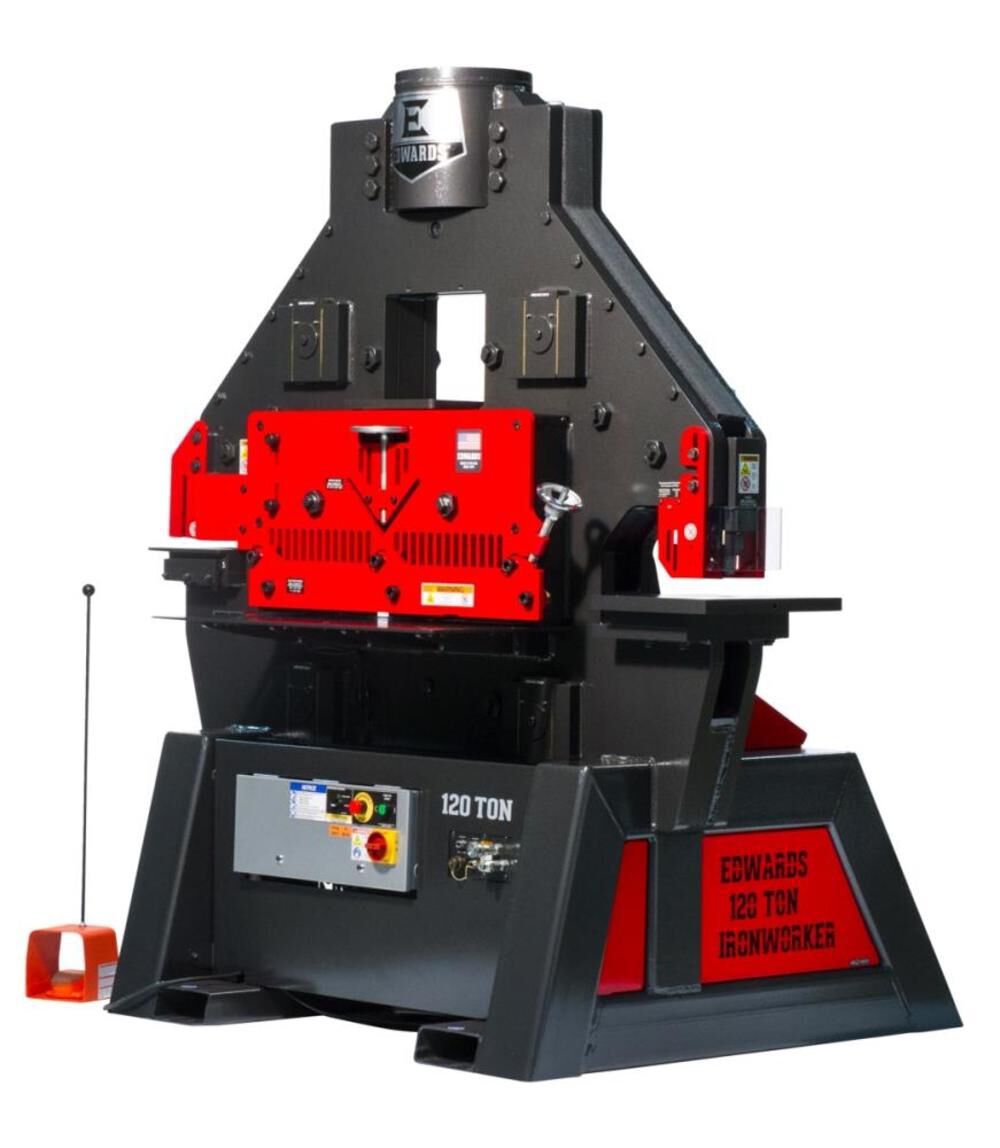

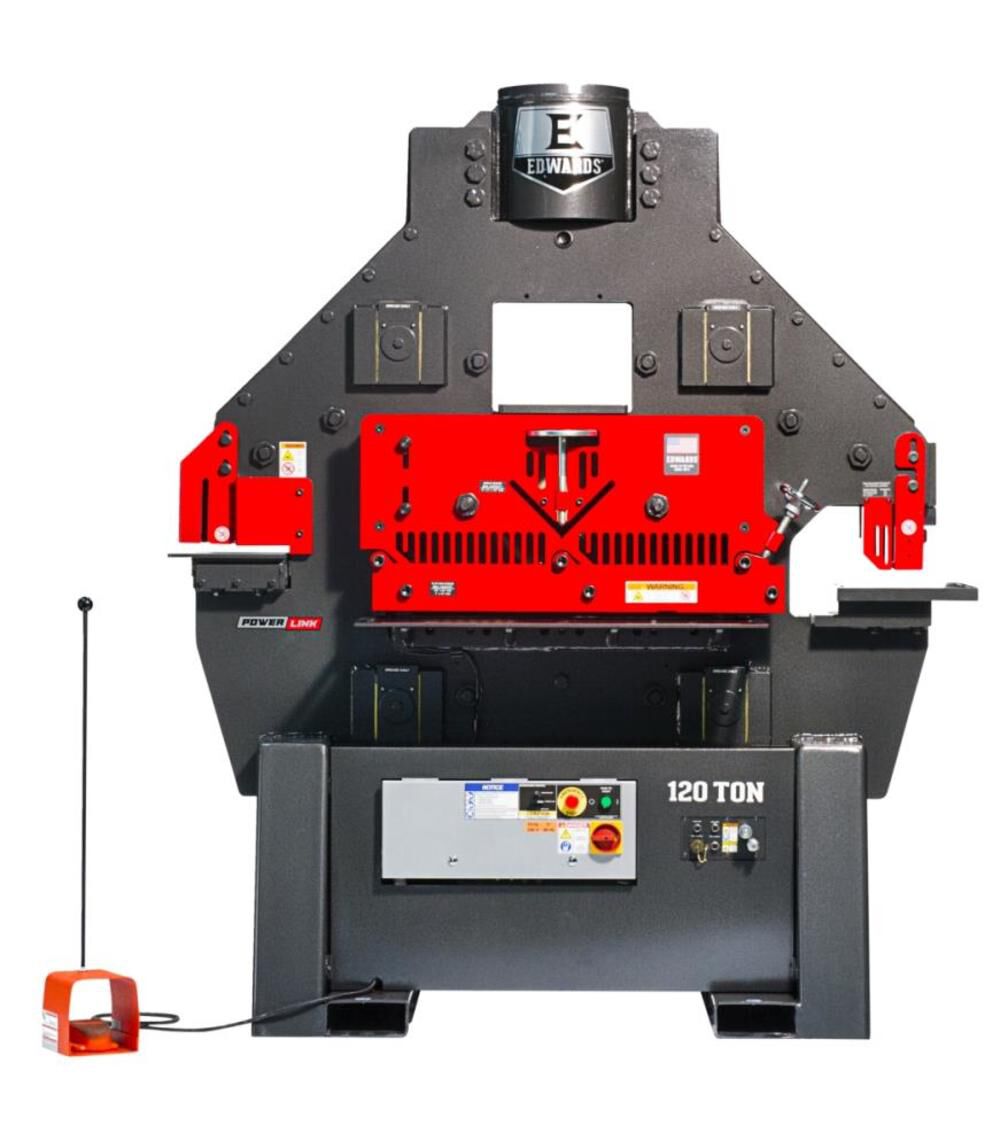

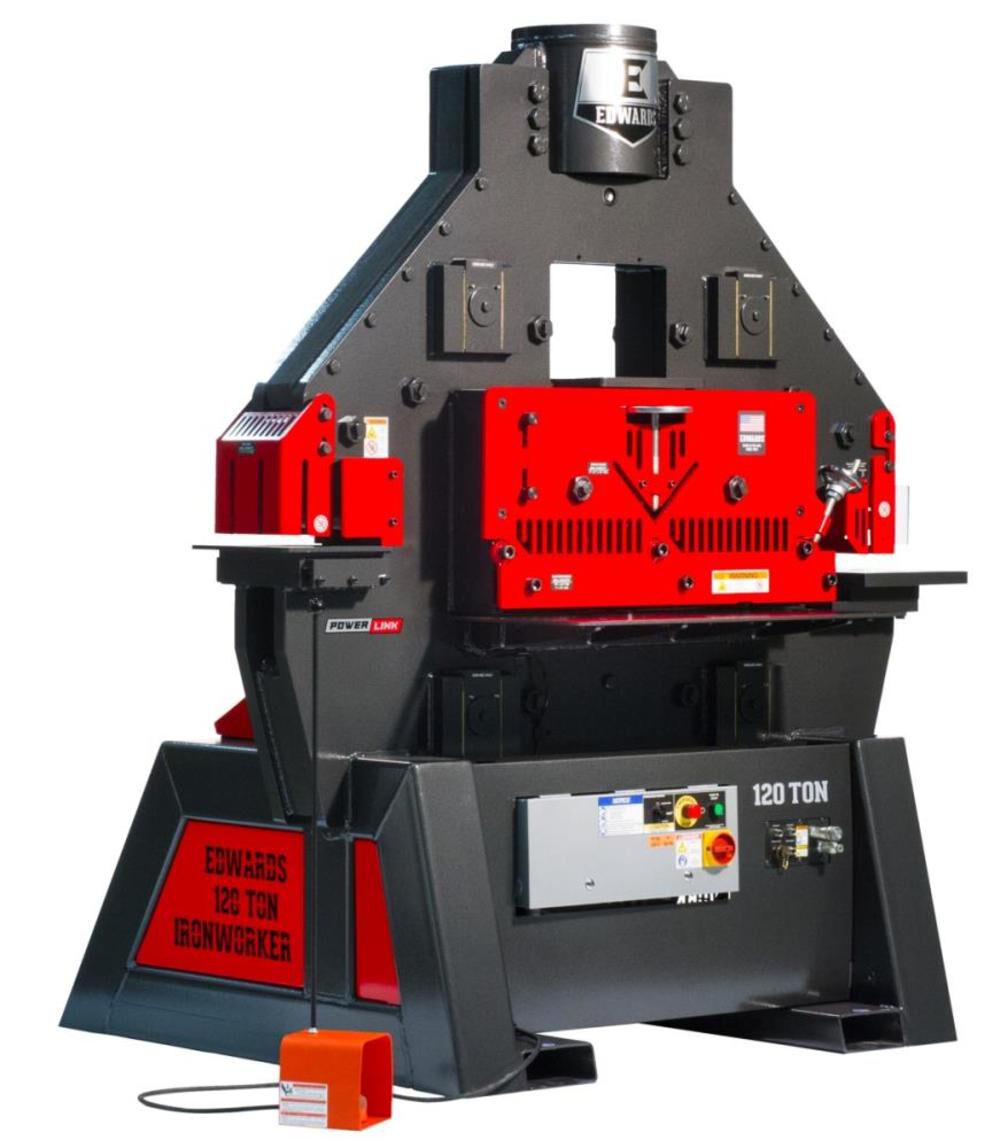

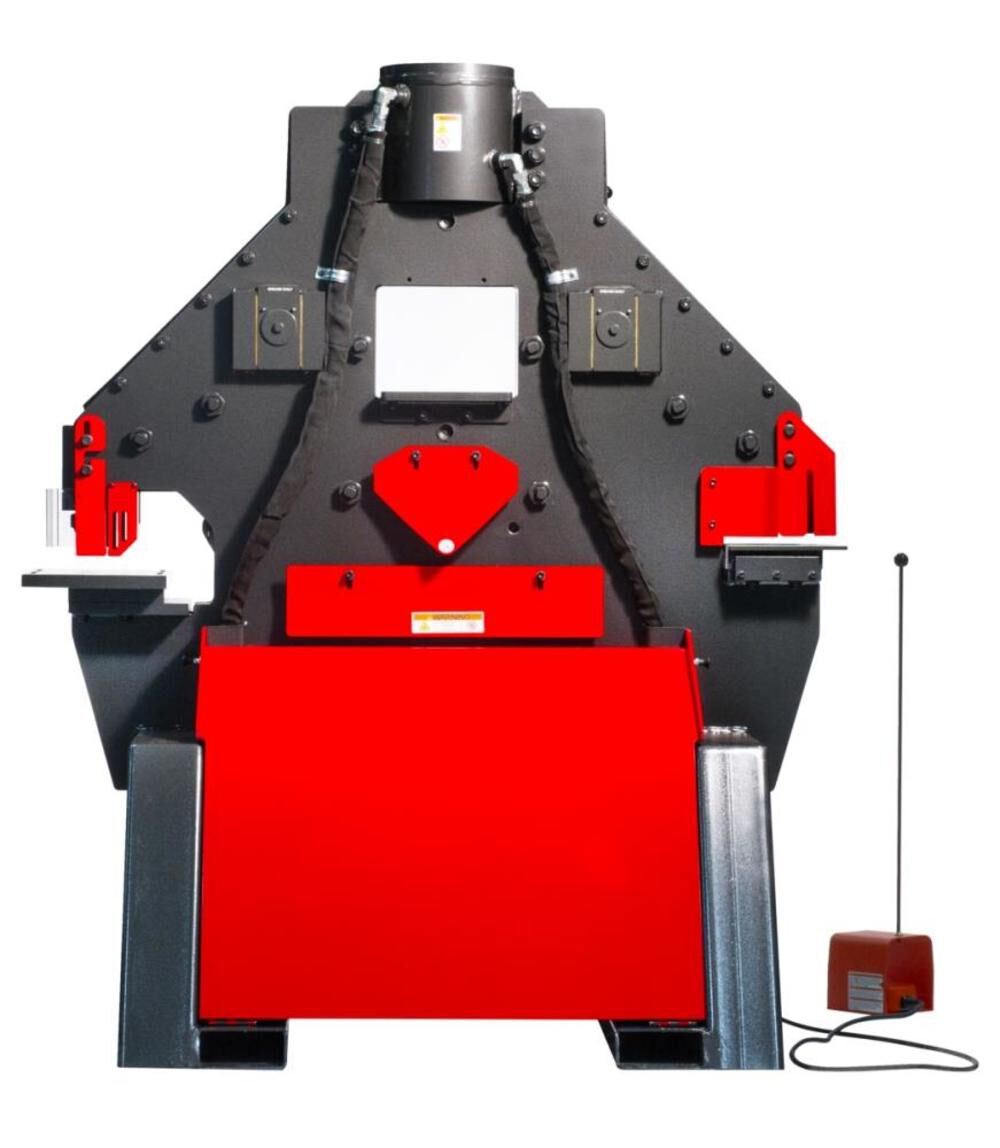

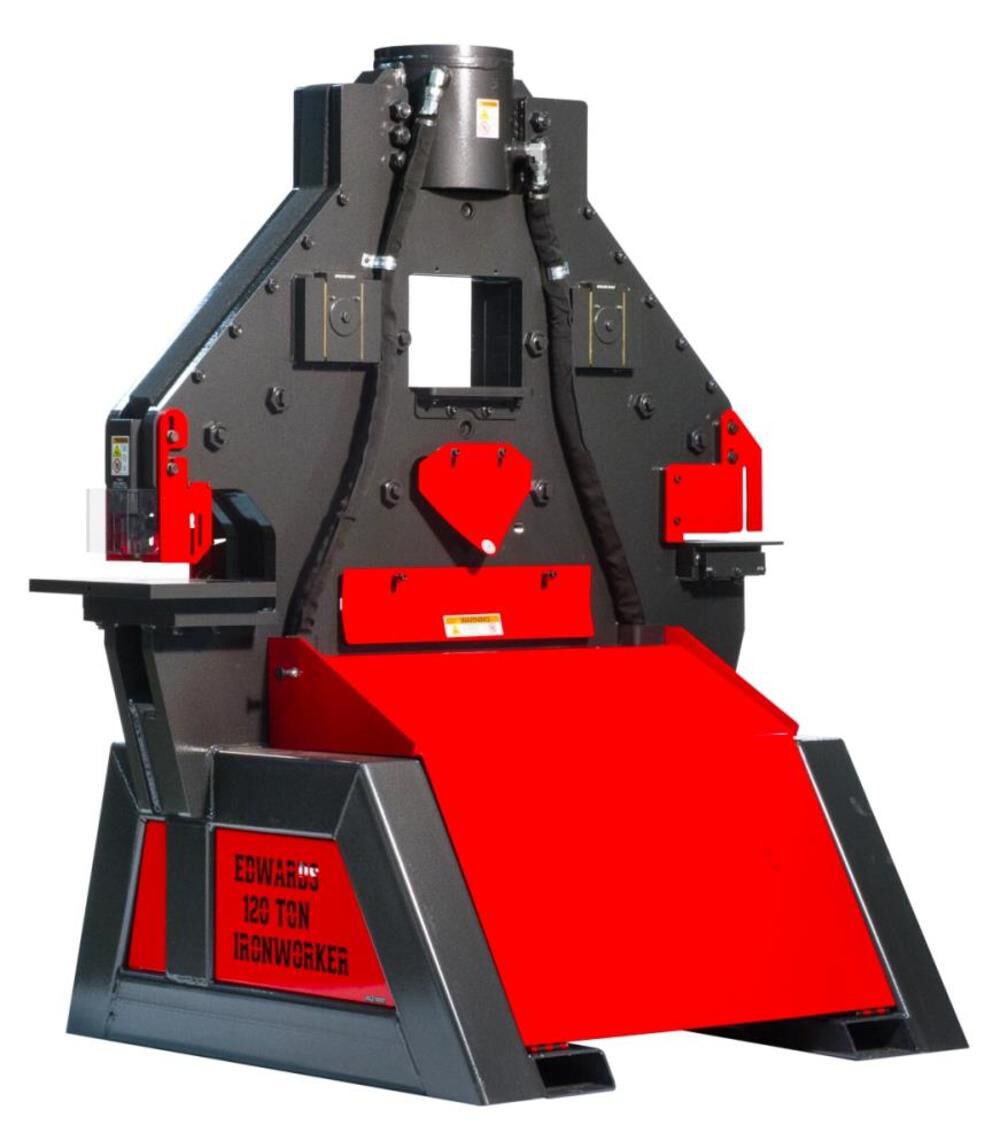

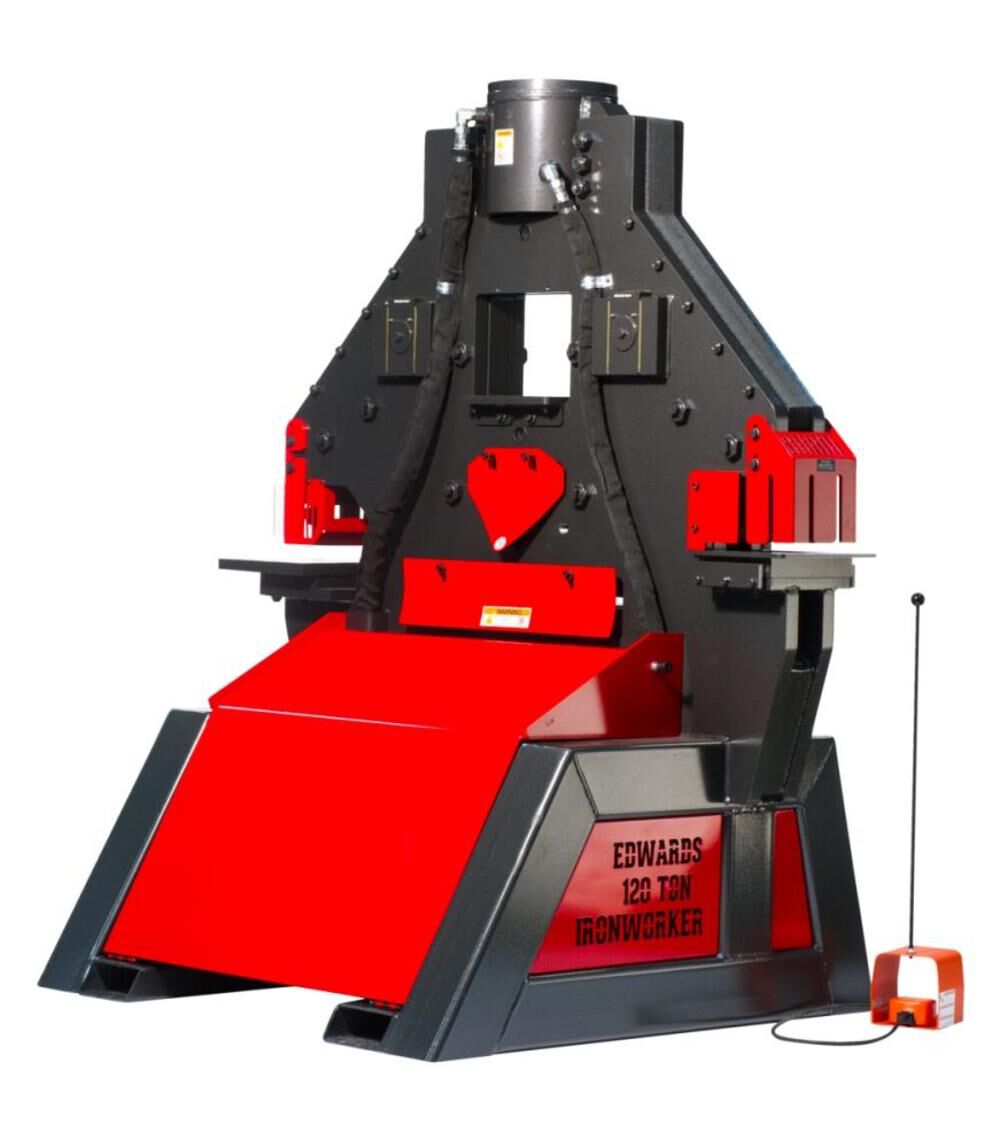

Edwards 120 Ton Ironworker 3 Phase 230v with PowerLink System
Our most powerful ironworker, the Edwards 120 ton jaws ironworker offers the most in capacity and versatility.
Standard features include a punch assembly, 24 In.
Wide flat bar shear, high capacity angle shear, coper notcher and a universal open tooling station for optional tooling accessories allowing you to select the perfect tool for your needs.

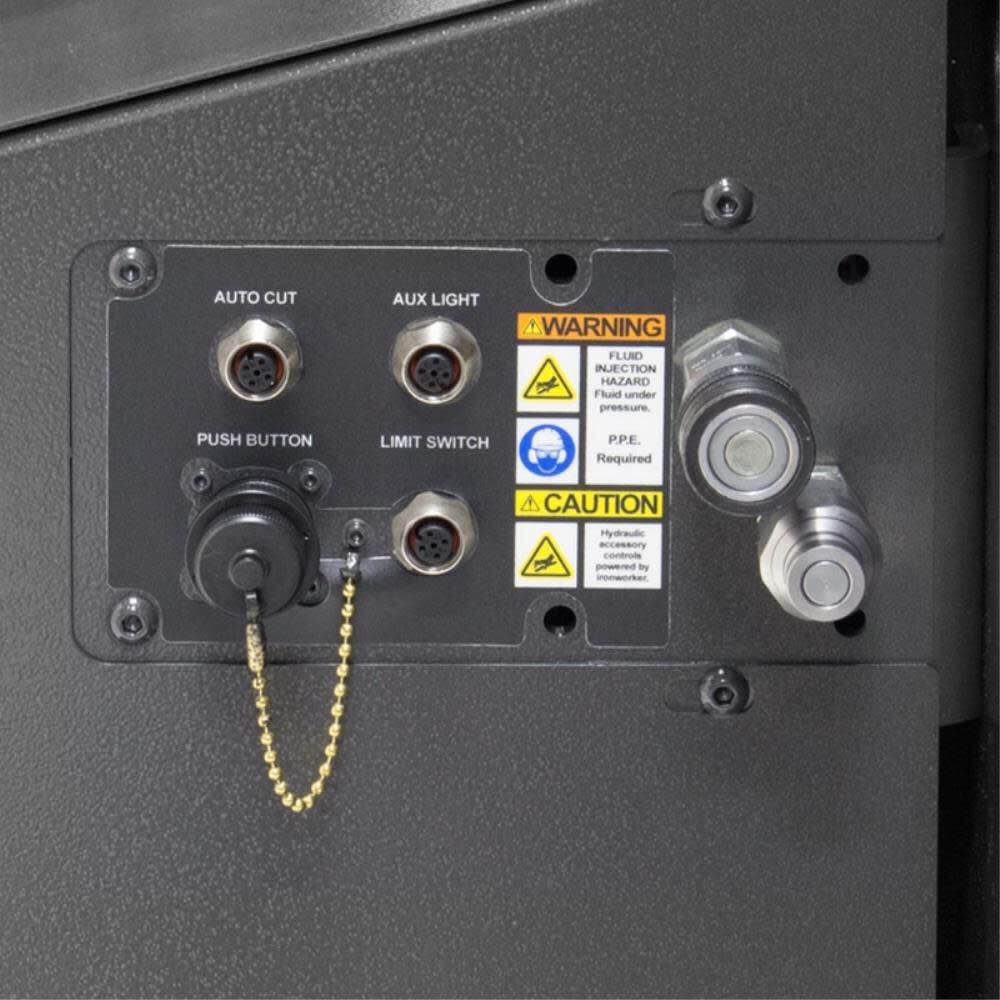

The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
- The powerhouse
- Five workstations: standard (5) - punch, flat bar shear, angle shear, coper notcher & rod shear
- 9 additional attachments available to convert the punch workstation to your specific needs
- ANSI B11.5 - 1988(02) compliant guarding
- ETL/UL approved controls
- Integrated e-stop, lock-out/tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
Specifications
Brand Name - Edwards
Amperage (A) - 26.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 5856.0
California Proposition 65 Warning Required - Yes
Capacity - 240000 Lbs
Color - Gray
Country of Origin - United States
CSA Certified - No
ETL Listed - Yes
Horsepower (hp) - 10.0
MFG Part # (OEM) - IW120-3P230-AC900
Maximum Diameter (in) - 1.5 in
Maximum Flow Rate (gpm) - 24.0
Maximum RPM - 1770
Overall Height (in) - 87.0
Overall Length (in) - 60.0
Overall Width (in) - 67.0
Package Contents - Notcher
Package Depth - 60.0
Package Height - 87.0
Package Weight - 5975.0
Package Weight (lbs) - 5975
Phase - Three Phase
Pressure Rating (psi) - 3800
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325555943
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 5856.0
