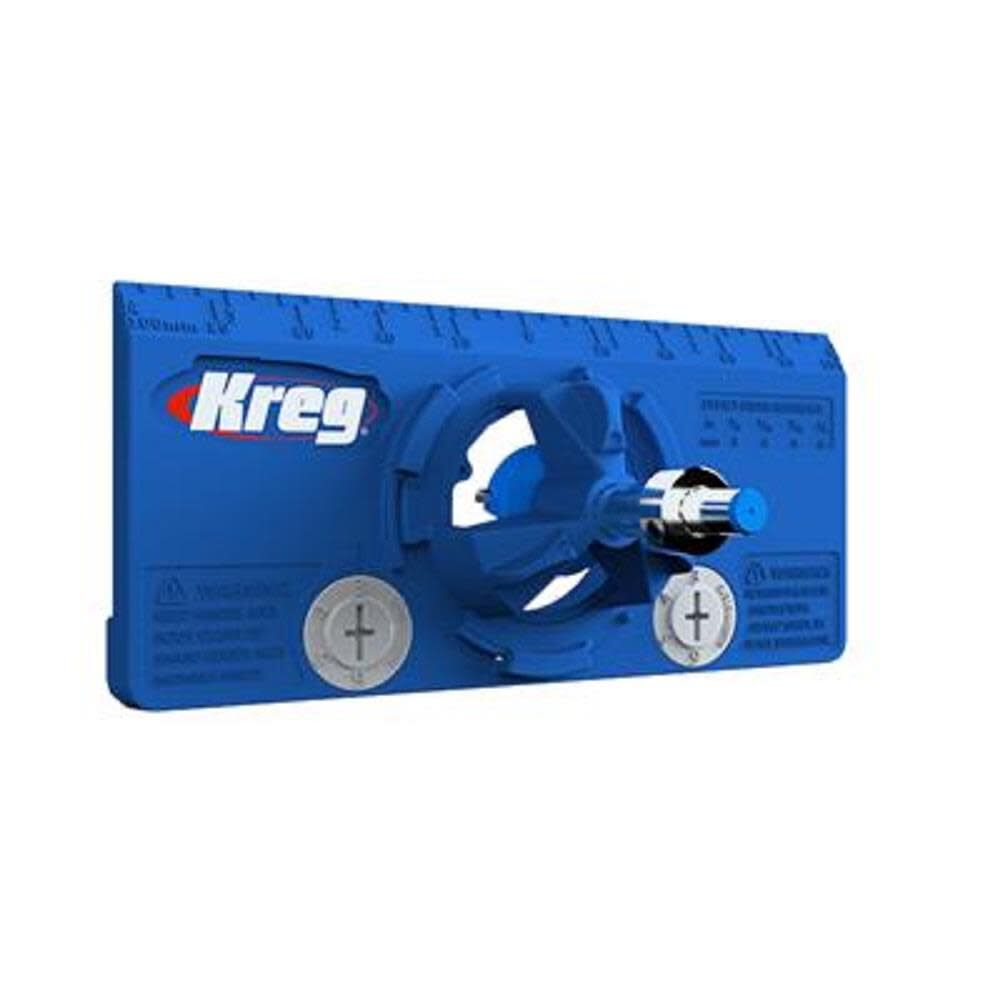

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges.
This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well.
Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped bit.
The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called “Euro hinges”) using just a drill.
The jig positions an included carbide-tipped bit exactly at the proper position and offset, and drills to the perfect depth every time thanks to a depth stop collar.
The jig is simple to use, and it ensures that you can mount cabinet doors that fit great and work properly.
Concealed hinges are great for mounting cabinet doors because they stay out of sight, they’re adjustable, and they work very well.
Mounting them, though, requires drilling a large hole at a very specific position and depth.
The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes, and it allows you to do it with nothing more than a drill and the carbide-tipped bit that comes with the jig.
The Concealed Hinge Jig consists of a glass-filled nylon base with a hole that receives a drill guide.
Indexing cams ensure that the jig positions the bit to drill a hole at the required offset—which is dictated by each hinge—and a built-in stop collar ensures that the cup depth is correct every time.
There are even holes that you can use to guide a bit for hinge screw holes.
The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results.
The Concealed Hinge Jig is designed to be intuitive for beginners to use, but robust enough for professionals.
Just pick out your hinges, look up a few basic mounting instructions that come with them, and then set up the Concealed Hinge Jig by adjusting a pair of built-in cams.
After that, you’re set to drill hinge cup holes using any ordinary
Kreg Concealed Hinge Jig with built-in indexing tabs for accurate hinge positioning
Repeatable results with built-in measuring scales
Reliable drilling with bit guide and stop collar
Simple to use with any drill—no special tools needed
Adjustable cams ensure proper hinge offset
Durable carbide-tipped drill bit included
Strong, lightweight materials for easy handling
Specifications
Sub-Brand: N/A
Type: Drilling jig
Features
Total Number of Pieces: 1
Warranty
Warranty: None
Certifications
CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
UNSPSC: 31162700
