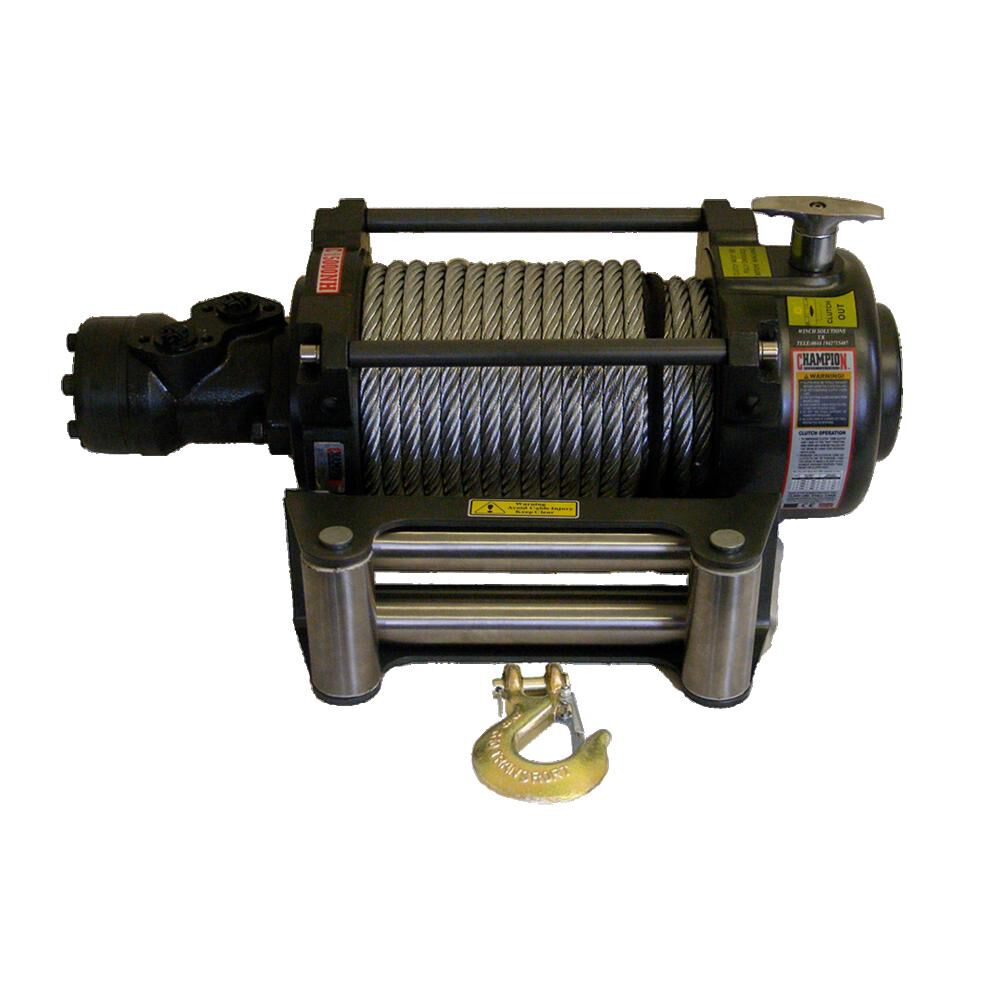

DK2 Warrior Hydraulic Winch 15000lb
DK2 15000NH Hydraulic winch is Compactand tough.
A hydraulic winch for industrial and commercial applications.
The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range.
Complete with internal brake to ensure maximum control and load holding.
Stainless steel roller fairleads and fittings are standard. 1 Year Limited Warranty.
Makes a great gift!
California Proposition 65 Warning.Features
- Patented Heavy Duty Gearing
- Integral, Automatic Fail safe Brake
- Spring Engaged Manual Free spool
- Stainless Steel Fairlead and Fittings
- Rugged and compact for Long Life
- Line Pull lbs Line Speed ft/min Flow L/min Pressure Mpa 0 1.6 5 2.0 5000 3.3 10 4.3 10000 6.6 20 8.7 12000 9.8 30 10 15000 19.7 60 13
- Layer of Wire Line Pull lbs Rope on drum Rope ft 1 15000 18 2 12120 41.7 3 10168 65.9 4 8757 86.9
- Rated Line Pull 10000 lbs Motor Hydraulic Dis 2.2 oz/r Gearing 25.5:1 Drum Size Dia x L 2.83 x 8.6 inch Cable Dia x L 0.4 x 1 inch Dimensions 20.43 x 8.11 x 9.68 inch Weight 116.84 lbs Mounting Pattern 10 x 4.5 inch
Specifications
Brand Name - DK2
Assembled Depth (in) - 20.9
Assembled Weight (lbs) - 143
Assembled Width (in) - 8.1
Assembly Required - Yes
Color - Black Red or Gray
Country of Origin - China
Height (in) - 9.7
MFG Part # (OEM) - 15000NH
Material - Steel
Package Contents - Warrior Hydraulic Winch 15000lb
Package Depth - 14.25
Package Height - 24
Package Weight - 160
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518003377
Warranty Type - 1 Year
