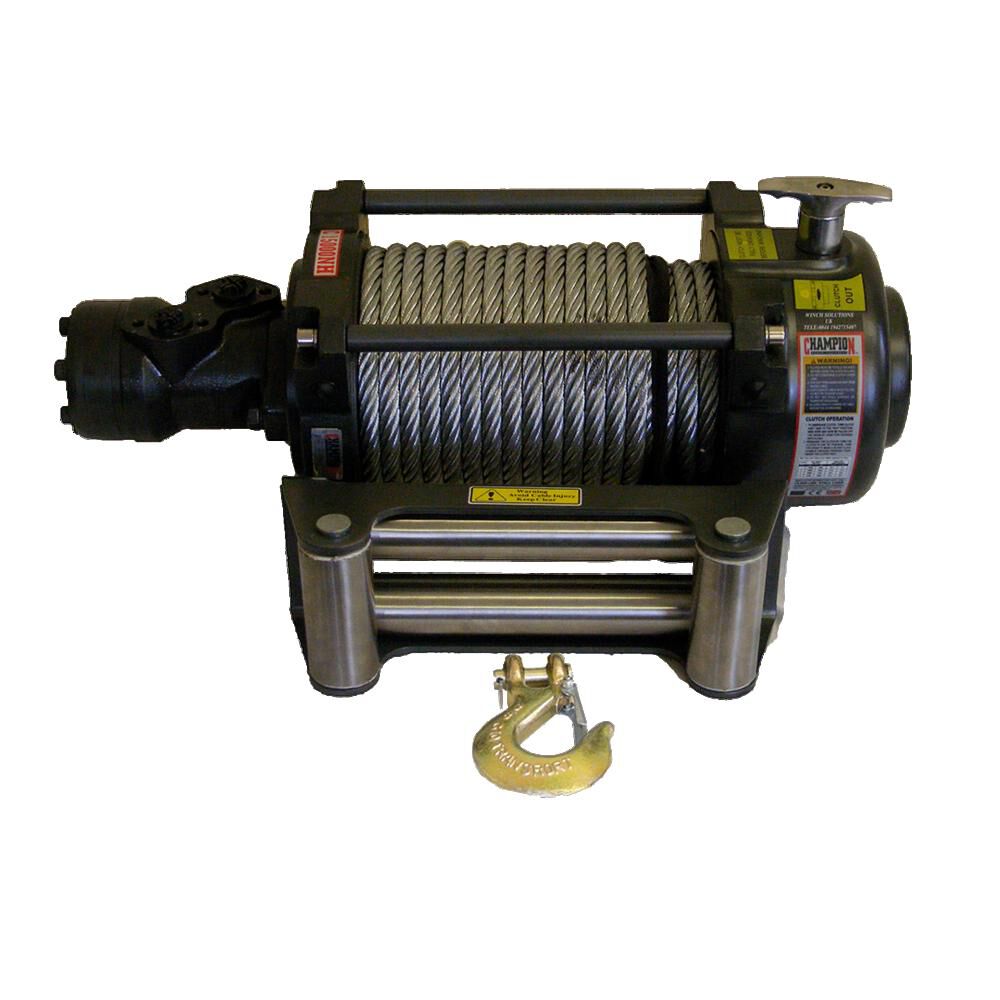

DK2 Warrior Hydraulic Winch 10000lb
DK2 10000NH Hydraulic winch is Compact and tough.
A hydraulic winch for industrial and commercial applications.
The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range.
Complete with internal brake to ensure maximum control and load holding.
Stainless steel roller fairleads and fittings are standard. 1 Year Limited Warranty.
Makes a great gift!
California Proposition 65 Warning.Features
- Patented Heavy Duty Gearing
- Integral, Automatic Fail safe Brake
- Spring Engaged Manual Free spool
- Stainless Steel Fairlead and Fittings
- Rugged and compact for Long Life
- Line Pull lbs Line Speed ft/min Flow L/min Pressure Mpa 0 2.3 5 2.0 3000 4.6 10 4.5 6000 8.9 20 6.8 9000 15.1 35 9.0 10000 17.4 40 12.5
- Layer of Wire Line Pull lbs Rope on drum Rope ft 1 10000 16.4 2 8012 37.2 3 6683 60.9 4 5732 83.7
- Rated Line Pull 15000 lbs Motor Hydraulic Dis 2.7 oz/r Gearing 33.4:1 Drum Size Dia x L: 3.5 x 8.6 inch Cable Dia x L 0.47 x 1.04 inch Dimensions 21.8 x 8.89 x 10.31 inch Weight 151.67 lbs Mounting Pattern 10 x 4.5 inch
Specifications
Brand Name - DK2
Assembled Depth (in) - 20
Assembled Weight (lbs) - 121
Assembled Width (in) - 7.3
Assembly Required - Yes
Color - Black Red or Gray
Country of Origin - China
Height (in) - 8.8
MFG Part # (OEM) - 10000NH
Material - Steel
Package Contents - Warrior Hydraulic Winch 10000lb
Package Depth - 14.25
Package Height - 24
Package Weight - 140
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518003360
Warranty Type - 1 Year
