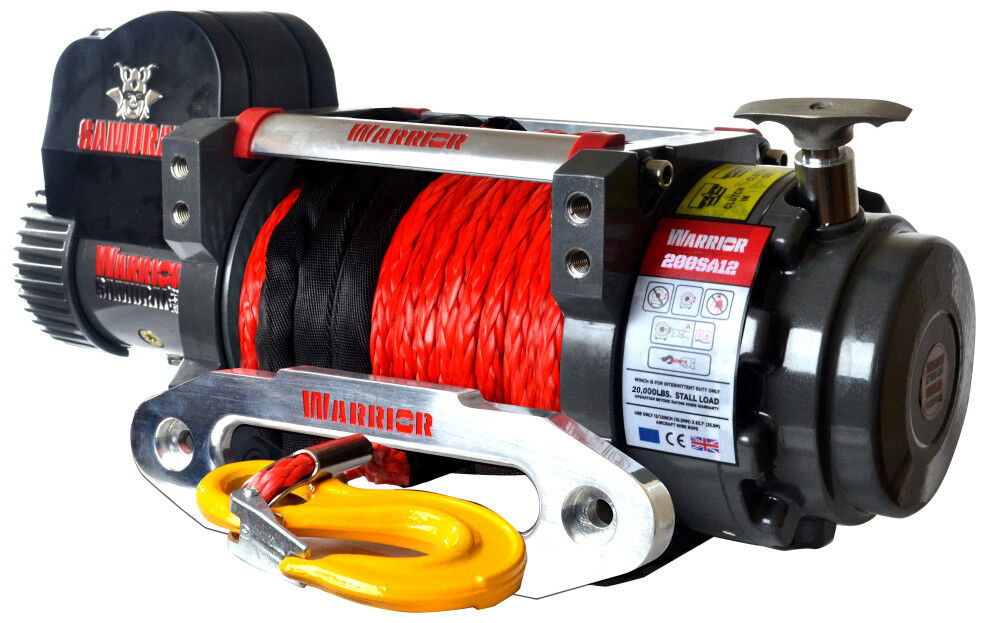

DK2 Samurai Winch 20000lb with Synthetic Rope
Warrior Winches are excited to announce the arrival of the colossal Samurai 20000lb Winch.
Designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle.
Available in 12v or 24v this Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings including the roller fairleads are stainless steel & the smooth planetary gearing is full steel.
All this is backed up by the unrivalled Warrior Lifetime Warranty.
California Proposition 65 Warning.Features
- All Brass (no corrosion) Series Wound Motor
- Double Sealed Motor, Sealed Waterproof Contactor
- Steel Contactor Cover for Added Protection, Sealed 3 Stage Planetary Gears
- Double Sealed Drum (Gearbox/Motor), Stainless Steel 4 Way Fairleads
- Line Pull lbs Line Speed ft/min Line Speed 24v ft/min Amp Draw 12v Amp Draw 24v 0 19.7 13.8 100 40 6000 7.2 6.9 220 100 10000 5.6 5.9 320 140 12500 4.9 5.2 350 180 14000 4.6 4.6 380 200 17500 3.0 3.9 450 250 20000 3.6 3.3 480 265
- Layer of Wire rope Line Pull lbs 1 20000 2 16160 3 13557 4 11677
- Rated Line Pull 20000 lbs Motor 12V: 7.5 HP 24V: 7.9 HP Gearing 430:1 Drum Size Dia x L 3.5" x 8.62" Cable Dia x L 0.47" x 1.04" Weight 148 lbs Dimensions 24" x 8.5" x 10" Mounting Pattern 10" x 4.8" Breaking Action Auto in the drum
Specifications
Brand Name - DK2
Assembled Depth (in) - 24
Assembled Weight (lbs) - 160
Assembled Width (in) - 8.5
Assembly Required - Yes
Color - Black Red or Gray
Country of Origin - China
Height (in) - 10.9
MFG Part # (OEM) - S20000-SR
Material - Steel
Package Contents - Samurai Winch 20000lb with Synthetic Rope
Package Depth - 15
Package Height - 26
Package Weight - 163
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518005616
Warranty Type - 1 Year
